The Mad Hat Man

Well-Known Member

LZIR Despatch Agent

• Jul 7, 2019

• #41

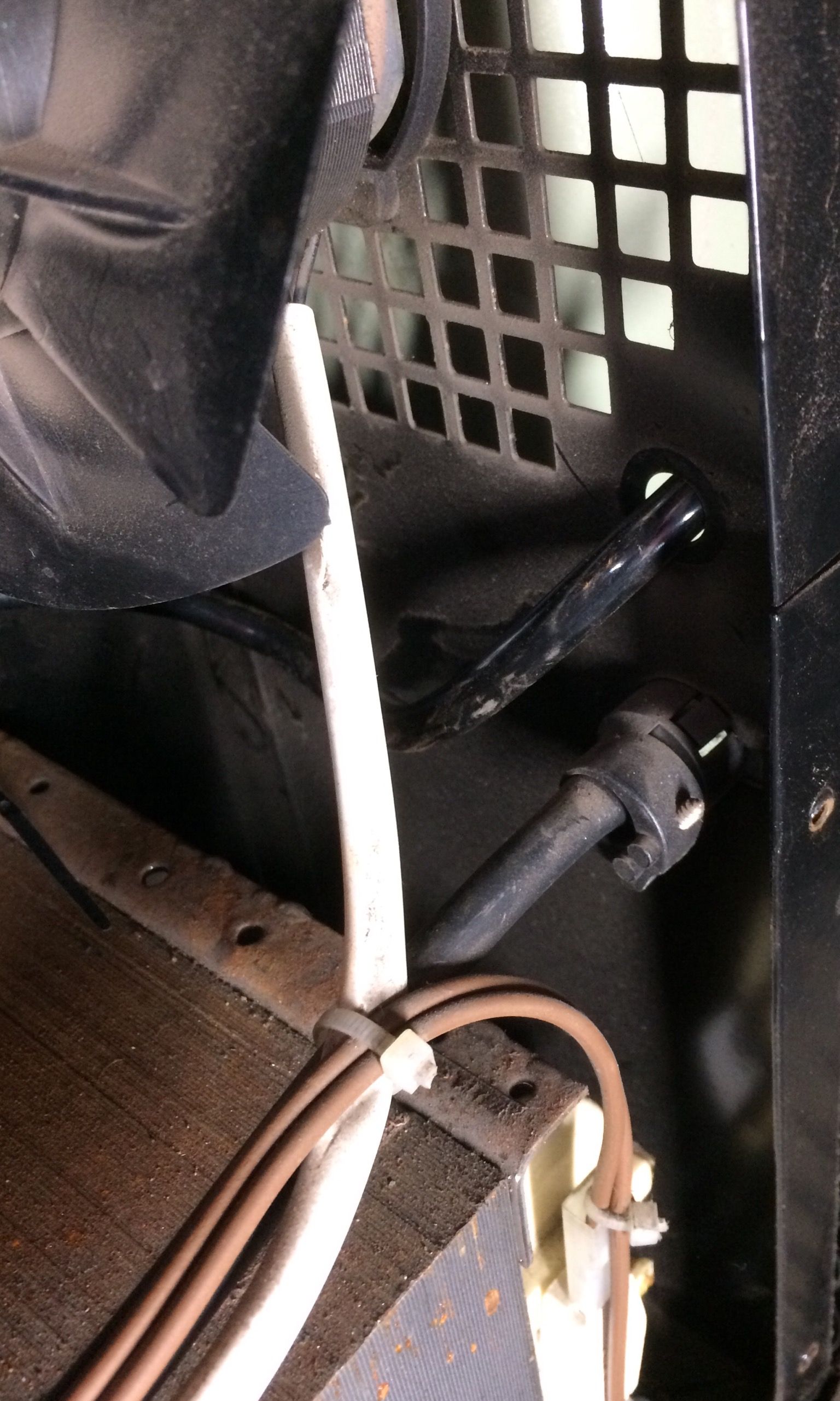

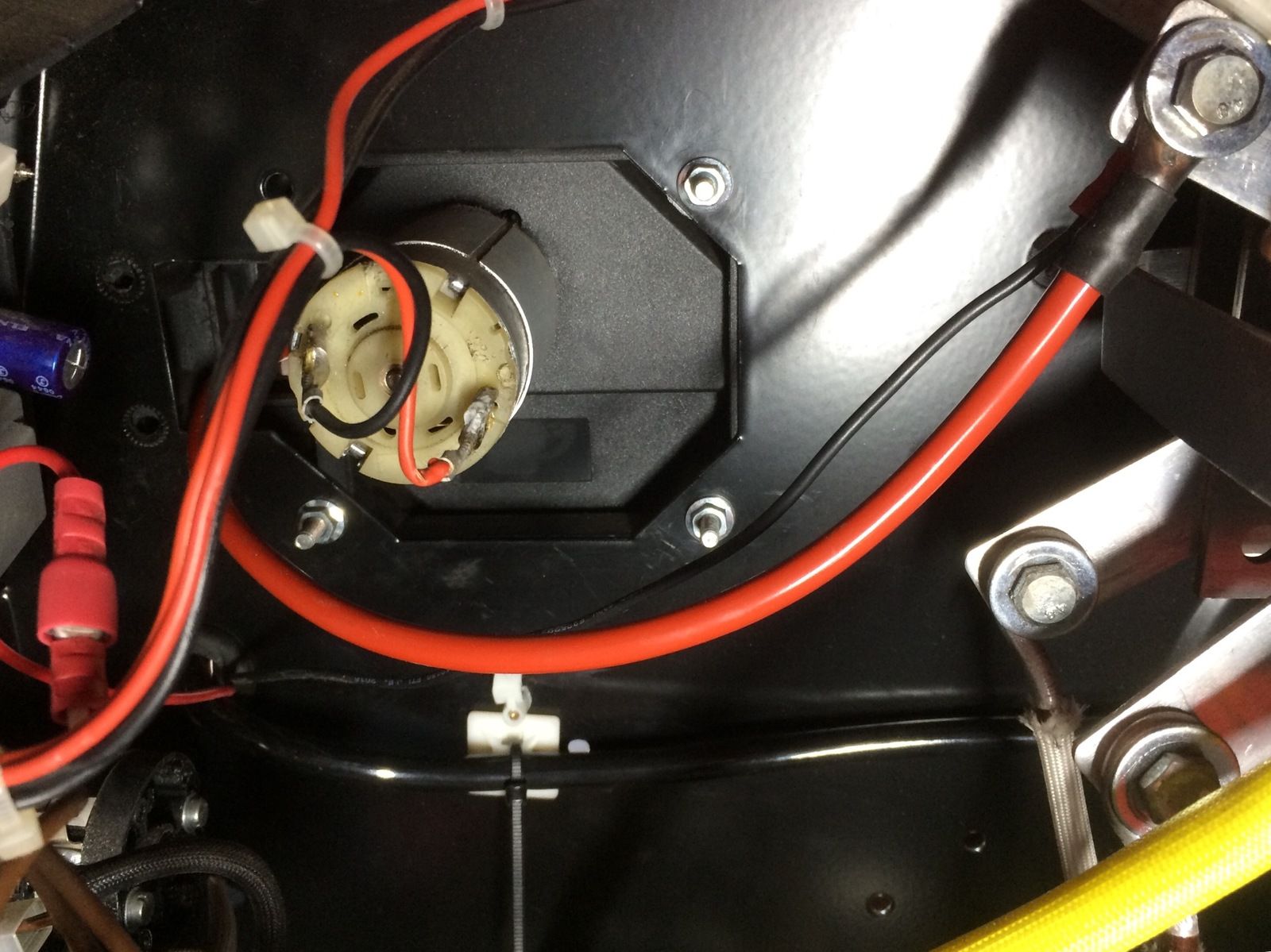

Piccies as promised.

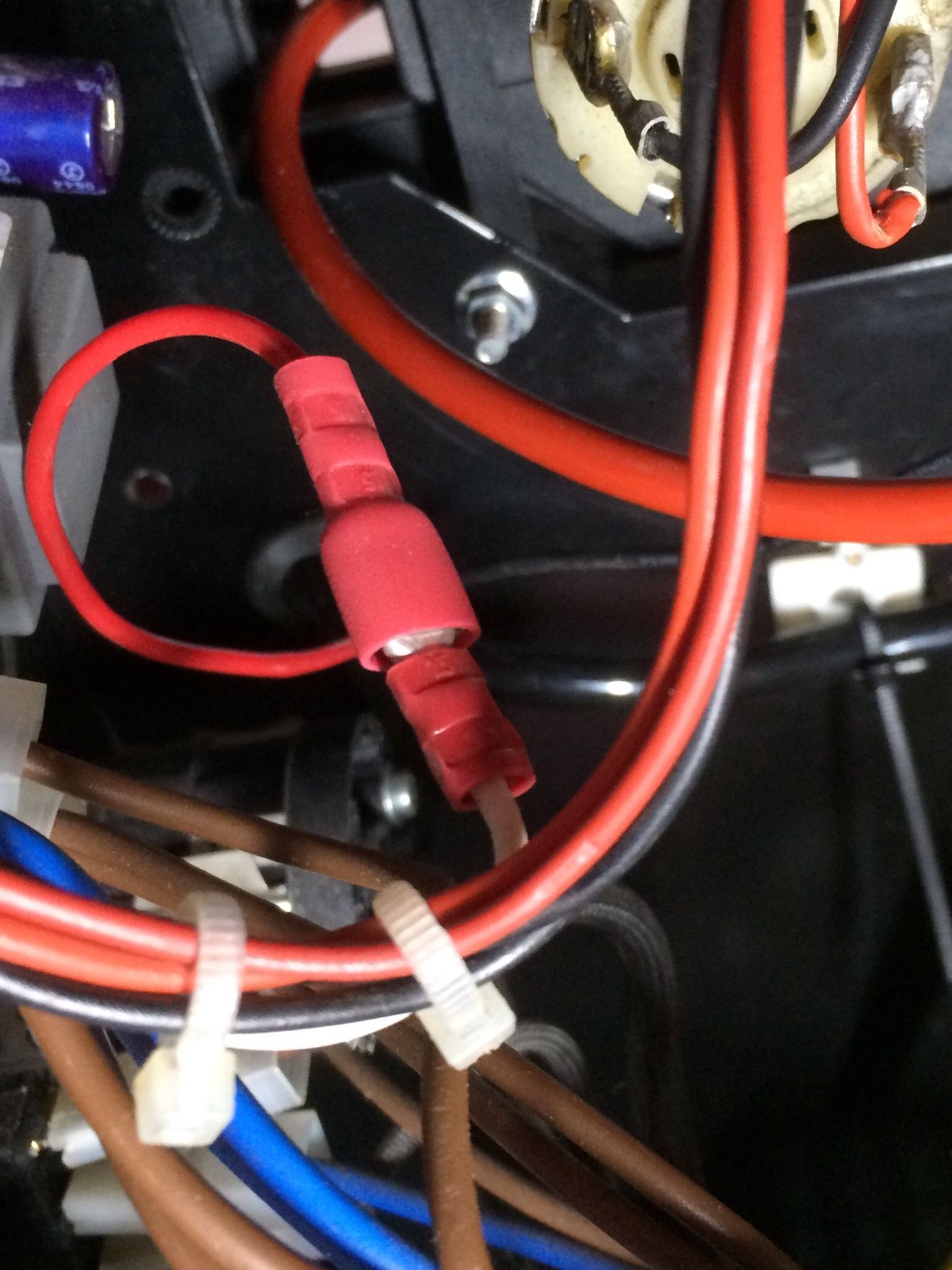

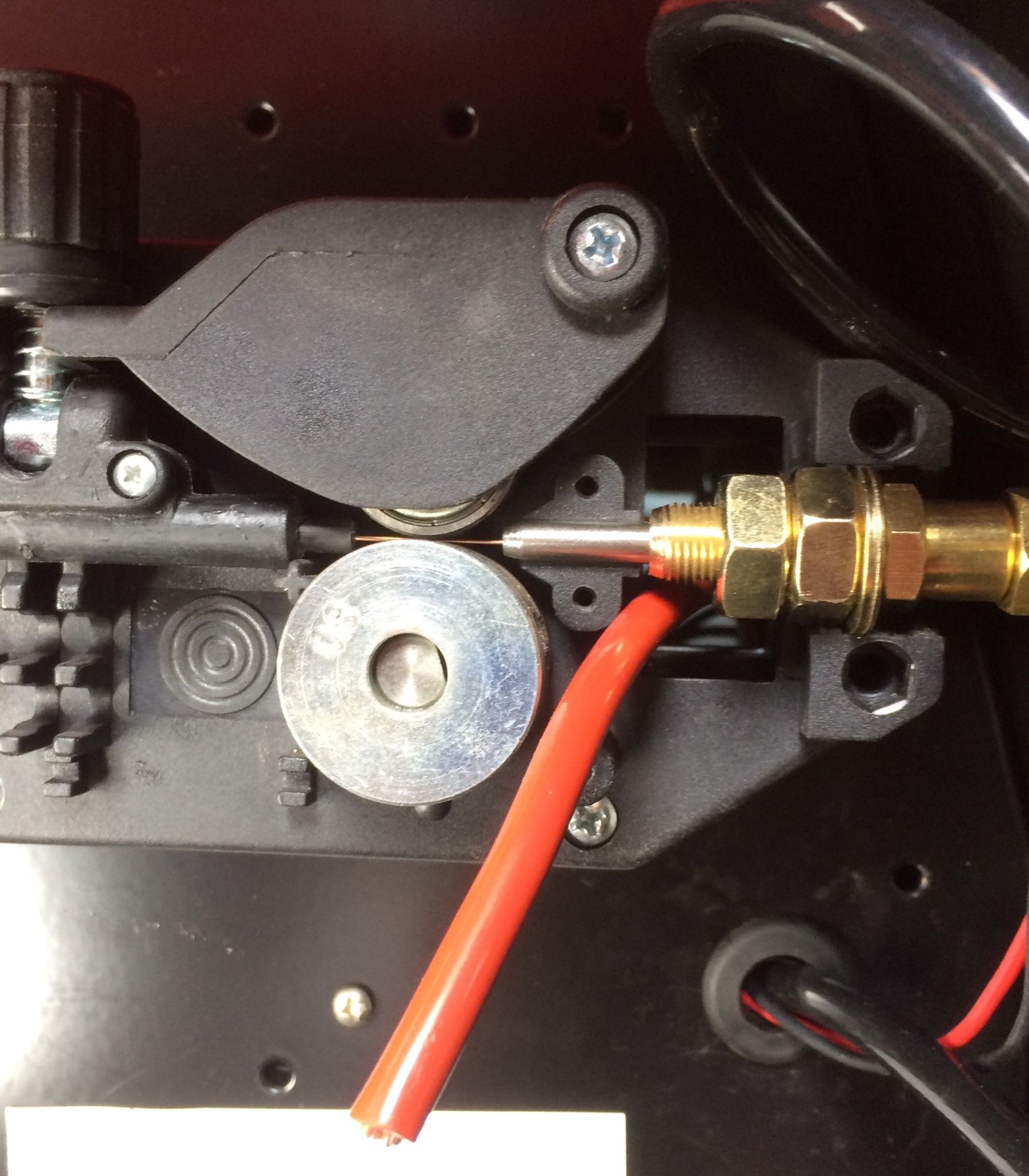

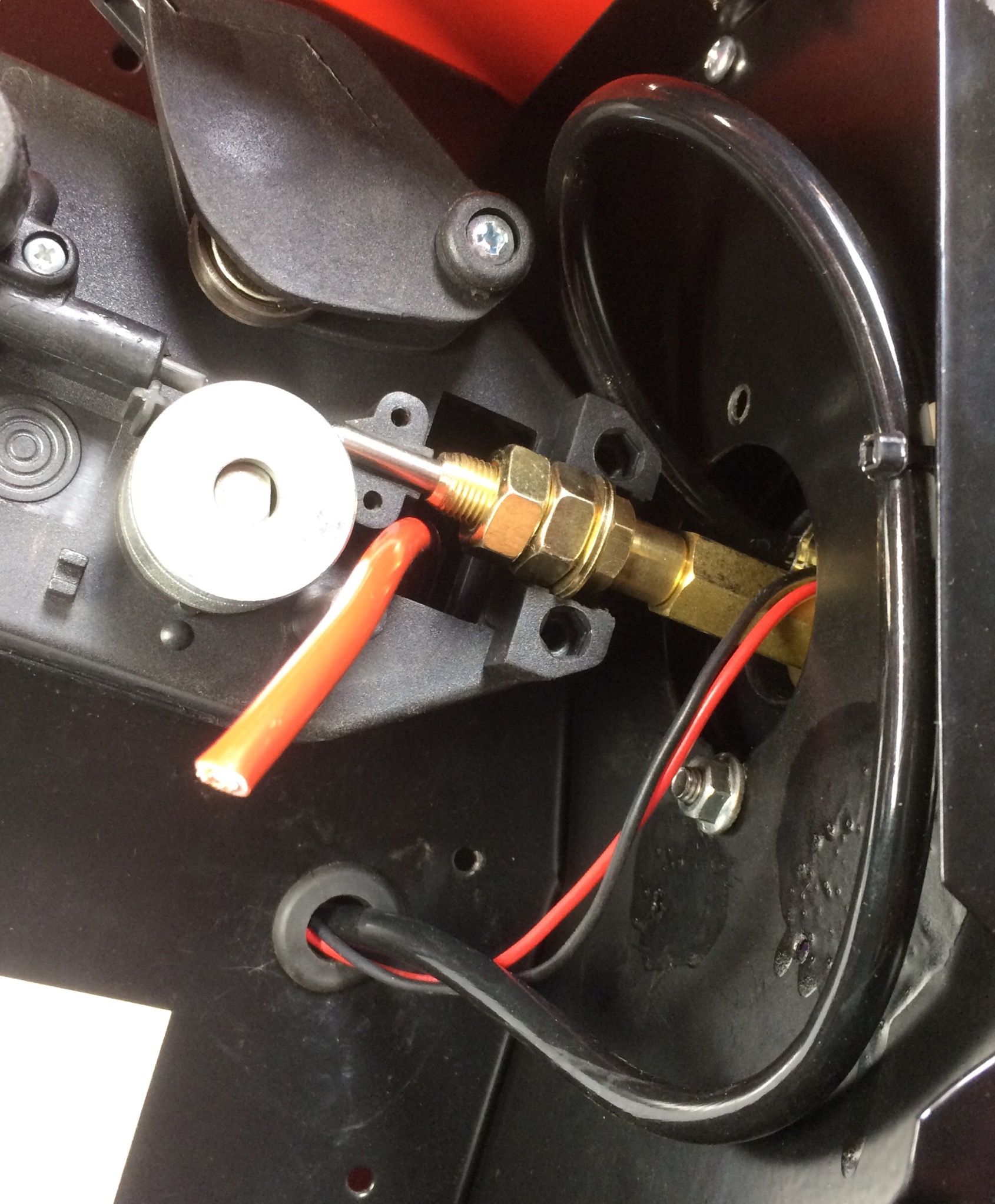

Still need to connect 24v wire to brass fitting and connect in some form of gas solenoid.
As stated previously, I might run the low voltage electrics through a solenoid, to reduce load on trigger switch.

More pics to follow



The Mad Hat Man

Well-Known Member

LZIR Despatch Agent

• Jul 11, 2019

• #42

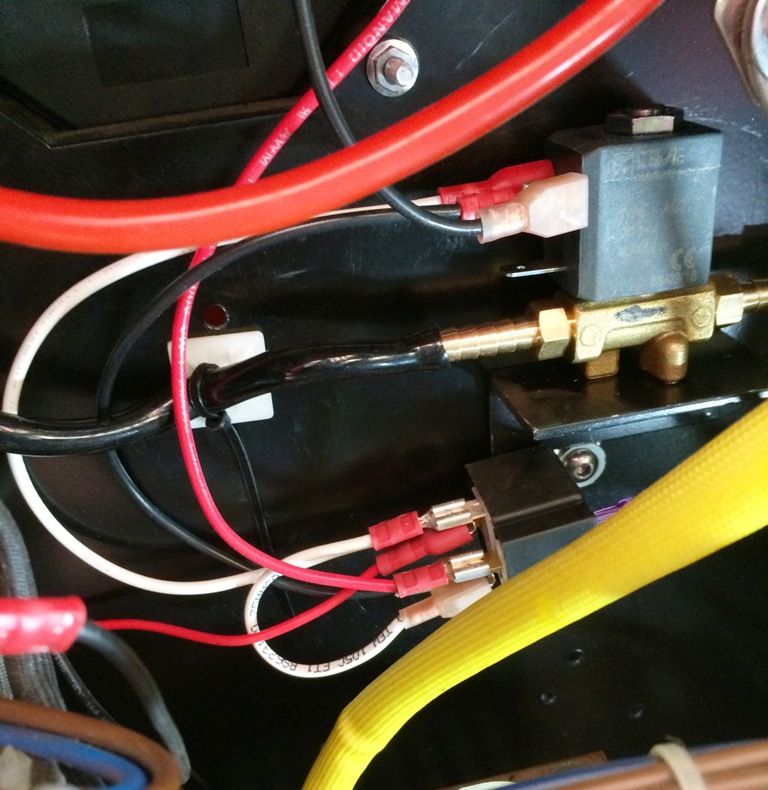

24v relay and gas valve now received. Sorting out wiring and positioning of them. Pics to follow..



The Mad Hat Man

Well-Known Member

LZIR Despatch Agent

• Jul 15, 2019

• #43

Well.... that didnt work out very well . Relay doesnt seem to work from 24V supply (Yes it is a 24V relay) although I could only measure 19.6volts OC and 0V with relay connected!!

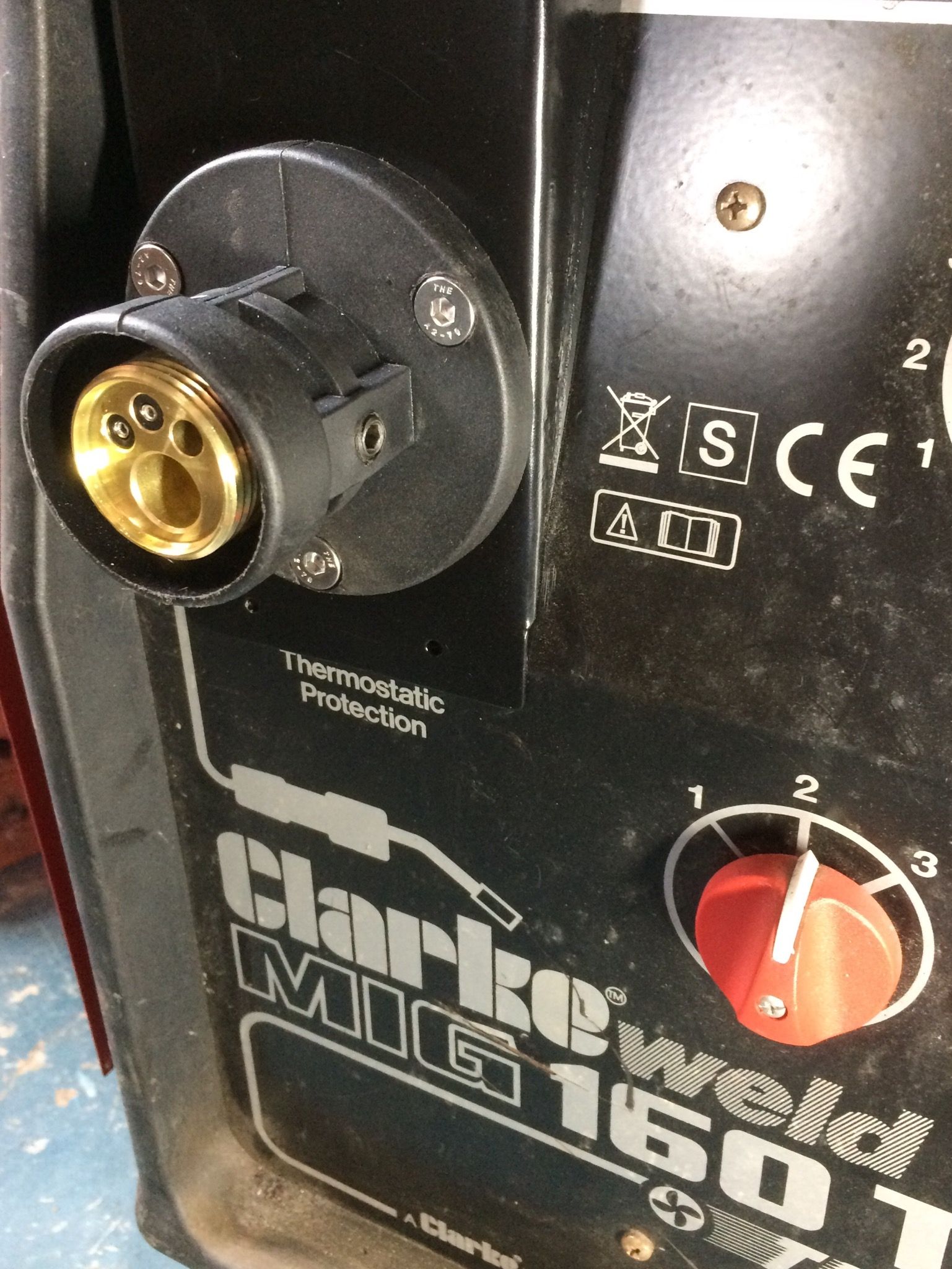

So not much further. I can use the new Euro torch to switch the motor feed, but that still leaves me no gas supply!

BUGGER!!



The Mad Hat Man

Well-Known Member

LZIR Despatch Agent

• Jul 15, 2019

• #44

Sorted .

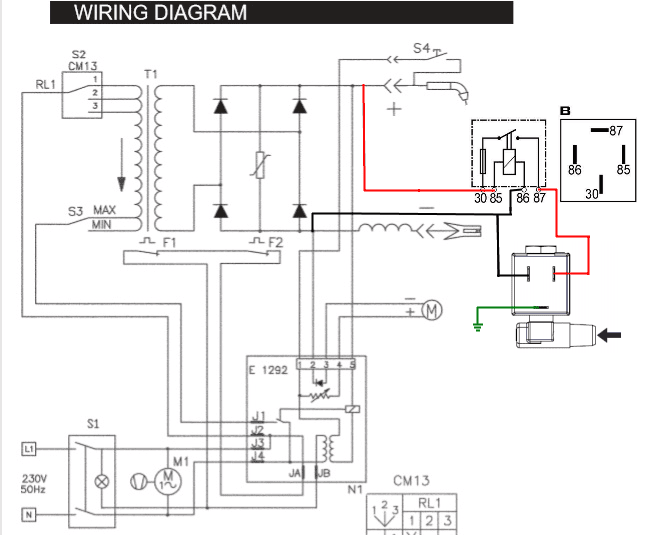

You cant use the trigger switch to trigger the relay directly, it has to be done as a parallel switch! For some reason, when the trigger switches the motor circuit, the voltage goes up!!!!



R

Ratae

Well-Known Member

• Jul 17, 2019

• #45

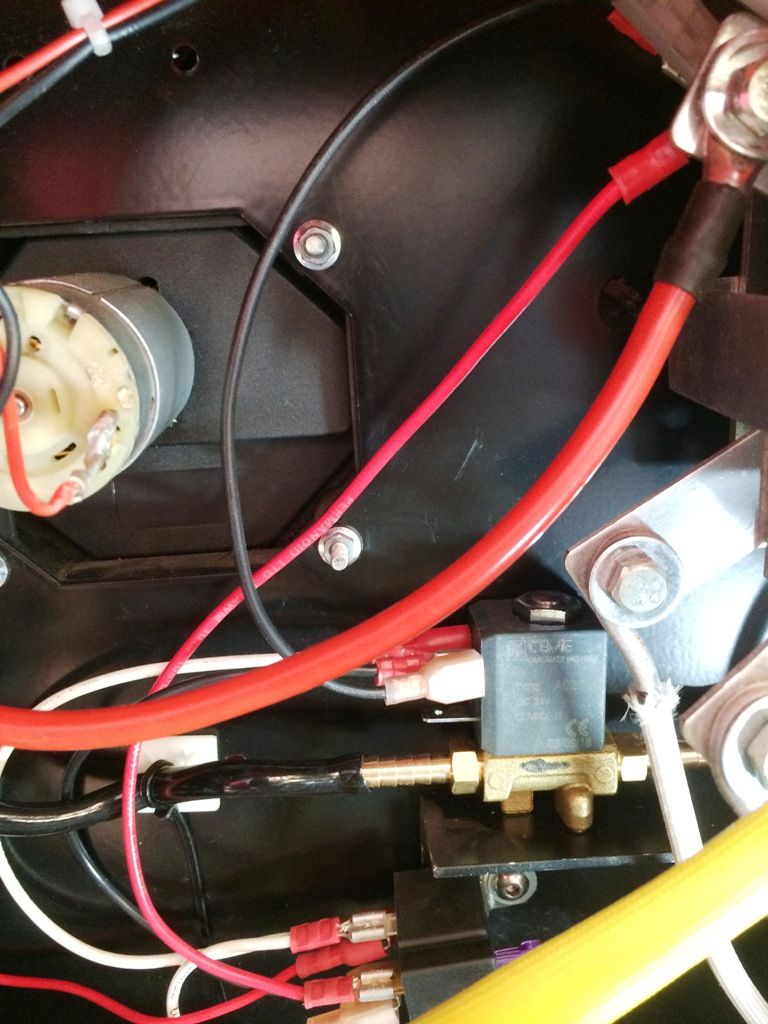

I suggest using a bit of heat on the pipe & push it further on to the gas valve. Looks a bit precarious!



The Mad Hat Man

Well-Known Member

LZIR Despatch Agent

• Jul 17, 2019

• #46

It’s just a temp fix.
