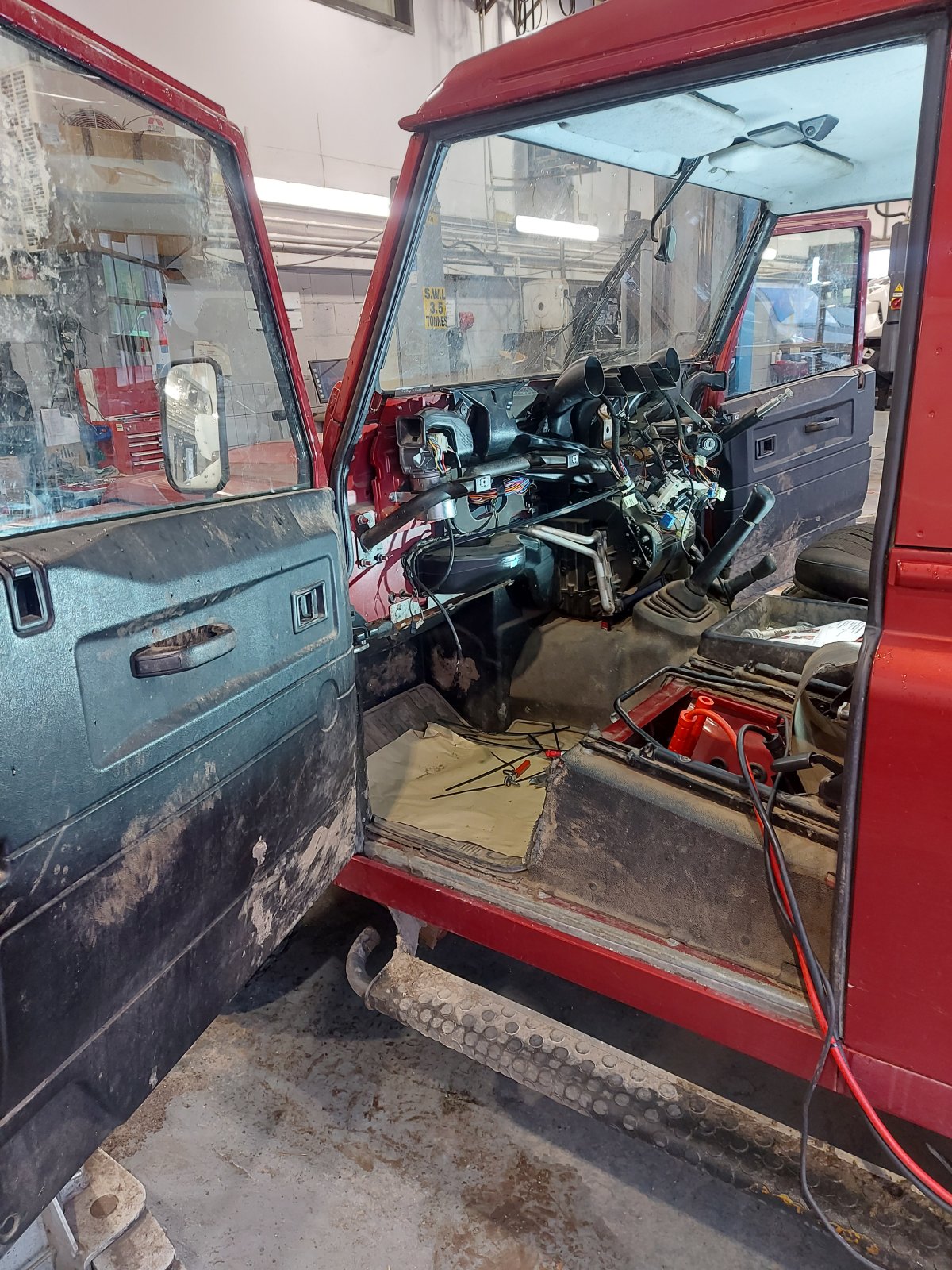

Hi all, working on, dread wipers, sgriped out dash, replaced siezed spindles & motor, seen better days, found a wire hanging out of the wiper stalk so replaced aswell.

Looking for a wiring diagram, as the system runs continous, no park, i have speed 1 & 2, no intermittent etc found 2 relays that shut system off, but ideally trying to source a wiring diagram to check wiring circuit & relays etc ...

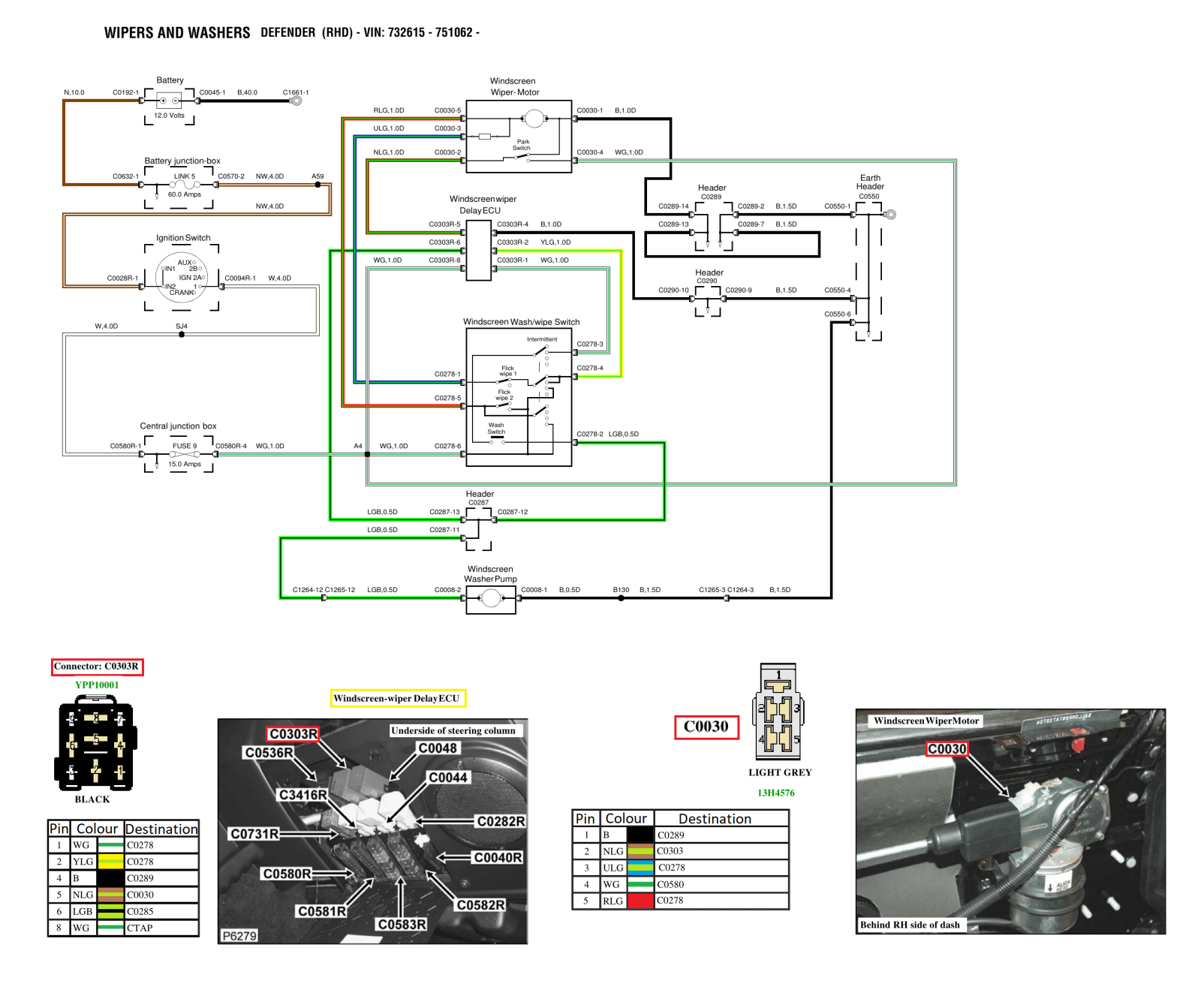

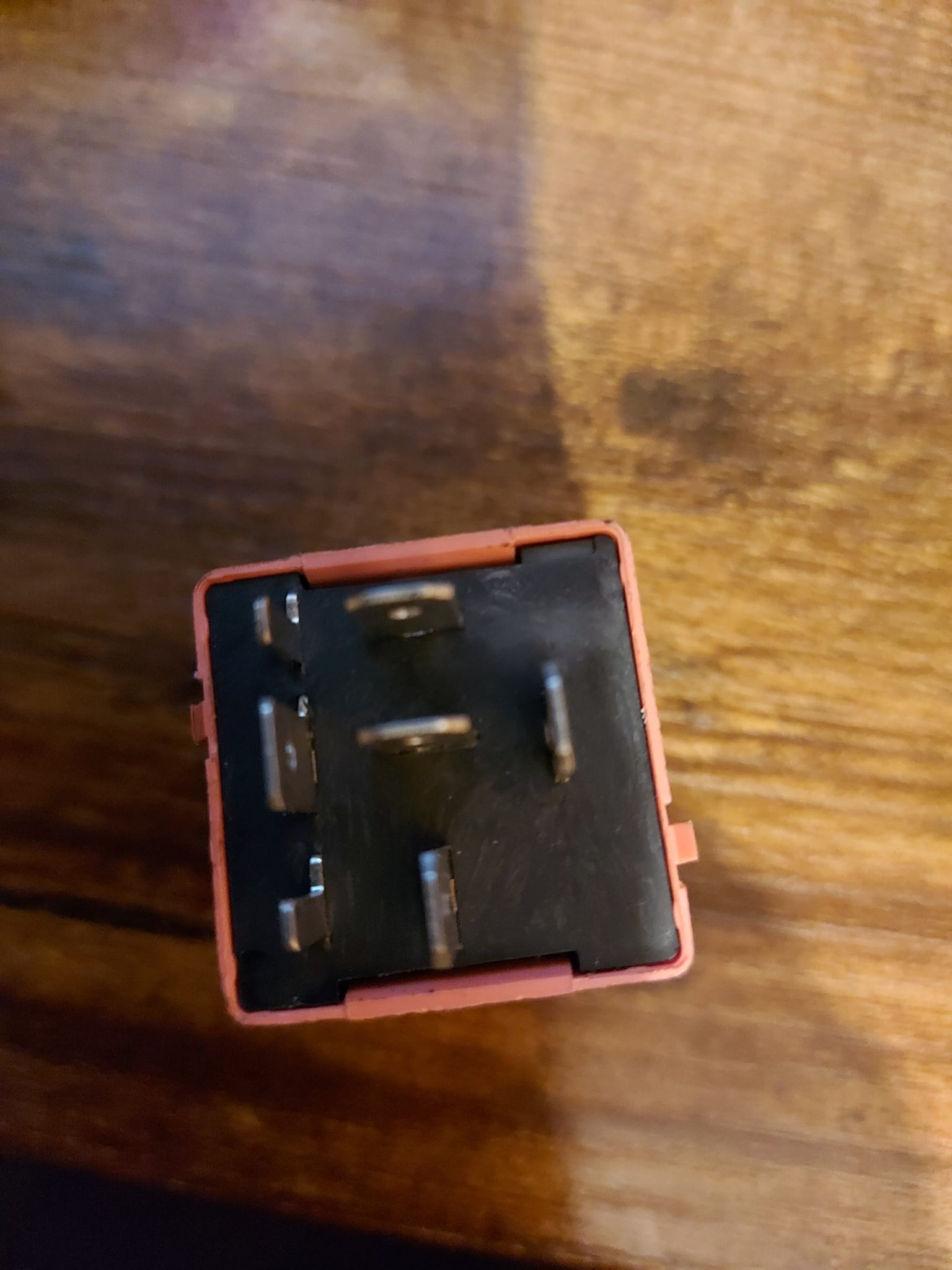

right - wiring daig looks good - curious - the relay we have is a 7 PIN relay, not sure if this is original or a aftermarket unit - markings on side: LUCAS 13DA (13a ?)12V YWC10050, been looking at a couple of websites and they not showing a 7 PIN relay, looking at the wiring diag - relay - there is a number C0303R - would that be a relay i should be looking for to match to from our local parts shops ?, i gave them the C0303 number & the LUCAS YWC10050 and they not list.

Doing alot of googling - this 7pin relay is for headlights, im wandering now - wether someone has swaped the 2 red/pink relays in the fuse board ...


Last edited:
**UPDATE ** thoughts were right, someone had swapped the headlight relay for wiper relay, i numbered before removing ... rebuild now, cheers for all support 🥸
