Anaconda said:

I will measure mine later for you, which is stock.

Click to expand...

Knappster said:

Are there any colours or markings visible on the springs?

Click to expand...

v8250 said:

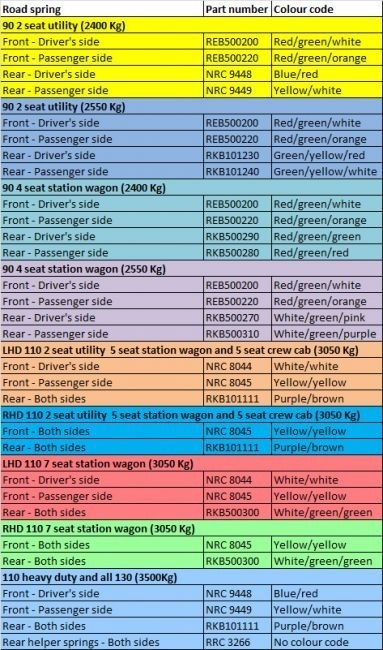

Here are the std spring colours and part numbers. It does look like your tratter is sitting lower at the back. To be absolutely certain change springs for correct colour/length and be done. Don't be tempted to go for HD springs, you'll just be bouncing around especially at the rear.

View attachment 313292

Click to expand...

110Matty said:

I could only see on one damper that it was an Armstrong I think?

Click to expand...

Anaconda said:

Centre of the wheel to bottom of the wheel arch moulding is 50cm front and rear.

Click to expand...

R-Two-D2 said:

I just read this "somewhere else"...
STD 90/110 FRONT SPRING measures 260mm +/- 5 mm
The REAR SPRING should be around 300 mm +/- 10mm
STD Disco/RRc FRONT SPRING measures 250 mm +/- 5 mm
The REAR SPRING should be around 300 mm +/- 10mm

I have no independent info, just thought this might be useful.

Are 17" wheels & that tyre profile "standard"? They look a little odd / too modern for the 90...?
If not a standard size, they might give a "lift" if the standard is 16" wheels, but depends on the tyre profile.

Looking your car up in this linky might help clarify this - https://www.wheel-size.com/size/land-rover/

Click to expand...

tottot said:

Given that you have OEM Armstrong I would say suspension is not lifted. Armstrong do not make extended length dampers. However who knows what previous owner did.

Click to expand...
