mozz smith · Apr 19, 2015

hi lads , can anyone help positively identify cylinder 4 on a 2000 thor 4.6 v8 engine , ie looking at bulkhead from front of car is it on left bank " drivers side or right bank "passenger side ???? and in what position from bulkhead i.e. 1st 2nd 3rd 4th ??????????? your help would be most appreciated , I have tried deciphering rave but I do struggle !!!!

in anticipation kind regards

ukadamwest · Apr 19, 2015

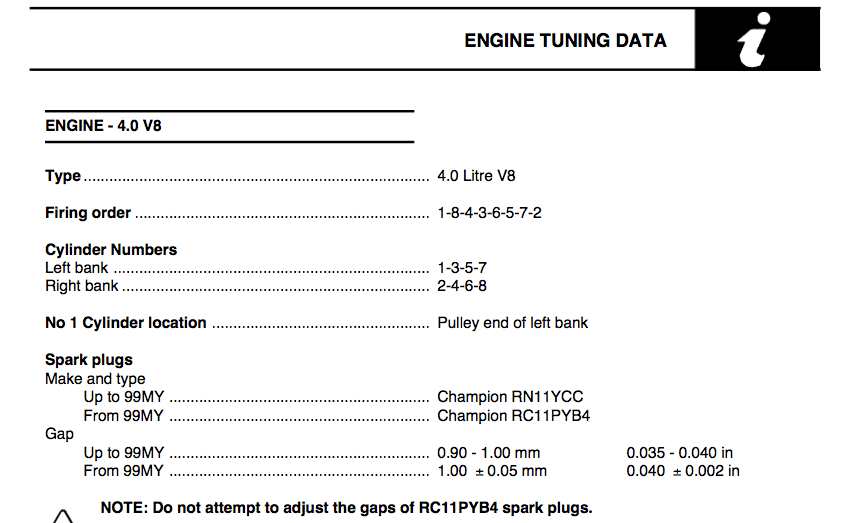

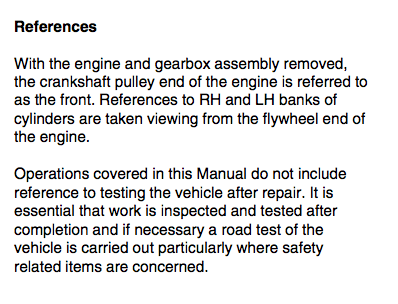

here you go....

mozz smith · Apr 19, 2015

hi james sorry your wording contradicts itself surely ?????? cheers mozz

so if im sat behind wheel wich side is pot 4 0n ????

jamesmartin · Apr 19, 2015

mozz smith said:
hi james sorry your wording contradicts itself surely ?????? cheers mozz

so if im sat behind wheel wich side is pot 4 0n ????

yes it did

wil2813 · Apr 19, 2015

Fergie46 · Apr 19, 2015

mozz smith said:
hi lads , can anyone help positively identify cylinder 4 on a 2000 thor 4.6 v8 engine , ie looking at bulkhead from front of car is it on left bank " drivers side or right bank "passenger side ???? and in what position from bulkhead i.e. 1st 2nd 3rd 4th ??????????? your help would be most appreciated , I have tried deciphering rave but I do struggle !!!! in anticipation kind regards

Why do you want to know - are you going to put it on the naughty step?

Just curious

MrGorsky · Apr 19, 2015

mozz smith said:
so if im sat behind wheel wich side is pot 4 0n ????

If you're sitting in the drivers seat, pot 4 is on the RHS.

Right and Left are always stated from sitting in the drivers seat in RAVE.

When standing with the bonnet up looking at the engine, knees touching the front bumper, it's the second one back, but now on the side with the brake accumulator, the LHS (because you've turned round whilst walking to the front of the car).

NOT the side with the air compressor.

wammers · Apr 19, 2015

Mozz put your belly against the grille look into the engine bay. The bank of cylinders on your right front to back are 1,3,5,7 the bank of cylinders on your left front to back are 2,4,6,8.

Grrrrrr · Apr 20, 2015

Watch the grille! If it is anything like mine it is ready to snap where the fastenings are at the slightest touch.

2,4,6,8 ... sounds like the beginning of a song.

wammers · Apr 20, 2015

Grrrrrr said:
Watch the grille! If it is anything like mine it is ready to snap where the fastenings are at the slightest touch.

2,4,6,8 ... sounds like the beginning of a song.

Are you suggesting Mozz has a large fat belly?

Grrrrrr · Apr 20, 2015

I made no such suggestion!

mozz smith · Apr 20, 2015

ha ha ha grr and wammers but I am on a diet ,,, ok many thanks its still at the garage hopefully will be done by 5.00pm fingers crossed will lert you all know the result later kind regards mozz

wammers · Apr 20, 2015

Grrrrrr said:
I made no such suggestion!

Oh ok, but saying watch the grille as Mozzy followed my instructions sort of sounded that way. Knowing Mozz as i do you may like to included front slam panel in that warning.

mozz smith · Apr 20, 2015

wammers said:
Oh ok, but saying watch the grille as Mozzy followed my instructions sort of sounded that way. Knowing Mozz as i do you may like to included front slam panel in that warning.

its your fault you keep feeding me cake !!!!!!!!! though I have lost 1 stone 2 pounds !!!!!!!! but no doubt that all the cranks will answer that one ????????????? al ?? data ??? etc ??? wammers ???

wammers · Apr 20, 2015

mozz smith said:
its your fault you keep feeding me cake !!!!!!!!! though I have lost 1 stone 2 pounds !!!!!!!! but no doubt that all the cranks will answer that one ????????????? al ?? data ??? etc ??? wammers ???

Where did you lose your wallet?

Grrrrrr · Apr 20, 2015

Ba dum!

mozz smith · Apr 21, 2015

hi lads ,

garage just rang they've checked

coil -= both ok
plug leads -= all ok
plugs -=all new ok

still misfiring on cylinder 4 ?????

checked with diagnostic people === autologic
they say its defo electrical problem ????
so anyone got any suggestions apart from matches??

its a 2000 v8 4.6 vogue petrol/lpg thor

aparantly all lpg side working good

still confused

any help urgently needed please !!!!

kind regards mozz

wammers · Apr 21, 2015

Carbon plug leads are resistive. If they break down slightly, that coupled with the built in resistance in the plug can cause a yellow spark. Result misfire. Nearest i can get Mozzy sorry.

Datatek · Apr 21, 2015

I'd be inclined to swap the plug leads.

Fergie46 · Apr 21, 2015

mozz smith said:
hi lads , garage just rang they've checked

coil -= both ok
plug leads -= all ok
plugs -=all new ok

still misfiring on cylinder 4 ?????

checked with diagnostic people === autologic
they say its defo electrical problem ????
so anyone got any suggestions apart from matches??
its a 2000 v8 4.6 vogue petrol/lpg thor

aparantly all lpg side working good

still confused any help urgently needed please !!!!

kind regards mozz

Ah, so No 4 is on the naughty step - do a comp test and then swap the leads/plugs around and see if the fault follows them.
