I did the head gasket about 18 months ago and it went there then.
If you remember at the beginning the timing had slipped a tooth maybe two on the fuel pump. I don't think that would have caused it. I suppose the over reving would. No marks on the pistons from a valve hitting but that doesn't mean it didn't.
Hence why I'm going to strip the head completely and check all the valves aren't sticking out something else. Pointless putting it back without checking.
I think the bent exhaust push rod maybe could cause the smoke? Only one bent is the strange thing.
I will check the others but that one was obvious....lol
Push rods bend before the valves do. You should be fine.
If you are taking the valves out are you doing the stem seals?

Push rods bend before the valves do. You should be fine.
If you are taking the valves out are you doing the stem seals?
Yes, my last 300 belt snapped and that did about 6 push rods, not one damaged valve.
And yes, I am most definitely going to do the valve stem oil seals. (Elring hopefully)
I'm removing them just incase one has bent but unlikely being vertical to piston. Main thing is to check after the over revving there isn't any sticking 👍👍

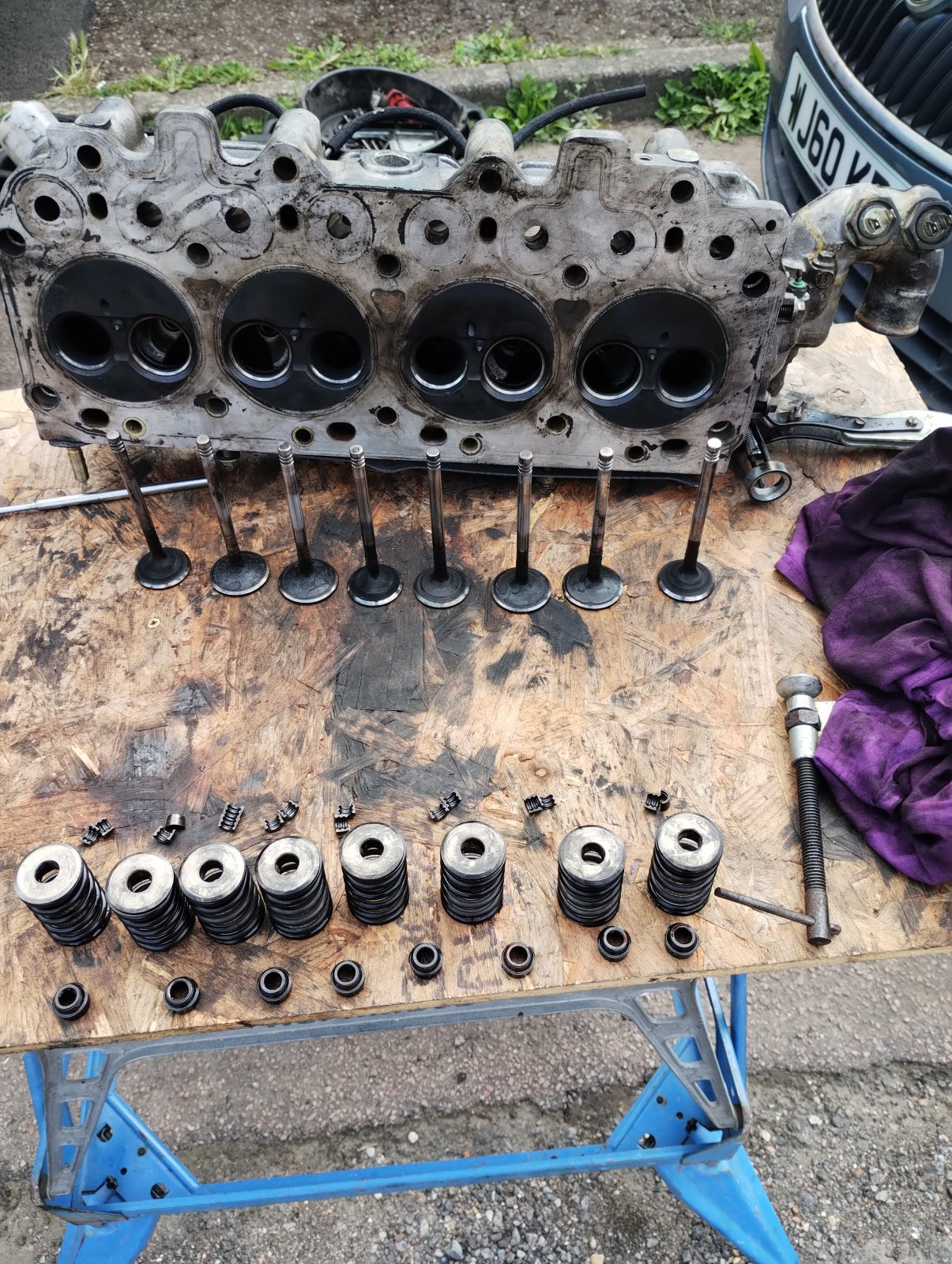

Well that's the head stripped.
No major problems really.
All valve stem oil seals had come off there seat so that would cause a problem. They were genuine elring but all very hard and brittle.
Oil in 1 and 2 exhaust ports but could be left over from the runaway?

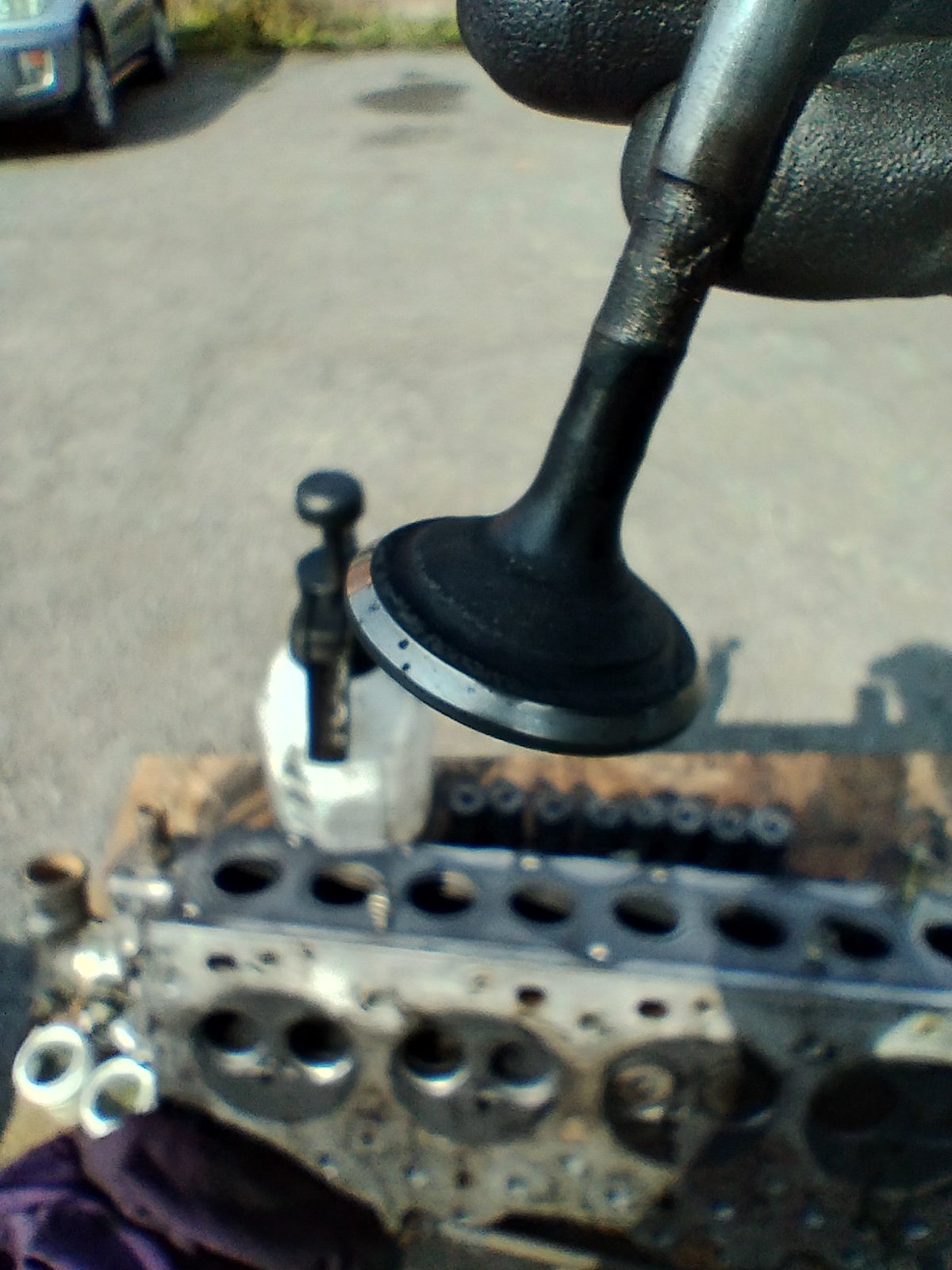

Some of the valves had black spots on there sealing ring. Maybe the start of pitting?
I've ground all 8 in using my valve lapping tool and now no black spots.
Just need to organise a shopping list now 👍👍


Attachments

  • IMG_20240818_143248559.jpg
    569.9 KB · Views: 19
  • IMG_20240818_152146944_HDR.jpg
    234.4 KB · Views: 20
