Disco1BFG said:

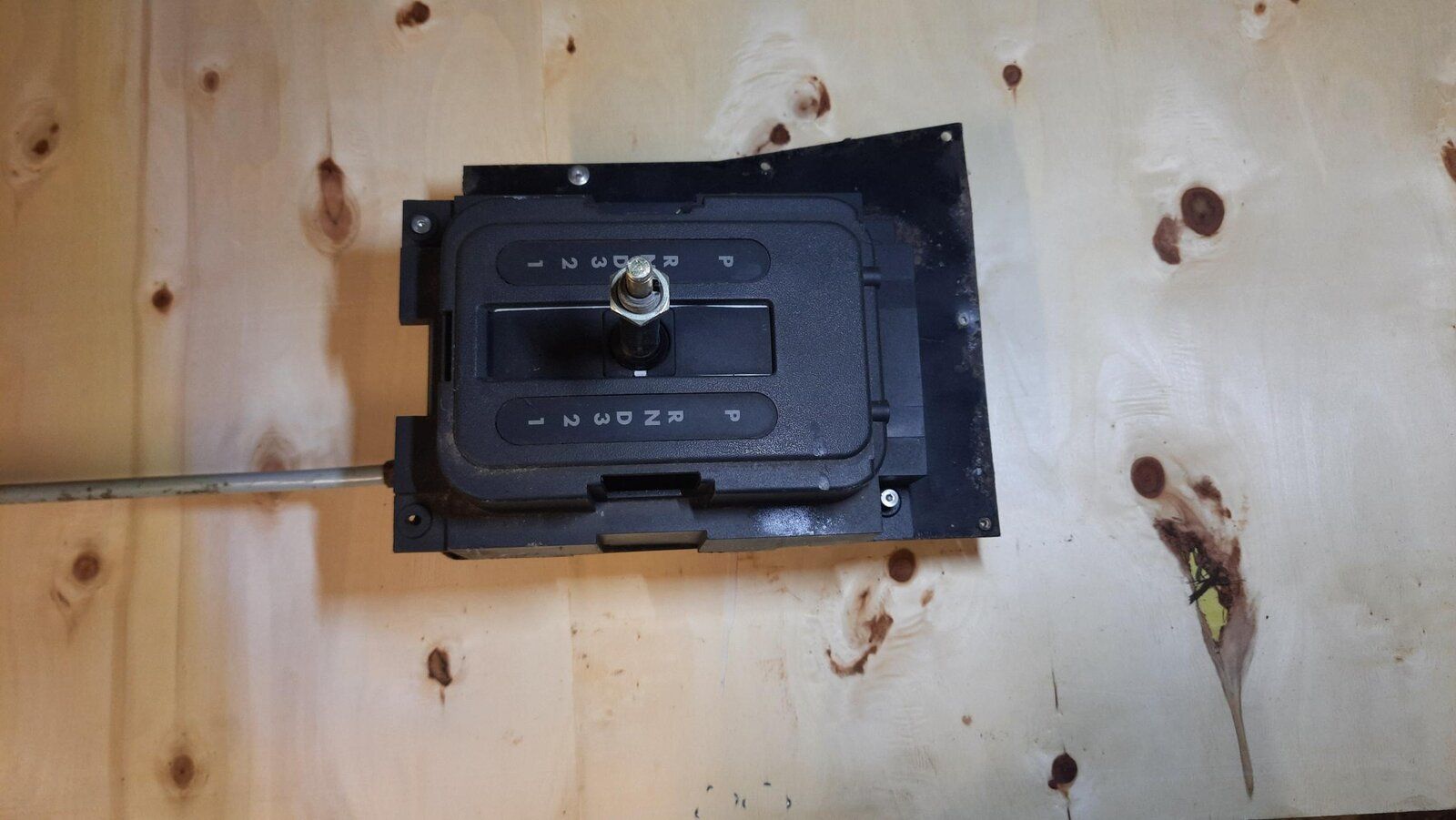

Right, inside the vehicle the changer sits on a plate pop rivetted to the tunnel - with the actual changer bolted to it - you can see the pop rivets and the SS bolts in my pic ( off a project ) below.... ( gear knob is held on by a c-clip under the cover, and then the nut hold the knob on .... )

---View attachment 255371

---

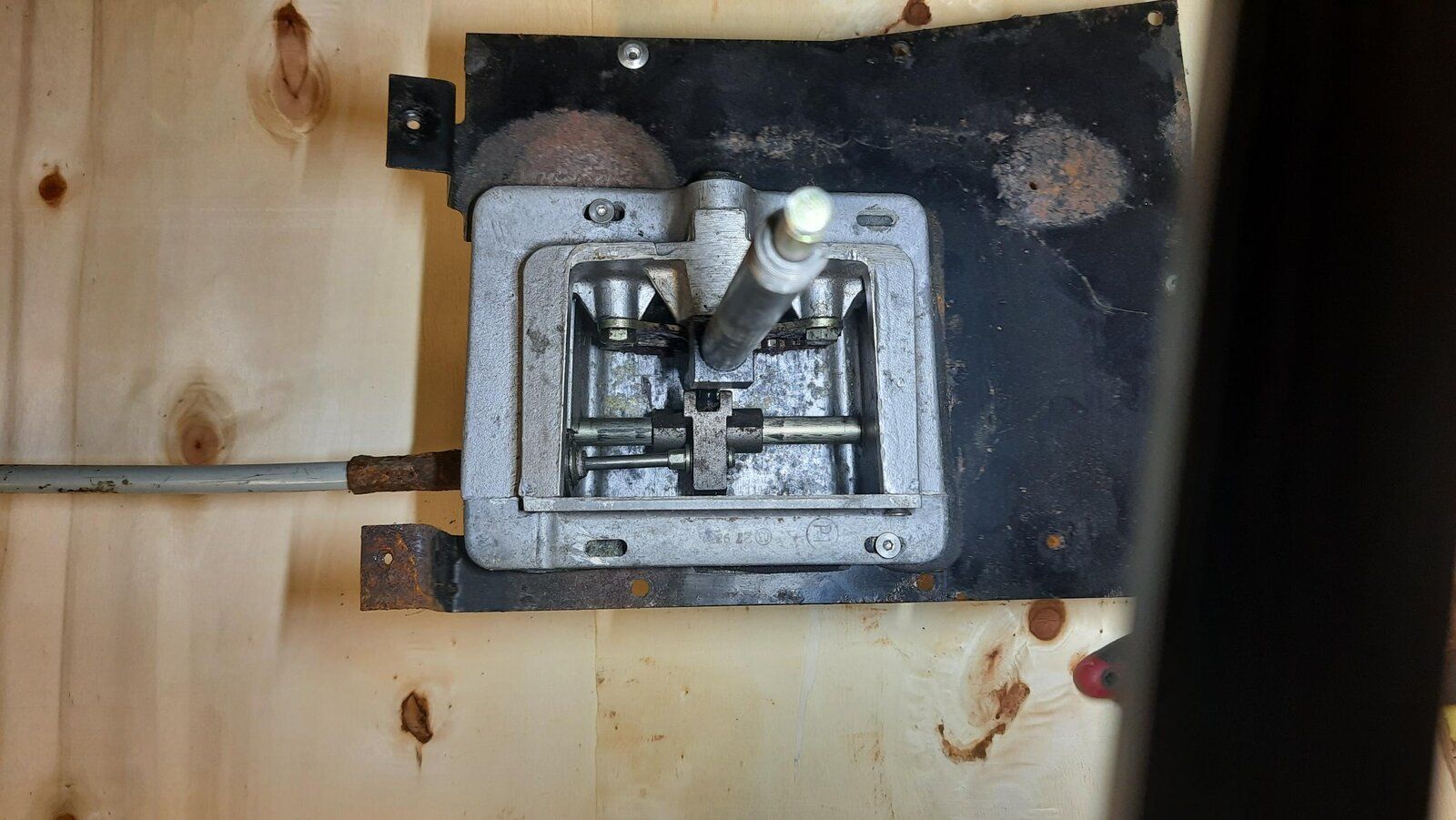

So, under the plastic cover, this is what you'll find ... cable obviously at the bottom on this pic ....
View attachment 255372

Inside the changer itself:-

View attachment 255373

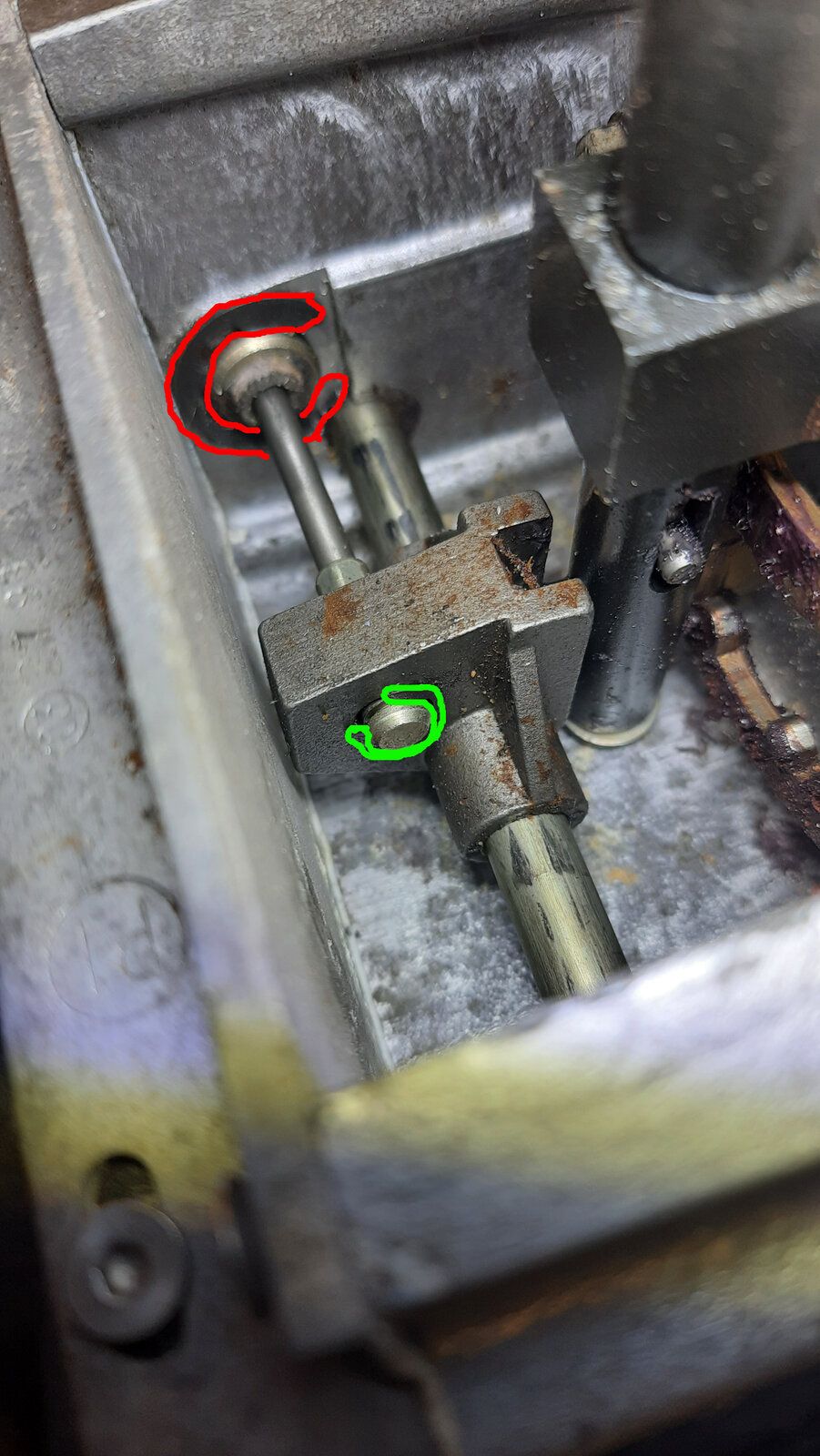

So, the cable outer is held into the body by the "red" clip ... and the cable inner in to the mechanism by the "green" clip ....

View attachment 255374

Hope that helps - if you need anything else, let me know

Click to expand...

Western Slope Rover said:

Turns out the circlip on the shift cable popped off.

Click to expand...

Western Slope Rover said:

And I start chemo in 2 days. Bad timing for this one.

Click to expand...

frog hopper said:

Well, I was going to say "get on with it ya wuss, don't let it beat ya" but seems like you've done a stirling job there anyway.

Good.

Click to expand...

Ratae said:

Might be of use: Lrcat
Clicking on the blue numbers should bring the part numbers up.

Click to expand...

Western Slope Rover said:

Thank you, mate!
All fixed. Turns out the circlip on the shift cable popped off.

Click to expand...

Western Slope Rover said:

A few hours working on the Land Rover was therapy in a way. After all, what is more normal than having to work on a Land Rover? Normal is good right now.

Click to expand...

tomcat59alan said:

It's a Classic Keith.

Click to expand...

Datatek said:

So what? It's a ZF4HP22 gearbox.

Click to expand...

Datatek said:

So what? It's a ZF4HP22 gearbox.

Click to expand...

Ratae said:

I looked up the price of a new cable. Glad I was sitting down!

Click to expand...

Western Slope Rover said:

A RRC with good tires is hard to beat in conditions like ours

Click to expand...

Western Slope Rover said:

$499 here, if you can find one. I think the cable on the '93 might fit.

Just got back from a wintery drive. 5 inches overnight and still coming down. The roads are quite adventurous. A RRC with good tires is hard to beat in conditions like ours.

Click to expand...

goonarmy said:

They are great in the fresh stuff. Packed down turn to ice snow is a pita for everyone.

Click to expand...

Western Slope Rover said:

$499 here, if you can find one. I think the cable on the '93 might fit.

Just got back from a wintery drive. 5 inches overnight and still coming down. The roads are quite adventurous. A RRC with good tires is hard to beat in conditions like ours.
