weyert · Feb 18, 2024

great thanks very much , yes Andy i was thinking of doing it that way,
bonne soirée to you all

pwood999 · Feb 19, 2024

deleted

weyert · Feb 19, 2024

thanks very much , i have download it but can't open, its me, i'm zero with informatique,
i have to find someone to help me out, but thanks anyway, very kind of you,
the car is on the ramps and i will start tomorrow

weyert · Feb 21, 2024

bonjour, the engine with box and ird is out, not very difficult with the car on the ramps,
next i will separate , and open up the box, i let you know

weyert · Feb 22, 2024

i found a broken band so that was the -no reverse-problem, thanks for all your help

andyfreelandy · Feb 22, 2024

Good that you found it.

If you could take some photos and show how to replace the band that would help others. It appears to be a weakness in the Jatco box.

weyert · Feb 22, 2024

yes i tried to put the photos but doesnt work, mecanics is no problem for me but informatique is,
and i already closed up the box, tomorrow i will try to get the engine back in

andyfreelandy · Feb 22, 2024

To add a photo use the "Attach files" button in the left bottom corner of the box that you write in, then go to where they are and click. When upload has finished choose "Add thumbnail" and then they will be visible in your message.

weyert · Feb 22, 2024

yes but this is the problem --the uploaded file is too large -- and no idea to get the photo's smaller

pwood999 · Feb 23, 2024

weyert said:
yes but this is the problem --the uploaded file is too large -- and no idea to get the photo's smaller

Change the camera settings on your phone to lower resolution, so the files are smaller. If you're using iPhone make sure it's set for "Most Compatible" and not high efficiency.

Or use a website like this to resize them !

weyert · Feb 23, 2024

ok thanks

weyert · Feb 23, 2024

i give up, it sais the uploaded file was not an image as expected

weyert · Feb 23, 2024

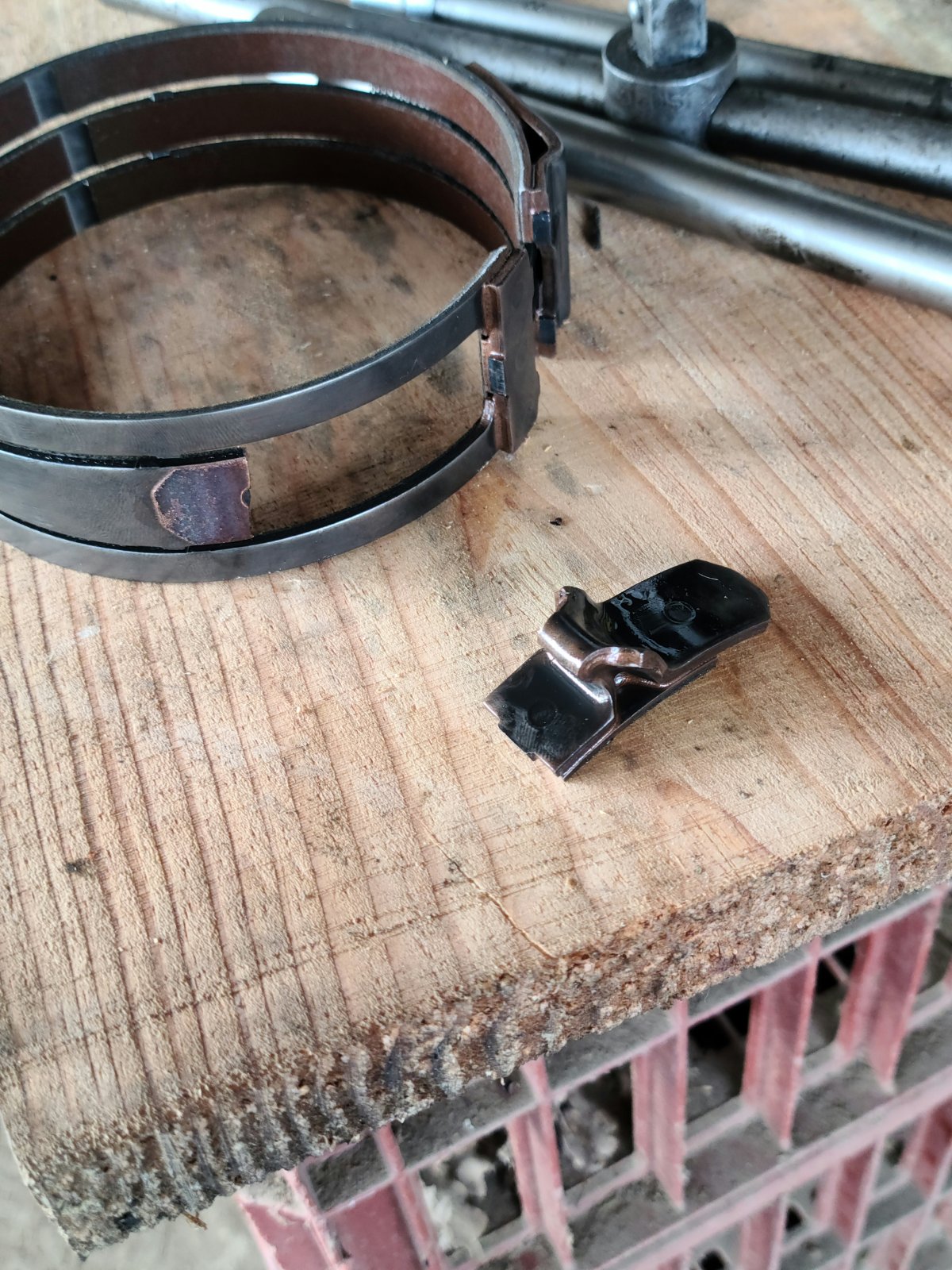

ok i think it works this is the broken band

Nodge68 · Feb 23, 2024

weyert said:
ok i think it works this is the broken band

I've seen that before. The reverse brake band on these is a week point. Glad it's sorted.

pwood999 · Feb 23, 2024

Exactly the same break on my son’s TD4. Seems quite common in the Jatco.

weyert · Feb 23, 2024

there are two types, one short and one longer with 3 rivets,the short one broke on the rivet, so i put the longer in

andyfreelandy · Feb 23, 2024

How did you get at it? Is it fairly near the outside?? Go in from the torque converter end or the driveshaft end??

Andy Warren · Feb 23, 2024

weyert said:
there are two types, one short and one longer with 3 rivets,the short one broke on the rivet, so i put the longer in

They do a heavy duty band, not sure if that relates to the 'longer one' you fitted. Good work.

weyert · Feb 23, 2024

from the converter side, not that difficult, i changed also all the oil seals and a new filter, i think it must be the heavy
duty band

weyert · Feb 23, 2024

i'm sure its a very difficult job if you do it with axle stands, the box is very heavy,
