Radar1946 · Jul 20, 2023

Hi All,
Went to the shops yesterday and it was like off roading, It was as though there was no suspension on it, just rubber wheels.
The warning on the dash came on with EAS Failure. I put the Nanocom on the car and there was no readings on the height readouts.
Nanocom just locks up when on EAS and says unable to connect. All the lights on the switch light up but are very slow to change.
Any Ideas?.

brianp38dse · Jul 20, 2023

Go into the tech archive top left of the range rover homepage and have a look for an easy thread by the late Wammers it runs through the testing of the system, but more than lightly a bag has gone or the pump is worn out from feeding a leak.

kermit_rr · Jul 20, 2023

Check also the eas relay is in place and had good connections. I understand they can fail

stemac33 · Jul 20, 2023

If no comms check white connectors behind passenger footwell trim for corrosion

Datatek · Jul 20, 2023

stemac33 said:
If no comms check white connectors behind passenger footwell trim for corrosion

+1 ^^^^ also check the OBD connector for corrosion if Nanocom cannot communicate with the EAS.

Radar1946 · Jul 31, 2023

Found an air leak on the o/s/rear suspension pipe. Fitted a new pipe then started the engine to see if it lifted the body.
It did not lift at all so I connected the nanocom to see if there where any faults. Now the engine will not start. I must have messed up the immobilizer by pressing the wrong buttons on the nanocom. Can anyone explain the photos to me please.

Radar1946 · Jul 31, 2023

Look at these.

Radar1946 · Jul 31, 2023

Forgot to mention a warning on the dash say's catalyst overheat

Radar1946 · Jul 31, 2023

I can't find the EKA code either.

Datatek · Jul 31, 2023

Radar1946 said:
Look at these.

The first photo shows EKA with the option to click on the "Disable" button.
The photo showing "Set new to robust"; "Set new to non robust"; "security learn" is a dangerous one, the only function you should use is the "security learn" button. This is used when the engine ECU and BECM have lost sync which means the engine cannot be started. The first 2 buttons are only applicable to fitting a new ECU.
I know how to do a security learn on the diesel, but it's different on the V8 as a rolling code is used so I do not know how it works.

Radar1946 · Jul 31, 2023

Thanks, Mine is a 2001 2.5 diesel. I have pressed all of the three buttons, I hope I haven't messed it up.

Datatek · Jul 31, 2023

Radar1946 said:
Thanks, Mine is a 2001 2.5 diesel. I have pressed all of the three buttons, I hope I haven't messed it up.

In that case you will have to do a security re-learn. You have to read the security code from the diesel EDC and then write it to the BECM. Not sure exactly how you do it with Nanocom, I have a Faultmate, but I guess that the security learn button should take you through it.
Never touch the other 2 buttons, they are for installing a brand new ECU which can be set to run with with or without a security code.

Radar1946 · Jul 31, 2023

Well Good Buddie, you have saved me again. Found the code as you said then put it into the ECU and started first time. All I have to do now is test the air compressor to see why the air tank is not filling. That's a job for tomorrow with my apprentice ( the wife ).
Cheers.

Datatek · Jul 31, 2023

Radar1946 said:
Well Good Buddie, you have saved me again. Found the code as you said then put it into the ECU and started first time. All I have to do now is test the air compressor to see why the air tank is not filling. That's a job for tomorrow with my apprentice ( the wife ).
Cheers.

Well done! Never activate any function on Nanocom unless you know exactly what it does

Radar1946 · Jul 31, 2023

I have learned that, but you can bet I will most likely do it again.

Radar1946 · Aug 2, 2023

Checked compressor today and I can stop the air coming out. Ordered a new one which is being delivered tomorrow, I will let you know what happens. :stars:

Datatek · Aug 2, 2023

Radar1946 said:
Checked compressor today and I can stop the air coming out. Ordered a new one which is being delivered tomorrow, I will let you know what happens.

You can easily overhaul the compressor with a new piston seal, sometimes a new cylinder is needed as well. Not expensive

Radar1946 · Aug 16, 2023

Datatek said:
You can easily overhaul the compressor with a new piston seal, sometimes a new cylinder is needed as well. Not expensive

Hi, The compressor came three days late, fitted the two rear pipes which I found had a slight leak. The compressor works fine but the suspension does not work

Radar1946 · Aug 16, 2023

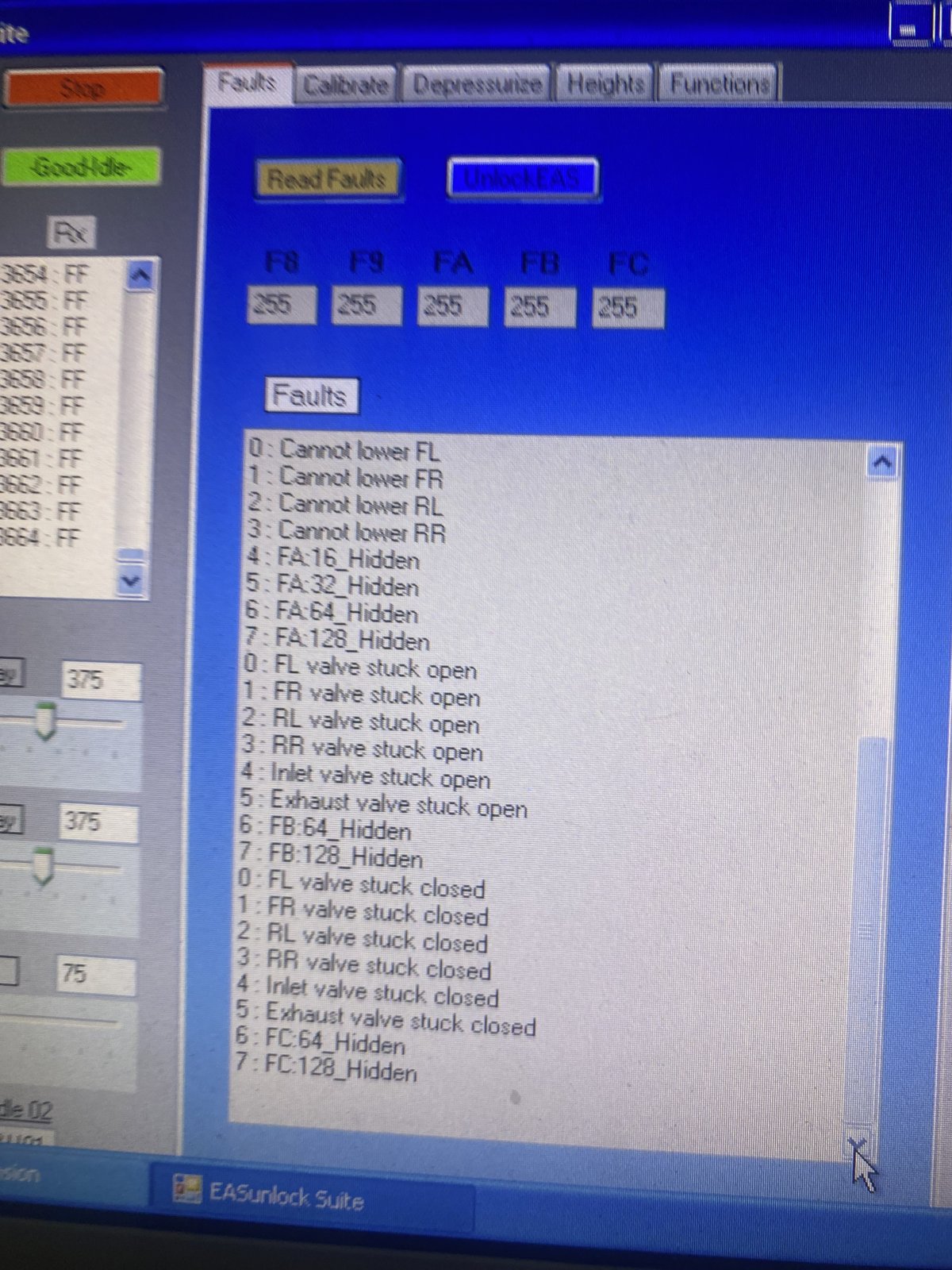

I put it on eas reset tool and got a list of faults longer than my arm. Any Ideas.?

Datatek · Aug 16, 2023

Radar1946 said:
I put it on eas reset tool and got a list of faults longer than my arm. Any Ideas.?

A list of faults like that mean the EAS reset tool failed to communicate with the EAS ECU.
