Maxfred

Member
I’m in the process of buying a diaphragm valve kit for the valve block
I’ve noticed some kits don’t have the hard black centre piece ?
please see picture

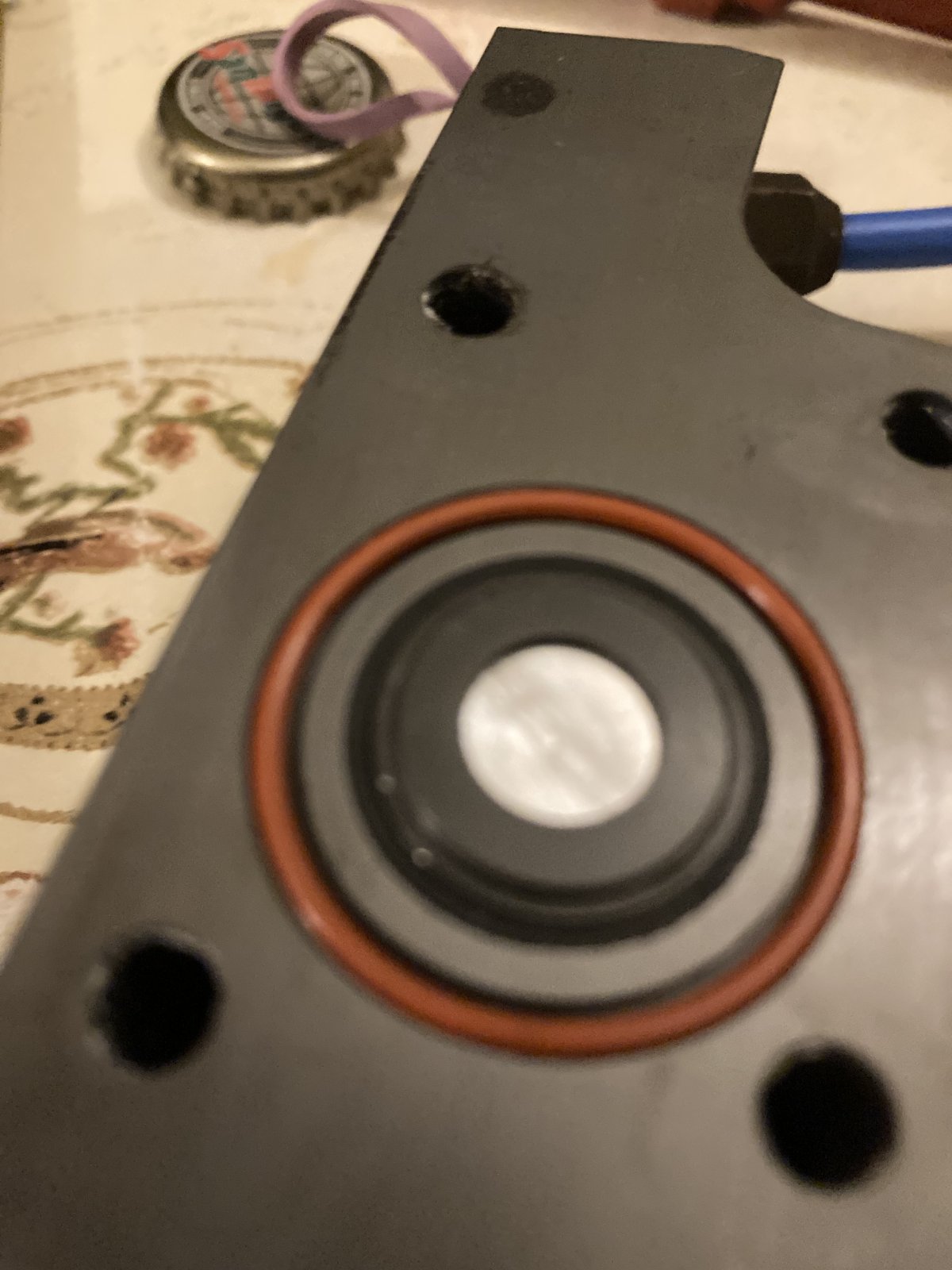

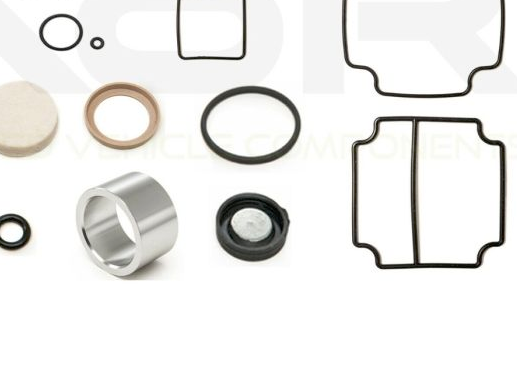

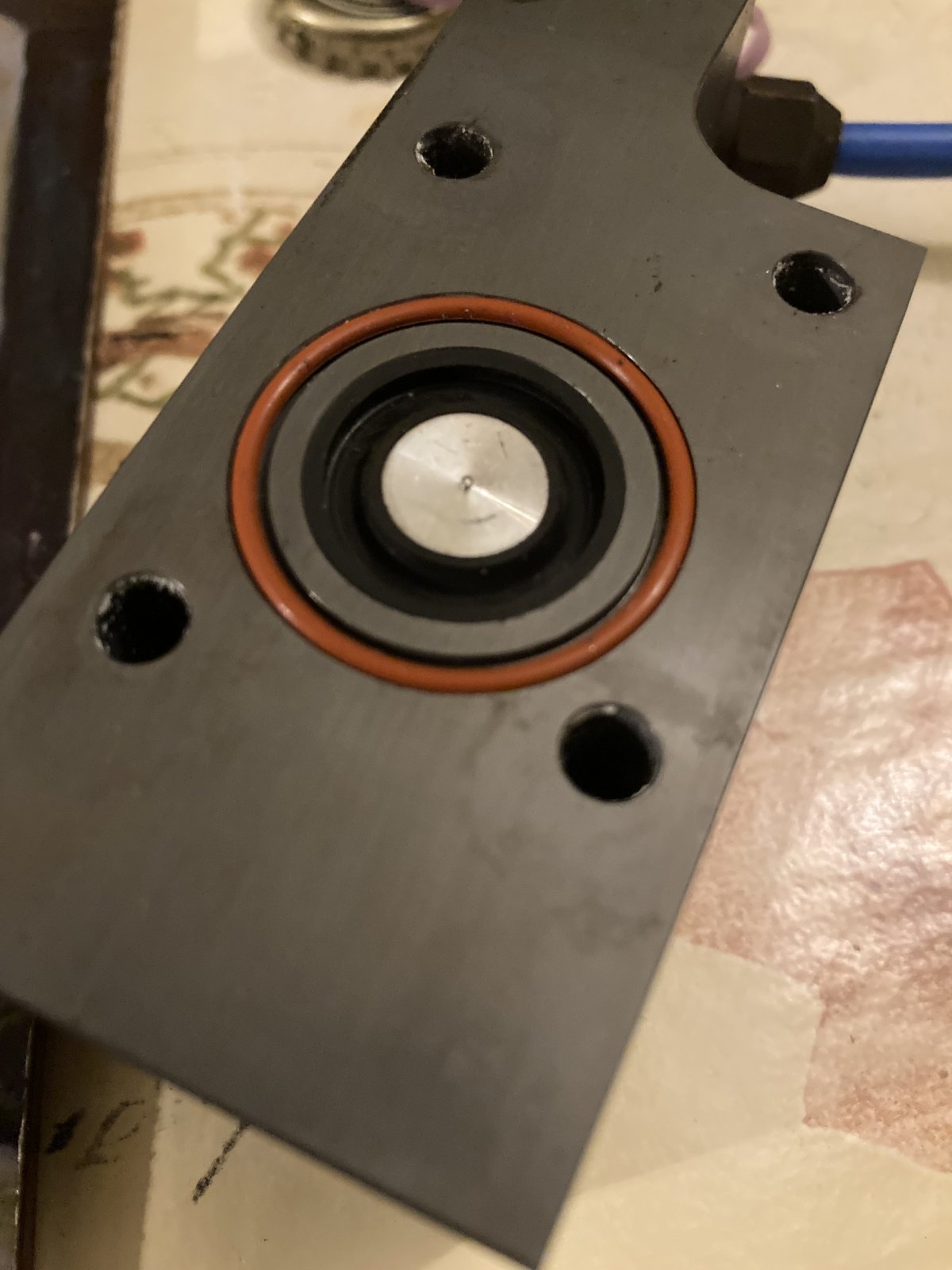

The first picture shows what some kits are selling the second picture is what I have

Thanks Tony I’m


Attachments

  • IMG_1107.jpeg
    165.7 KB · Views: 25
  • IMG_1110.jpeg
    193.3 KB · Views: 22
You want the kit with the diaphragm. There are no hard pieces in the kit that I recall, any metal parts are reused including that metal disc and the spring below it.

Thank you very much
I did notice XBR was the only one who included a square rubber for the solenoid

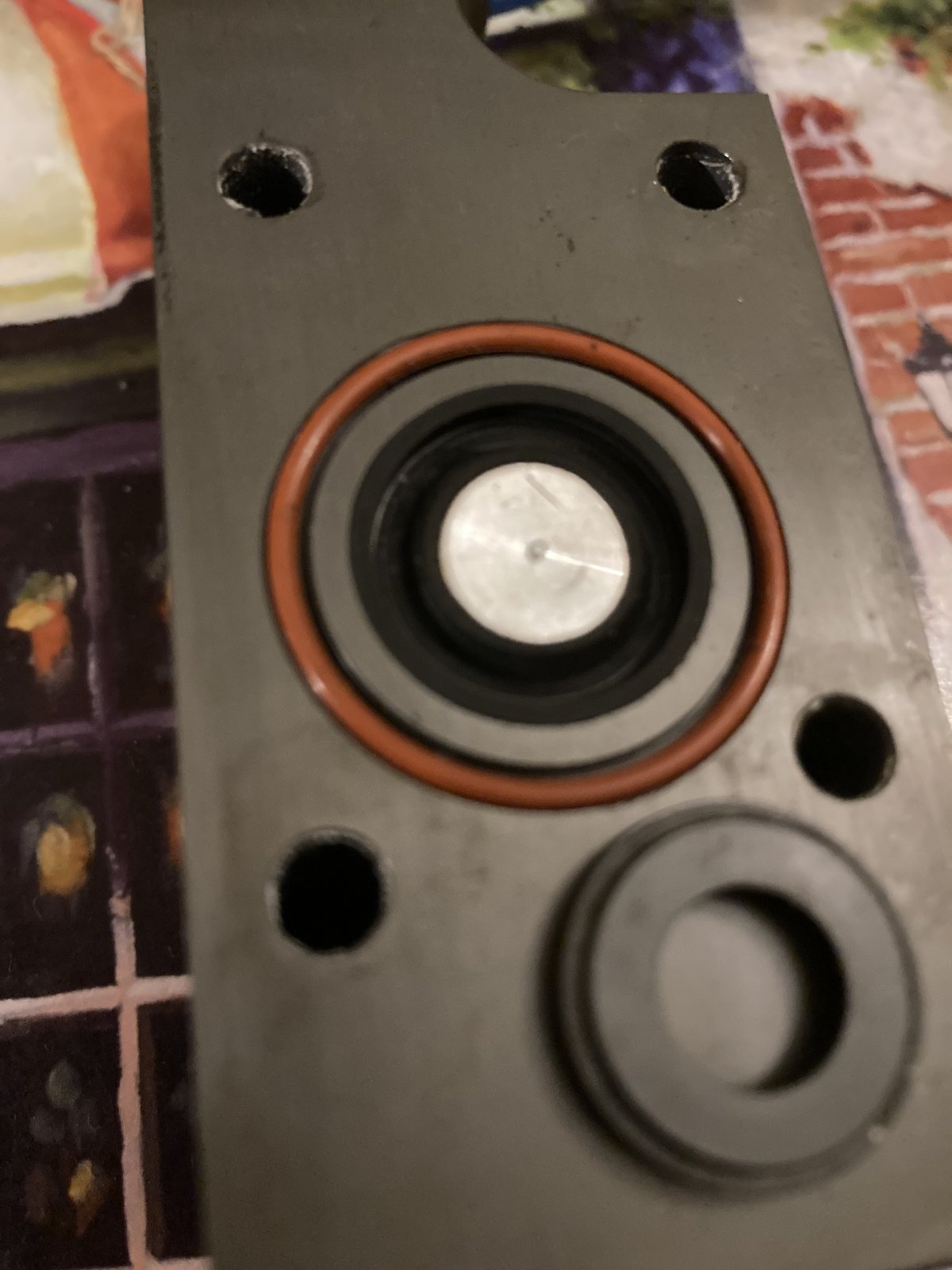

I was referring to this little round metal insert see picture that sits inside the diaphragm
Some kits have new ones some don’t
Thank you again for the help


Attachments

  • IMG_1104.jpeg
    183 KB · Views: 15
You don't need a new one, use the one you've got, unless you lose it but the spring underneath is more likely to boing off and get lost.
