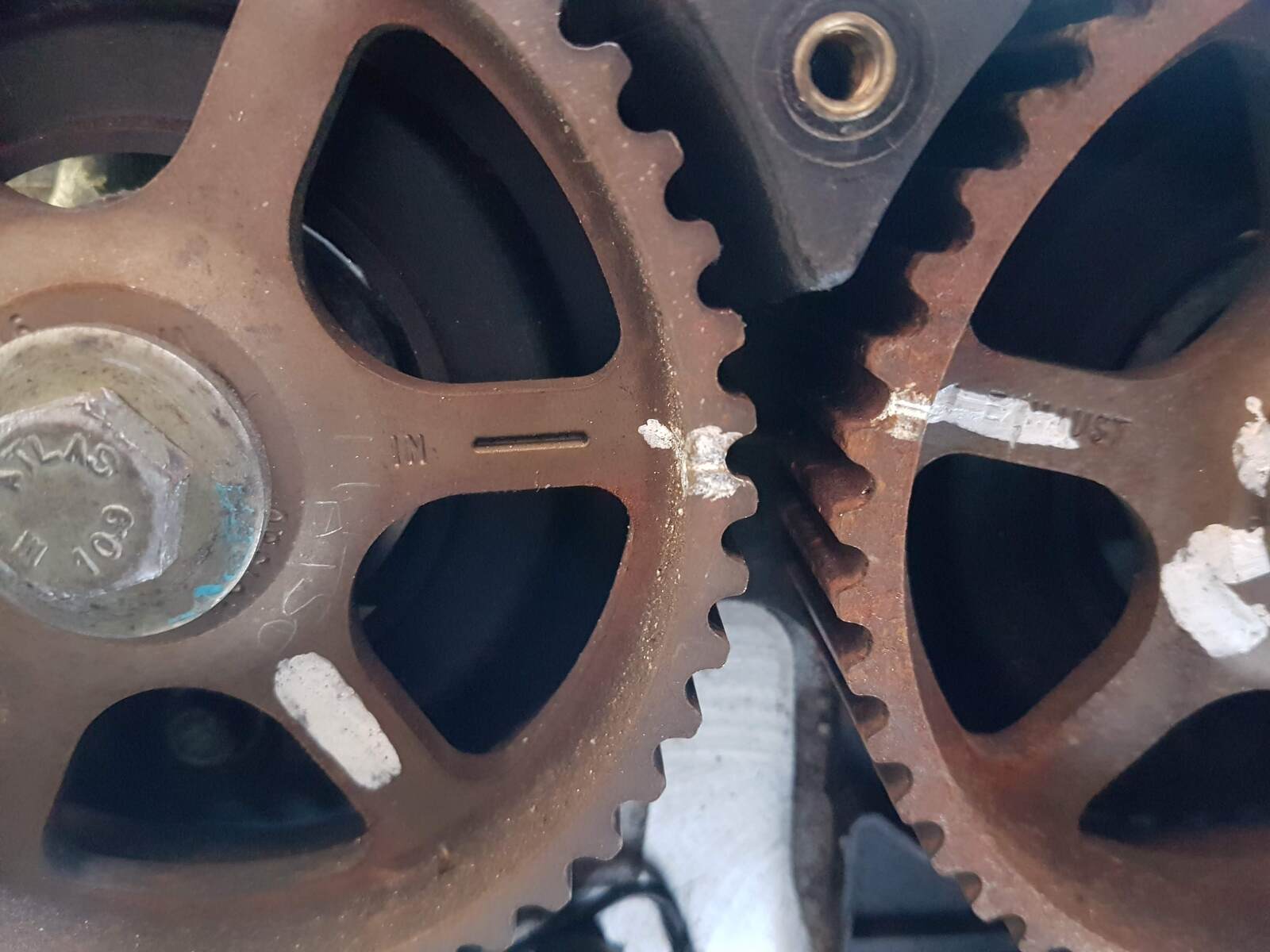

Span the engine round a couple of time to make sure I wasn't mad. If you look at the photo then the left cam hasn't jet reached level and the right cam has already passed.
How easy is it to turn the crank once the pulley is off and you can see the marks? Should I lock the crank in place via the flywheel once it is aligned?
Is it safe to turn the cams by the cam pulley bolt?

Span the engine round a couple of time to make sure I wasn't mad. If you look at the photo then the left cam hasn't jet reached level and the right cam has already passed.
View attachment 155998
How easy is it to turn the crank once the pulley is off and you can see the marks? Should I lock the crank in place via the flywheel once it is aligned?
Is it safe to turn the cams by the cam pulley bolt?
easy if you put the bolt back in
yes but best clockwise

Span the engine round a couple of time to make sure I wasn't mad. If you look at the photo then the left cam hasn't jet reached level and the right cam has already passed.
View attachment 155998
How easy is it to turn the crank once the pulley is off and you can see the marks? Should I lock the crank in place via the flywheel once it is aligned?
Is it safe to turn the cams by the cam pulley bolt?
In this pic they both look high to me. I always used a mirror to check they were lined up correctly.
Sorted. Nothing is easy on this car o_O
Is this good news or irony?

In this pic they both look high to me. I always used a mirror to check they were lined up correctly.

Is this good news or irony?
More sarcasm I'd say.
They both look high because one has passed alignment before one has reached it.
In a way I'm glad that I don't have to stress about keeping everything aligned and can just get on with setting everything correctly.
I'm right in thinking that with the crank timing mark lined up the pistons are half way down the bores and well out of the way when I'm adjusting the cams?
Obviously I'll be doing the water pump while I'm there and fitting a PRT.

I'm right in thinking that with the crank timing mark lined up the pistons are half way down the bores and well out of the way when I'm adjusting the cams?

That's correct. The only truly safe time to spin the cams is when the crank is at the timing position.

Completely concur with above: one of the cams are out and they need resetting from scratch.

To do this you need to see the crank pulley. There’s a dot on it that needs to align to the TDC mark on the cover. Once there, the two cams should align.

I have a 160 engine in the boot of my Freelander that I’m about to lift the head from - I’ll take some pictures for you :)


Bit easier to work on like that. It's tough to line the cams up when the engine is slightly canted and the wing is in the way...
...and your eyes are getting old and dim :(

Definitely!!!!

In fact I am going to lift the head, inspect and fit new gaskets and fully service it for exactly that reason: much easier now than in a car. Especially when that car happens to be an MGF! Lol

You’ve probably got the car on stands and the road wheel off already: much easier to do the crank position from the wheel arch!



This is where you want to get the crank pulley aligned to:


Are you replacing the cam belt? If so, good time to do it. If not, once you know the position of the crank, loosen off the belt tensioner, pull off the belt and then re-align the pulleys and get the belt back on. :)

Completely concur with above: one of the cams are out and they need resetting from scratch.

To do this you need to see the crank pulley. There’s a dot on it that needs to align to the TDC mark on the cover. Once there, the two cams should align.

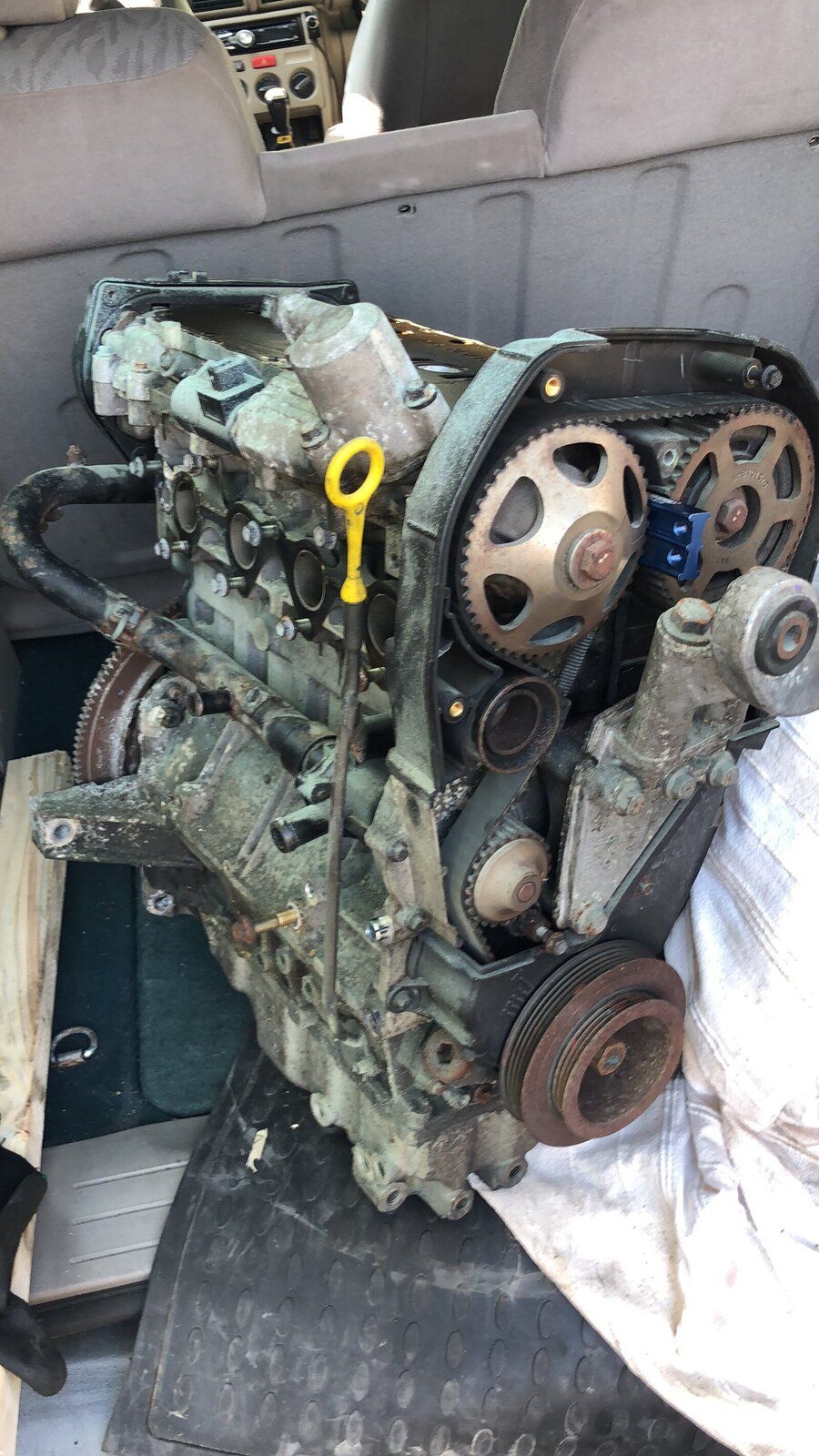

I have a 160 engine in the boot of my Freelander

View attachment 156063

I've got one of those in my scrap MGF.
Any idea how much it's worth?

Are you replacing the cam belt? If so, good time to do it. If not, once you know the position of the crank, loosen off the belt tensioner, pull off the belt and then re-align the pulleys and get the belt back on. :)
Belts and water pump. I'd rather not go back in there for a while.

I bought this one condition unknown covered in crud and overspray for £100 and a swap for an inlet manifold I had (and surplus to requirement) - but I reckon yours would be worth much more.

Would make a lovely upgrade for a Caterham or Lotus Elise... ;)

PS have you done a compression test? A tooth out is not disastrous, but any more and there’s a risk of piston/valve “interference”...
