I use those disposable surgical type rubber gloves. But I'm far to tight to dispose of them after use. They're fine to use again, all-be-it a bit sweaty :oops:

I got the whole thing off but still can't shift the bolt as I don't have a suitable vice (just alcohol and Land Rovers).
pWhorvHF1wIvOwzOitHpVqcrHbym7SSADua55f7JzKDVLoXwrdqFHexcS8MMdOfQe-bdEIAxW5hJVCCVaffcZ16fYmL7u4ClvrpQOB7T0cXhGtxjrokxssvVPlTQzR83Ej-RmC-EhGZ5iDRG9Q0reZbbcG9S2TfogKZbxQV-7rq8bL0mSln0ah3CxQyKAMxOyjo6MRIce86h9y0I28HNcGhH2Ol8QCcfsZ2aho9t-6pk3StOvb87Y1qBWmvgIF0rjvMyX4TG_CWtGRzd9U9986jUTk7AJu870sboo-dLTlfpF4j_UYGUg9PVv1PBknN9CEJQapf2H60wsw0knuReJqjRHfgw0mI0_33EAemL8m06nVVrcGKAKRlU5kmg-zxNjR7CuUi0Sh4YllcPmTCgS2Xl6mgOHeVHLggxjqhM9jc2lpNiFgN0d-9gPPVW1VM4MPVLhqKikFYS29CAvqJy6RkvVu3hFhb_c2rpT1SVAtU19D3xsP579StDSs_2AJi0WbdWY7qzESqM2T17PUbRThYQy7SHD87jMofM5IoT3uEVhgkTlz4A4iGq9mZHnbppfjsGCW-WkLE9pd0GyJD6Iz5oGAoSfc08Gw3KdGI=w879-h1171-no

I suspect that bolt has been wound up cross threaded with a powerful windy gun.
You'll probably only get it out by the same method.
It might be easier to find some replacements for reassembly.

I suspect you are correct but the tight-arse gene is dominant in my family.

I'm the same and would have a go at splitting it apart. There's a risk that the bolt could break off though. It is much easier to install the assembly into the vehicle in two sections, which is why it's made the way it is.
;)

I'll stick it in the back of the car with a big breaker bar and see if I can do it at work. If it snaps then meh, nothing lost really.

The one bolt that is left isn't even tight - I don't know if it was always like that or whether all my efforts and a broken bar have managed a quarter turn.

:D
See the glove in the first picture. That is my "mustn't get ****e on the posh phone" hand.

I wear similar gloves all the time but the cotton bits get soaked in oil and grease in short order so that my hands get dirty just putting them on. :(
And of course I'm too tight to chuck them out. :oops:

On the subject of said style of gloves, the ones you might see in Aldi are as much use as a chocolate fireguard and decintegrated after their first encounter with some diesel

I can however recomend Wilko's version of the same things, which had laster umpteen fuel fitler and oil changes and even a head gasket

OK brains trust.
Does anyone know if the engine mountings in my last lot of pictures changed between early and late 1.8 engines? Normally I'd look up part numbers on Allbrit but I don't seem to be able to do that any more.
Also, who does the best belts and water pumps nowadays? Going to replace all the belts, watery and whirly bits.

My knowledge of the K is iffy. But I believe it's 96_2000 then different mount 2000>
I'm willing to be proved wrong:p
Mike

At last. Time!
PAS and alternator belts off, lined up cams to take the old belt off.

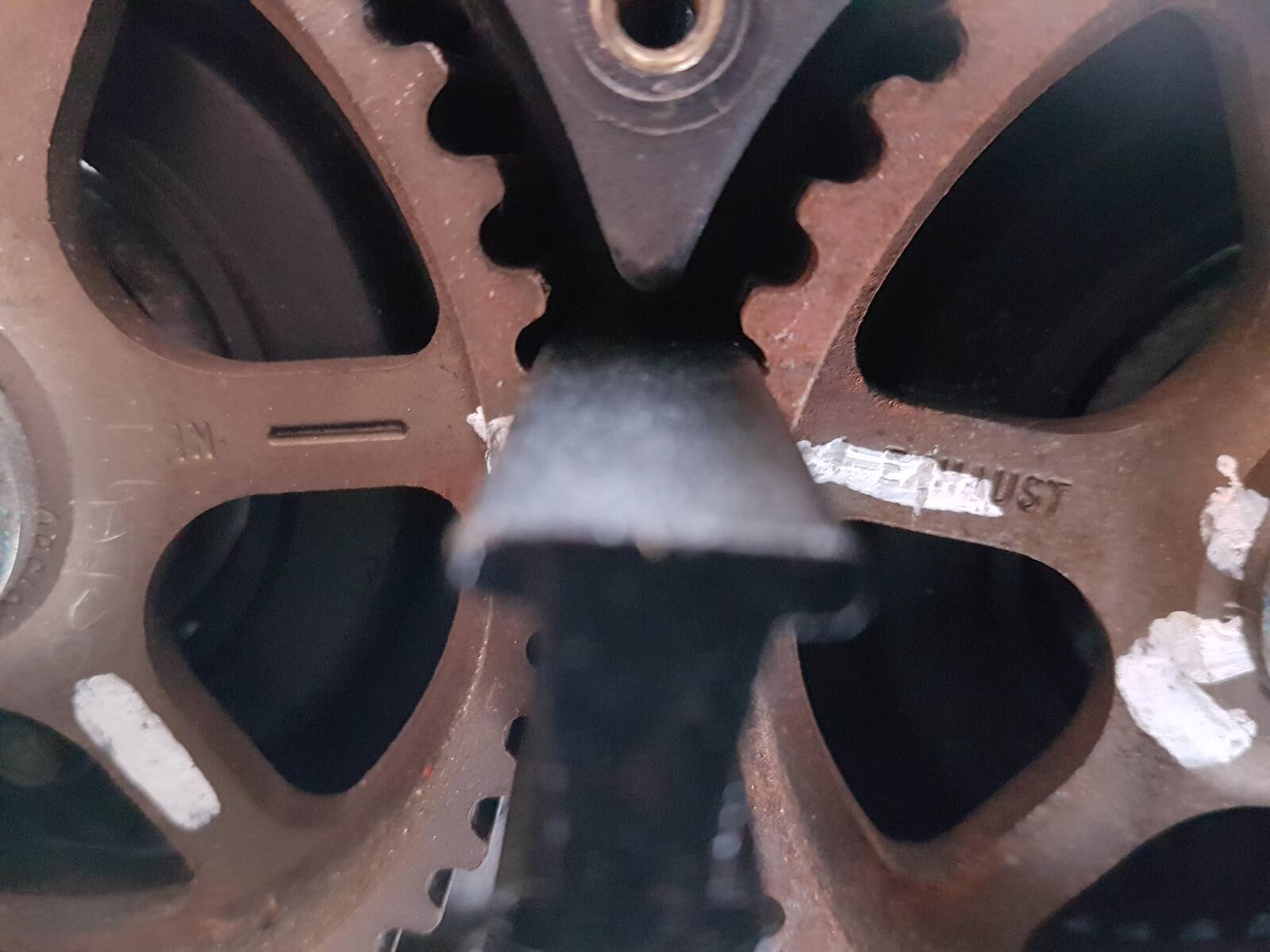

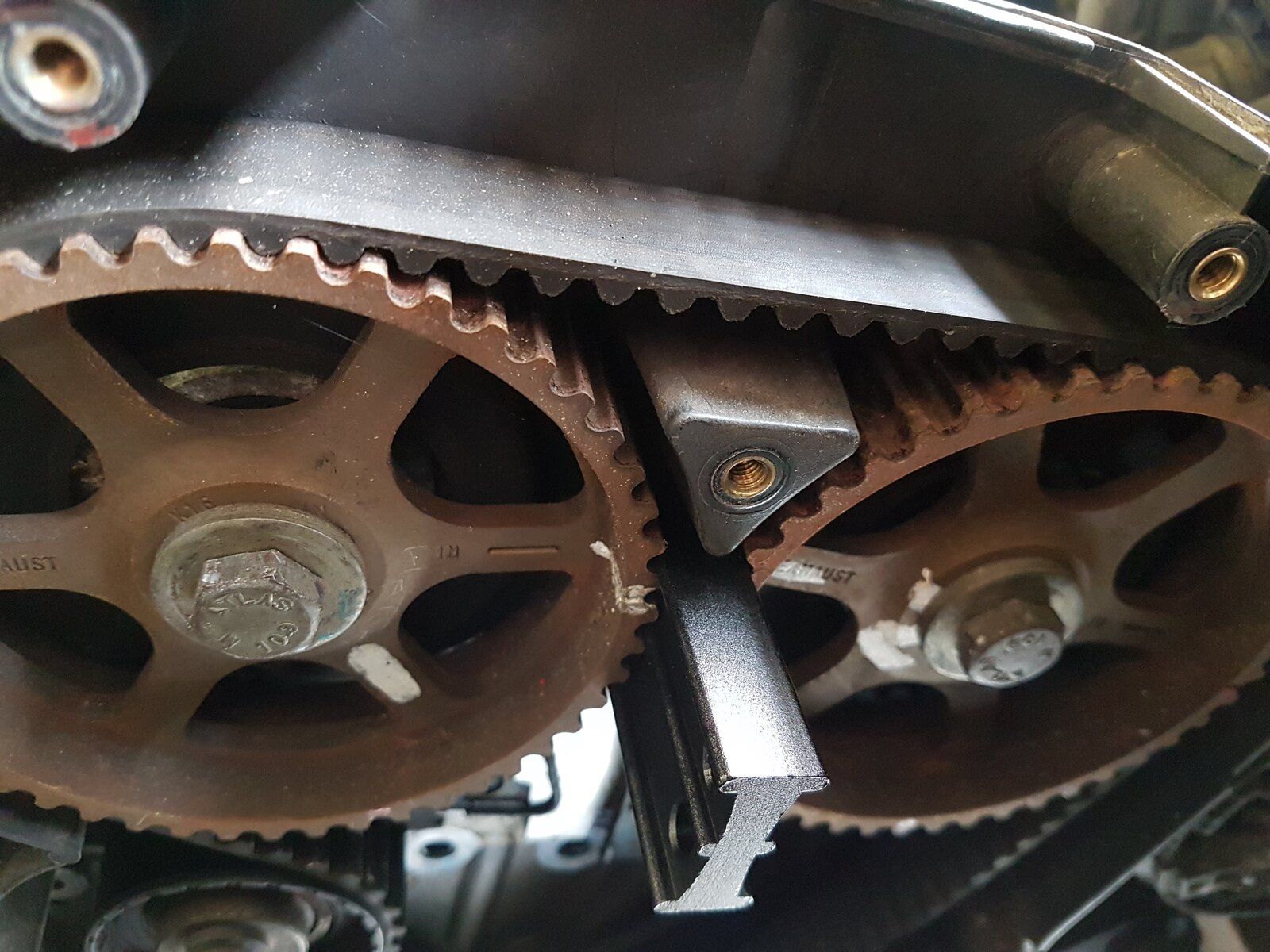

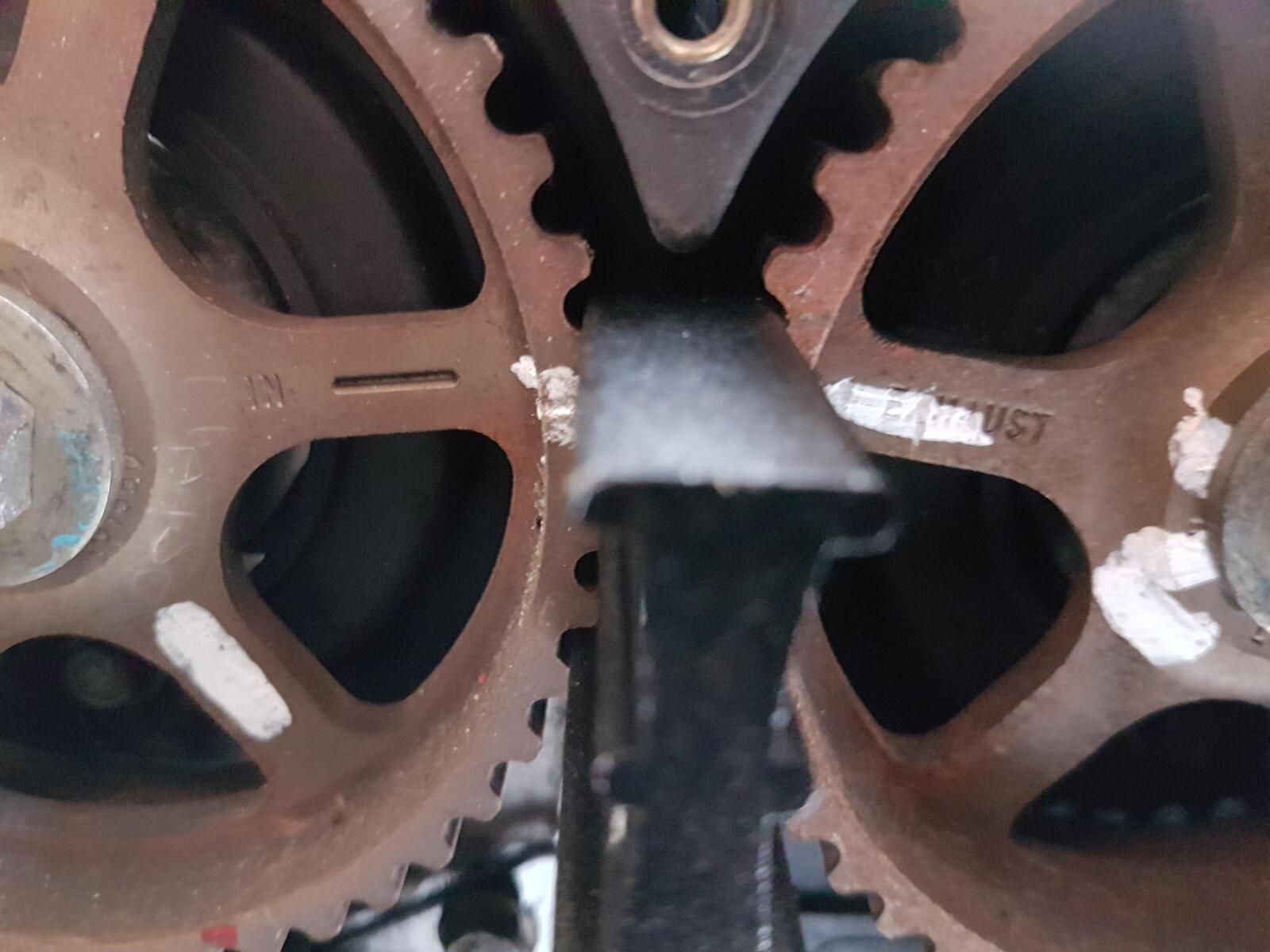

Now this looks odd to me - the cam sprockets don't line up neatly like in RAVE. It looks like the left cam has gone too far and the right not far enough - like the old belt was on wrong.
Thoughts please.
AND is it necessary to lock the flywheel for this procedure or is that just belt and braces? Haynes suggests stamping on the brake to get the crank pulley off and only locking the flywheel if the engine is coming out. I don't want to fight the rusty starter motor bolts if I don't have to.
20180818_164120.jpg 20180818_164125.jpg 20180818_164104.jpg

At last. Time!
PAS and alternator belts off, lined up cams to take the old belt off.
Now this looks odd to me - the cam sprockets don't line up neatly like in RAVE. It looks like the left cam has gone too far and the right not far enough - like the old belt was on wrong.
Thoughts please.
AND is it necessary to lock the flywheel for this procedure or is that just belt and braces? Haynes suggests stamping on the brake to get the crank pulley off and only locking the flywheel if the engine is coming out. I don't want to fight the rusty starter motor bolts if I don't have to.
View attachment 155957 View attachment 155963 View attachment 155964
They don't look horizontal to me or is that just a trick of the photo. Maybe you need to do another rotation of the engine to get them lined up.

Last edited:
They don't look horizontal to me or is that just a trick of the photo. Maybe you need to do another rotation of the engine to get them lined up.
It's no trick. I'd say one tooth out. And that's before I've been at it!
I'll do another lap and see what happens.

It's no trick. I'd say one tooth out. And that's before I've been at it!
I'll do another lap and see what happens.
Maybe they have been out of alignment the whole time. I suspect a lot of timing belts have been fitted wrongly and the car driven anyway.
What marks are you using for the crank alignment, have you removed the pulley?

Looks like the exhaust cam is one tooth advanced and the inlet cam is one tooth retarded. Once the belt is off, you need to correct this and lock the cams off again.


When the bottom damper pulley is off, you'll see the timing dots on the timing belt pulley. These dots need to be positioned each side of the pointer on the oil pump housing.

I'd remove the cam locking tool before releasing the crank bolt, or you can damage the cams or pulleys should they turn with the bolt.

Looks like the exhaust cam is one tooth advanced and the inlet cam is one tooth retarded. Once the belt is off, you need to correct this and lock the cams off again.


When the bottom damper pulley is off, you'll see the timing dots on the timing belt pulley. These dots need to be positioned each side of the pointer on the oil pump housing.

I'd remove the cam locking tool before releasing the crank bolt, or you can damage the cams or pulleys should they turn with the bolt.
Cheers @Nodge68 .
My concern was which pulley is correct, if either. So essentially have to time it up from scratch.
It makes me wonder how it drove. Perhaps that's why it was left to rot at the back of a car yard. I've not driven it more than 100yds since I've had it!
I'll get the bottom pulley off and see what's what and be back for further advice.

My concern was which pulley is correct, if either. So essentially have to time it up from scratch.

It's easy to line up the pulleys correctly. Place a straight edge through the centre of the pulley bolts. The marks on the pulleys should be in line with the straight edge. So you need to turn the pulleys so there's a straight line through the centre of the pulley bolts and the lines on the pulleys. ;)
