14 bolts : 7 pairs : ranging from the suspiciously easy, to the three-days-of-swearing variety.

As previously mentioned, the water trap designed by LR meant that the front-most bolts were totally immovable, so by a combination of heat, flame, and dremel I removed the rubber bushes, thereby allowing the body to be lifted up over what was left of the bolt head

The bulkhead bolts weren’t too bad – once the engine was out of the bay and I could get a suitable socket in to hold the top while attacking the nut underneath. It might be worth taking the time to cut the bolt as close to the nut as possible first – rusty threads take a lot of effort!

Front outrigger bolts were surprisingly easy – lift the cap and undo.

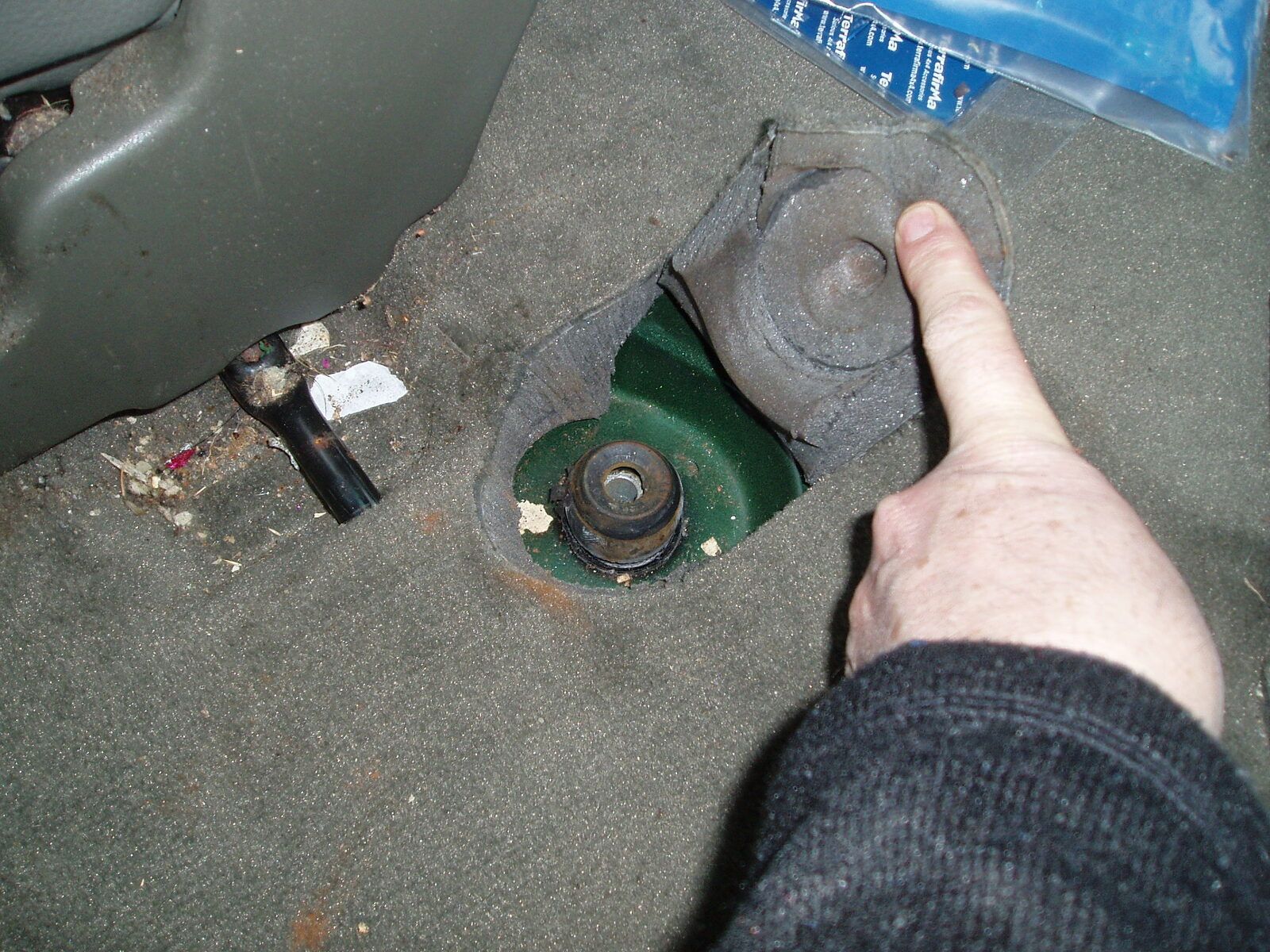

Front seat bolts were the easiest of the lot. Rear seat mounts were second.

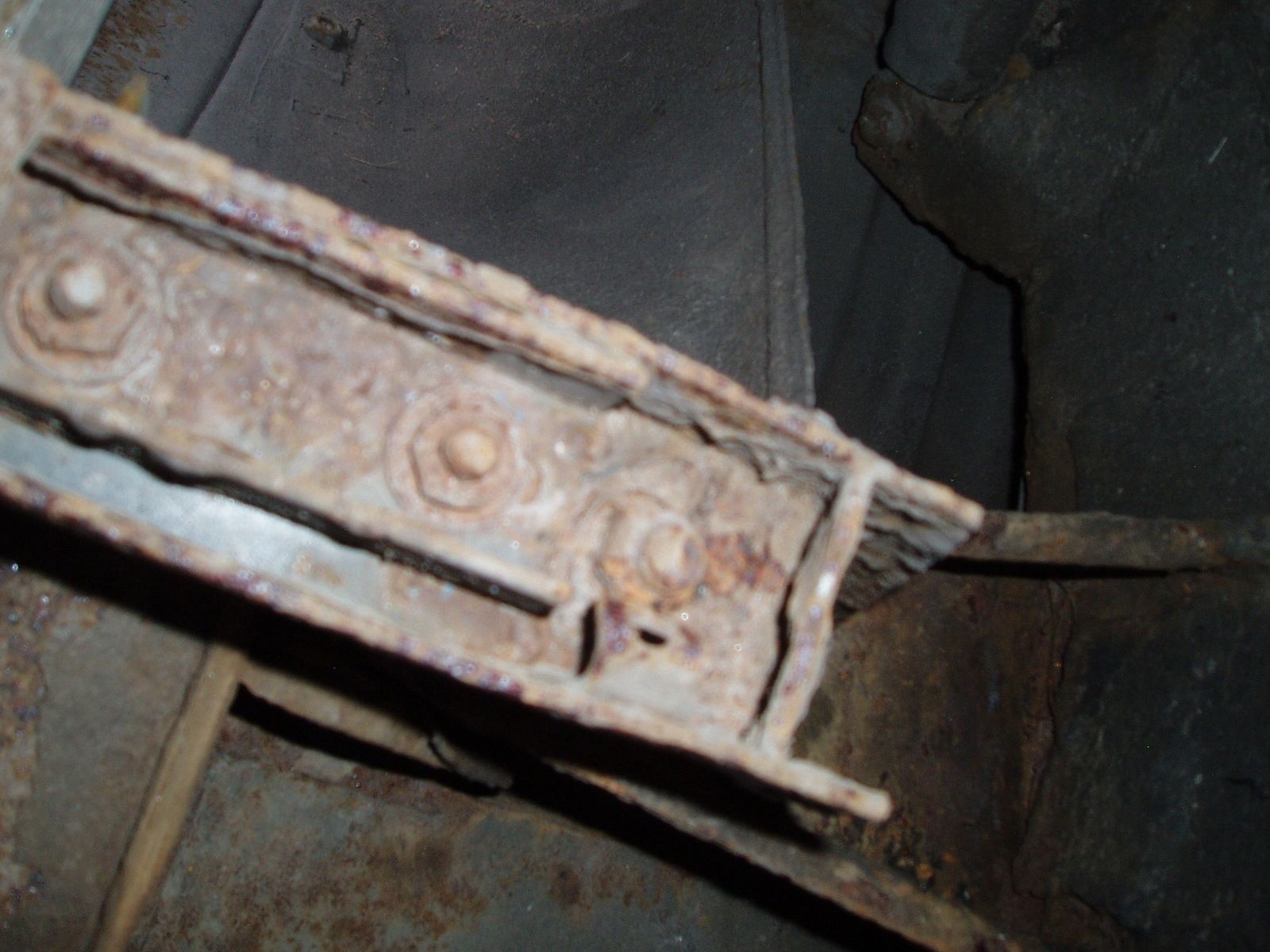

The rear sill mounts! Now these were a b*st*rd! The steps were rusted to oblivion and have been scrapped, and the extension piece that holds the steps on was solid. Not much shape left to the top of the bolt, and next to impossible to get anything on to it anyway. Having taken the grinder to the extension piece and gotten the step out of the way, I eventually resorted to grinding off a section of the outrigger in order to be able to remove the body, and then dealt with the remaining section with the body off.


The rear crossmember bolts were ok – worth noting that these are upside down.

And so to lifting the body. 2 problems. Height. And Width.

It was easy enough to raise each corner of the body slightly and insert wooden blocks between the chassis and the body in order to check that it was free all round, and that all hoses, wires, pipes etc were disconnected. Then it was a question of raising the back and the front alternately until sufficient clearance was given for the wheels to roll under the body work. Quite a bit higher than it first looked! Blocking it up using the mounting points was straightforward… BUT…. In order to roll the chassis out, it was necessary to have the supports outside the line of the vehicle. So four stacks of breeze block with timber on top and scaffolding poles under the front and rear seat mounts, remove the blocks under the mounts….and get it out!

Once the chassis was clear I built another stack of blocks under the rear floor, and added extra 4x2 lengths of timber under the body – it might be a wee while before I was ready to lower it again. No elf and safety worries here…just kids and such!!

Hallelujah – surely things must get easier from here onwards!
:eek:


Attachments

  • front bolt rust.JPG
    front bolt rust.JPG
    449.9 KB · Views: 455
  • front mounting rubber removed.JPG
    front mounting rubber removed.JPG
    405.4 KB · Views: 507
  • Bulkead mounting.JPG
    Bulkead mounting.JPG
    425.7 KB · Views: 444

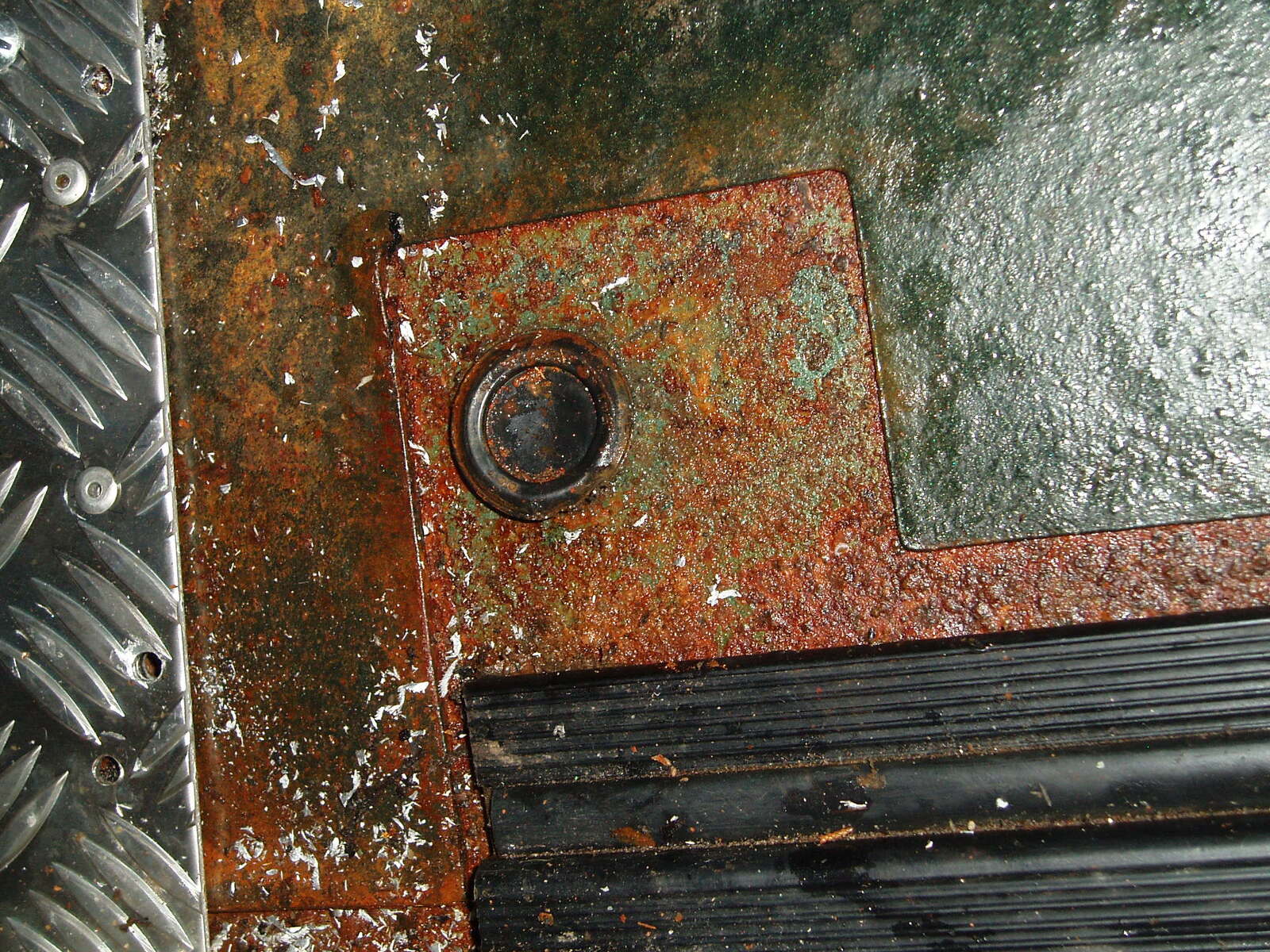

  • front sill bolt cover.JPG
    front sill bolt cover.JPG
    435.8 KB · Views: 480
  • front sill bolt top.JPG
    front sill bolt top.JPG
    360.6 KB · Views: 469
  • Front seat mounting.JPG
    Front seat mounting.JPG
    697.8 KB · Views: 522
  • rear seat mounting 2.JPG
    rear seat mounting 2.JPG
    405.3 KB · Views: 461
  • rear sill bolt.JPG
    rear sill bolt.JPG
    194.2 KB · Views: 459
  • rear crossmember mounting.JPG
    rear crossmember mounting.JPG
    209.6 KB · Views: 441
  • Front end as was.JPG
    Front end as was.JPG
    440.9 KB · Views: 460
  • Mid section as was.JPG
    Mid section as was.JPG
    431.9 KB · Views: 475
  • Rear section as was.JPG
    Rear section as was.JPG
    433.8 KB · Views: 465
I paid a company to replace mine with a Richards chassis a few years back but I don't think the rubbers got replaced - I'm trying to weigh up whether it would actually make a noticeable difference to the ride quality, it's a bit rumbly as is - this with new engine & gearbox mounts, and full suspension bush replacements 2 years back.

Great progress.

My chassis looks great now there is 1/2 inch of underseal on it :eek::D

Right then. It’s amazing how much easier things get without having the body in the way! There was now room to wield long bars, to get the grinder in close, to use a hammer without getting eyes full of rust!

So I transferred the front axle and all of its gubbins over to the new chassis. No real dramas – everything that needed loosening had already been taken care of, and things mostly fitted where they should. I had previously drilled out the mountings for the radius arm bolts – Sheilder had obviously drilled them to size, but by galvanising the whole caboodle had made the holes a little tight. Gentle application of the relevant drill bit….and liberal application of white grease….and a whole lot of torque. Sorted!

New shocks, new damper, new arb and links – and a little bit of adjustment to one of the holes for the steering box. 3 out of 4 seems to be pretty good going for Sheilder!

Rear end – cut the nuts off the chassis mounts for the Watts linkage, and cut the arb links. Transferred the axle, new bolts for the watts, new arb links, but this time I kept the old arb even tho’ it is the ACE type and ACE is long gone. At nearly £200 for a replacement I reckon I can live with it for now. New shocks – one of the captive nuts ran away……

Fuel lines and rear loom transferred, and bingo… a rolling chassis. Just the old one to dispose of now – after cutting off the three exhaust hangers that I needed;

A fairly simple matter to position and attach the gearbox and even mating the engine with it wasn’t too bad. A lot easier than trying to work under the body, that’s for sure!

Slight issue with the crossmembers. Sheilder use silly little threaded plugs that break free as soon as they see a bolt approaching but I was able to get ordinary nylock nuts in place and hold them long enough to tighten them up – at least as far as the crossmember under the transfer box is concerned. There is the bigger issue of the bar not lining up at the front end of the gearbox…..but that is for another day (ie once I manage to get the whole damn thing up on a ramp!)

Got one of the boys at the garage to weld the old exhaust hangers onto carefully sized plates of 2mm steel, and then riveted these to the chassis…on the right side this time. Fitted existing front section and new middle and rear sections of exhaust. Finally managed to get sufficient purchase to undo the drain plug on the gear box, refilled transfer box, gear box and engine, refitted handbrake and both props – new donut on the rear, new bolts and nuts for the other three connections. Oh, and changed the tensioner while refitting steering pump. I think that was just about everything, now just need to refit the body.


Attachments

  • Front section rebuilt.JPG
    Front section rebuilt.JPG
    434.6 KB · Views: 467
  • front section rebuilt 2.JPG
    front section rebuilt 2.JPG
    396 KB · Views: 445
  • Front section rebuilt 3.JPG
    Front section rebuilt 3.JPG
    418.5 KB · Views: 436
  • rear end rebuilt.JPG
    rear end rebuilt.JPG
    458.4 KB · Views: 440
  • Rear end rebuilt 2.JPG
    Rear end rebuilt 2.JPG
    436 KB · Views: 420
  • Old chassis ready to go.JPG
    Old chassis ready to go.JPG
    420.4 KB · Views: 461
  • eng and gbox reunited.JPG
    eng and gbox reunited.JPG
    441.2 KB · Views: 475
  • gearbox with front exhaust.JPG
    gearbox with front exhaust.JPG
    395.6 KB · Views: 423

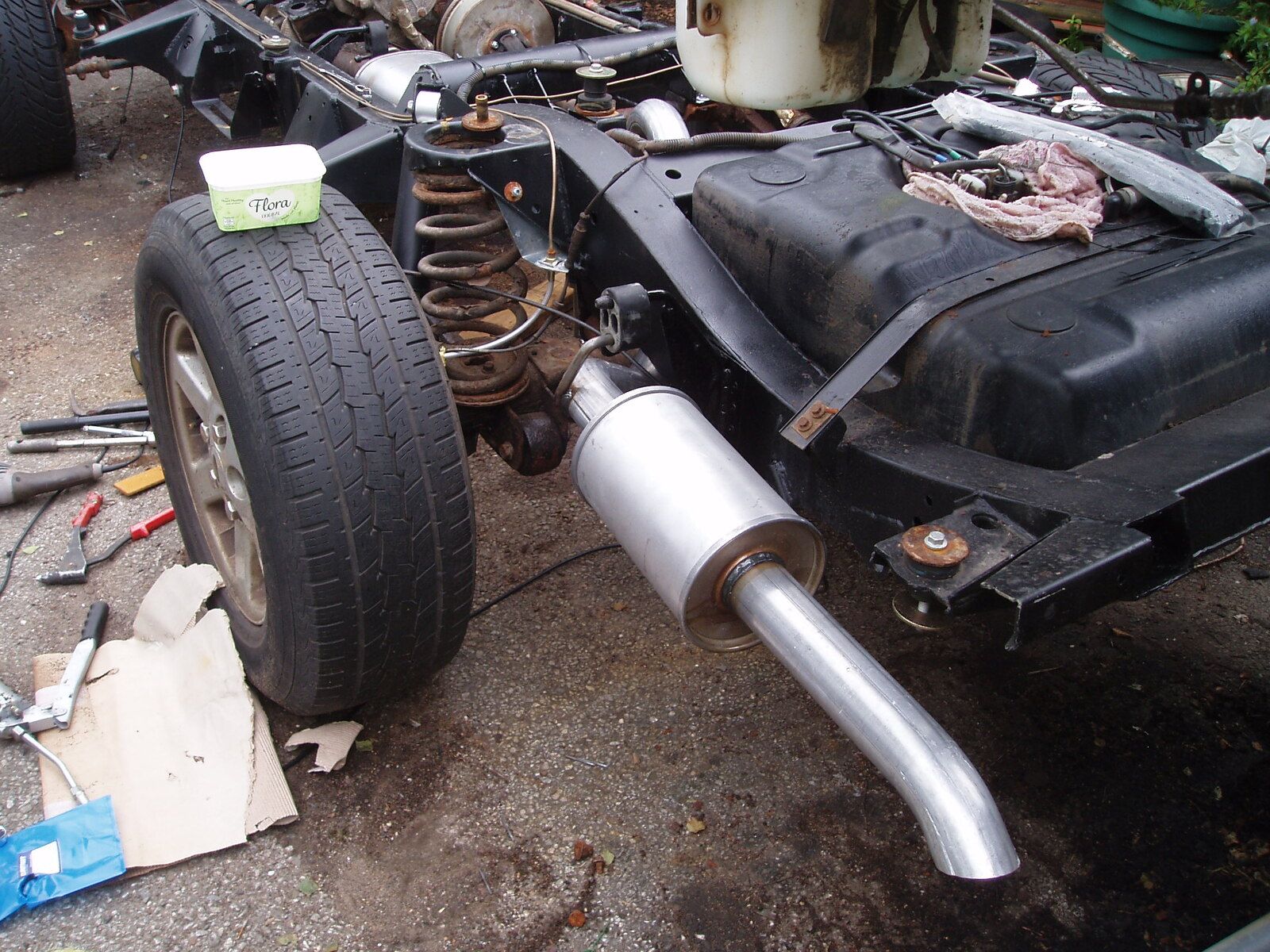

  • rear exhaust.JPG
