Seaswood

Active Member

• Feb 3, 2023

• #21

The fronts you sorta need to push the axle down enough to get it out watch them fingers.
I had to Jack frame up to be able get axle down enough. Both wheels off.
The shocks are likely to be more work as they need to come off first.

Rears are easier as shock is separate.



L

lynall

Well-Known Member

Full Member

• Feb 3, 2023

• #22

andyjack said:

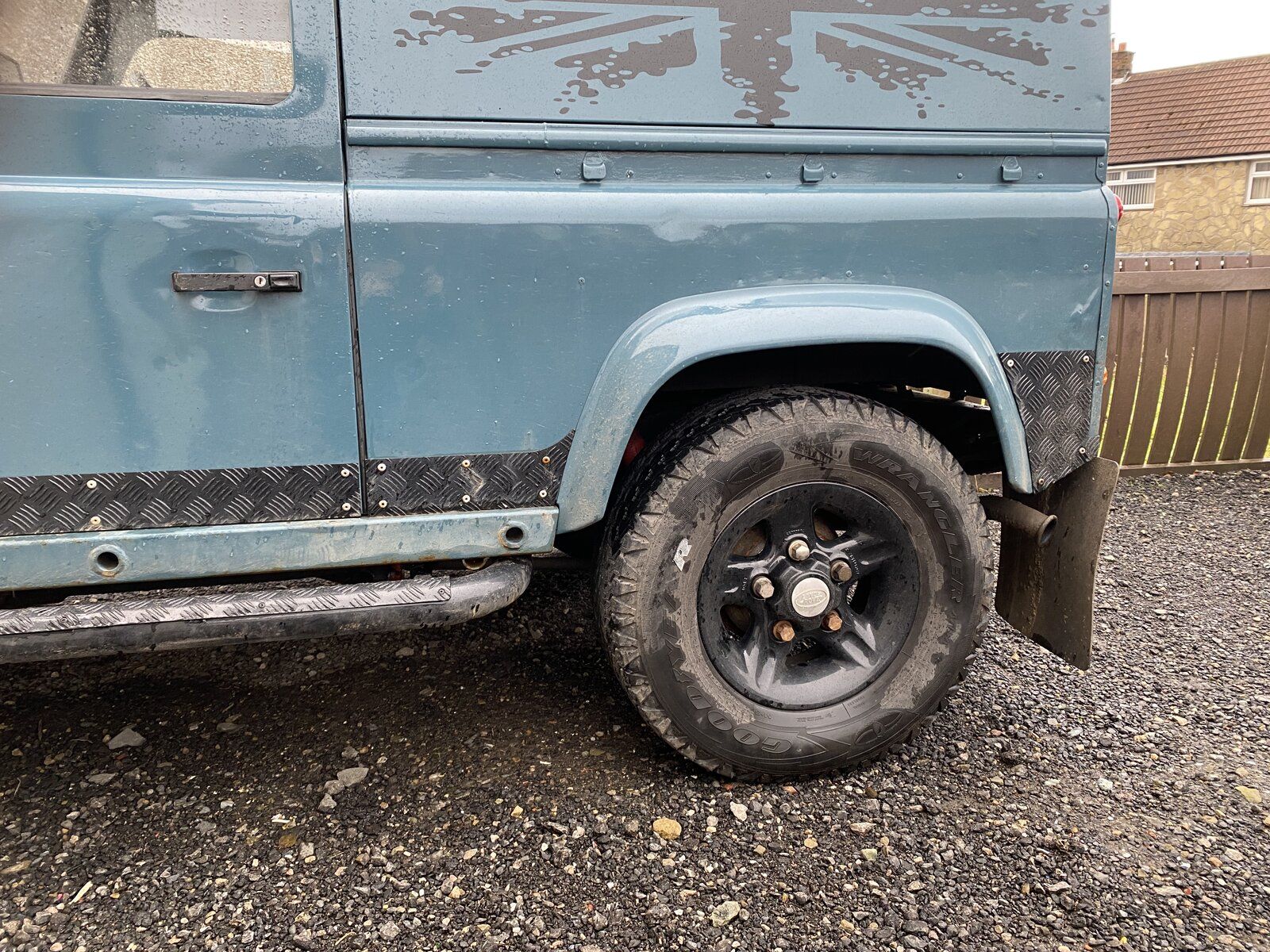

View attachment 282272 please see photos. im measuring from flat ground to bottom of the arch the front are 35" and the rear are 33"

Click to expand...

It looks to me like it has different size tyres front and rear?



L

lasher99

Member

• Feb 3, 2023

• #23

My first thoughts on seeing the photos were the front wheels or tyres look smaller than the rear for some reason!
Just my opinion



tottot

Well-Known Member

• Feb 3, 2023

• #24

andyjack said:

The tyres are all 265/70/r16 i am changing the front, its a road tyre


All the same size he says,

Click to expand...



123-eddy09

Active Member

• Feb 3, 2023

• #25

The springs look like they are on the wrong axles to me. They need swapping round. The thicker springs should be on the rear and the thinner ones on the front.



andyjack

Member

• Feb 6, 2023

• #26

Got under defender today to see if i could see colours on springs. On front passenger ive got white and yellow, on front driver’s i think its blue red, on rear passenger its blue yellow and rear drivers its blue green. So after looking at the charts there all wrong, the ones on back are HD and are ment for front and the ones on front are normal but should be on rear, am i right ?



tottot

Well-Known Member

• Feb 6, 2023

• #27

Just looking at your pic's I would say your fronts are HD and the rear ones are standard. Re read my previous post.



v8250

Well-Known Member

• Feb 6, 2023

• #28

andyjack said:

Got under defender today to see if i could see colours on springs. On front passenger ive got white and yellow, on front driver’s i think its blue red, on rear passenger its blue yellow and rear drivers its blue green. So after looking at the charts there all wrong, the ones on back are HD and are ment for front and the ones on front are normal but should be on rear, am i right ?

Click to expand...

That's incorrect. Have you bought a new std spring set of correct colour coding yet? If not, stop wasting time with the unknown springs of unknown origin/quality currently on your LR. You mention you bought the existing springs from some LR breaker fellow based in Harrogate - really recommend you don't listen to him, just buy the right springs at the right rating and fit. There are plenty of vendors who'll happily supply.

here your part# ref': https://www.lrworkshop.com/diagrams/land-rover-defender-axles-suspension

known good suppliers:
https://www.paddockspares.com/catalog/category/view/s/standard-height-springs/id/6381/
https://www.ebay.co.uk/itm/36402089...XsEBZhARkcZ1FXDAs4V9IA4qLg==|tkp:BFBMtLDI88Rh



Last edited: Feb 6, 2023
