A

Andra

Active Member

• Sep 18, 2018

• #1

I have never seen this before, I been working with cars for 25 years. I am building a large extension and had ran out of sand so I the 90 I bought was a none runner so I though I have a look. This is what I found broken crank pulley bolt and broken timing cog. I think who ever had this before tried to loosen the crank pulley with the engine starting and done this. It the only thing I can think off. Anyone got better idea?



tottot

Well-Known Member

• Sep 18, 2018

• #2

Can not see that loosening off the crank pully bolt by any method would result in sort of damage. Is the shaft of the crank bolt still in the crank?



L

lynall

Well-Known Member

Full Member

• Sep 18, 2018

• #3

Possible your bolt has come loose and allowwed the keyway to frett inside the pulley wearing the slot away until its not strong enough?
Ive seen one really bad on a 200 years ago, but didnt split the pulley.



Kwakerman

Well-Known Member

• Sep 18, 2018

• #4

lynall said:

Possible your bolt has come loose and allowwed the keyway to frett inside the pulley wearing the slot away until its not strong enough?
Ive seen one really bad on a 200 years ago, but didnt split the pulley.

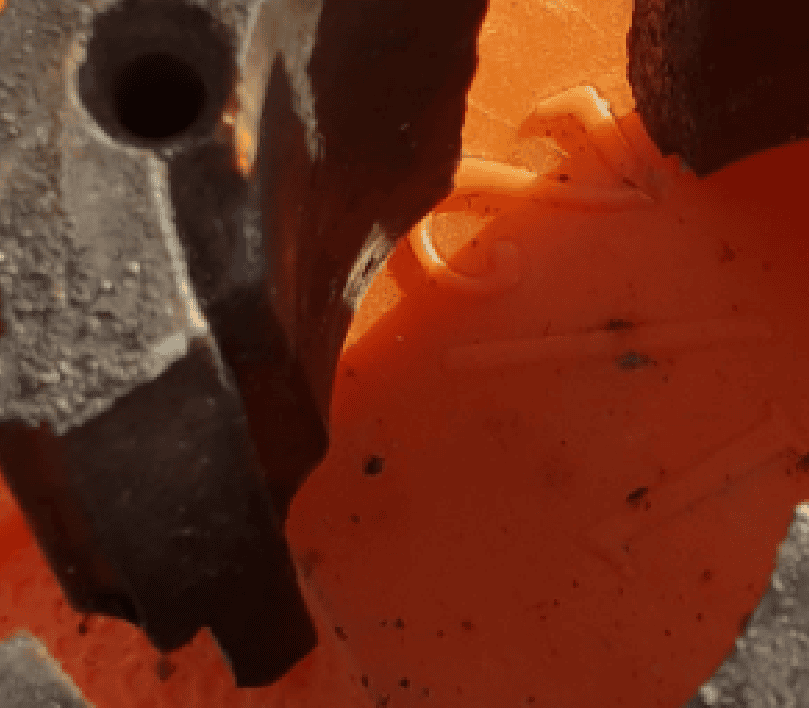

View attachment 159019

Click to expand...

Looking at the smooth fracture surface it looks like it has been a cracked there for a while, probably as a result of fretting at the keyway. Looks like the bits in the first post are not in the correct sequence (bottom and right bits should be swapped)?



A

Andra

Active Member

• Sep 19, 2018

• #5

No the bolt that holds the pulley on as well was snapped. It not getting fixed it getting a 200 tdi just posted to let people see . I never seen anything like that before
