pwood999

Well-Known Member

Full Member

• Nov 28, 2014

• #1

Android tablet now working in dash. Works quite well for Sat-Nav & Music, but now I want a faster CPU !!

• Charger spliced directly into cigarette lighter feed, so switches with ignition
• Auto-sleeper App switches everything to Standby when power goes off.
• Poweramp App seems to work best for music
• TomTom and Waze both work ok, but need to get SIM for 3G. Using phone WiFi Hotspot as temporary data connection

Used old flea-bay panel to cut & fit, so original dash panel stored away in case I want to revert to standard cubby hole.

Pete



Attachments

•

  135.6 KB · Views: 476

brianp38dse

Well-Known Member

• Nov 28, 2014

• #2

looks good well done



Saint.V8

Dyed-in-the-wool 100% RR Junkie

Full Member

• Nov 28, 2014

• #3

I like that....I like that a lot!!!

Details of tablet??



D

dansoliver

New Member

• Nov 29, 2014

• #4

Love it probably cheaper than update cd's for the sat nav



ifloochies

Well-Known Member

• Nov 29, 2014

• #5

I want one....:Cry:



Littelwill

Well-Known Member

• Nov 29, 2014

• #6

You've done a very good job of that!



Datatek

Well-Known Member

• Nov 29, 2014

• #7

Which tablet? I use a Sanei N79, not bothered to fit in the dash though.



rewmer

Well-Known Member

• Nov 29, 2014

• #8

Saint.V8 said:

I like that....I like that a lot!!!

Details of tablet??

Click to expand...

Saint, surprised you haven't looked at grafting in a BMW NBT........

Just saying...



pwood999

Well-Known Member

Full Member

• Nov 29, 2014

• #9

It's a cheap Chinese Phablet from eBay. not this exact model but similar: 7" Excelvan 3G Dual SIM Android 4.2 Dual Camera Bluetooth GPS Tablet PC Phablet | eBay

Started with low cost version to prove the concept. There are now Quad Cord versions with more RAM for under £100, that will probably work better.

Physical size was main challenge, because I wanted to retain the clock & shape of the dash panel.

Pete



Enuff

Well-Known Member

• Nov 29, 2014

• #10

I really like that too, nice job...
Its time for an upgrade me thinks.
This is what Ive had for a couple of years now, with a/v inputs and an aux leisure battery .
I can change my cameras to wireless then.



Attachments

•

  268.1 KB · Views: 341

C

chopper007

Active Member

• Nov 29, 2014

• #11

nice work....



pwood999

Well-Known Member

Full Member

• Nov 29, 2014

• #12

Here's how to do it . . . .



Attachments

•

  112 KB · Views: 293
•

  192 KB · Views: 274

Zorro587

Active Member

• Nov 29, 2014

• #13

Nice job. Now, if we can get that to talk to a bluetooth OBD plug-in, and have an app to read all the info in zebcrs' post with the touch screen replacing the lcd one, we could have an all-singing-all-dancing media/info centre.

Any brainy gits out there?



pwood999

Well-Known Member

Full Member

• Nov 29, 2014

• #14

at moment it's using Bluetooth for the audio feed to Stereo, but no reason why OBD adapter won't work. I have a BT OBD, so will try later.

Which post by zebcrs ??

Pete



Zorro587

Active Member

• Nov 29, 2014

• #15

Here http://www.landyzone.co.uk/lz/f10/hevac-new-edition-248018.html



Zorro587

Active Member

• Feb 21, 2015

• #16

Finally got round to it. Thanks to Pete for the inspiration



Attachments

•

  200 KB · Views: 297
•

  122 KB · Views: 291
•

  193.3 KB · Views: 277

Littelwill

Well-Known Member

• Feb 21, 2015

• #17

That looks really good did you follow the same steps?



Zorro587

Active Member

• Feb 21, 2015

• #18

Pretty much. Donor panel from a breaker, cut out cubby hole and fit/shape/fill and paint to fit tablet. 12v socket spliced into cig lighter feed with USB 2A adapter. I reused parts of the cut-offs to tidy up the edges.
Only point I would add to watch out for, the bottom edge of the panel mates with the one from the stereo area so must be clear, ie, nothing used to mount tablet can stand proud here. I used 2 'L'-shaped bits of wood to hold the top edge (screws visible - not painted yet) and strips of the dense packing foam that came with the tablet hot-glued around the bottom and sides.
I also had to permanently mount the micro USB end of the cable into the surround of the air temperature sensor fan affair in the left of the panel. Easily done with hot glue holding it in place.



Last edited: Feb 21, 2015

Littelwill

Well-Known Member

• Feb 21, 2015

• #19

Very good! how did you secure the tablet in place?



Zorro587

Active Member

• Feb 21, 2015

• #20

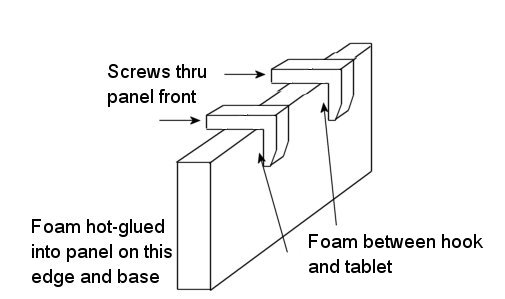

As per picture, Pete said he used aluminium bars. Didn't have any of that so wood sufficed



Attachments

•

  20.1 KB · Views: 175

Last edited: Feb 21, 2015
