Hi, Is it possible to remove and replace a liner?

ive seen a youtube clip of a block being heated to 400deg and the liners tapped out, I was wondering if I had a good secondhand one (cant find new ones) in the fridge I could knock it in while still hot?


I have a 4.6 block which has had water sitting in the bores, a couple of cylinders have rust damage
thanks regards Tim.



pwood999

Well-Known Member

Full Member

• Jul 28, 2017

• #2

it's possible, but best go to a specialist. You can buy a set from Island4x4, but still needs the block machining to fit them !! http://www.island-4x4.co.uk/cylinder-liner-da1185-p-27307.html

These guys in Bracknell (http://cmesuk.com) did a brilliant job on my 4.0 Autobiography. Pressure testing block & heads, core plug replacement, heads skimmed. Then everything cleaned, machine oiled & wrapped in plastic for collection.



listerdiesel

Well-Known Member

Events Planner

• Aug 1, 2017

• #3

If it was me, I'd get a Turner exchange block.

Peter



M

marmon simca

Member

• Aug 1, 2017

• #4

Thank you for the replies, last night I warmed up the block with a roofing torch, didn’t reach anymore than 300deg, the liners just pushed out , I will now do a pressure test to see if there are any cracks as the two liners I was concerned about look a bit gungy where they were in the block. There’s evidence of combustion deposits on some of the other ones, not sure if that’s relevant. What I can see is a clear step at the bottom for the liner to stop on, so I cannot imagine them slipping in this block, do other blocks not have this as I’ve read about liners slipping?


I also warmed up a 3.9 block I had and pushed the liners out of that to see if they would be suitable replacements, they appear the same just 1/4 " longer.
If the block is ok and not cracked I am going to atempt putting the liners back in by warming up the block and having the liners in the fridge, is this how Rover put them in I wonder?
The 3.9 also has provision for stopping the liner dropping, rather than a complete step it has blocks .
Best regards Tim.



norseman

Well-Known Member

• Aug 1, 2017

• #5

I admire your tenacity & aptitude, as far as I know this is not normally the sort of level undertaken (with apologies to those who have done so)
Whatever 'provision' the liners had it didn't stop mine moving, number three if I remember rightly. With the 4.6 having a longer stroke why would the 3.9 liners be longer I wonder ?
Wishing you luck with the end result.



M

marmon simca

Member

• Aug 2, 2017

• #6

Thank you but definitely no aptidude here ha ha , I guess if the liner was a poor fit length ways in the first place and then later started moving then the step at the bottom wouldent take much of a bashing to remove. My friend found these; https://www.rimmerbros.co.uk/Item--i-RB7486 looks very promicing,



biketeacherdave

Well-Known Member

• Aug 2, 2017

• #7

Well done that man once you have refitted the liners why not pin themy then you won't have to worry ever again about them slipping



martynv8

Well-Known Member

• Aug 4, 2017

• #8

Later blocks had steps at the bottom to stop liners dropping. It still happened though as many liners were not pressed in fully during assembly, my P38 had this happen on 2 of the later blocks. I bought a top hat block done at CME but that failed eventually due to a crack.
Turners would be my choice.



M

marmon simca

Member

• Aug 8, 2017

• #9

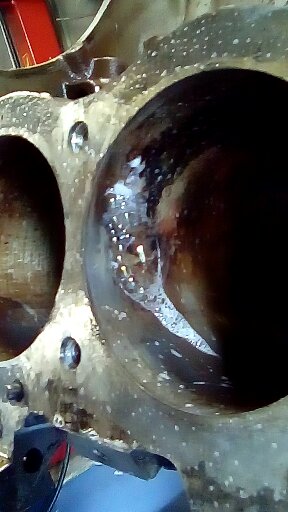

Thank you, perhaps not unexpectedly, but ive found a couple of cracks. Glad I pressure tested it before proceeding.
Can this be repaired? welded perhaps?



M

marmon simca

Member

• Aug 8, 2017

• #10

Picture of the liners coming out, not the 4.6 but a 3.9 (practice)



norseman

Well-Known Member

• Aug 8, 2017

• #11

marmon simca said:

Can this be repaired? welded perhaps? View attachment 129094

Click to expand...

More use as a coffee table I suspect



J

johnnyb70

Well-Known Member

• Oct 23, 2017

• #12

Can be repaired using top hat(flanged) liners. Not always successfully but 98% I guess. PS these will still leak pressure its the cylinder head and gasket that provides the seal at the top and silcon at the bottom. I personally would highly recommend acr in deeside. These specialise in machining land Rover engines and Roland is well worth speaking to.turners are equally renowned. I caution you against cheaper providers from experience and say acr and Turner's address the failure of this type of repair in slightly different ways.
