NightShadow91

Active Member

• Feb 27, 2021

• #1

Evening All,

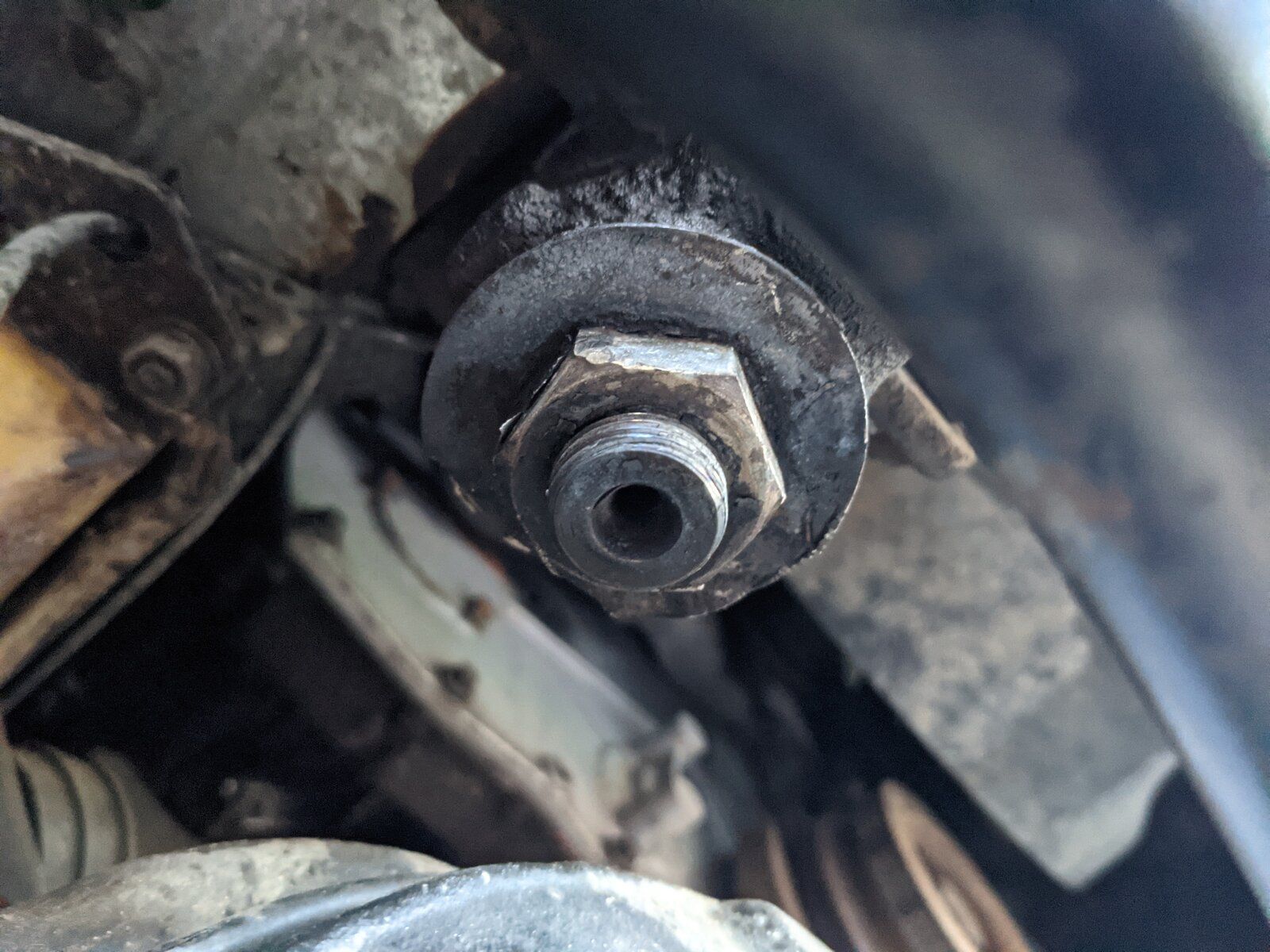

Trying to remove the steering from my defender to replace with Gwyn Lewis. From what I gather I need a disco drop arm to replace the swan neck for my 200tdi defender?

I've heard rumblings of cutting into the knuckle at the top of the neck on the steering box end. I'm a welder so in ok with a wizzy wheel, though not massively keen on cutting into the grooved bar of the steering box pin. I've left it soaking over night in plus gas, fashioned a lid from a bottle so it sits in it. Will dry off and apply heat tomorrow and try and budge.

Before I go too mad, anyone have any tips on removing?

Many thanks
Jim



Attachments

•

  265.3 KB · Views: 129

L

lynall

Well-Known Member

Full Member

• Feb 27, 2021

• #2

Pretty certain I slit mine then opened it up a knatts cock with a nice thin chisel.
Bit of a mark on the shaft wont hurt it, think mine was blemish free, and Im blind!



flat

Well-Known Member

• Feb 27, 2021

• #3

Yeah o had to cut a slit with a grinder and open it up with a chisel as well.

be careful with heat, you don’t want to get the shaft to hot as you will trash the seals in the box



neilly

Well-Known Member

• Feb 27, 2021

• #4

Are you sure you have the correct replacement?
I have the GL kit, but it only ifts certain steering boxes. iirc 6 bolt.

On my old steering box, I used a proper clamp ( iirc Draper) and an impact wrench to remove the drop arm, and I ended up loading it and leaving it, then going back releasing ti them loading it again. But it took a few attempts.

Cheers



payydg

Well-Known Member

• Feb 28, 2021

• #5

Lots of videos on YouTube how to do this. You just need to hit it very hard, multiple times with a long drift from above. Or take it off and use a press like I did.



H

Hicap phill

Well-Known Member

• Feb 28, 2021

• #6

@neilly
There is a GL kit that uses the disco drop arm & puts the RTC shocker on a bracket on the new bar.
It’s easier to change a TRE than a landy ball joint



neilly

Well-Known Member

• Feb 28, 2021

• #7

Hicap phill said:

@neilly
There is a GL kit that uses the disco drop arm & puts the RTC shocker on a bracket on the new bar.
It’s easier to change a TRE than a landy ball joint

Click to expand...

Hi Phil,

Read my first line,LOL, I have one fitted.

But iirc it does not fit a 4 bolt steering box only a 6 bolt steering box.

Cheers



Retroanaconda

Well-Known Member

• Mar 1, 2021

• #8

Other way around, it fits the 3-bolt and 4-bolt (Adwest) but not the 6-bolt (Gemmer) boxes.

https://gwynlewis4x4.co.uk/product/defender-drop-arm-conversion-kit-stainless-steel/



G

Grebby

Active Member

• Mar 2, 2021

• #9

I used a hydraulic gear puller to get mine off.

Where abouts are you? If local you can borrow it.



NightShadow91

Active Member

• Mar 4, 2021

• #10

Grebby said:

I used a hydraulic gear puller to get mine off.

Where abouts are you? If local you can borrow it.

Click to expand...

That would be ideal, though probably miles away! I'm in Berkshire. Best, Jim



G

Grebby

Active Member

• Mar 4, 2021

• #11

I'm in Sutton Coldfield so not exactly close.

Good luck, even with the puller it was still not as easy as I'd hoped it would be.
