Safetyspice · Apr 11, 2022

It would seem that I have a significant oil leak on the engine, the entire sump is covered in oil (the entire contents of my sump! not even registering on the dipstick. My first port of call is reseal the sump. My questions :

Other than checking the front and back of the engine for front and rear crank seals is there any where else that is common, there is so much oil about. very very difficult to tell.

Is it better to take the ladder off and reseal to the engine as well whilst I am there?

miktdish · Apr 11, 2022

You do need to find out where its coming from.
Some gunk, a spray bottle, an old bog brush and a pressure washer..

I'd be surprised if your sump is leaking.

Dippypud · Apr 11, 2022

Safetyspice said:
It would seem that I have a significant oil leak on the engine, the entire sump is covered in oil (the entire contents of my sump! not even registering on the dipstick. My first port of call is reseal the sump. My questions :

Other than checking the front and back of the engine for front and rear crank seals is there any where else that is common, there is so much oil about. very very difficult to tell.

Is it better to take the ladder off and reseal to the engine as well whilst I am there?

A small leak, over time and wind driven splash can travel all over the underside of a vehicle ...

Flossie · Apr 11, 2022

Sump to cyclone breather hose had split on mine. Lots of places it can come from and,as said, you're gonna have to clean it all up first.
Rocker cover, cam covers, turbo hose, head gasket, front timing case seals etc etc.

lynall · Apr 11, 2022

Check bottom of timing chest, you will see a hole approx 1/2 diameter, if the oil is coming from out of there you have some fun ahead of you.
Also check same size hole at rear of sump in the flywheel housing, again i theres oil running out its not a small job.

Safetyspice · Apr 12, 2022

Thanks Guys, better get my overalls on, got new oil to put in it to give it more to chuck out, lets hope I can find it.

Safetyspice · Apr 16, 2022

Hi,

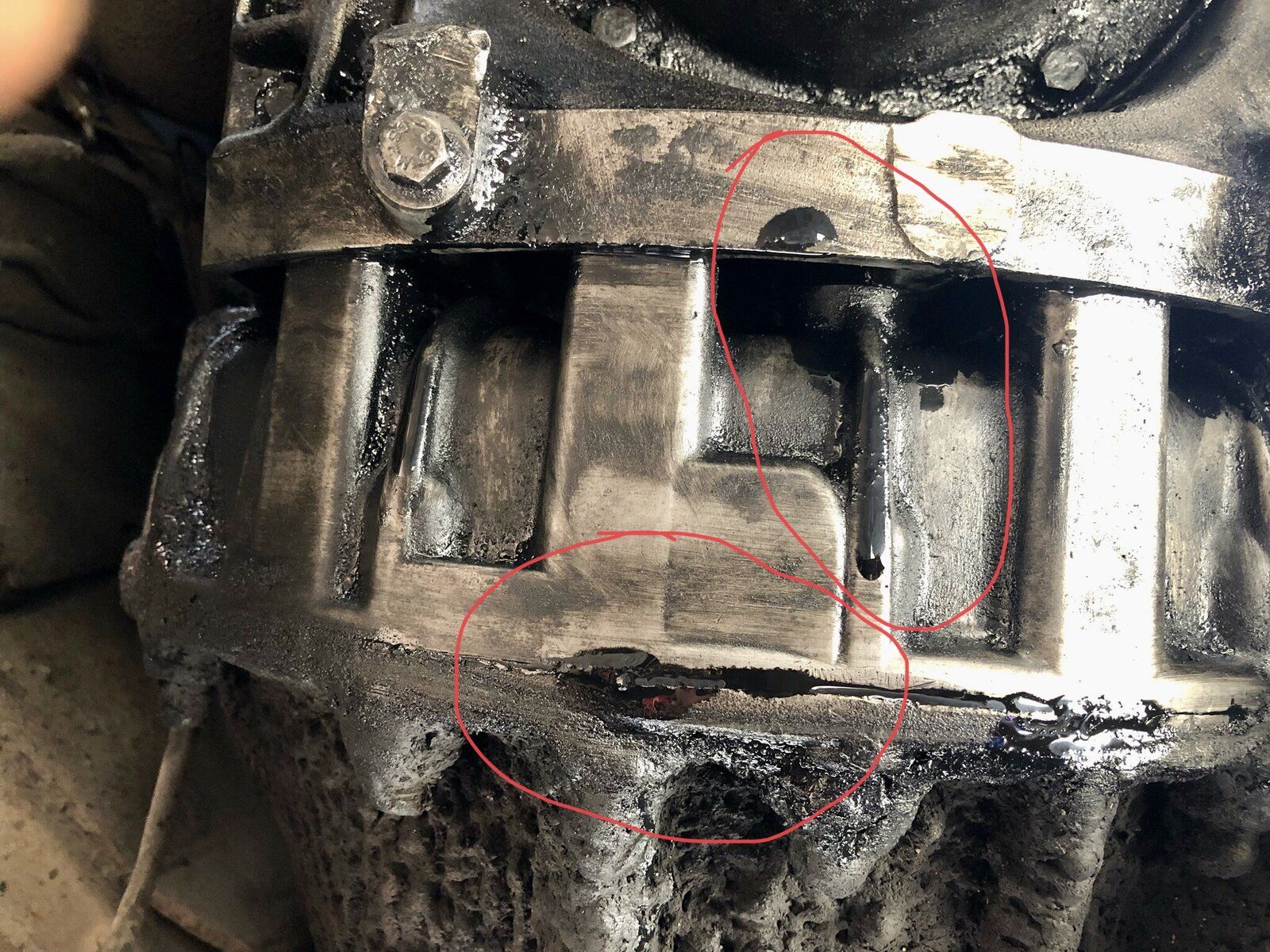

have spent a number of hours trying to clean the crud off. New oil in, I have found a few leaks, rocker cover, sump bolts, ladder to engine joint. These all seem pretty straight forward. The one that is bothering me is at the back of the engine. Photo below, any suggestions what it might be. In my limited knowledge of these vehicles and engines, I suspect rear crank seal? Or could it be the gearbox? Oil traces ringed in red

Dippypud · Apr 16, 2022

Safetyspice said:
Hi,

have spent a number of hours trying to clean the crud off. New oil in, I have found a few leaks, rocker cover, sump bolts, ladder to engine joint. These all seem pretty straight forward. The one that is bothering me is at the back of the engine. Photo below, any suggestions what it might be. In my limited knowledge of these vehicles and engines, I suspect rear crank seal? Or could it be the gearbox? Oil traces ringed in red

Invest in a talcum powder pack, cheap is good as any, chuck it about after giving the lower engine a good clean off, it'll help to track any oil from the top end trailing down to confuse matters ...

rocker cover for example ...

tottot · Apr 16, 2022

The pic is of the bottom of the flywheel clutch bell housing right ? The bolt in the top left of the pic is I recon the wading plug and should not be there for normal use. Could be someone have fitted it to limit oil loss from a failed crank seal and housing is now holding oil. If this the case clutch will be well contaminated and need replacement.
