Managed to get a bit done the last couple of weeks. Got the bulkhead back from the painter so set about filling it and the chassis with Dinitrol to try and keep the rust at bay for a while. Before I took it too the painter I gave the middle sections a coat of corroless rust stabalizing primer. Went for Bonatti grey for the colour in the end and pretty happy with how it looks.

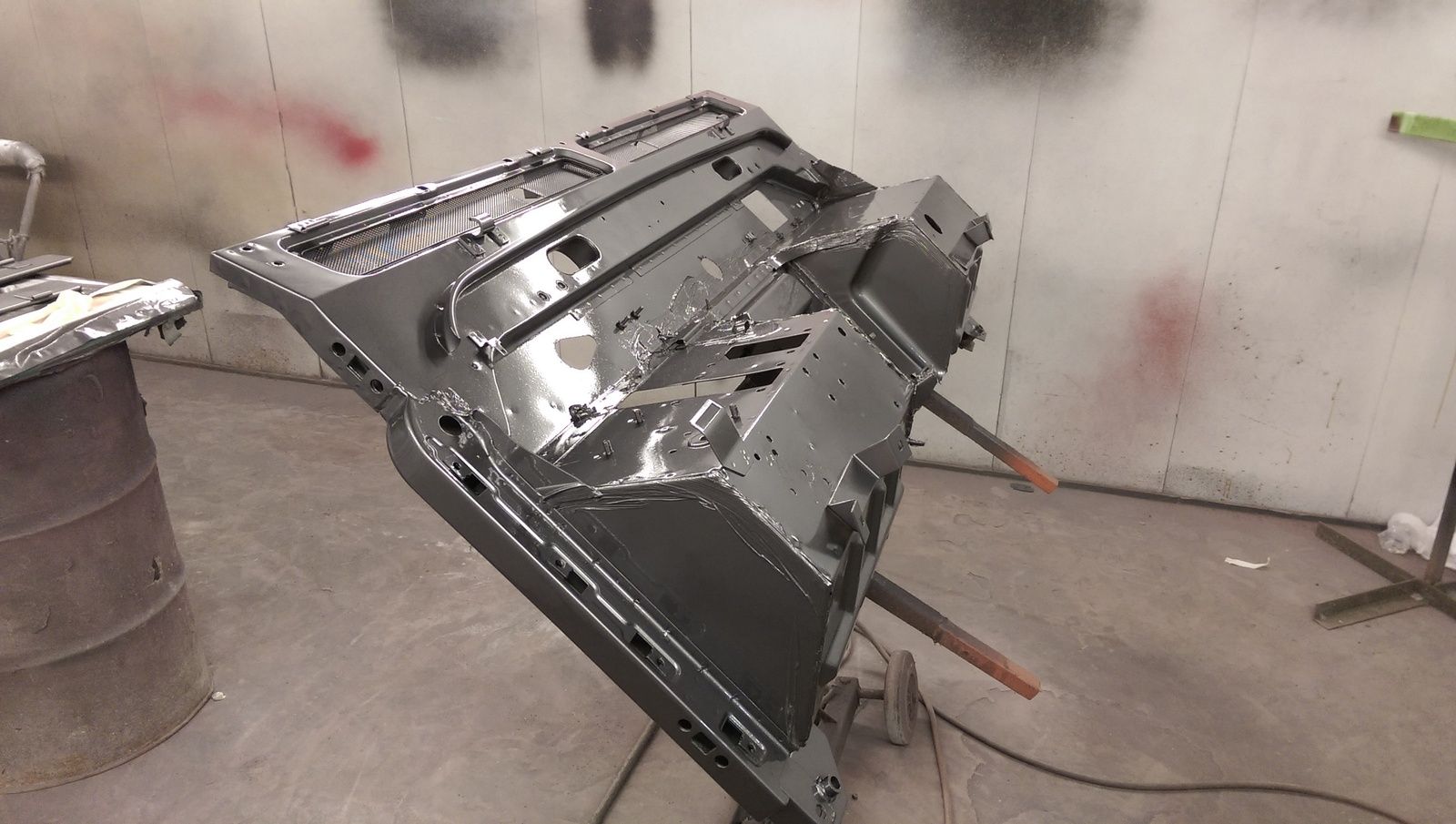

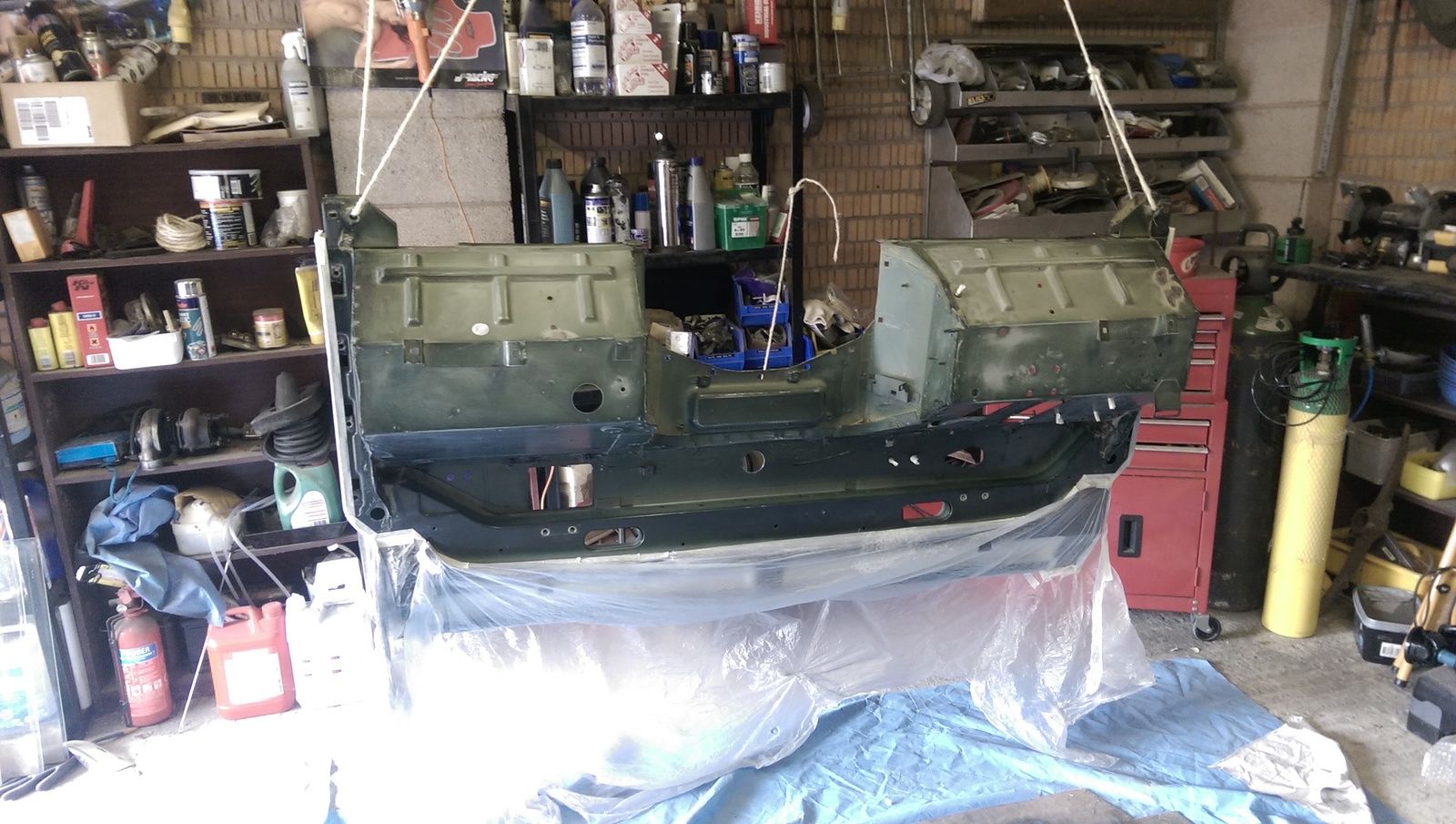

Bulkhead hung up ready to be primed

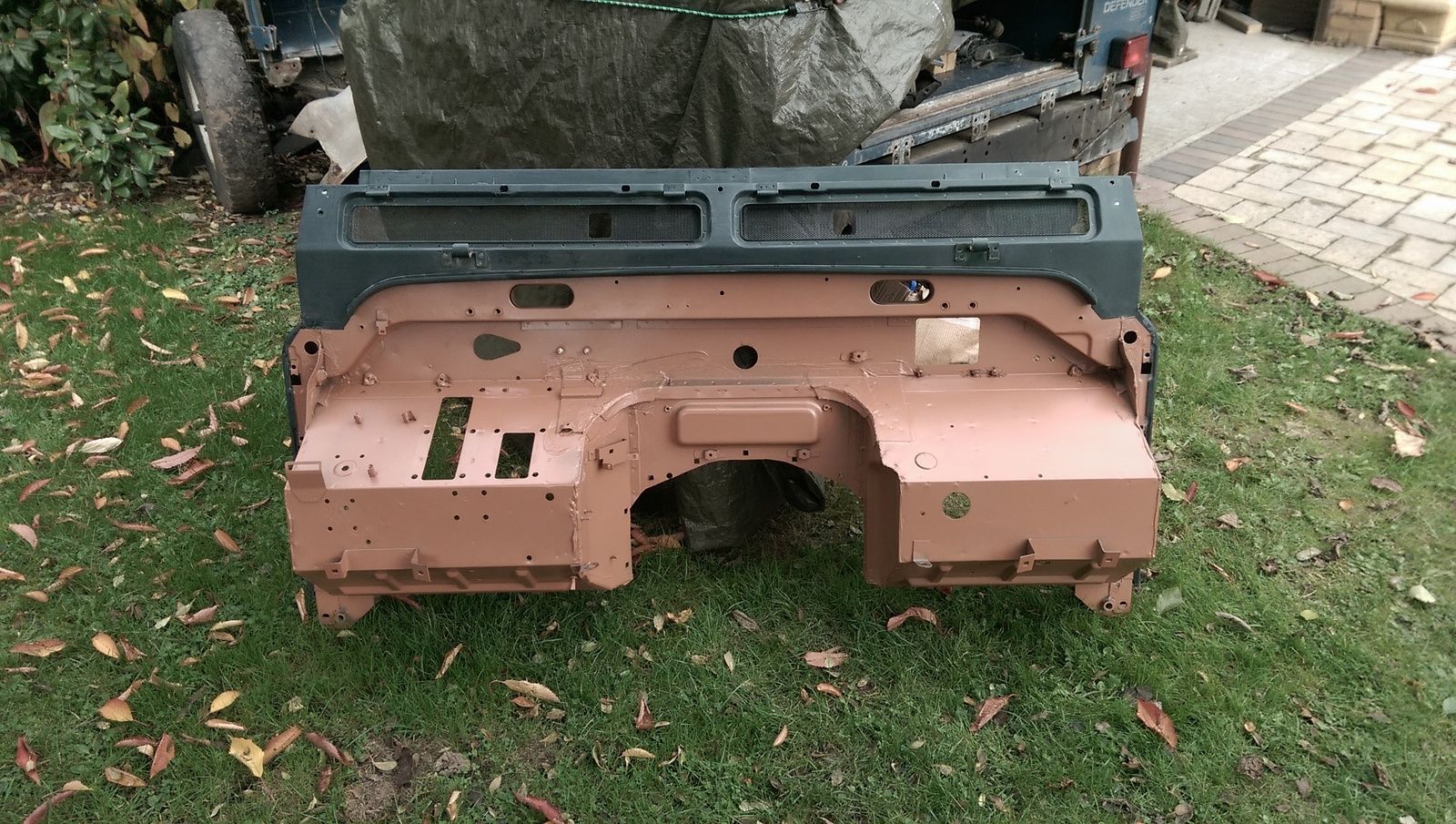

Primed before it went to the paint shop

Painted :cool:

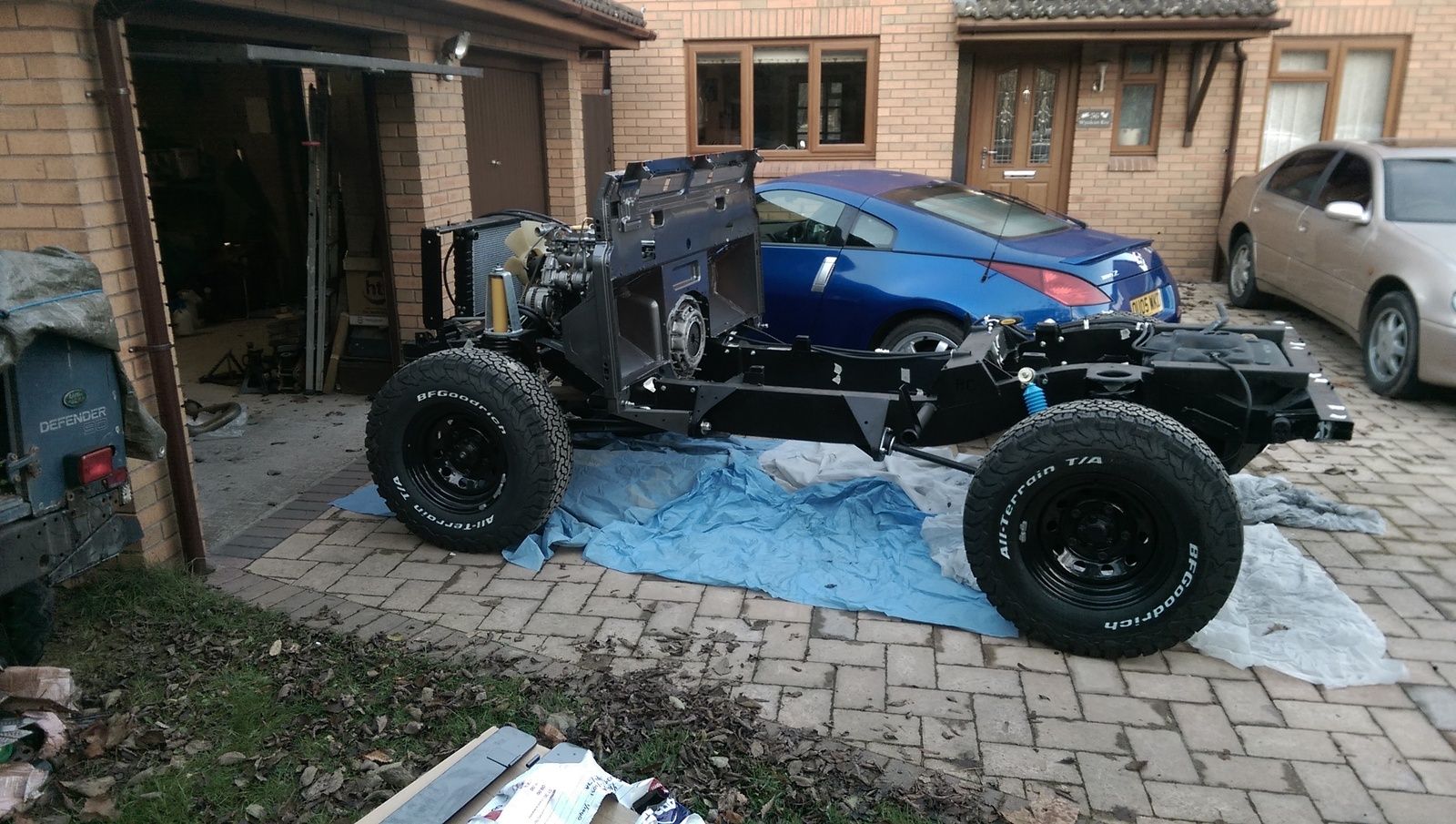

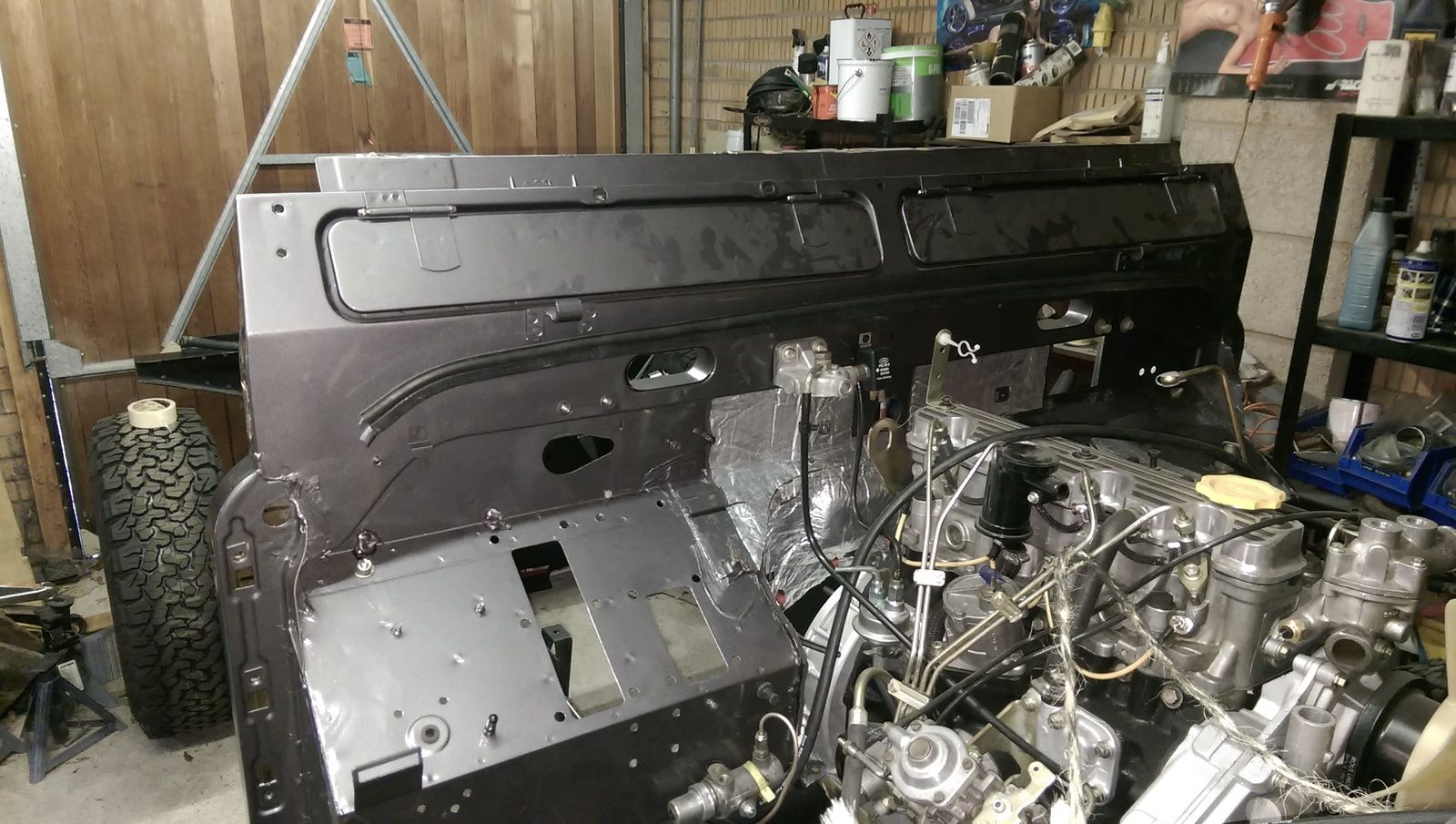

Bulkhead on and chassis filled with Dinitrol


Also managed to get the front anti-roll bar fitted. When I ordered the chassis I forgot to spec the front mounts for the front bar so I had to buy them from YRM. The mounts are normally welded onto the chassis but I didn't like the idea of having to grind off the galv on the chassis to weld them on. I opted to weld some tabs onto the brackets then use rivnuts in the chassis to bolt them on.

Stainless rivnuts fitted to the chassis:

Mounts all bolted up with stainless bolts:


Went to fit the rear anti-roll bar but found out that the wrong bushes and u brackets come with the kit paddocks sell. :mad::mad: Be warned if you buy the roll bar kit from paddocks that say "Fits all defenders" it doesn't. If you have a td5 spec'd chassis you will need different rear bushes and brackets. Tried emailing paddocks to query this and see if I could get supplied the right bushes but never got a response so I've had to put them on the next order.

Got a call from the painter saying the tub was almost ready to be picked up so needed to get the fuel lines to the rear td5 tank run and also a few other jobs finished before fitting it.

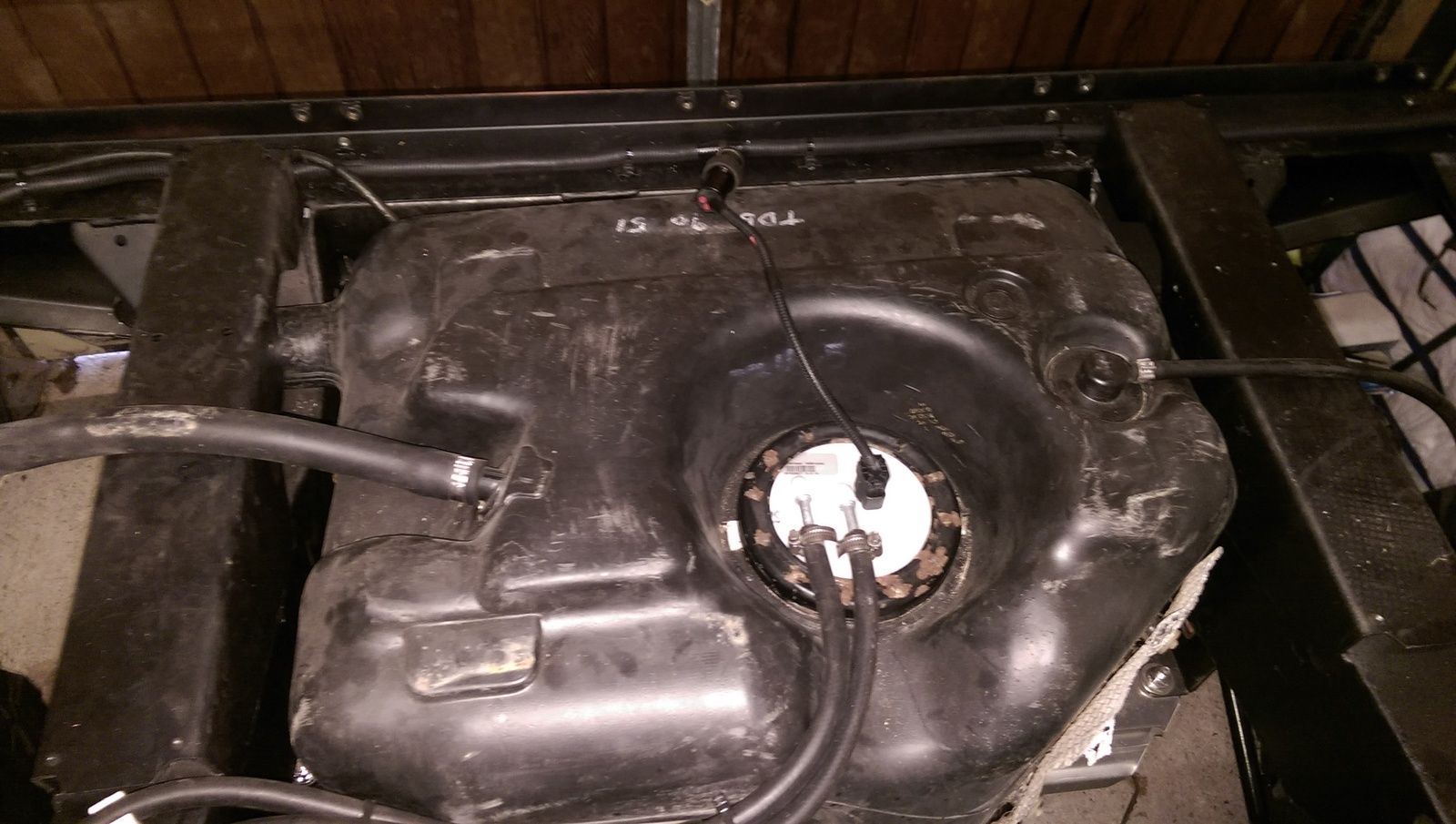

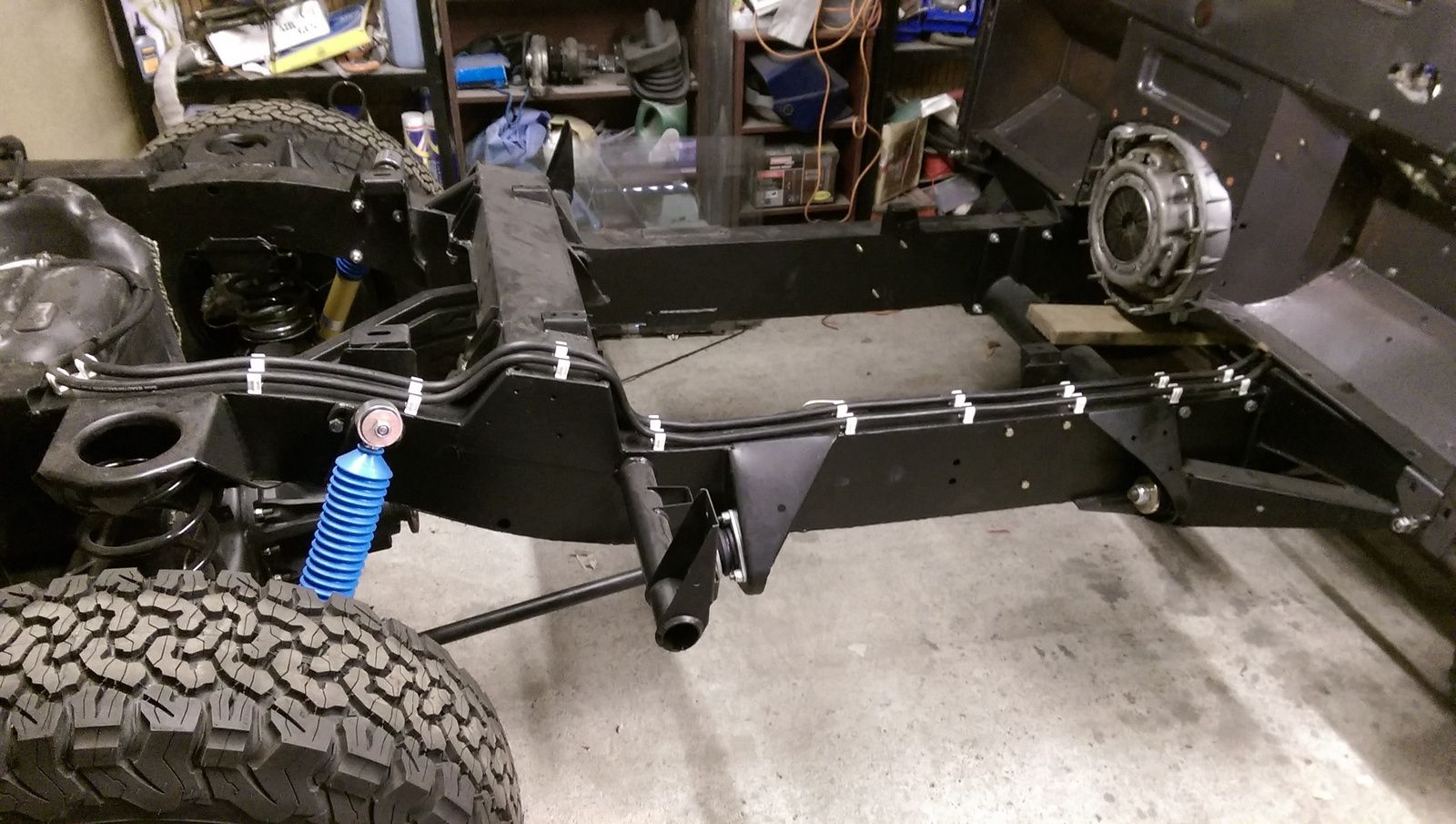

Used some fuel line hose I got off eBay and clipped it to the chassis rail up to the engine.

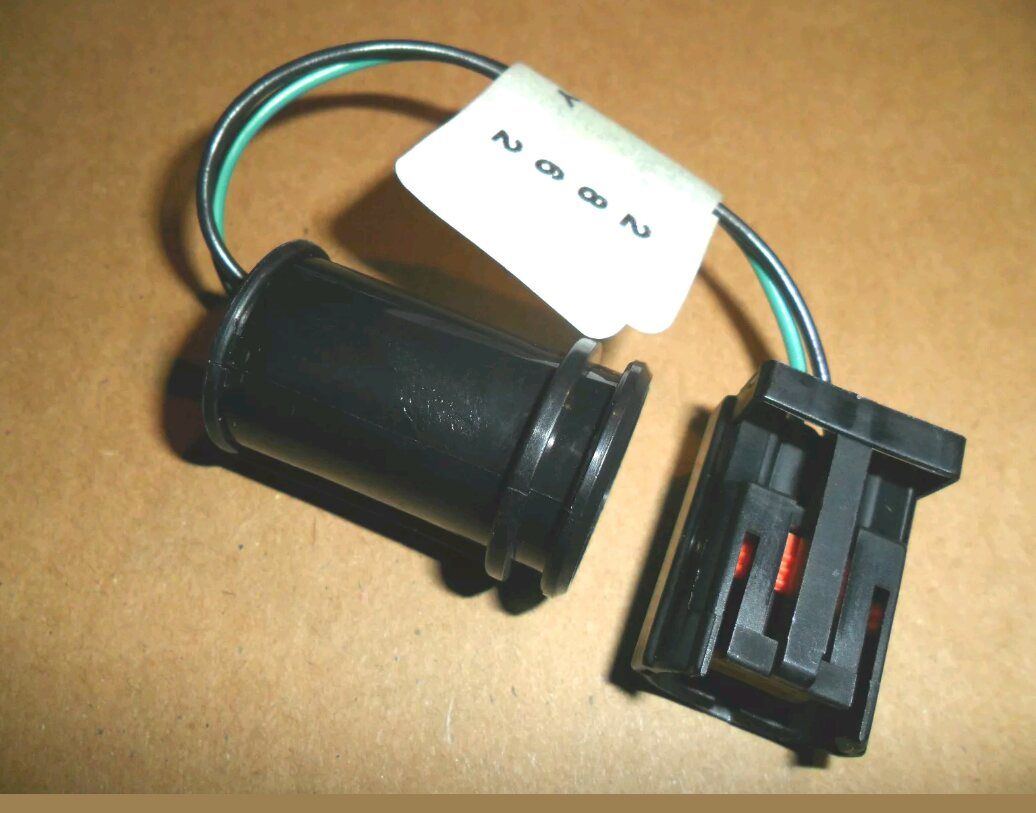

As the tank is now at the back the original tank sender loom was too short. Luckily my chassis loom had the connector at the back which made wiring in the sender in the tank easy. Wasn't sure what the connector was when I stripped the loom out of the old chassis and thought it was maybe a socket for a tow bar as nothing was plugged into it. After some googling I stumbled across a pic of a 110 fuel tank connector which looked exactly the same. Ordered the connector (part number AMR1494) but had to cut off the sender end of the loom as it was only 2 pin plug and swap it for a 4 pin plug that fits the Row spec sender. Also lengthened the loom at the same time so it reached.

Pic of the new loom before altering it.

Pic of the loom altered and fitted

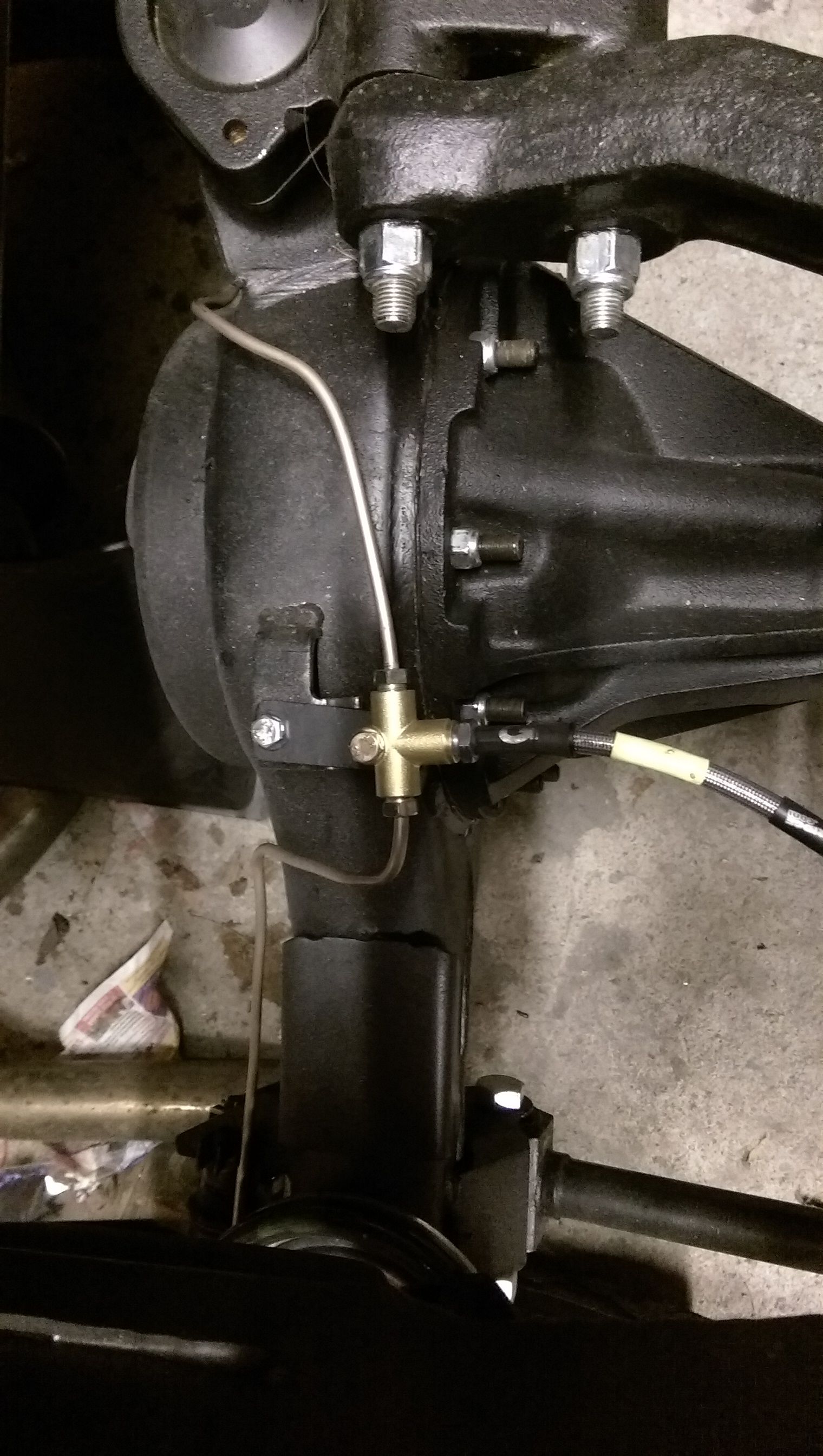

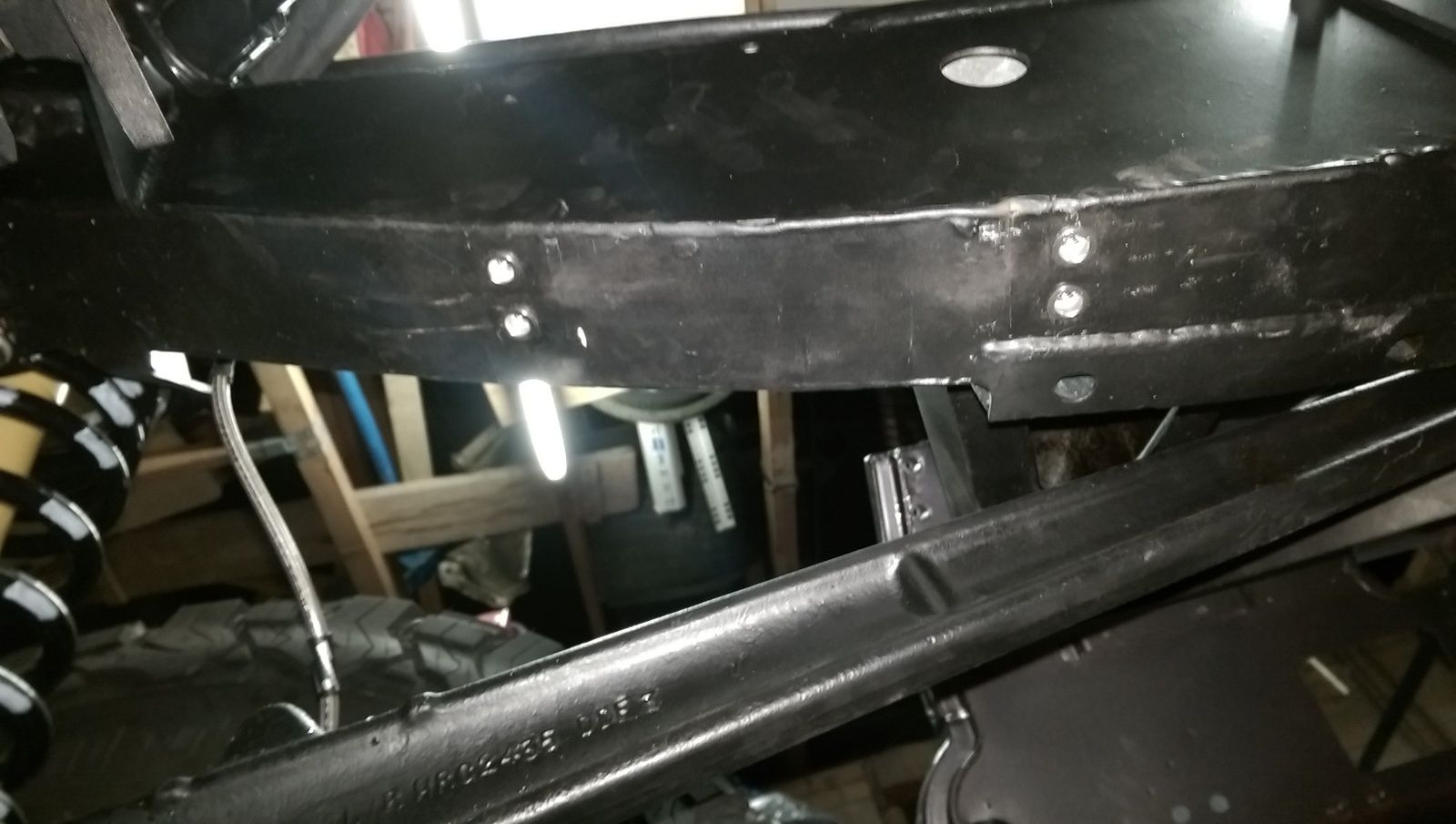

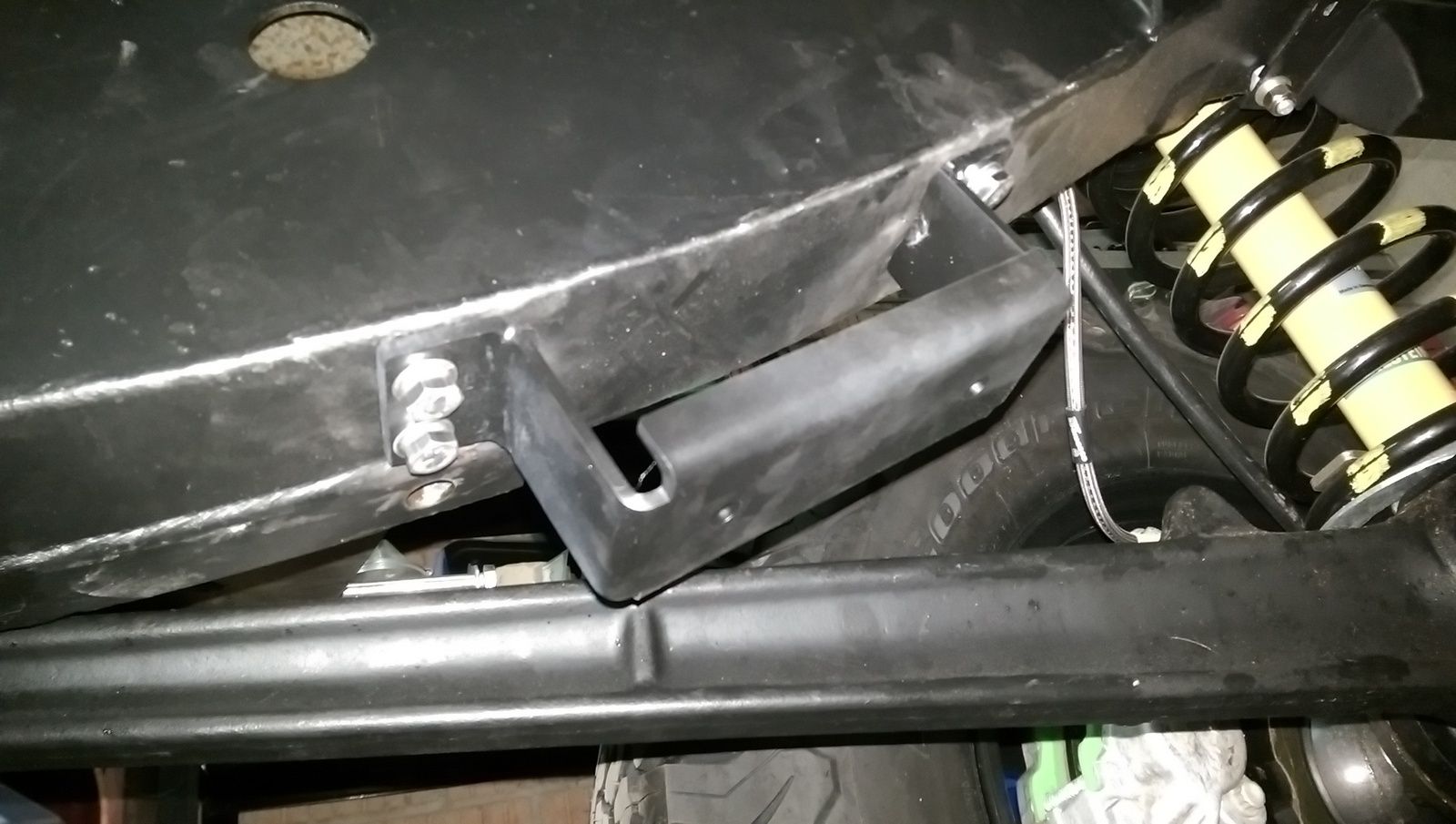

Next job was to make the brake line from the brake valve up front back to the rear axle. As I'm running a td5 rear axle I had ordered a 200tdi braided brake line kit I had to make a bracket to move the tee piece forward so the flexi line reached.


Got a few jobs done on the bulkhead too. My heat reflecting closed cell foam was delivered so stuck it around the bell housing area the same as on the original bulkhead.

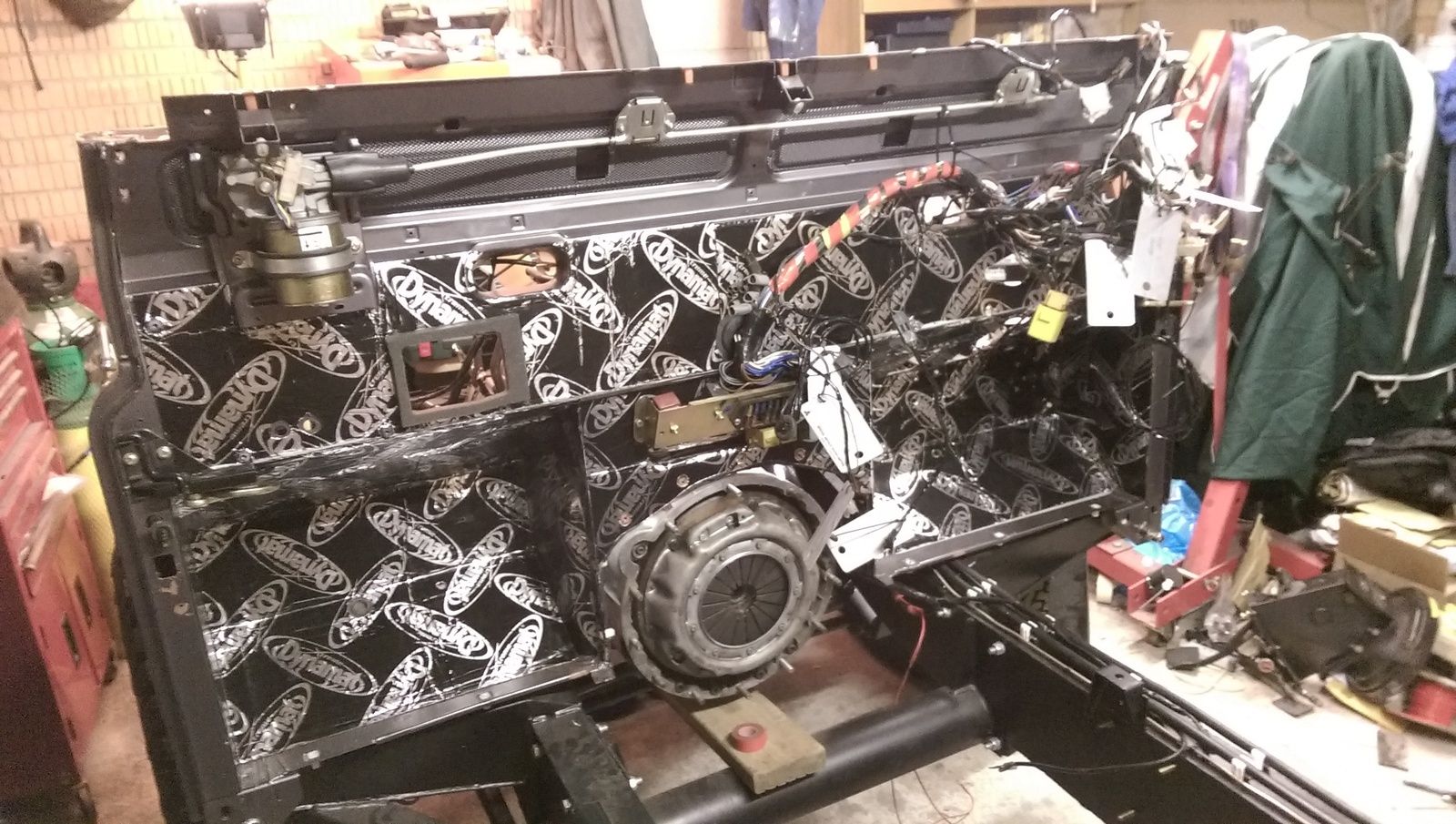

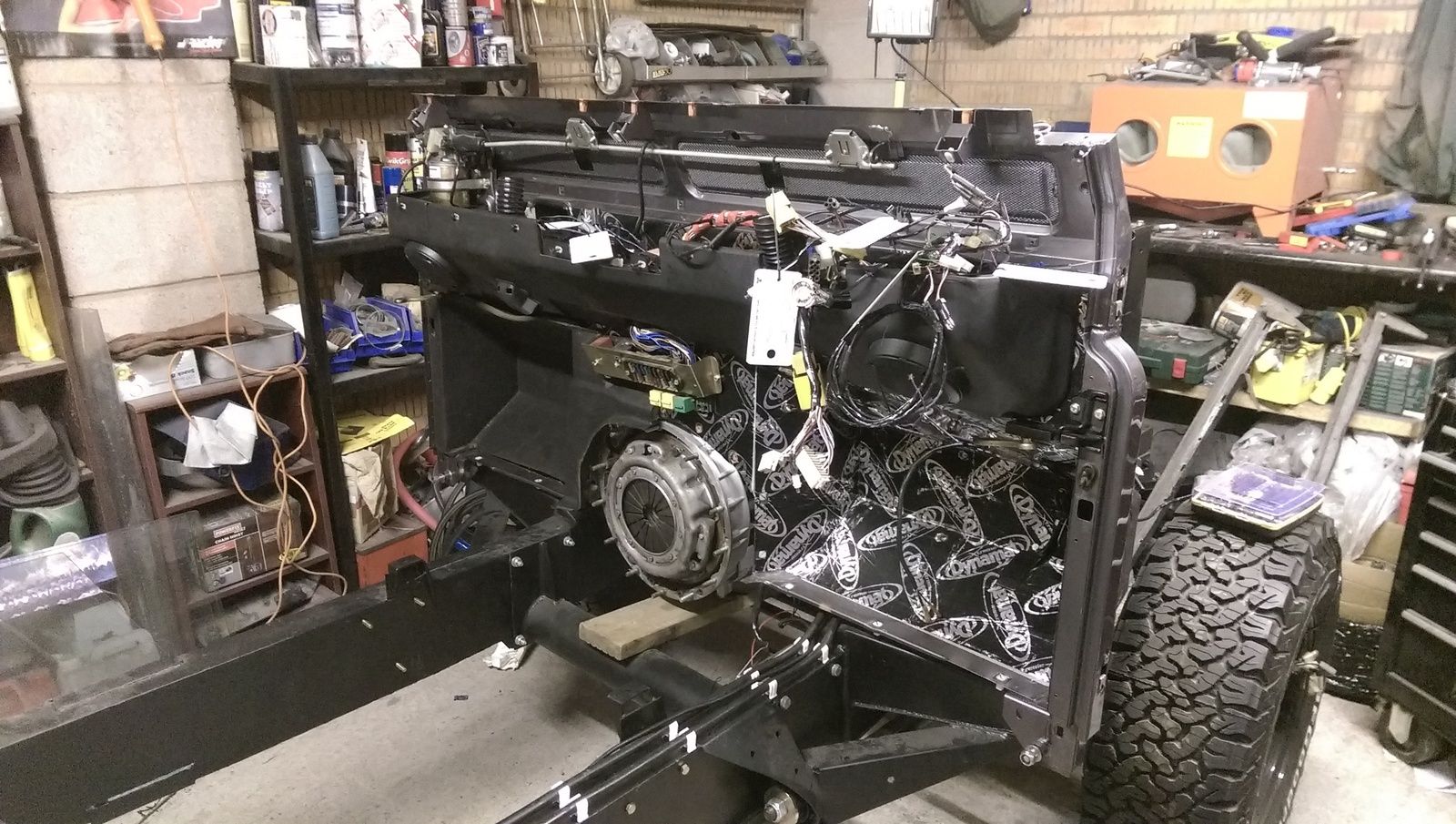

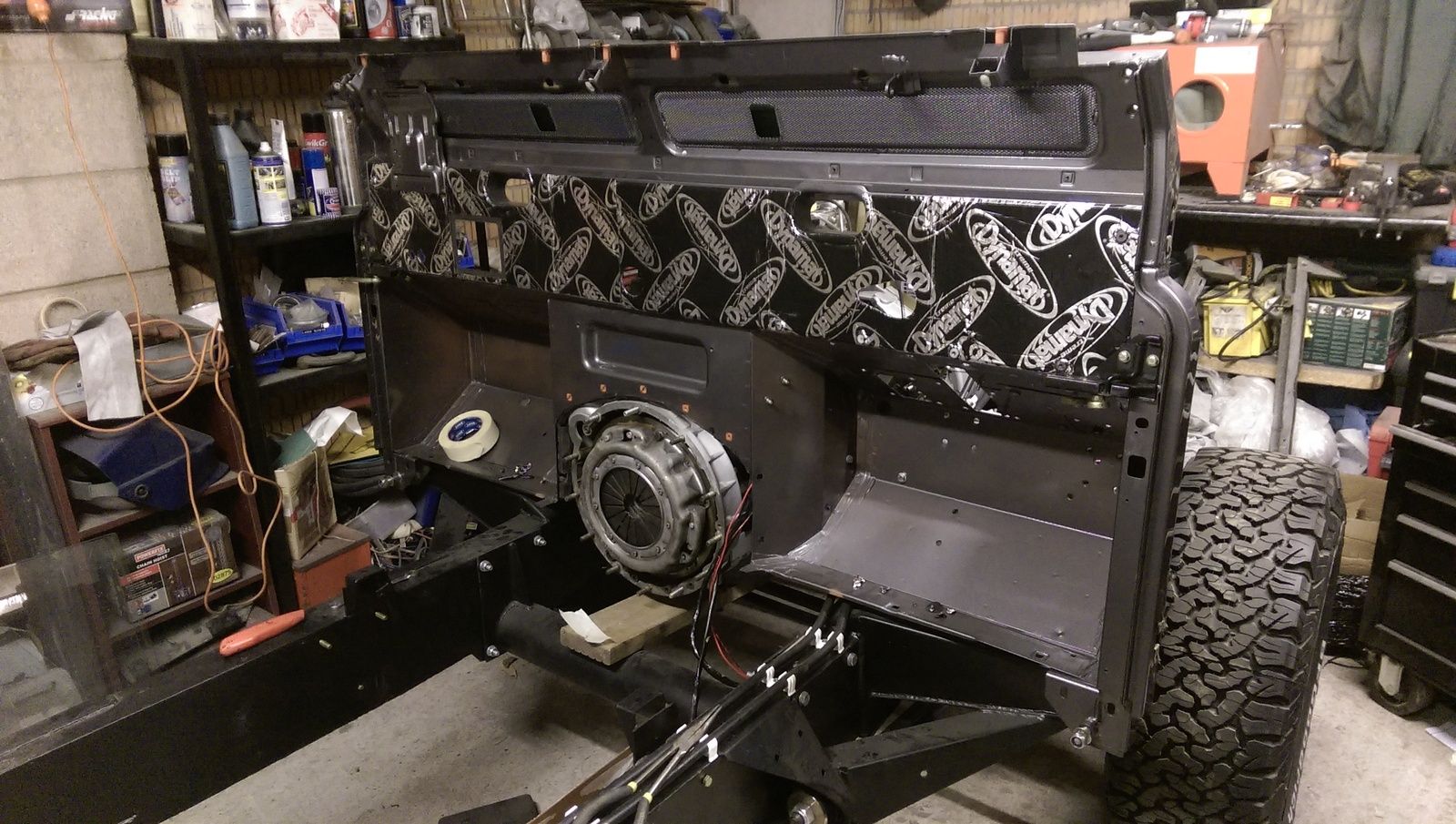

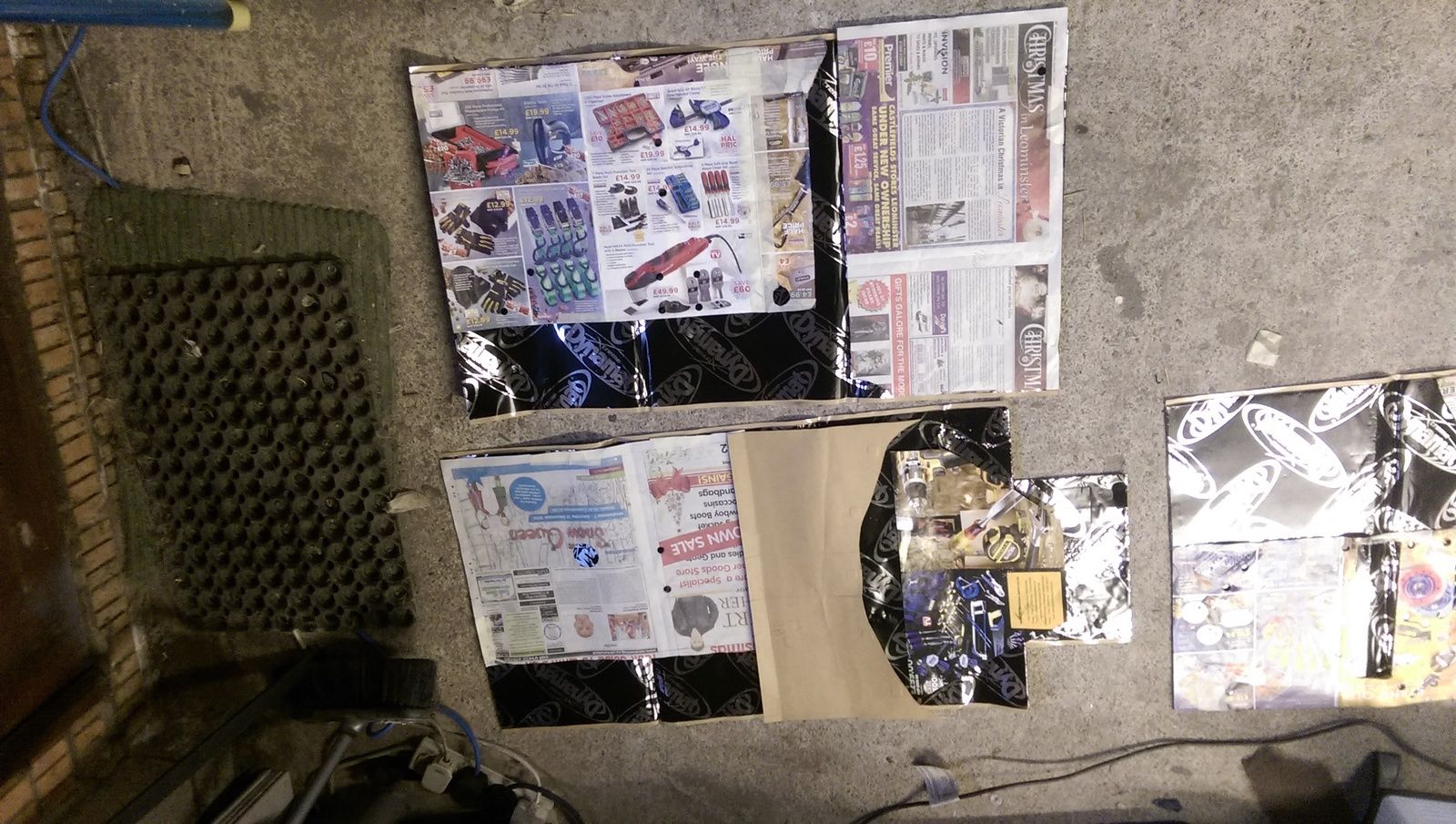

Also got the inside of the bulkhead covered in Dynamat to try and help with noise reduction. Made a load of paper templates to make sure I had minimum wastage. Used 4 sheets in the end.




Once the Dynamat was done I fitted the wiper motor assembly and the lower dash.

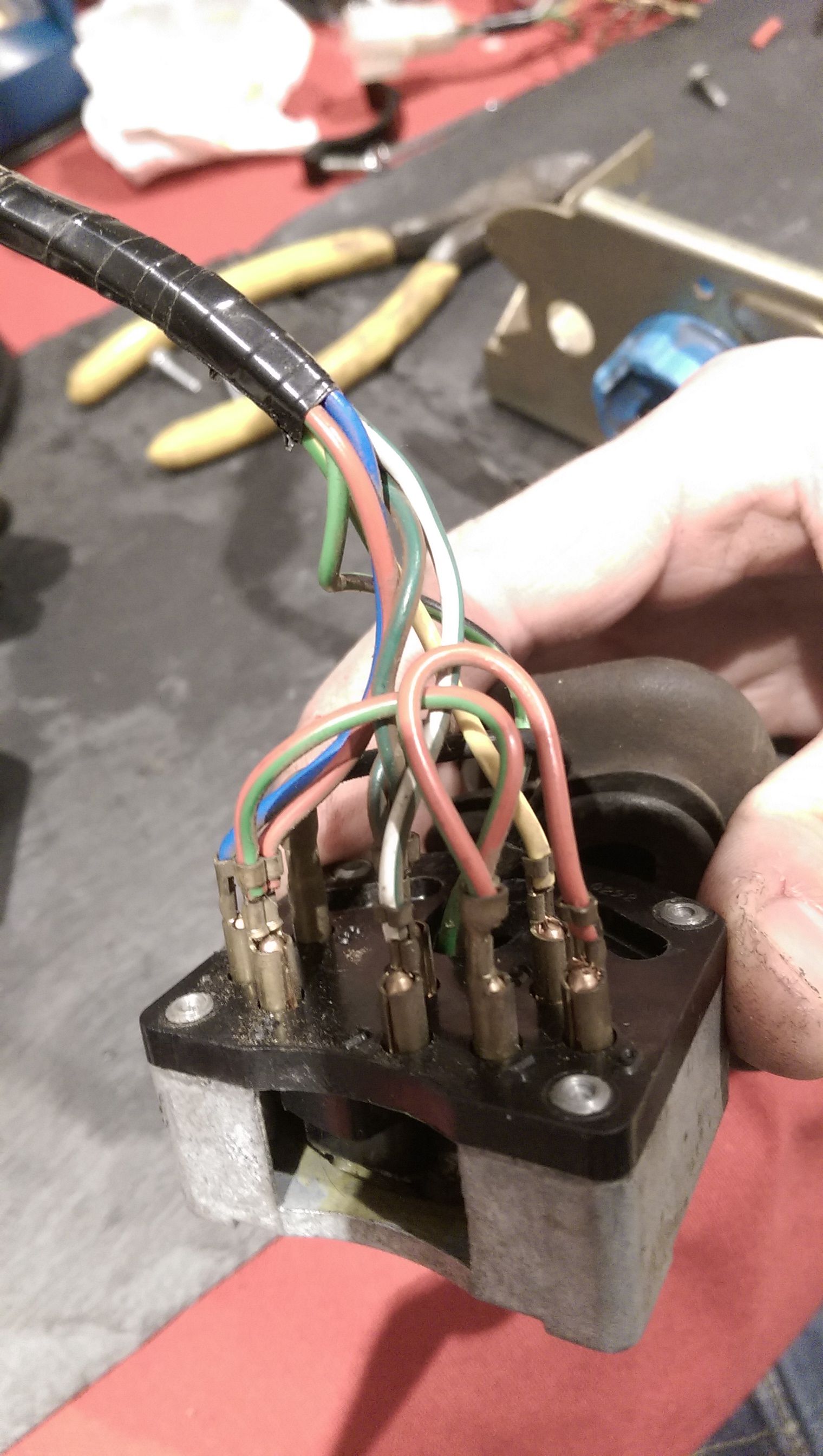

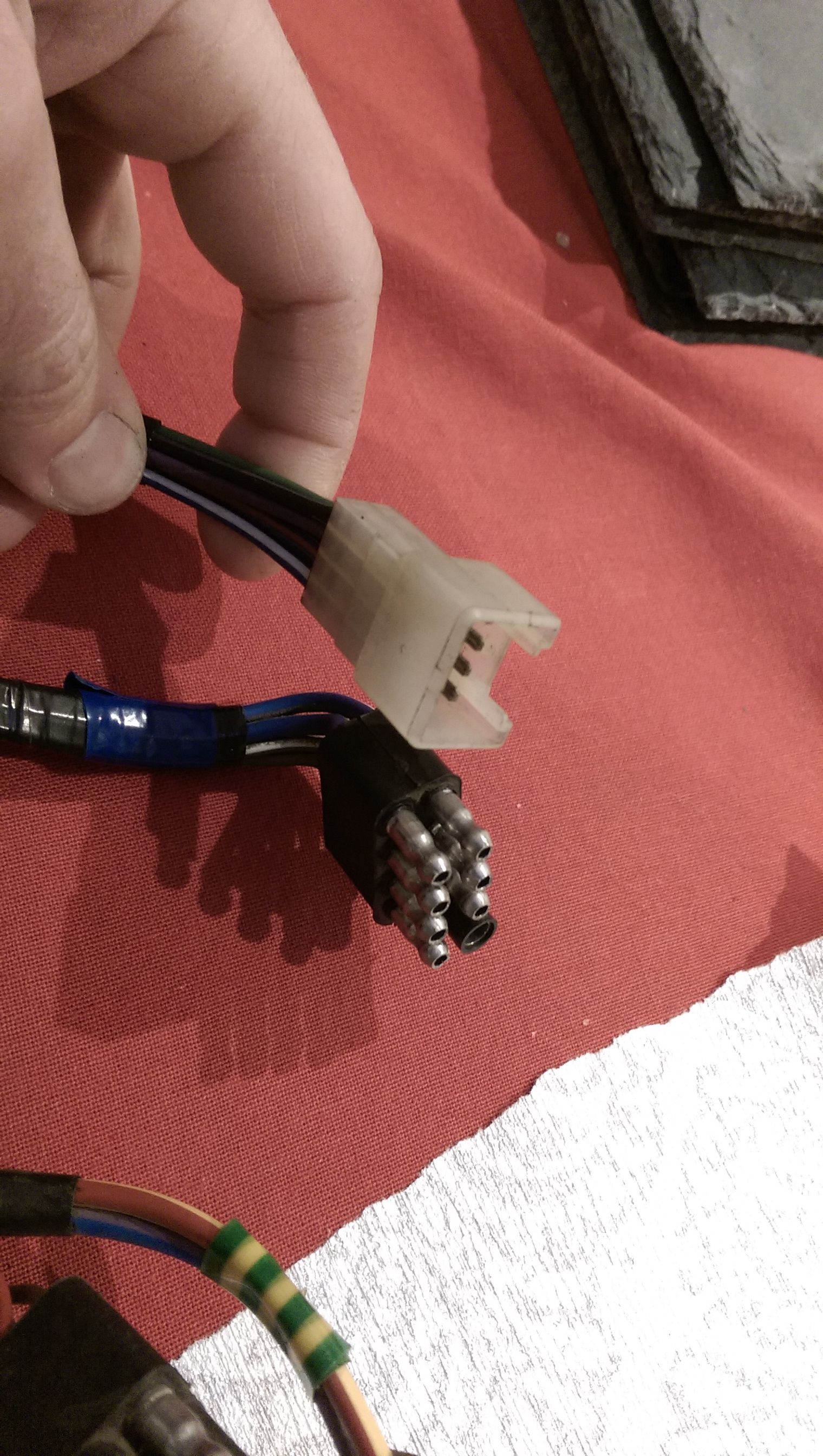

Last job this week was to alter the wiring on the wiper stalk/indicator stalk assembly. When I bought the new td5 bulkhead it came with all the wiper stalks and indicator stalks. As these were in alot better condition than the original ones I had I wanted to use them rather than buying new. The only difference the td5 ones have to the 200tdi ones is the plugs. The td5 ones have better plugs but it was easier to swap the plugs on the stalks rather than cut up the main loom to splice the newer type connectors in. The wiring on the stalks is easy enough to swap being bullet type connectors. I only had to cut and solder two wires on each stalk to swap them over. The two wires are the ones that run inside the stalk for the horn on the one stalk and the window washer on the other.

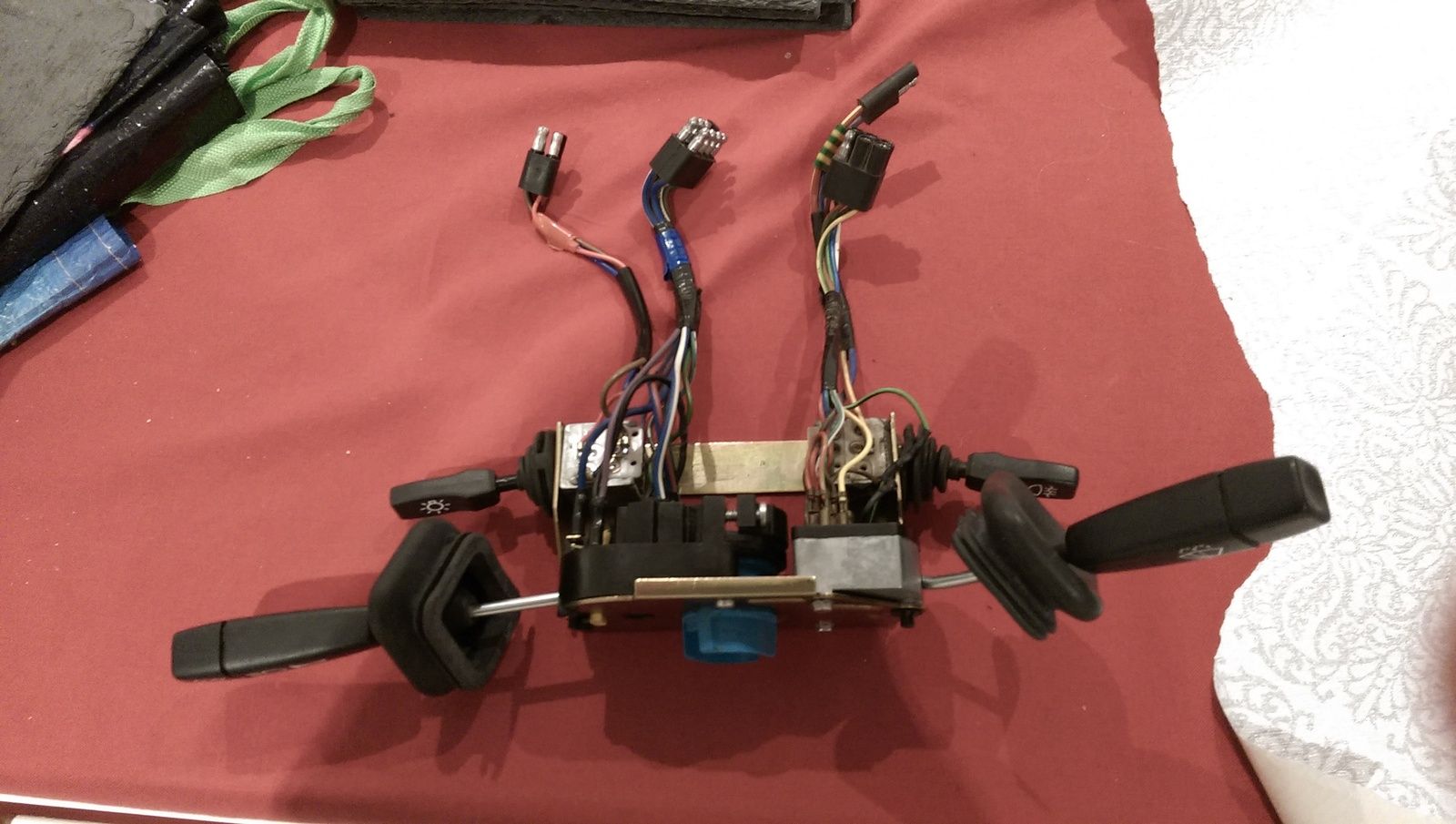

All swapped and ready to go

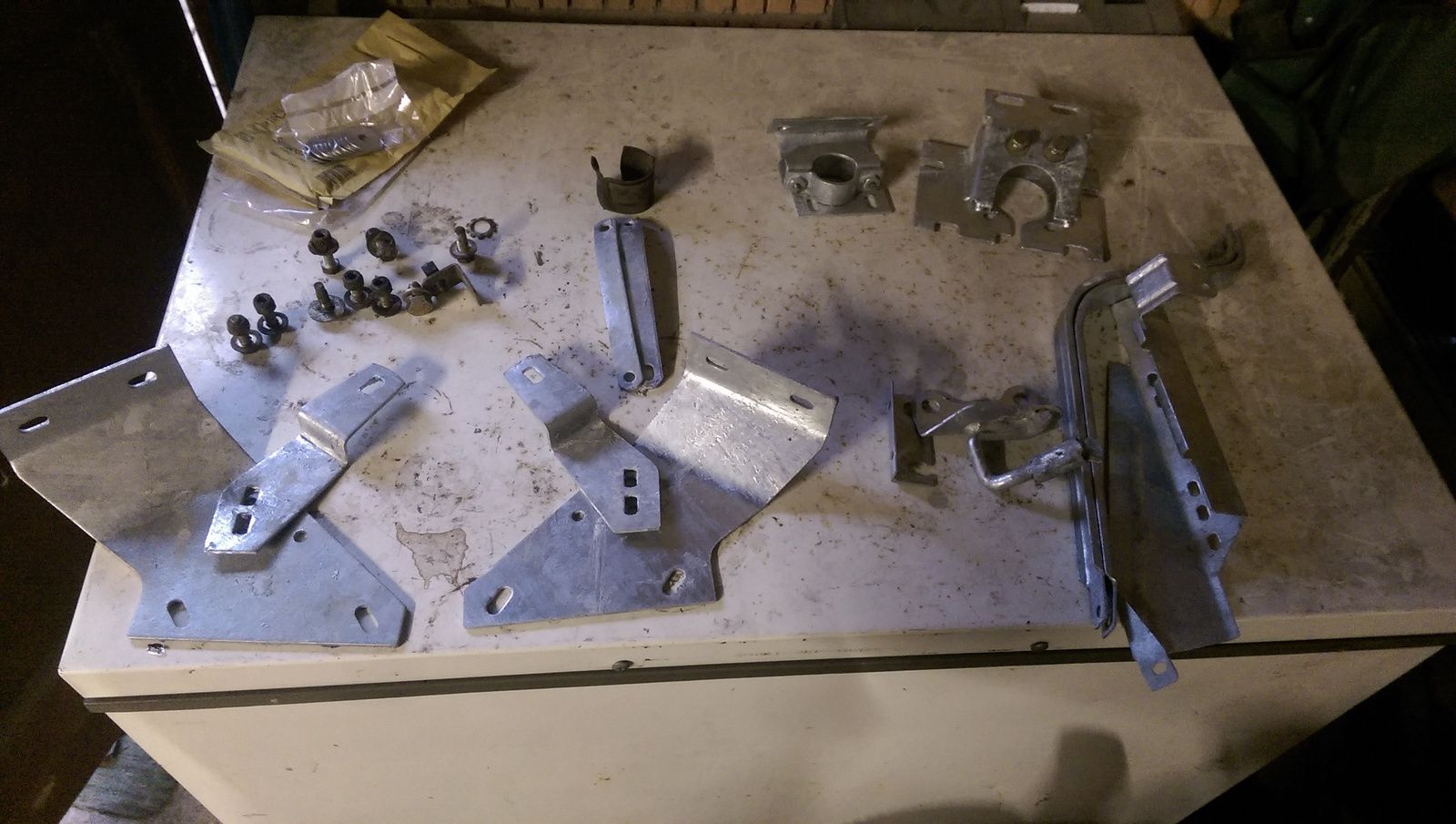

Got this little lot back from galv so can now start reassembling the heater box and steering colomn. Also finally got the bulkhe ad supports fitted to stop it wobbling around :D

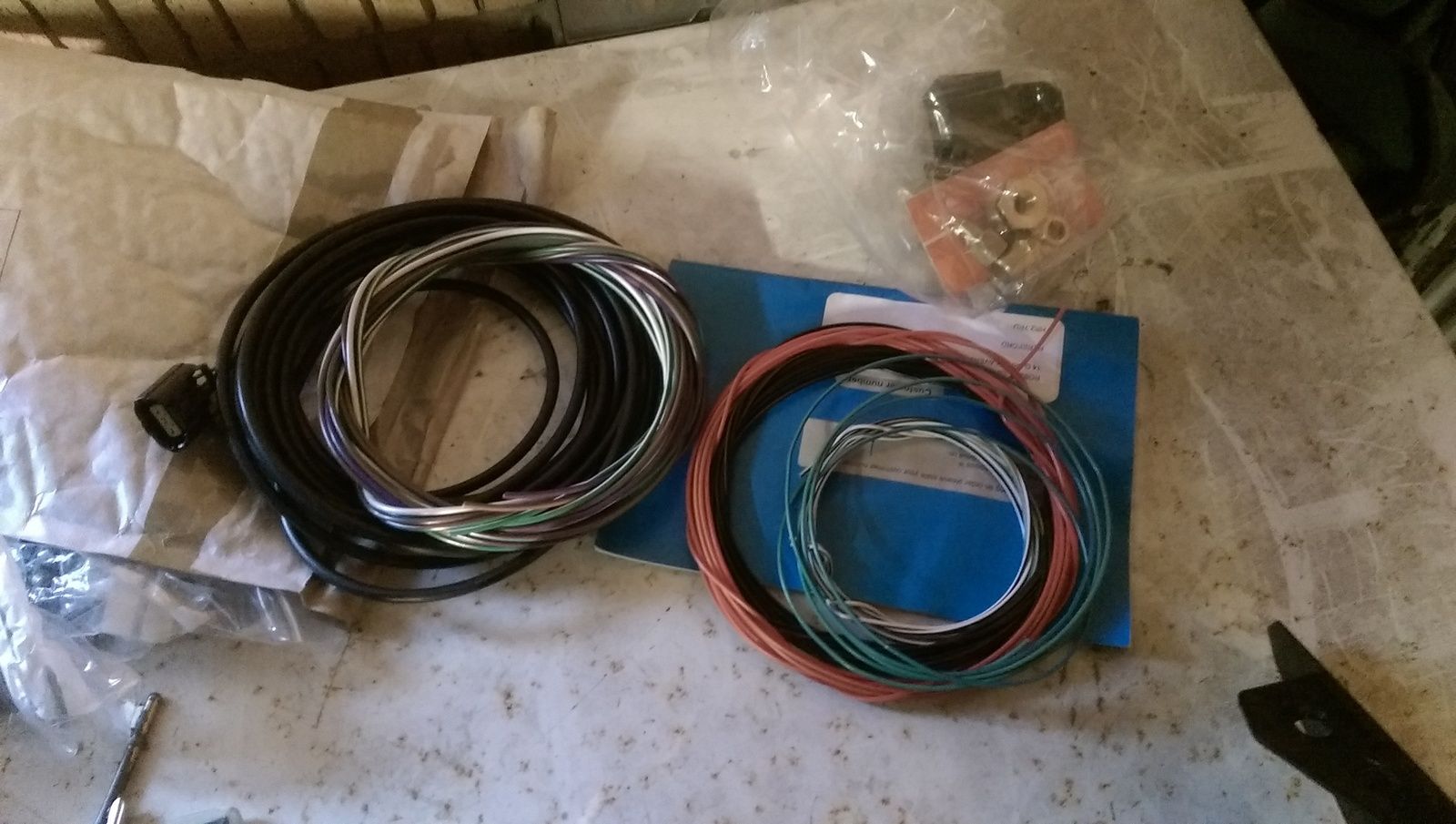

Also got all this lot to start the process of wiring in the td5 dash binnacle and centre console.

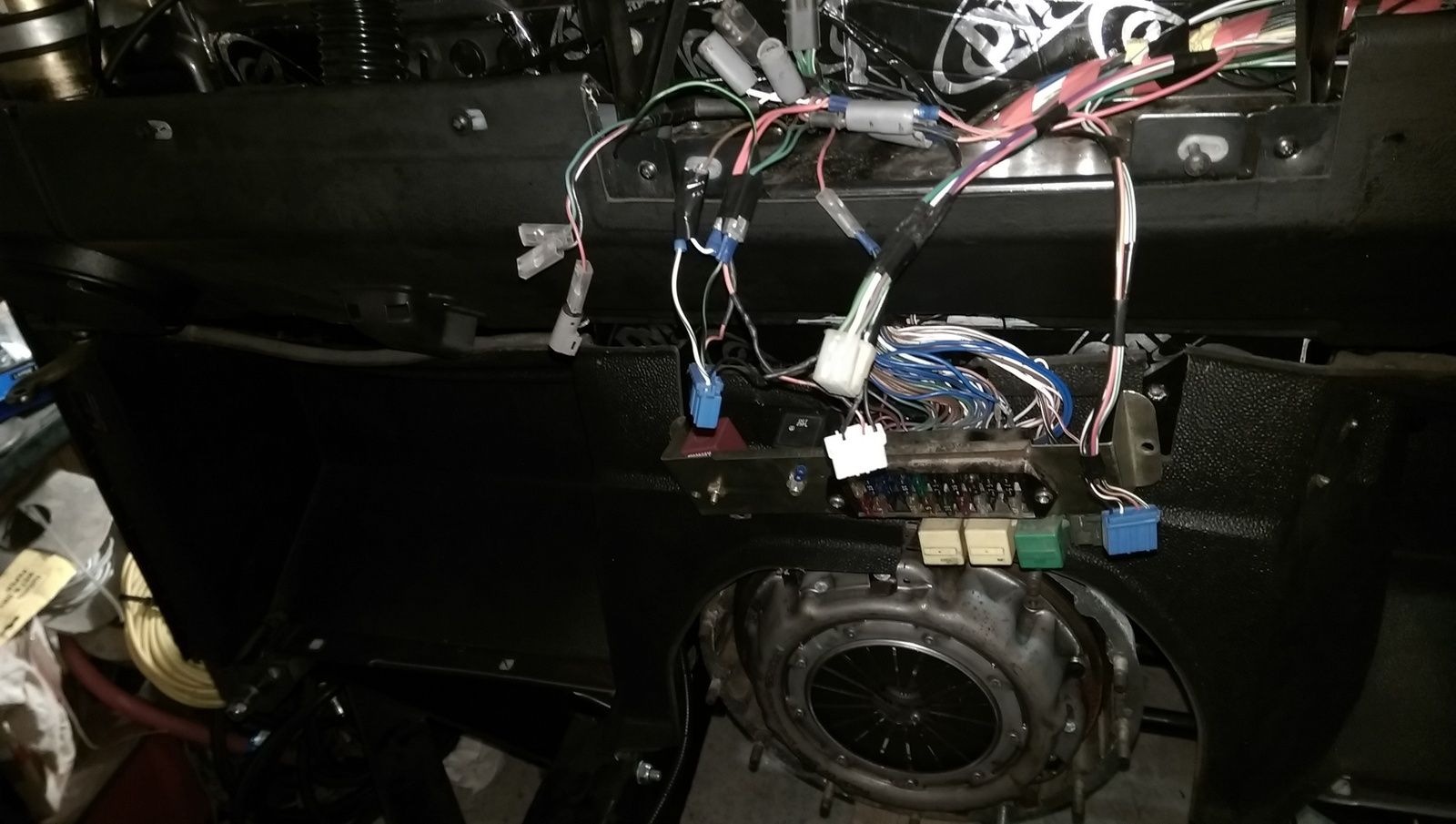

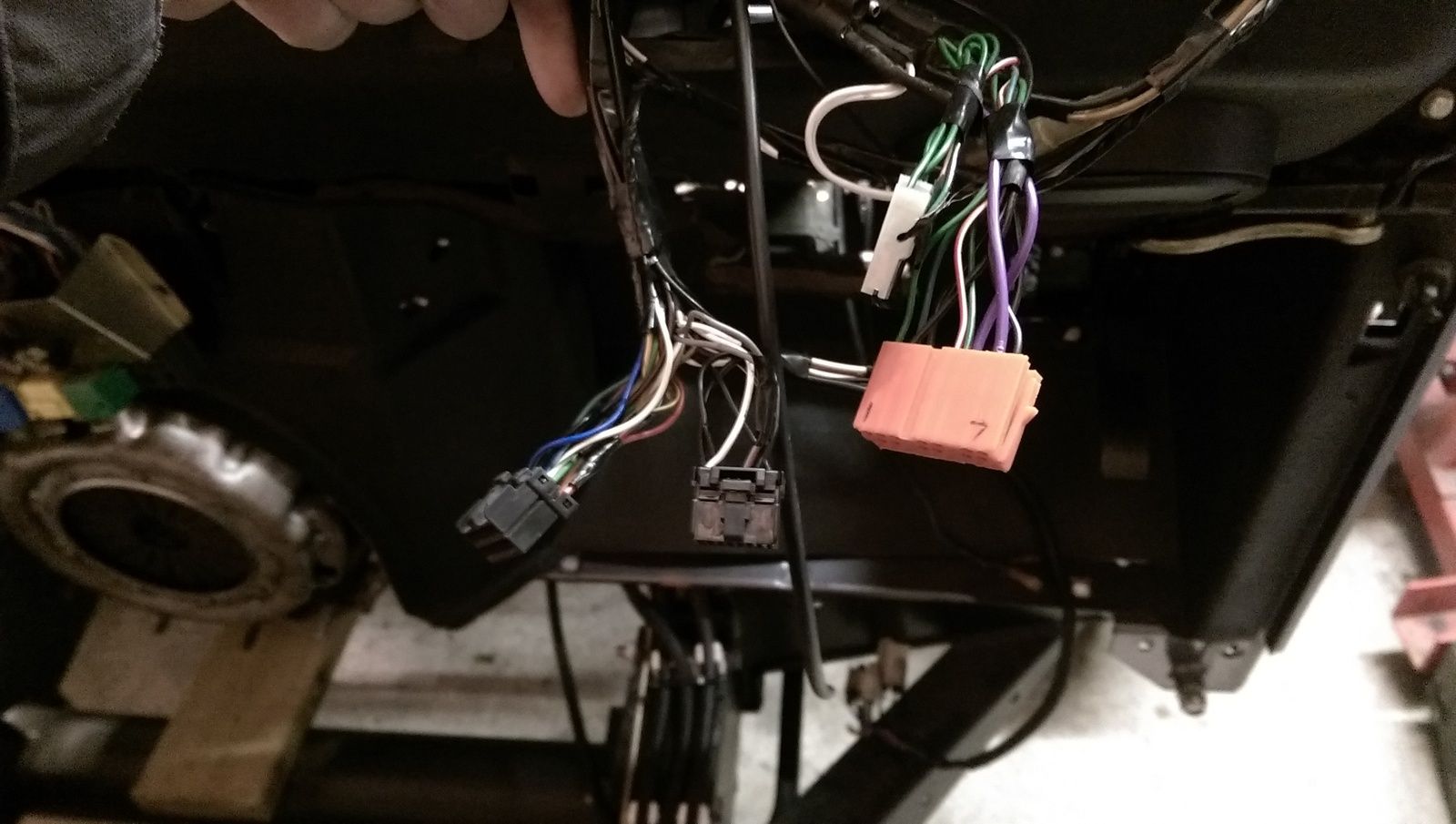

TD5 dash binnacle connectors and dash buttons all wired in



Also fitted some new seals to the vent flaps


New gearbox gets delivered tomorrow which is gonna exciting and another big step forward in the build.

It's looking great - you're going to be fighting over who gets to drive it!
I don't want to teach granny to suck eggs, but I'd get as much grease as possible into the wiper wheelboxes while they are nice and easy to get at.

It's looking great - you're going to be fighting over who gets to drive it! I don't want to teach granny to suck eggs, but I'd get as much grease as possible into the wiper wheelboxes while they are nice and easy to get at.

Ha maybe! I get up earlier than her so I'll have first dibs :D
Great tip about the wiper wheel boxes. Hadn't even thought of that! That's why I love posting on this forum. Loads of great friendly advise.

Great build so far. Sound deadening looks so neat! I'm part way through a 90 build and the electrics for the dash/lights boggles my mind so hats off to you!

Great build so far. Sound deadening looks so neat! I'm part way through a 90 build and the electrics for the dash/lights boggles my mind so hats off to you!

I was a bit like that at first. If you can get hold of a wiring diagram which shows wire colours it makes it alot easier. Just a case of being methodical doing a bit at a time and double checking things with a multimeter.
Saying that I've yet to hook up a battery yet to properly test it. May go bang yet!!! :eek::D

I was a bit like that at first. If you can get hold of a wiring diagram which shows wire colours it makes it alot easier. Just a case of being methodical doing a bit at a time and double checking things with a multimeter.
Saying that I've yet to hook up a battery yet to properly test it. May go bang yet!!! :eek::D

Ive got a Haynes but that's as close I've got unfortunately. Doesn't help that none of the lights or the fuel gauge worked before I stripped it down :( so I don't even have a good base to start with!

Shall look forward to more updates :)

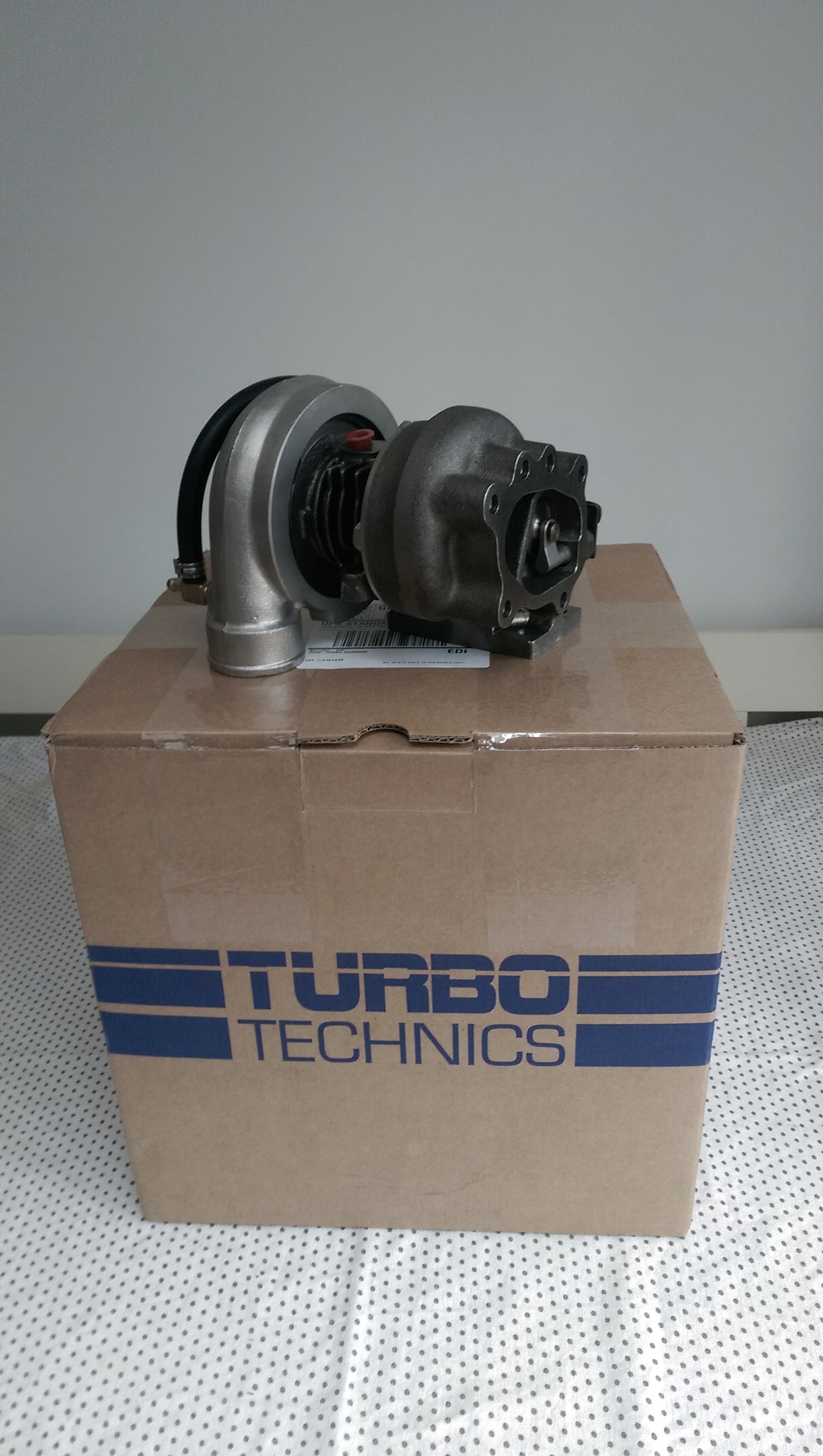

A very expensive box turned up this week which put a big smile on my face. My fully reconditioned turbo back from turbo techniques.

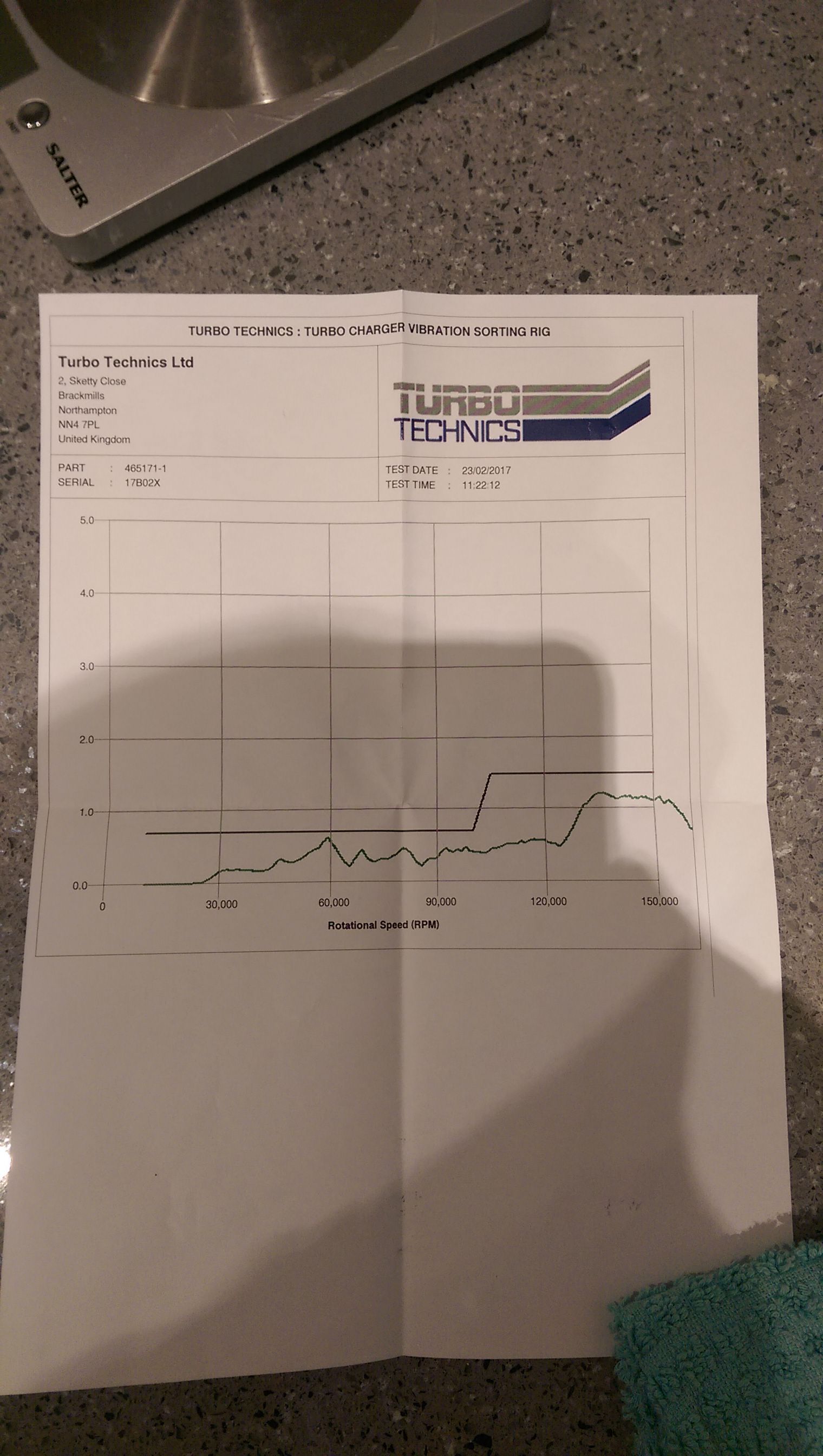

It came with a graph too showing the before and after.

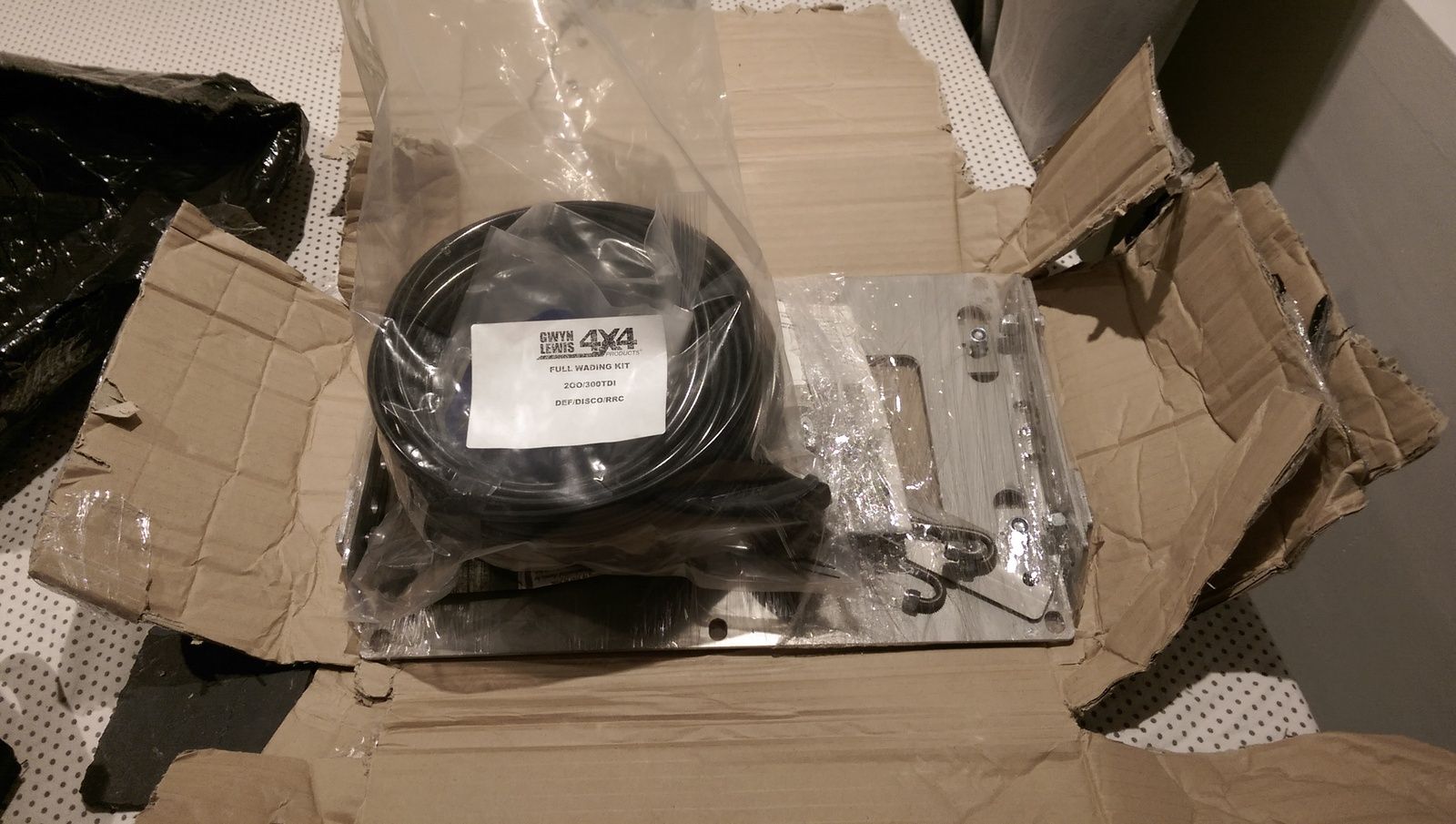

Also got this from Gwyn Lewis to fit the double battery setup I'm going to run and all the kit so I should be able to wade without fear of filling the axles or engine with water :)

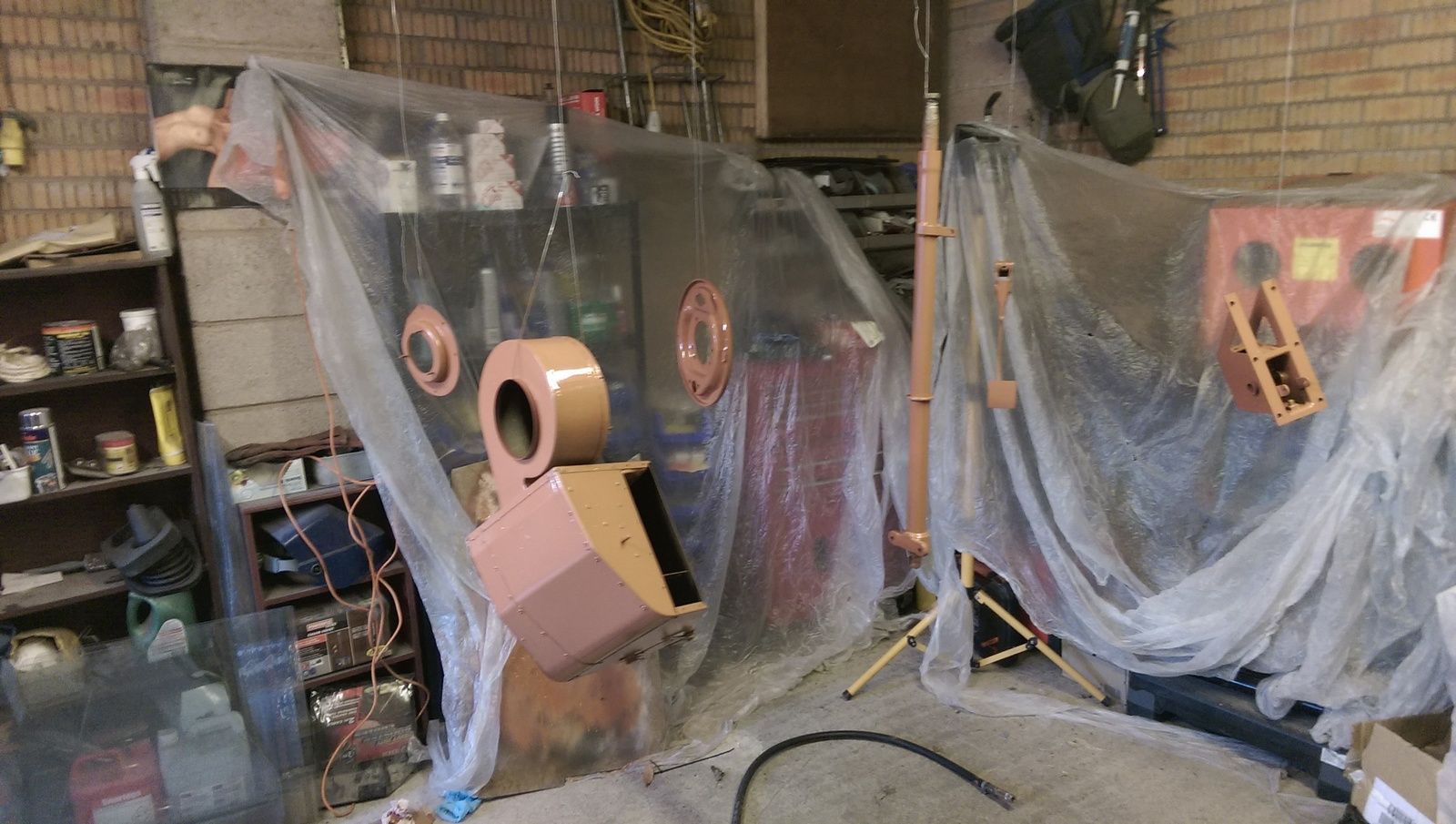

Been doing some more painting now the weather has warmed up a bit too. Got the handbrake drum, clutch pedal assembly, steering column and heater box painted in corroless to try and keep the rust at bay once it's all fitted back on.

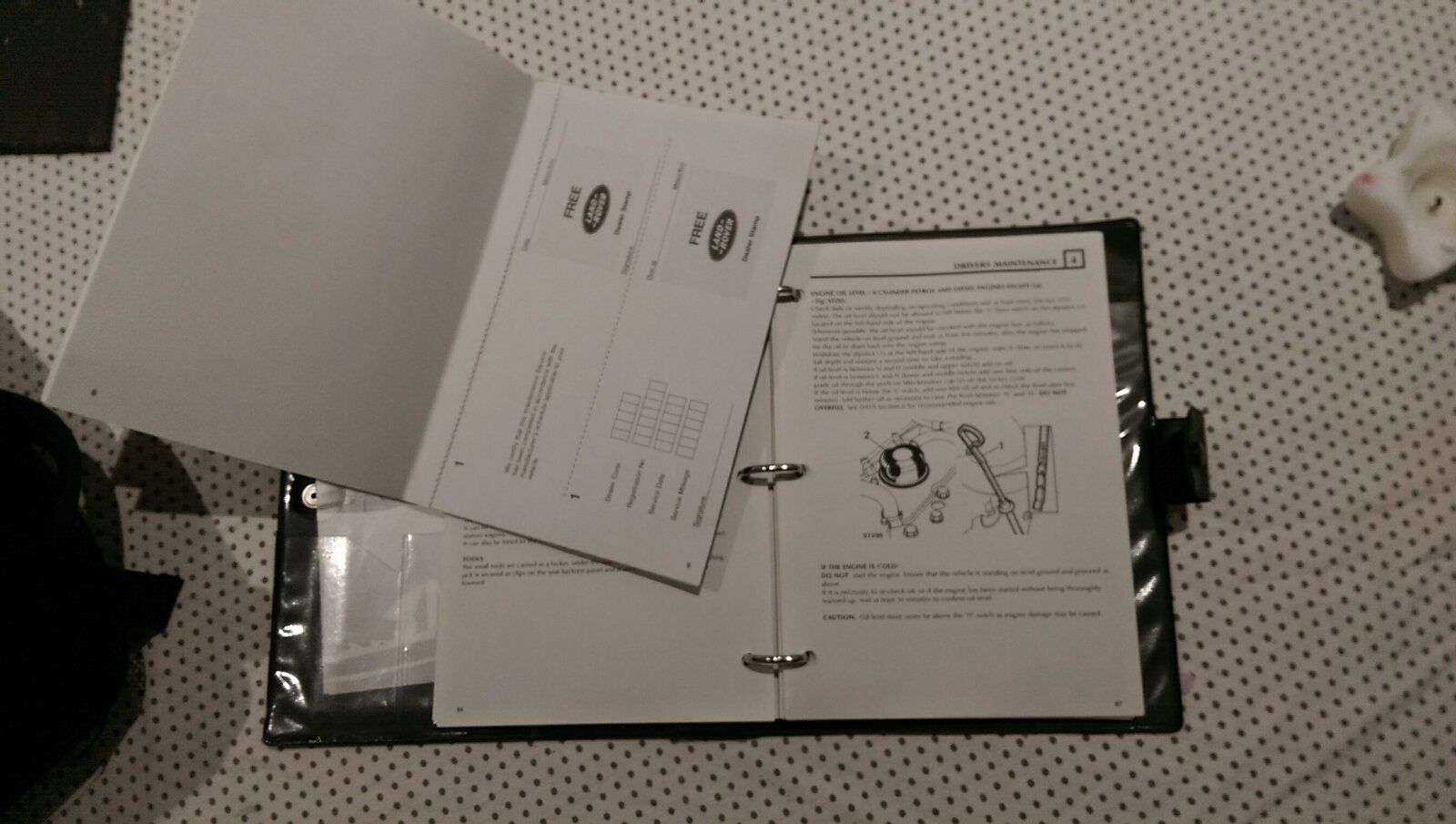

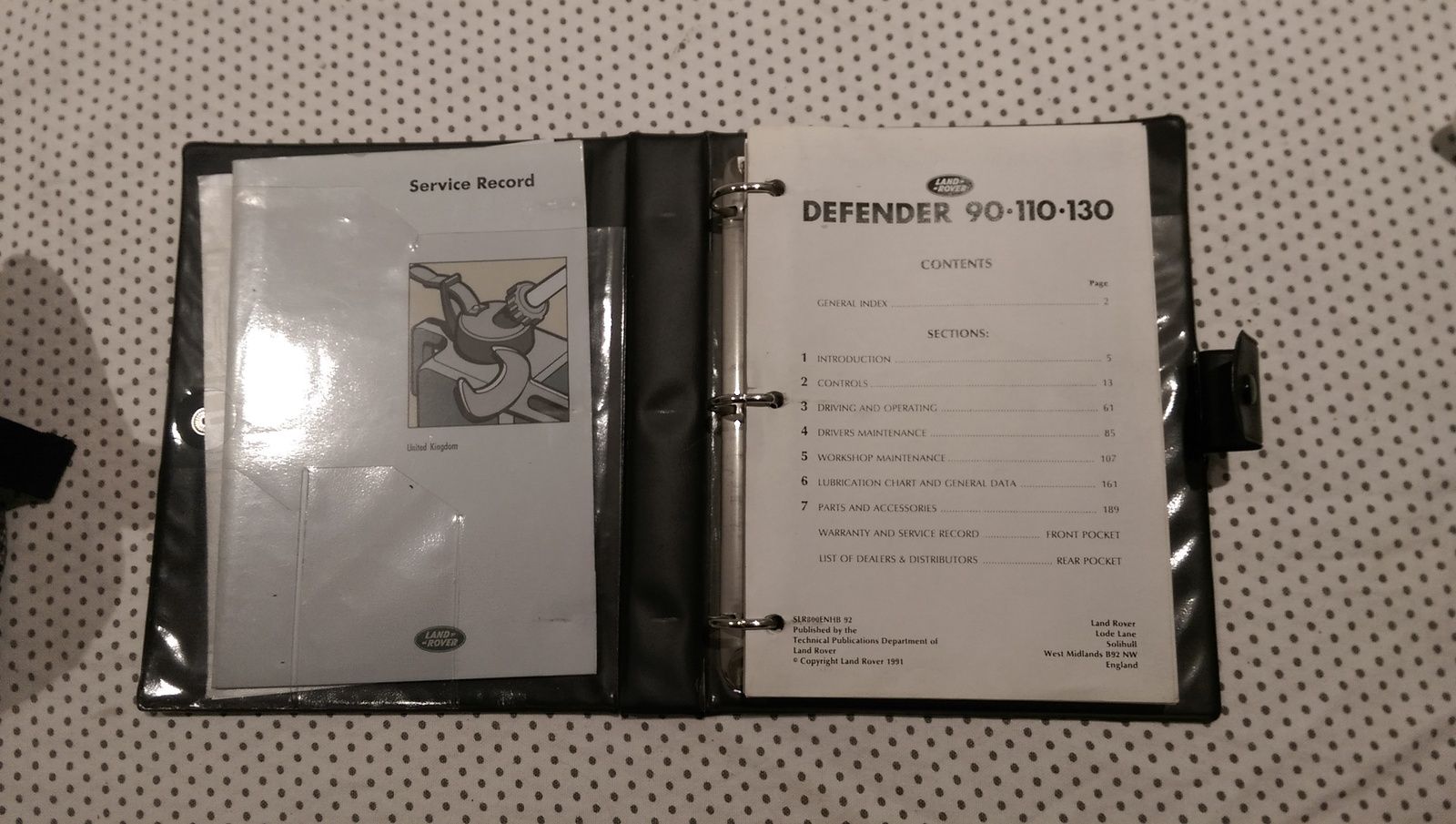

Spotted this on eBay and had to have it. It's an original defender 200tdi owners handbook. It's mint! All the service stamps are blank ready to start fresh when mines finished and back on the road. :D
