Dickeylefrog

Active Member

• Sep 19, 2019

• #1

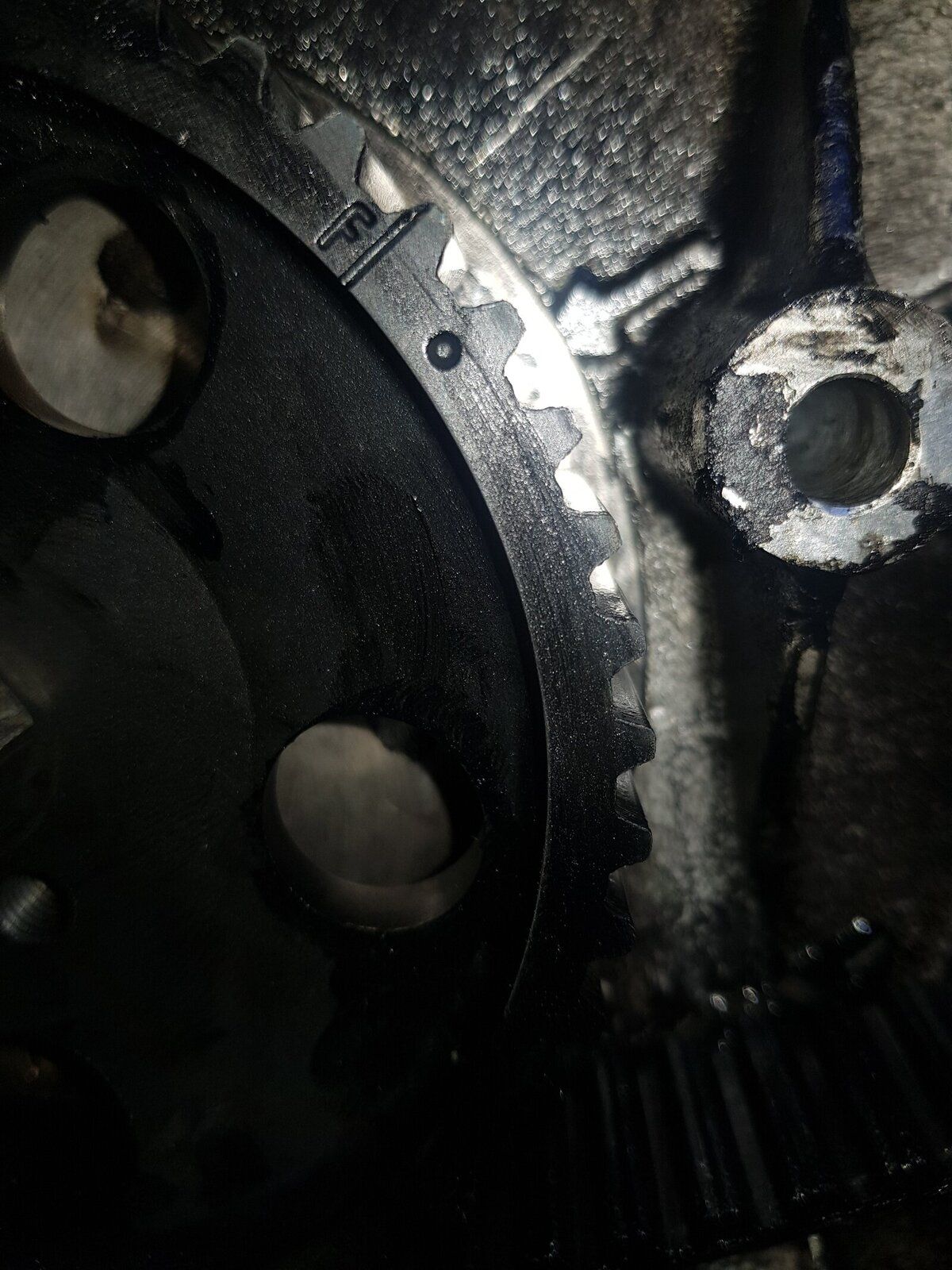

Found two marks on the CAV fuel pump spiggot when setting up my timing. One is the usual indentation but next to it is an F. My instinct is to use the indentation but I cant see anything that describes the timing mark in the Haynes and dont have the RAVE for 12P/19P engine so im not sure if it should be the F. See picture. Any help appreciated



Dickeylefrog

Active Member

• Sep 19, 2019

• #2

I meant 12J/19J



Dickeylefrog

Active Member

• Sep 19, 2019

• #3

I meant 12J/19J



Zed.

Well-Known Member

• Sep 19, 2019

• #4

I've just replaced the timing-belt on an early '90' with the 2.5d and used the pop-marks

before

after (please excuse the badly aimed photo)
also, in the after photo can see the cause of the belt failure - the bolt tat should have secured the 24v alternator had been re-fitted after and needed a spacer (was bought as a 'non-runner' so unknown as to who was responsible for the 24v equipment removal)

Rich.



tottot

Well-Known Member

• Sep 19, 2019

• #5

Pop marks.
