monster1971 · Mar 6, 2013

when i did my bulkhead they shot blasted it and primed it straight away while it was still hot so the primer stuck better aparently
luckily my boy is a welder so i got some payback for a change

Rhys25 · Mar 7, 2013

monster1971 said:
when i did my bulkhead they shot blasted it and primed it straight away while it was still hot so the primer stuck better aparently
luckily my boy is a welder so i got some payback for a change

Sounds like a good way of doing it, always good to have a welder in the family especially if you own a landy!

Once welded up this bulkhead is possibly going back to the shotblasters to go over the new sections and the welds, they do powder coating there so he's qouted me £60 to powder coat it in deep bronze green.

Rhys25 · Mar 7, 2013

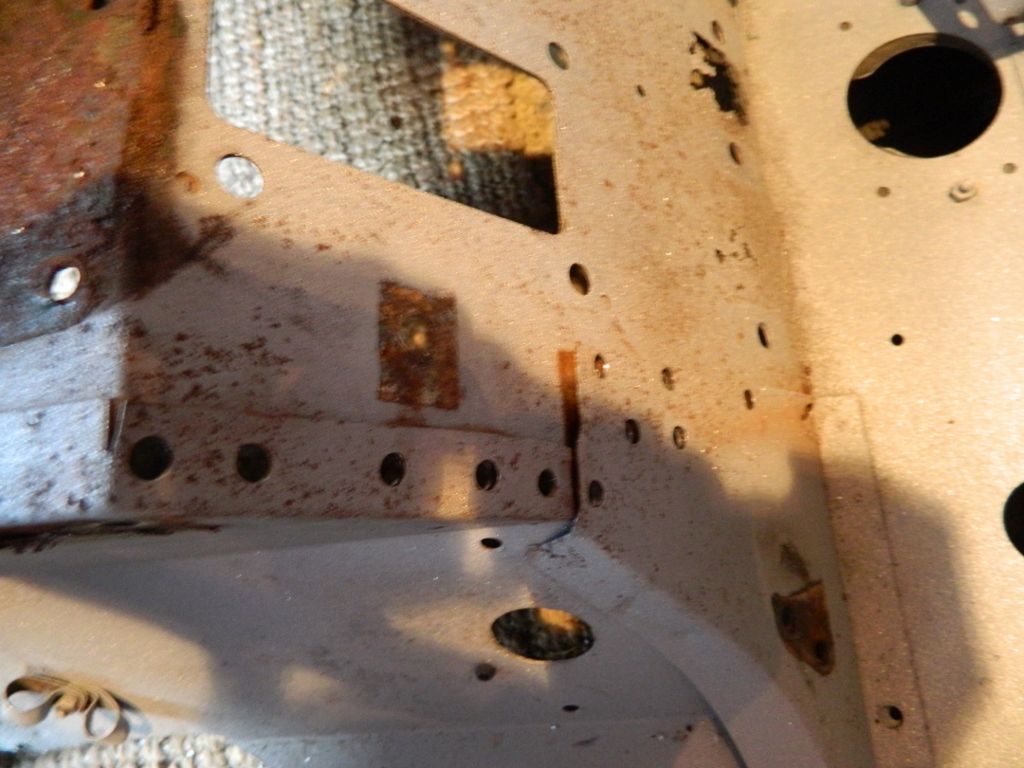

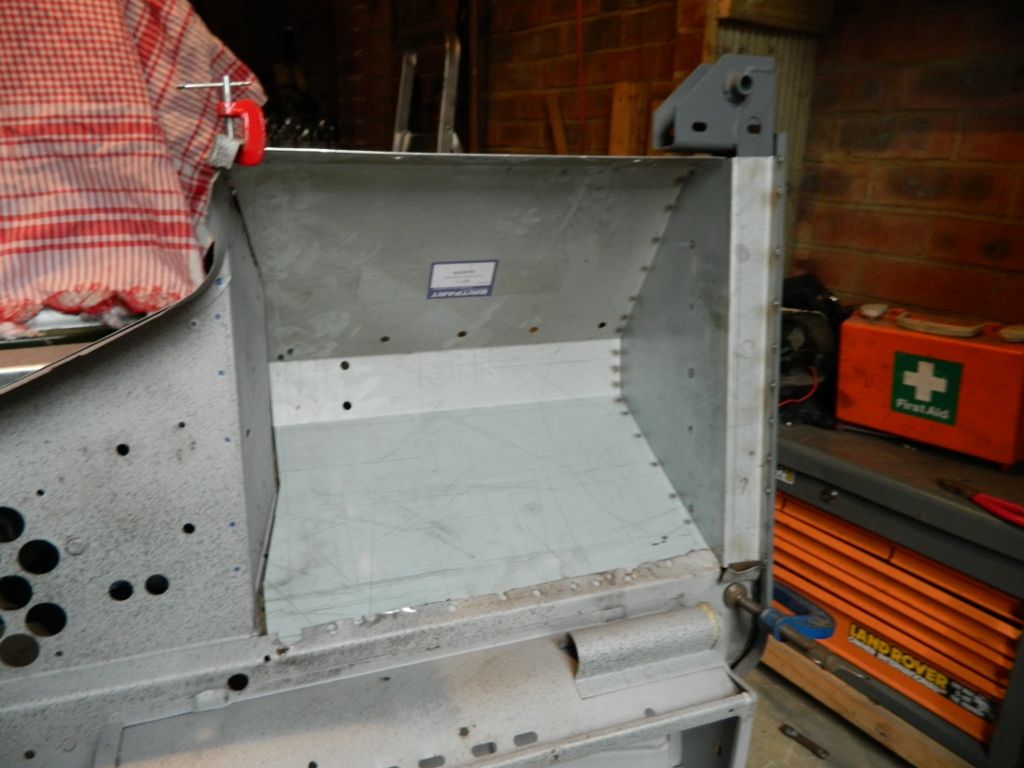

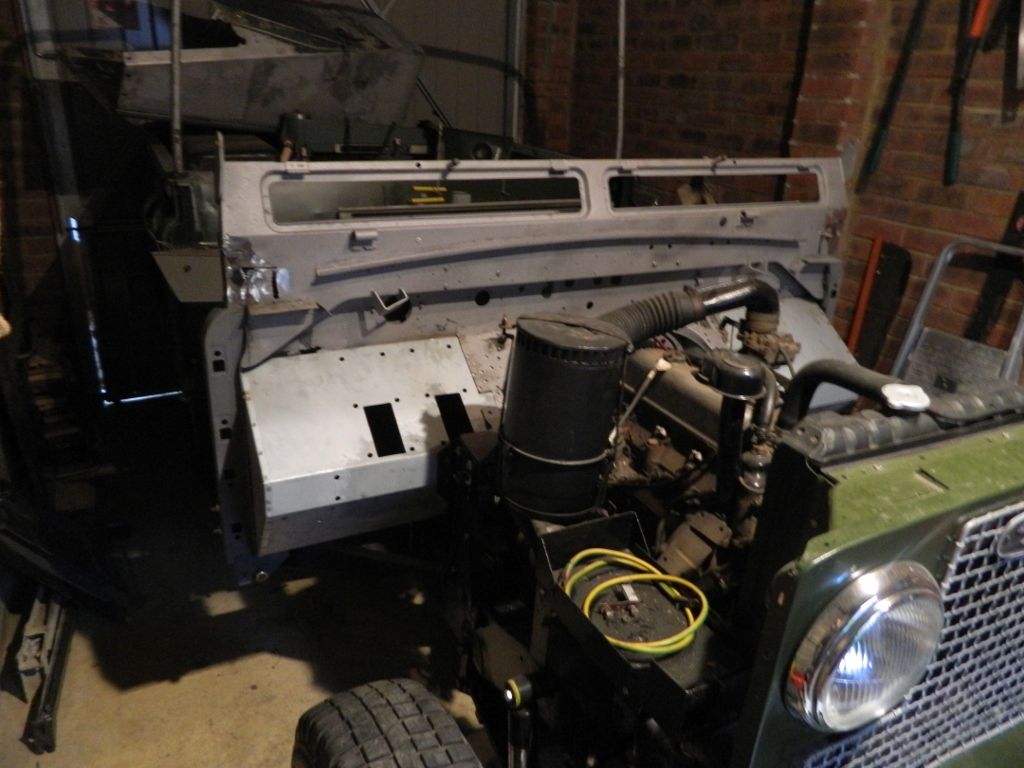

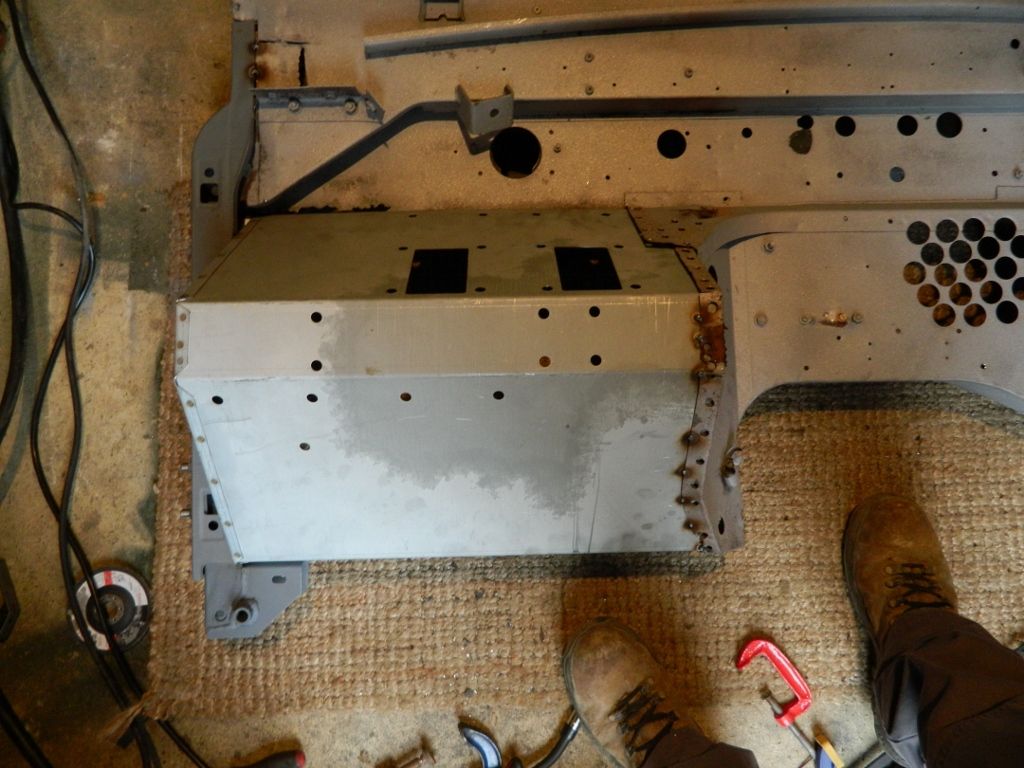

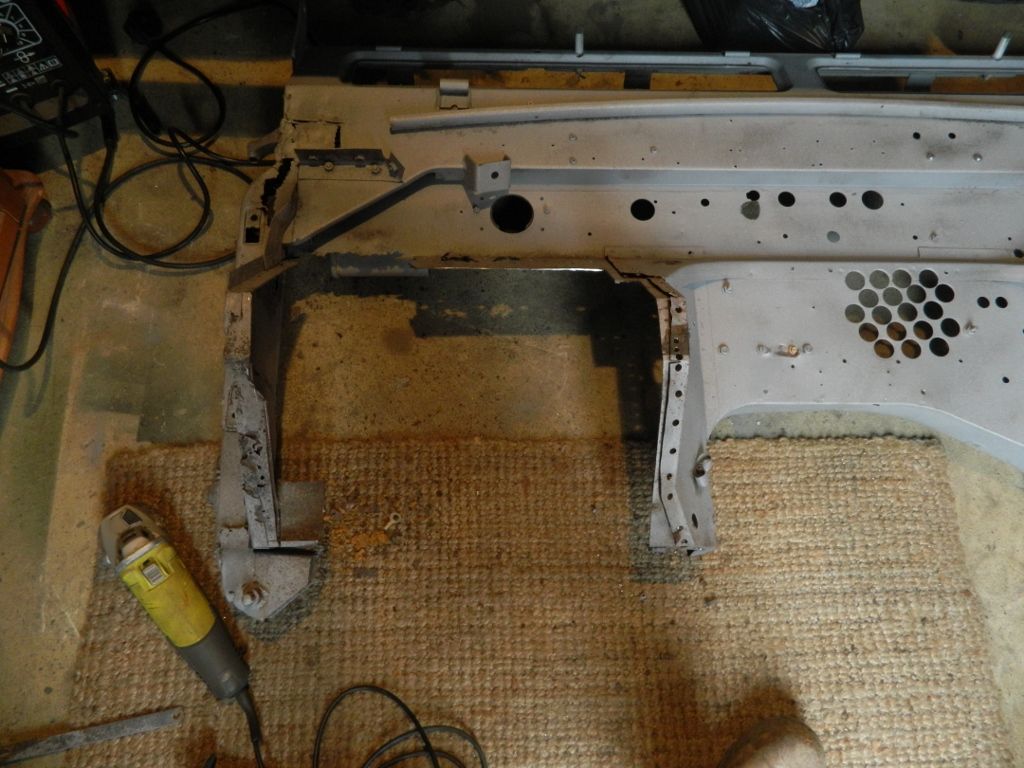

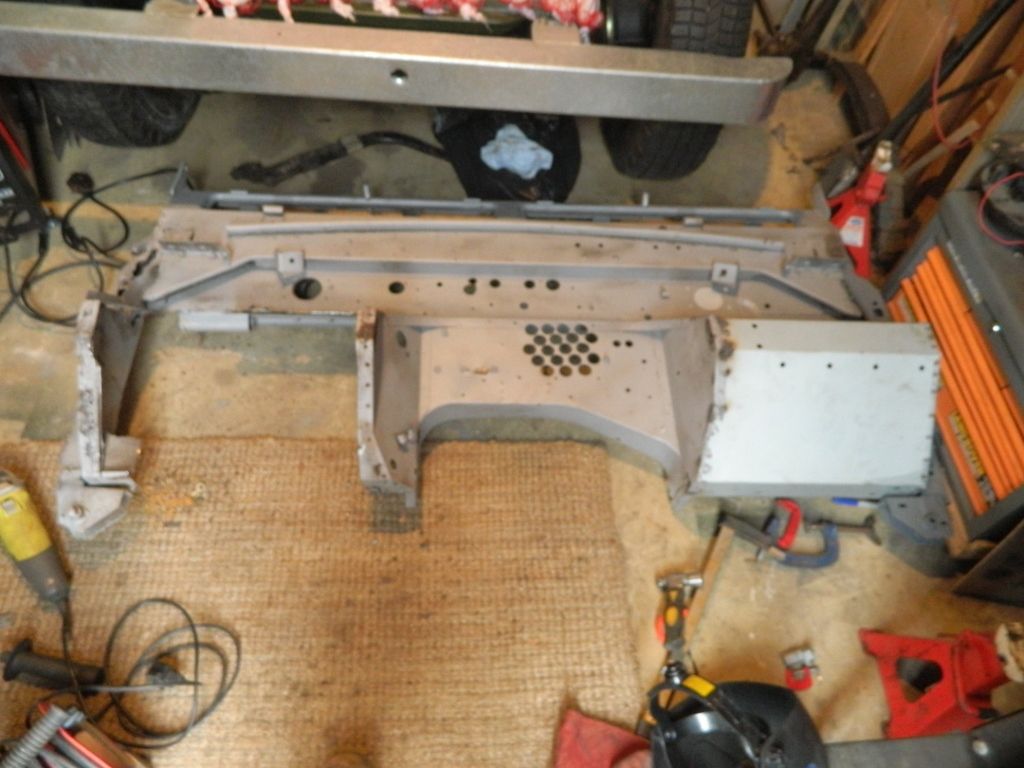

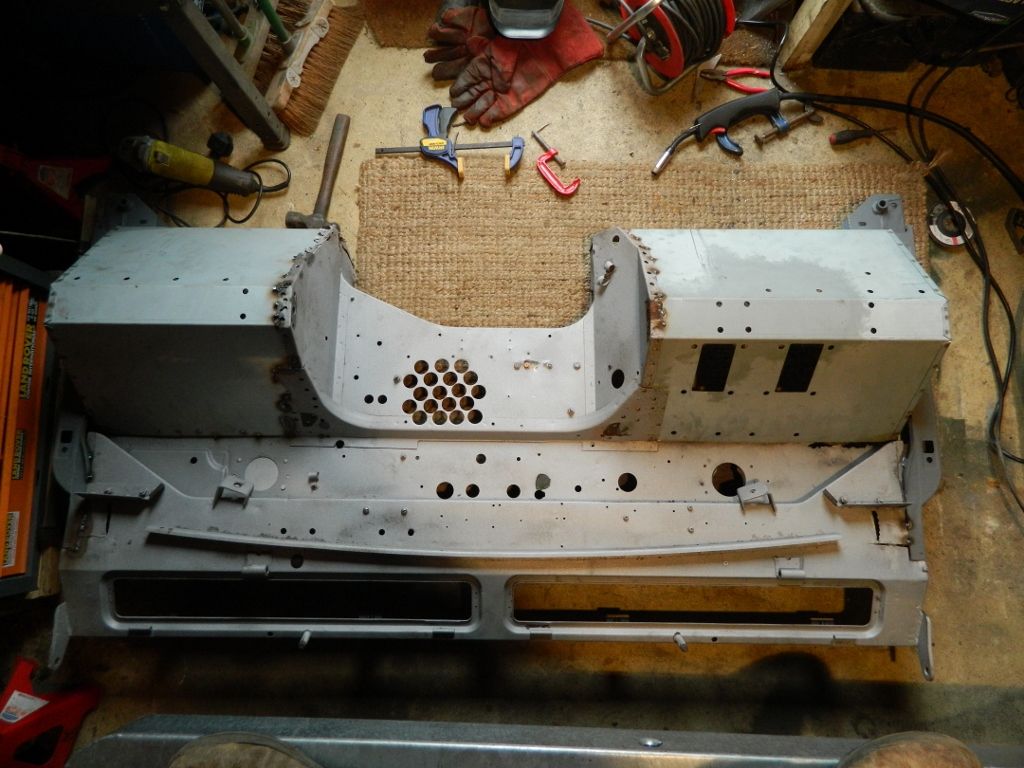

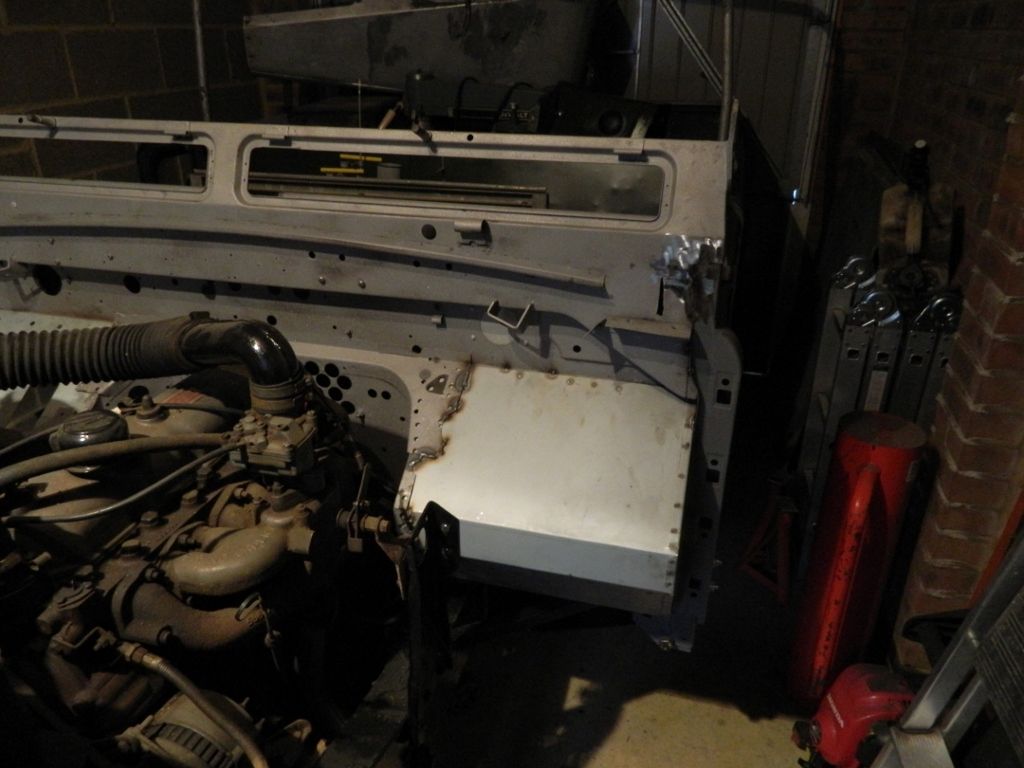

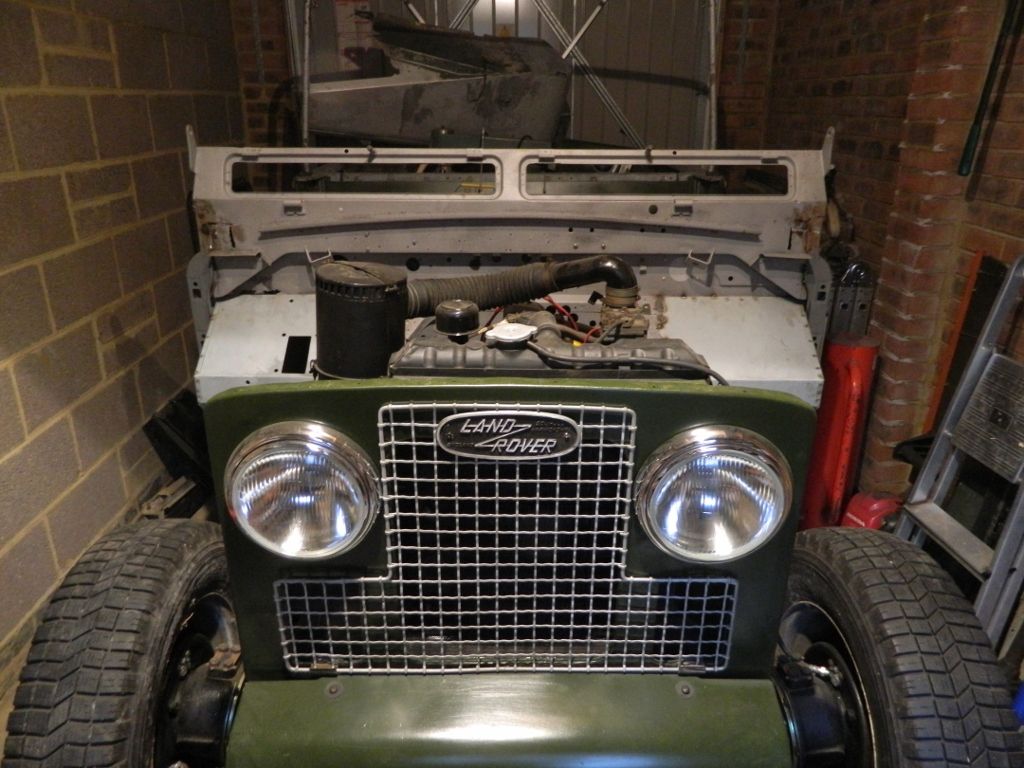

Took a days leave today to crack on with the bulkhead. got the footwells and door pillars welded in and test fitted it on the chassis, just the welds to tidy up, then i'll take it back off and get it ready for the paint or powder coat.

Rhys25 · Mar 7, 2013

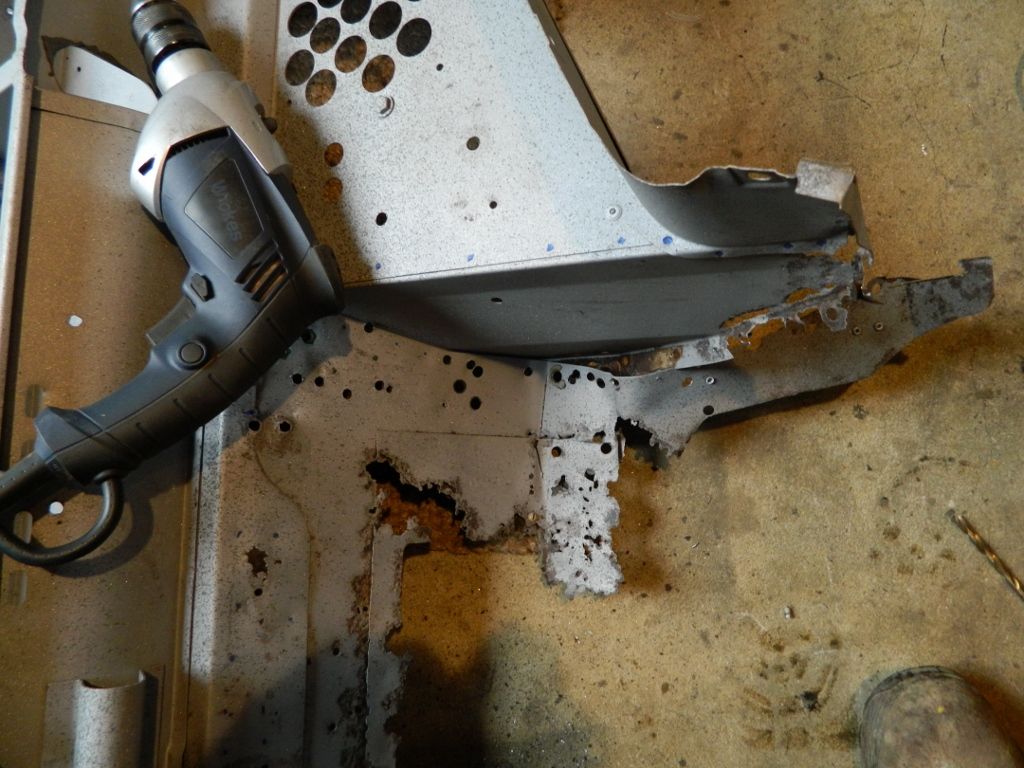

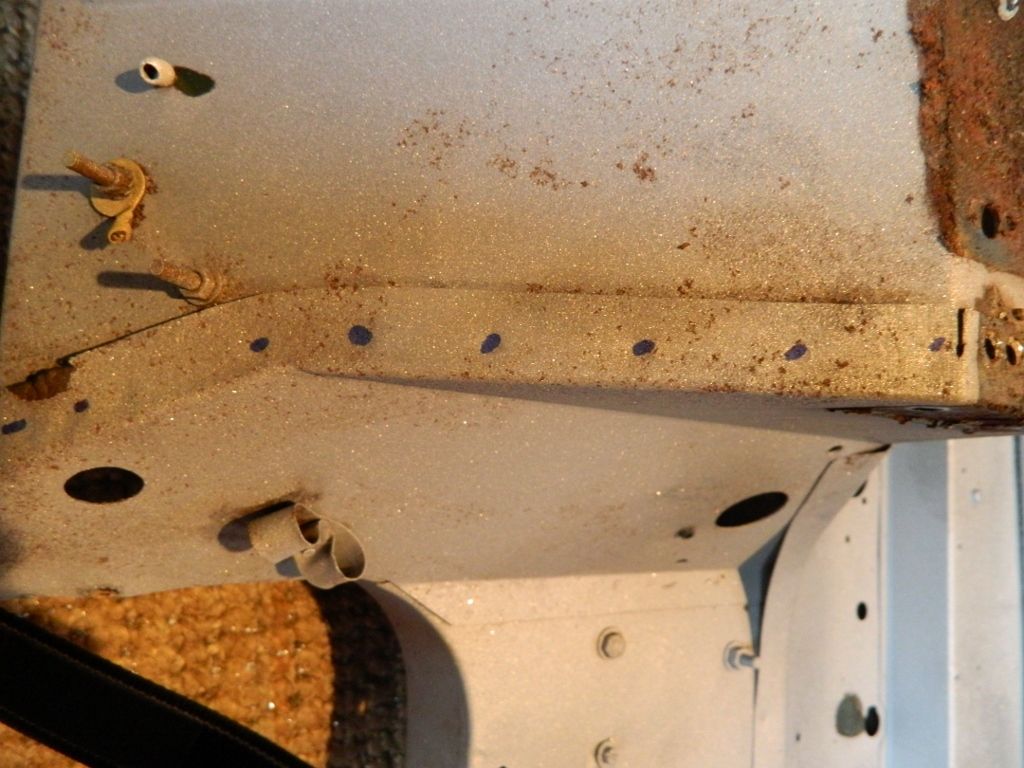

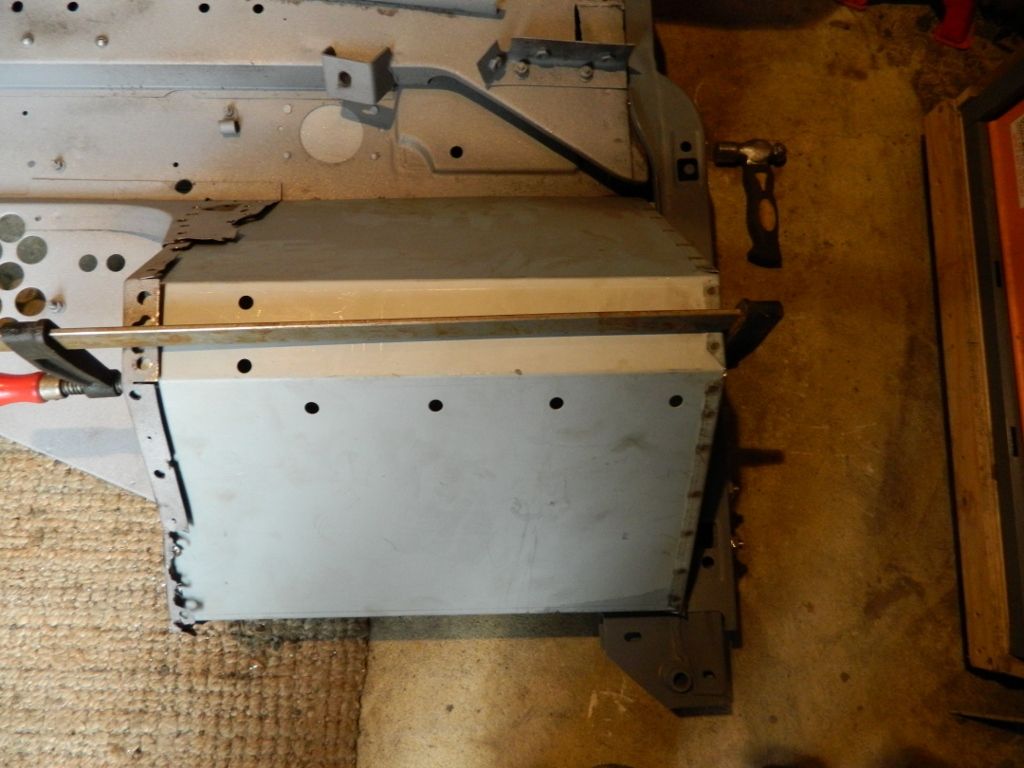

Some more pictures of todays work, i have tomorrow afternoon and the whole weekend to get cracking with it i'll keep you updated with pictures.

Land Raver · Mar 7, 2013

Looking very good. I'm not sure what the general opinion is but I'd be a bit worried about powder coating. Corrosion sets in beneath and it not until its well established that it splits the paint and flakes off.

Rhys25 · Mar 7, 2013

Land Raver said:
Looking very good. I'm not sure what the general opinion is but I'd be a bit worried about powder coating. Corrosion sets in beneath and it not until its well established that it splits the paint and flakes off.

.

Ye i have heard mixed reviews about powder coating, they say its pretty hard wearing. More tempted to paint it, get plenty of red oxide onto it and build up a few top coats, but thats more for logistical reasons to save transporting it. Still the list of jobs is getting slightly shorter, might get some greenlaning in before the year is out.

Land Raver · Mar 7, 2013

I read something advising against it in the latest LRM magazine - not bulkhead specifically though.

Galvafroid cold galv paint might be an option to consider?

jamesmartin · Mar 7, 2013

you can hear the powder coat cracking while you bolt parts on to the chassis paint is better id think

Rattlegun · Mar 8, 2013

Think of powder coated garden furniture, where the rust is spreading all up the legs under the plastic, which then comes off in sheets. It's a terrible finish, not suitable for weather exposed metal.

Rhys25 · Mar 8, 2013

Cheers thanks for the comments on the powder coating i'll leave it well alone!

Blackburn · Mar 10, 2013

Get it galvanised
My ser 3 before and after

Worth it in the long run did not have any issue with distortion.

Rattlegun · Mar 10, 2013

Excellent, I'm planning on doing that. How many drain holes did you have to drill before galvanising and where did you put them?

Rhys25 · Mar 10, 2013

Blackburn, that bulkhead looks superb! good job

Rhys25 · Mar 10, 2013

Right had a bit of time cracking on with it, the rugby got in the way of my plans so didnt achieve as much as i thought but progress is progress!

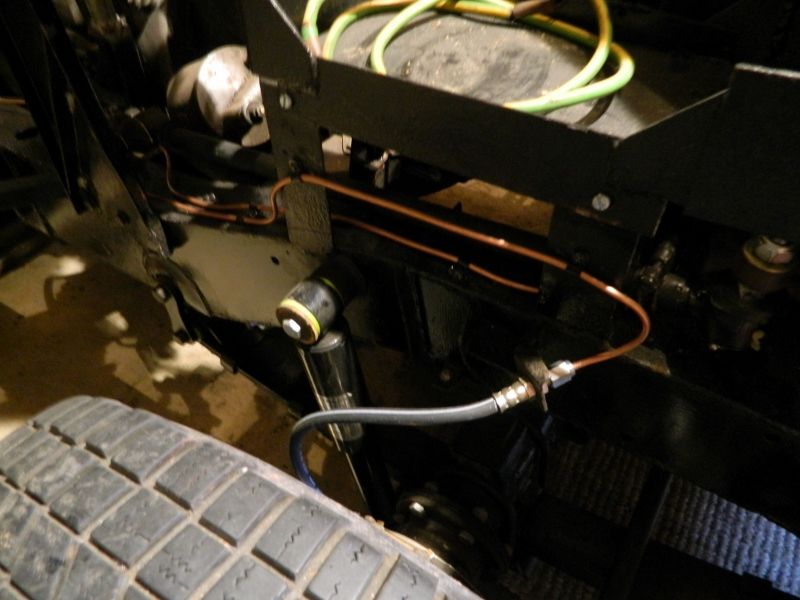

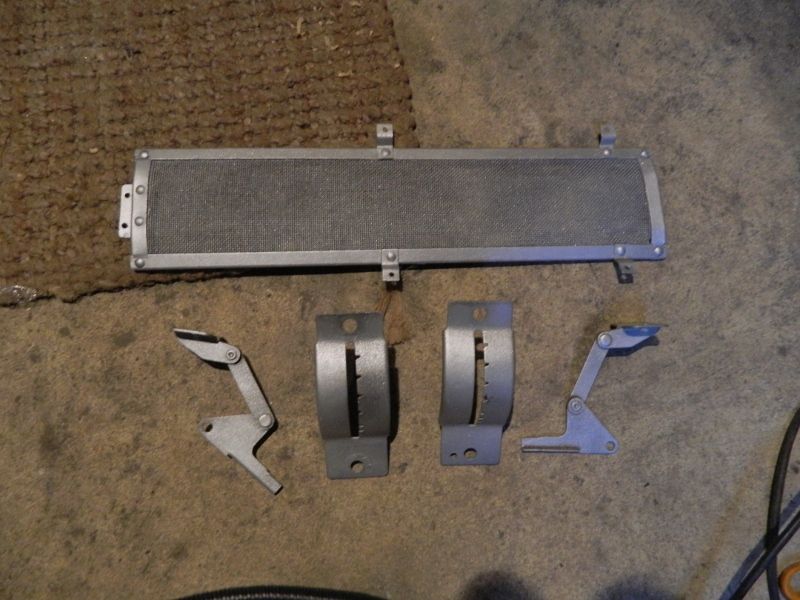

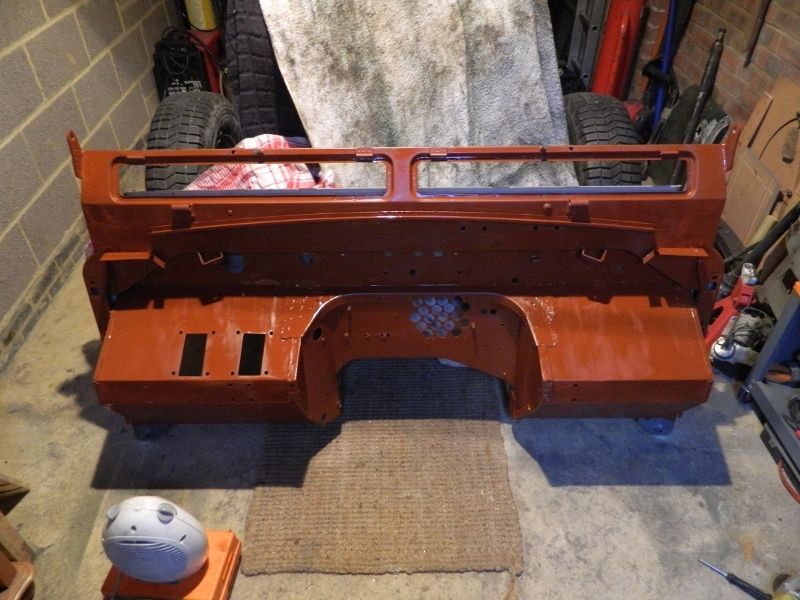

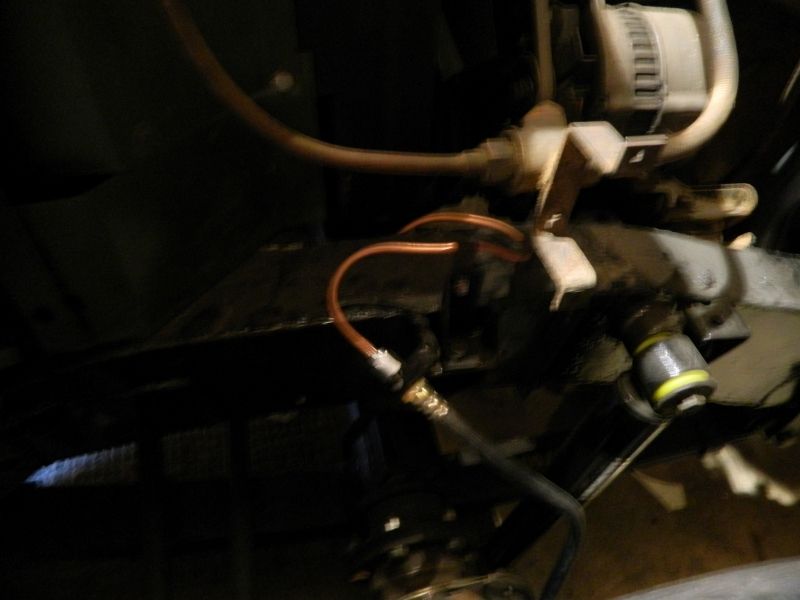

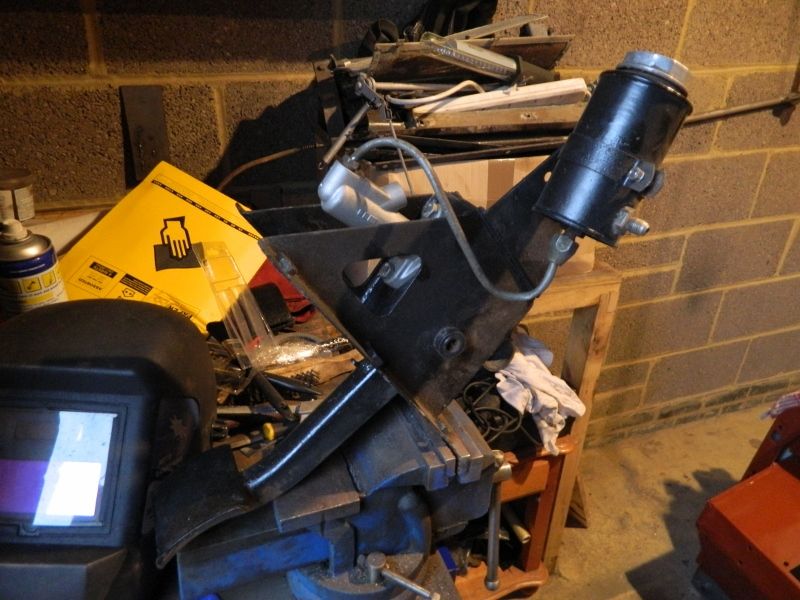

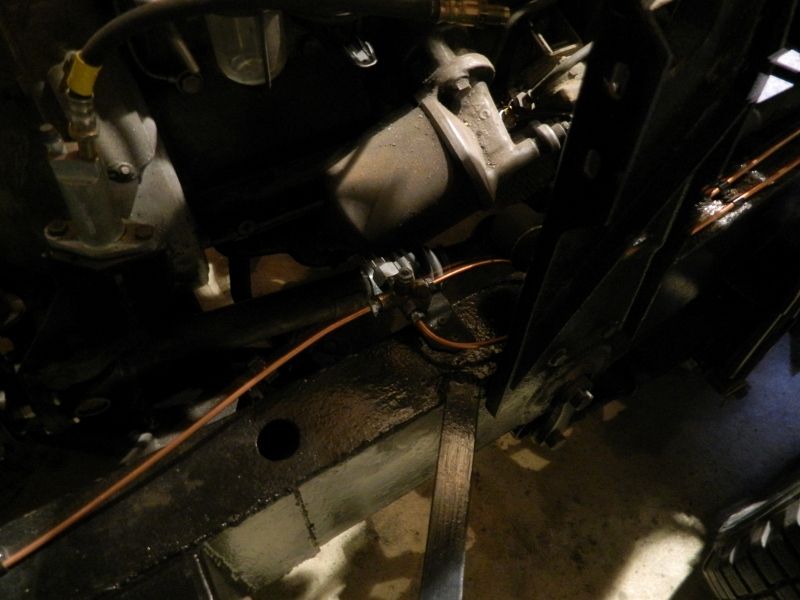

Managed to finish the welding on th bulkhead and get one coat of red oxide on the engine side, finished off all brake pipework and even managed to clean up the vent adjusters and grills. roll on next weekend, hoping to get the bulkhead finished.

Blackburn · Mar 10, 2013

Re galvanising did not put any drain holes in , had not heard of that.
Door pillars have holes in there bases usually all looked to be coated when I inspected it on return .
The bulkhead rebuild took ages as top rail was rusted through and part of near side vent. The only regret I had afterwards was I could have replaced door pillars instead of the small repairs I did .Either way I think it will still be going when I am not.

honolulujoe · Mar 12, 2013

+1 on the bulkhead job looks fab, both of them.

Rhys25 · Aug 17, 2013

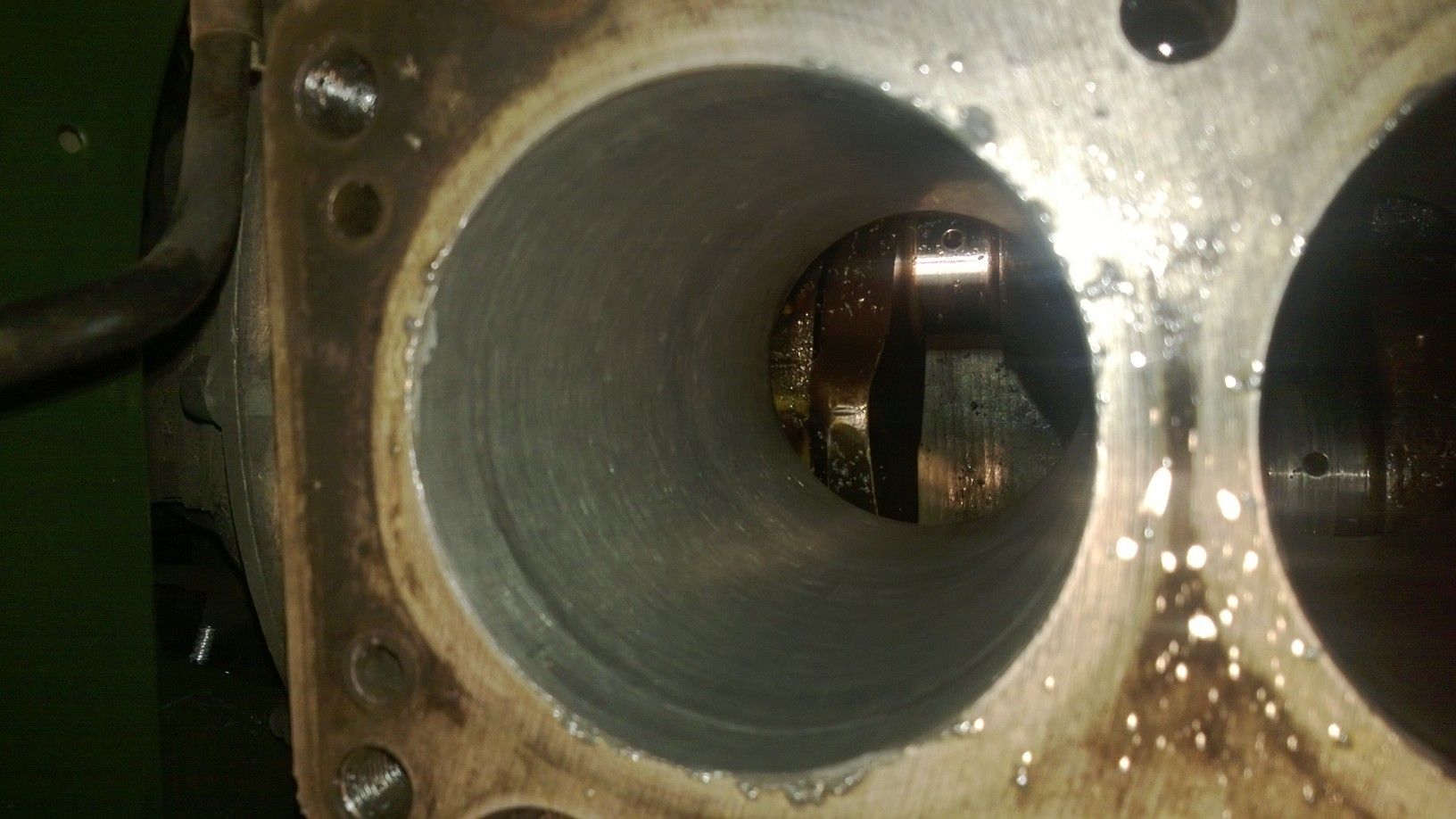

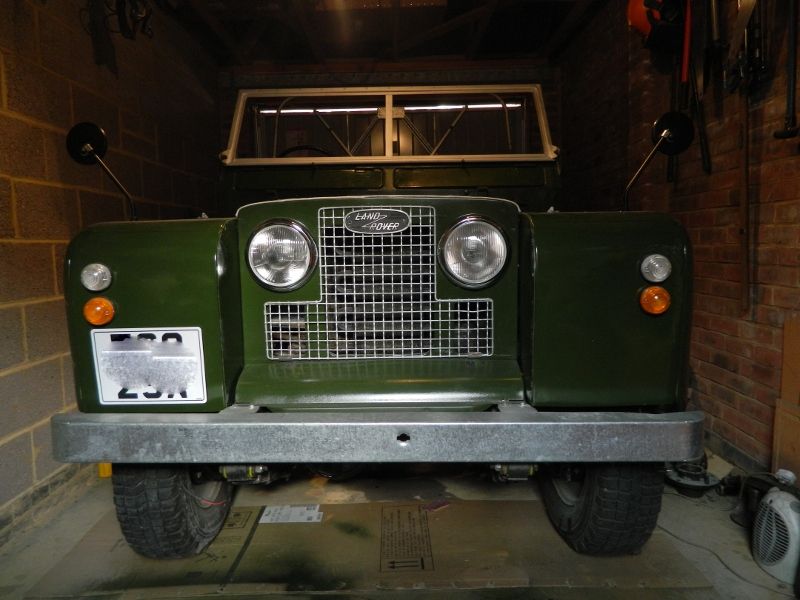

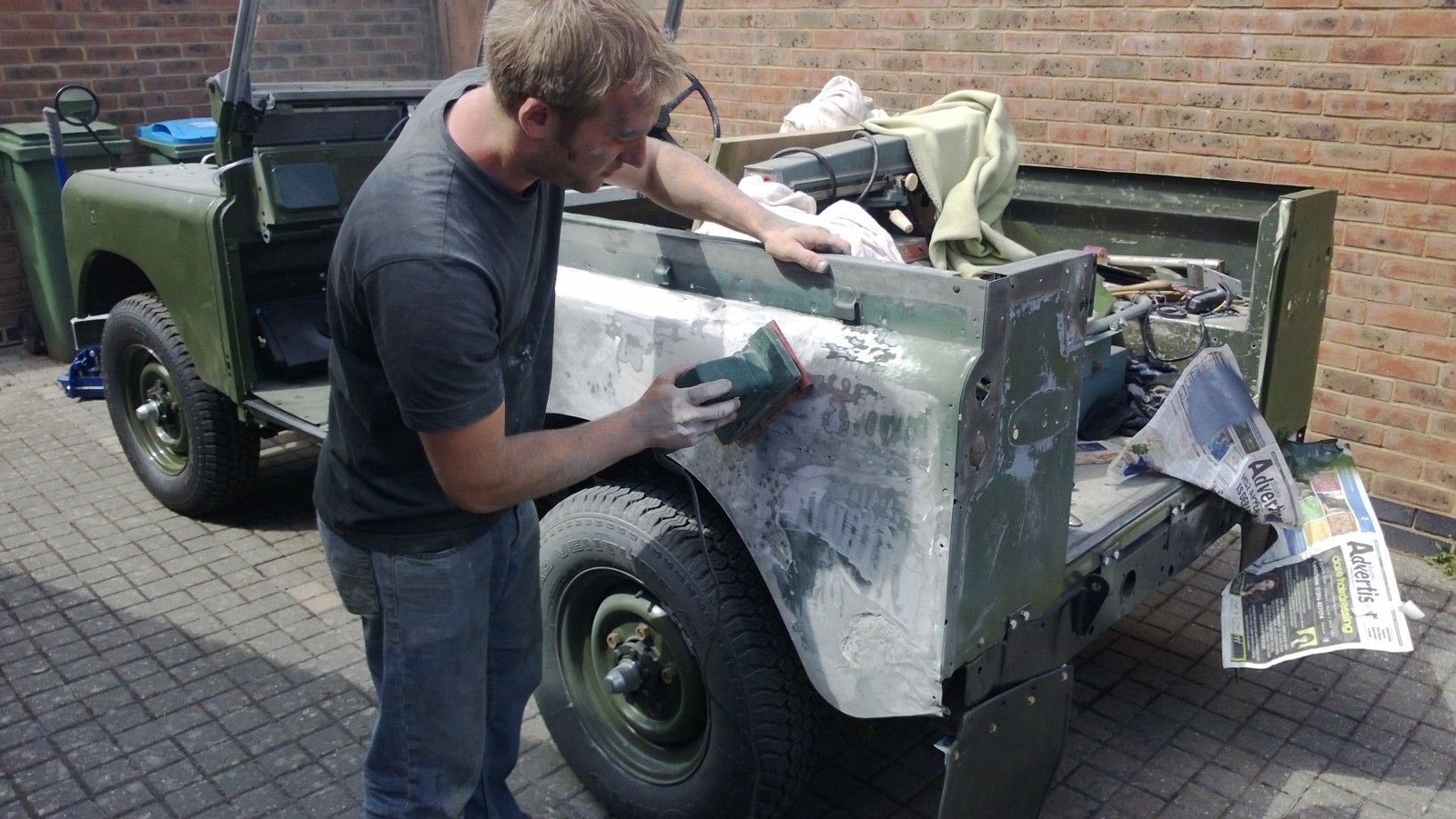

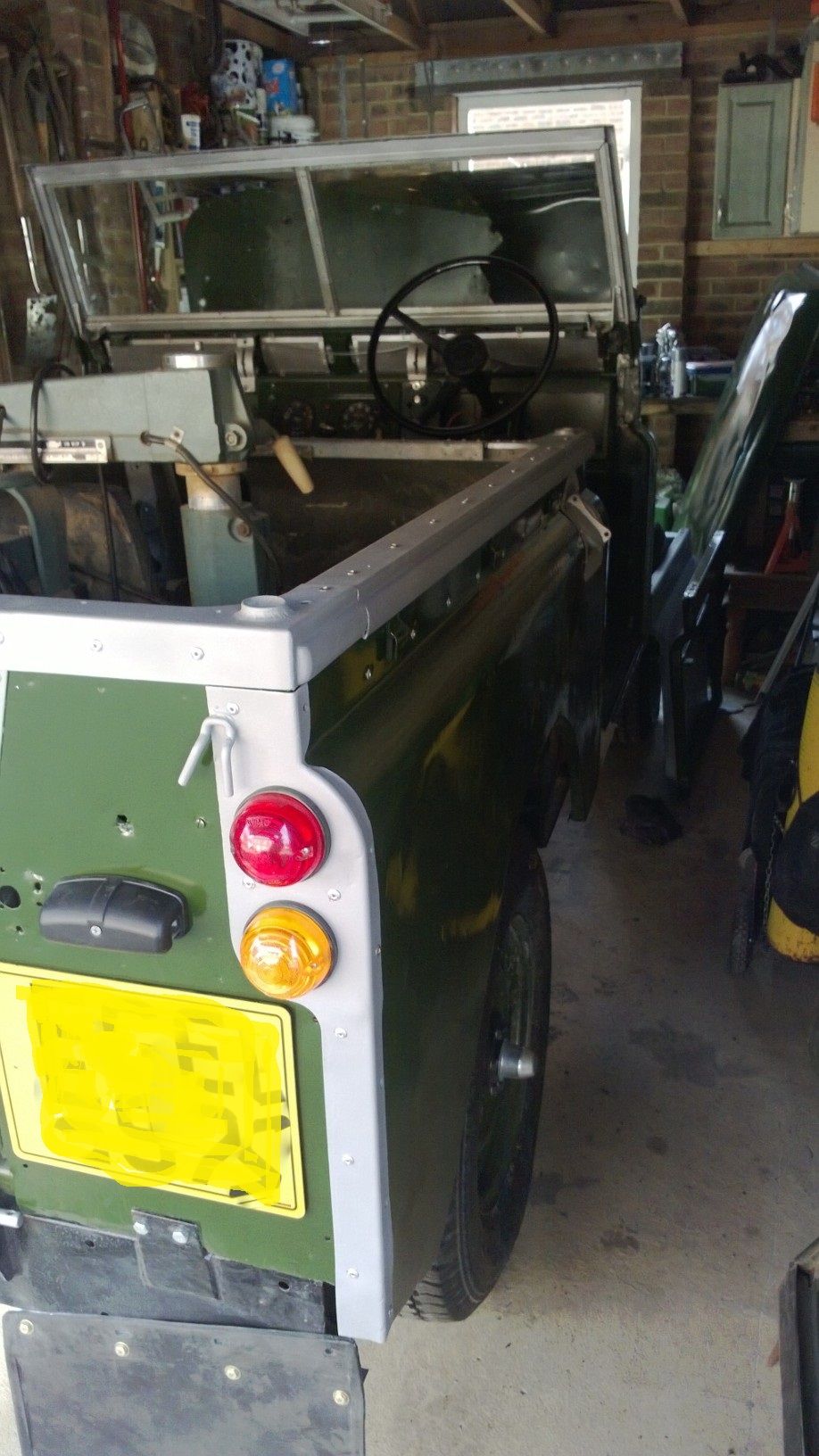

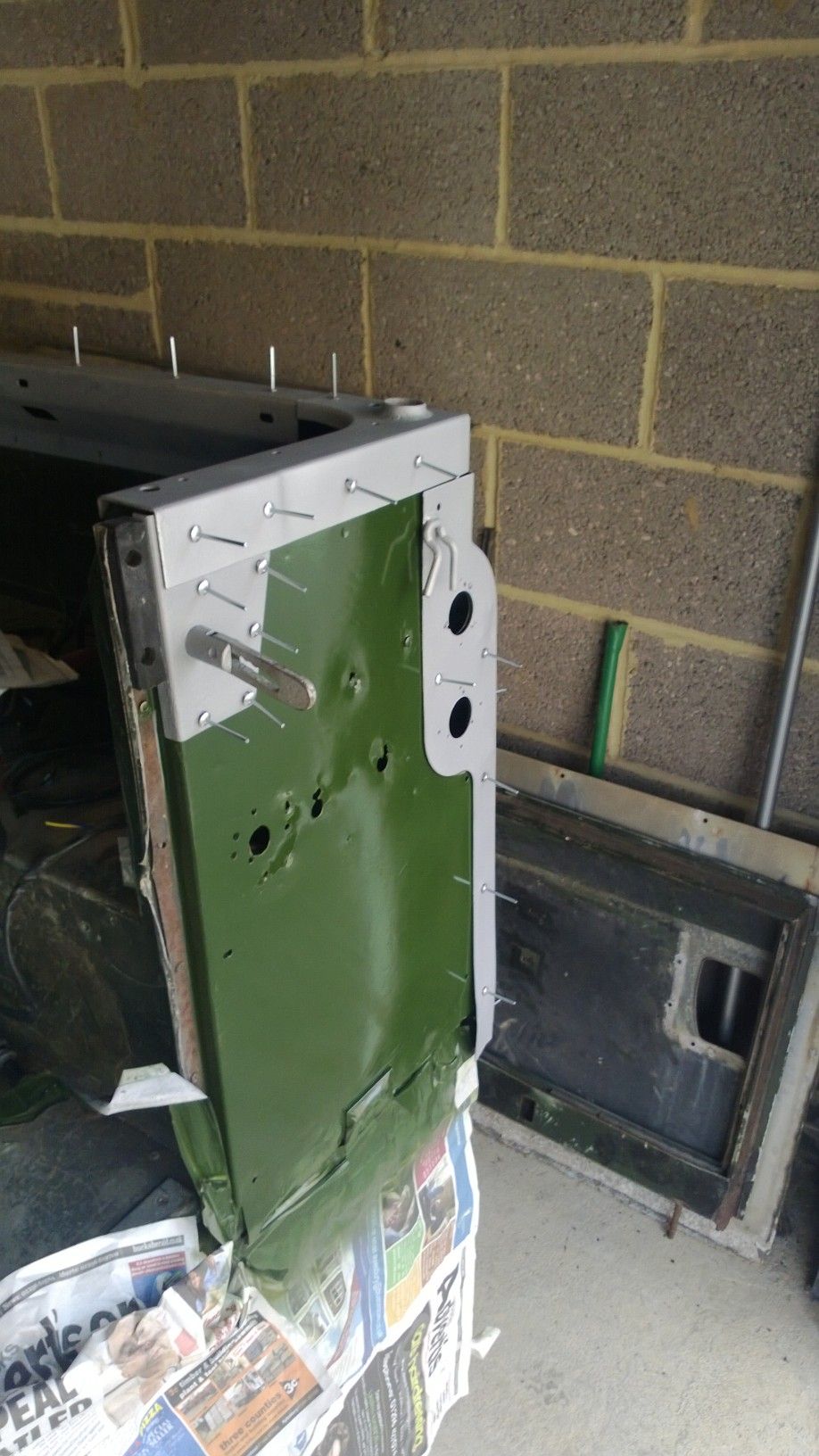

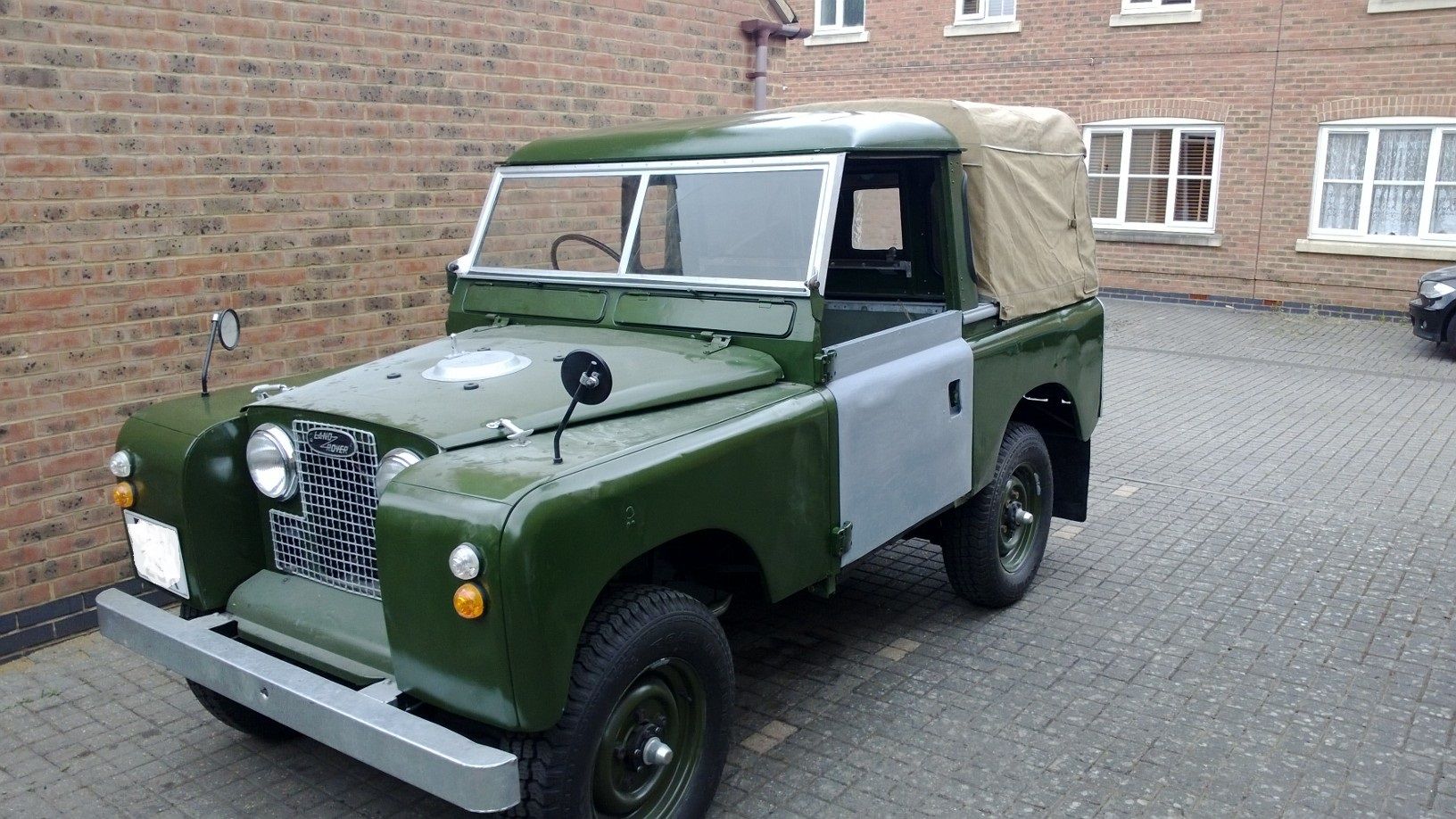

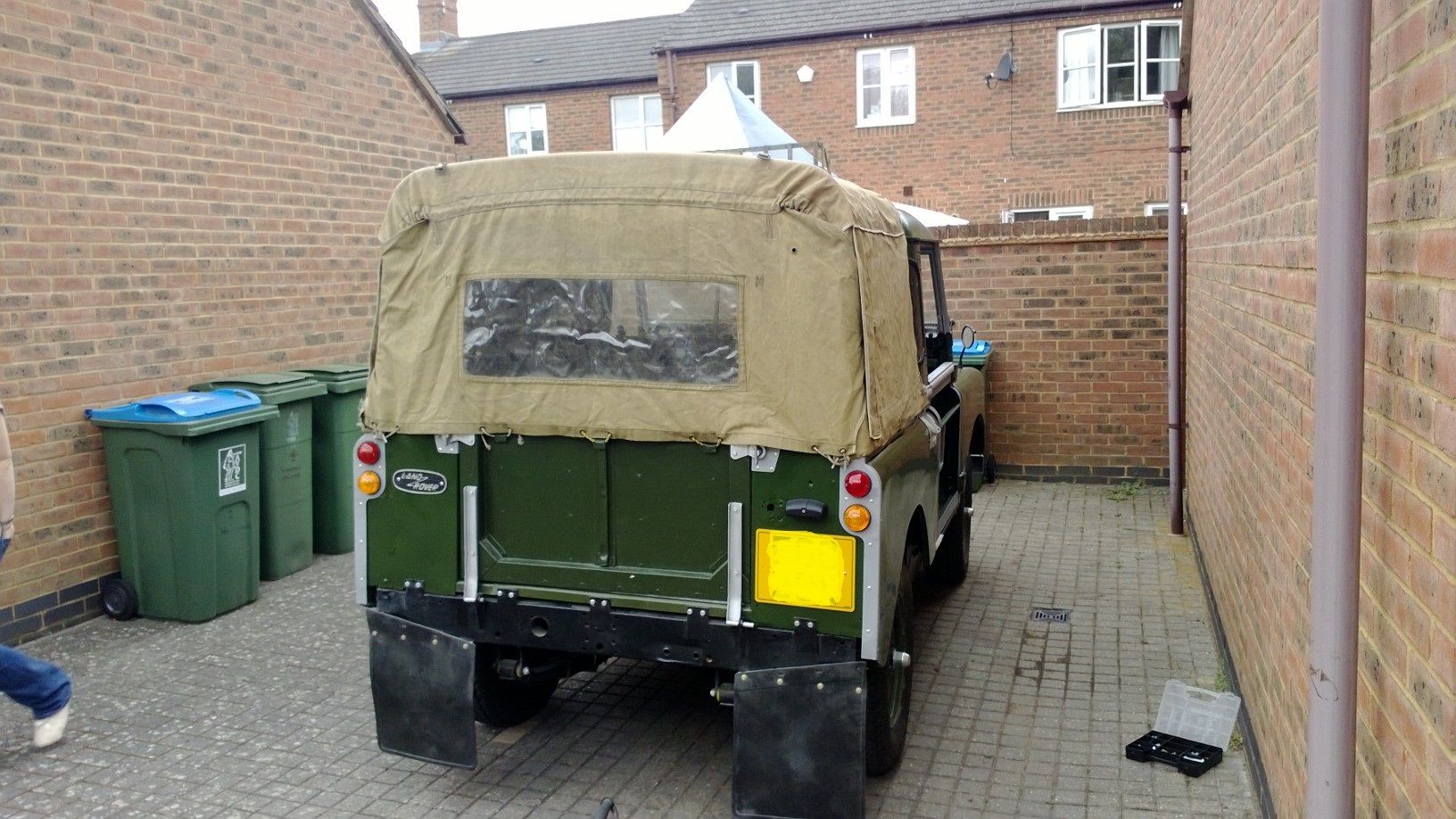

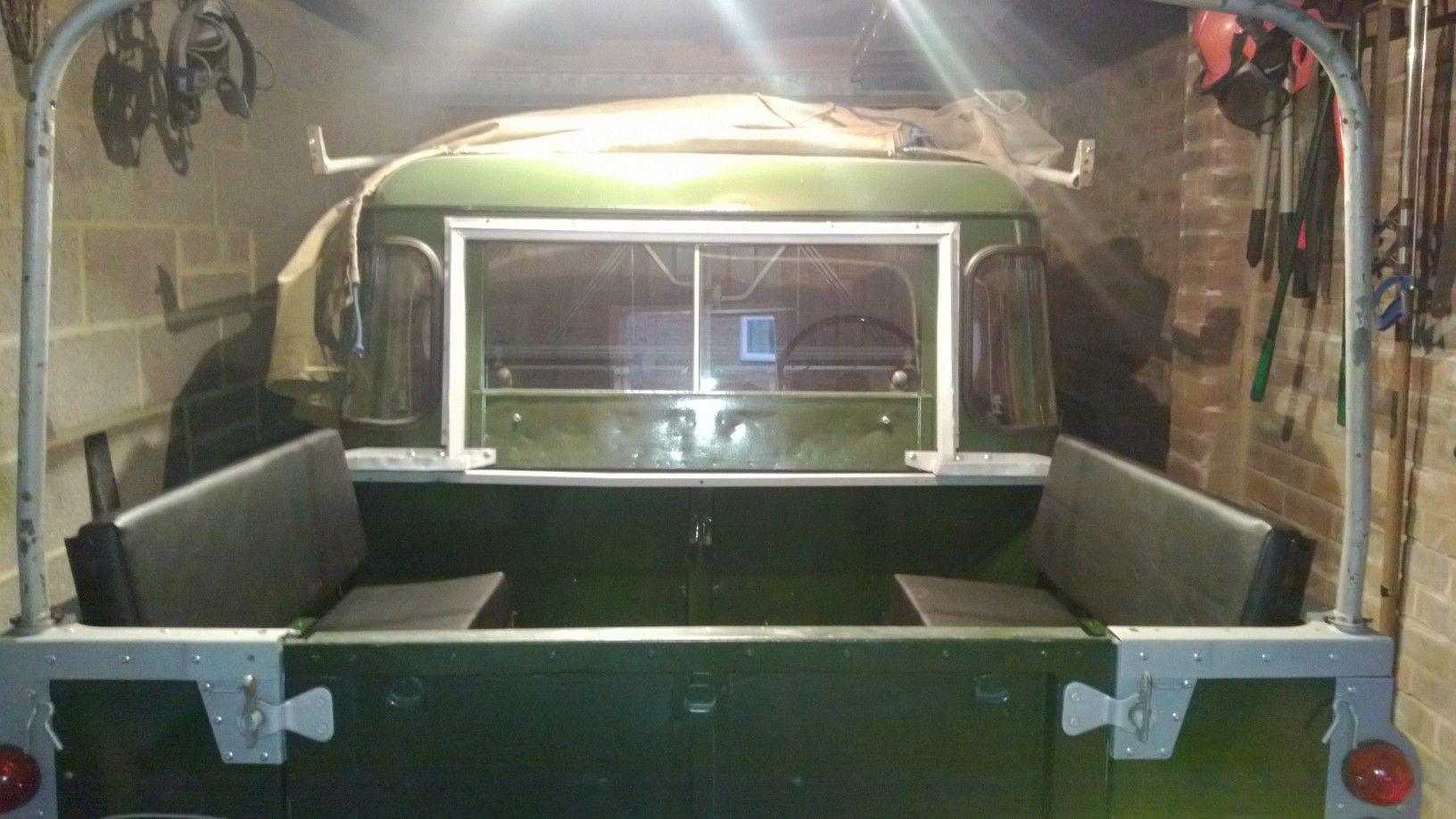

Been a long while since I have posted, thought i'd put a few pics up to show how its progressing

Blackburn · Aug 17, 2013

Paint job looks great what are you using?

Rhys25 · Aug 18, 2013

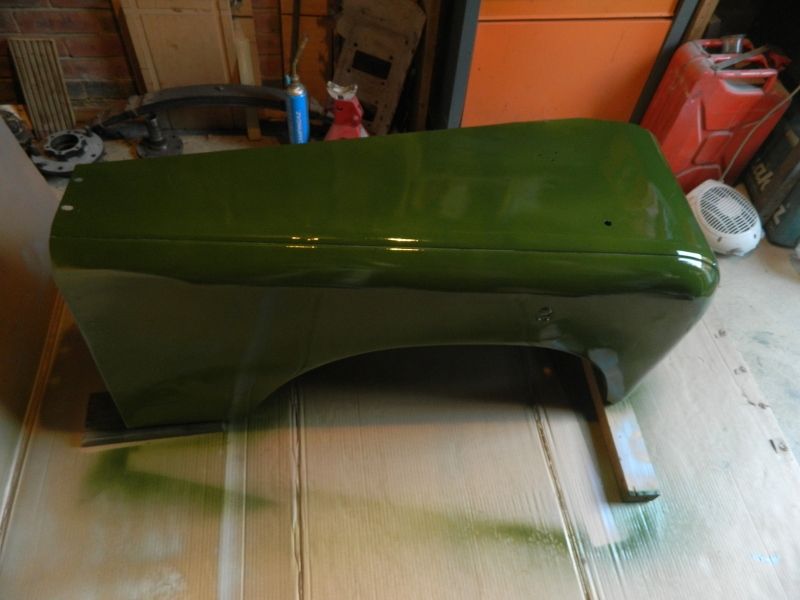

cheers Blackburn, 2 coats of etch, 3 coats of hi build primer and 3 top coats of cellulose deep bronze green, all applied using a suction spray gun.

honolulujoe · Aug 20, 2013

+1 on the paint job, looks fab
