Matchstick · Jul 24, 2018

Hello my cylinder head on my 1994 discovery 1 300 tdi went and the car boiled up.. anyway i had the cylinder head pressure tested and was going to get it skimmed but the shop rang me and said it failed the pressure test and the cylinder head is scrap..

Looking on ebay i found a brand new one for £400 with new gaskets and bolts it says it will fit any 300 tdi but the bottom looks differant..

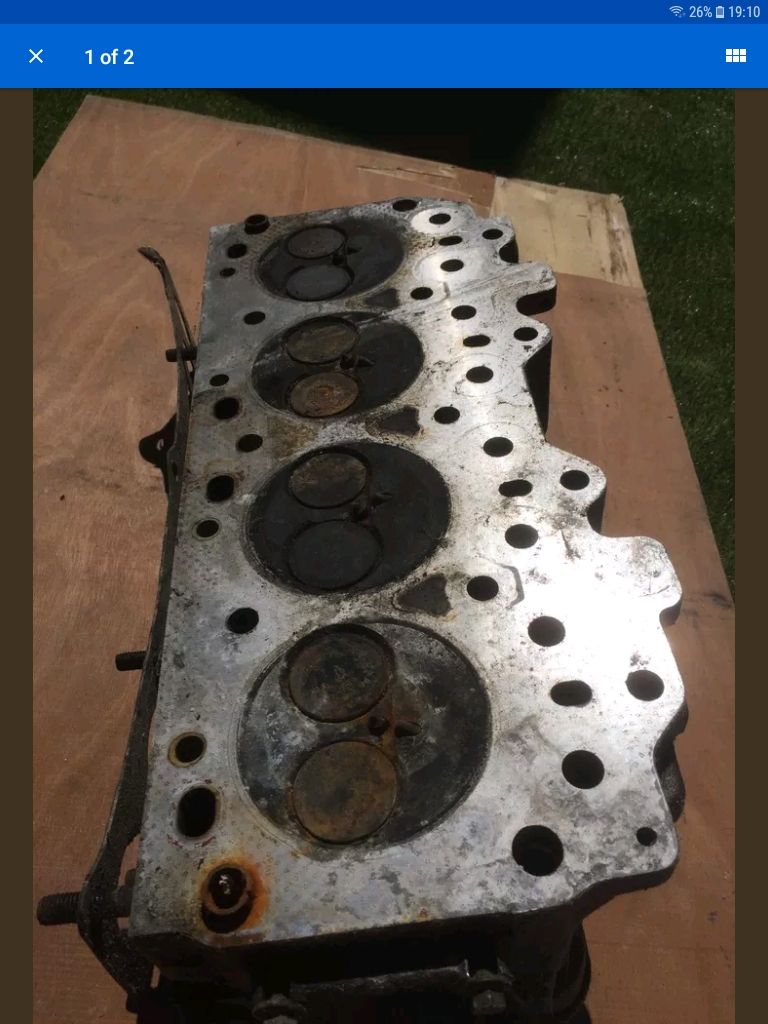

Mine looks like this

But the one on ebay looks like this

Will this work on my 94 discovery 1 300 tdi

Many thanks

jamesmartin · Jul 24, 2018

yes if its a 300 head it will fit any 300

Paul D · Jul 24, 2018

Don't forget yours still has locating dowels in it and a lot of marks from the head gasket, cylinders etc. If yours were cleaned I'd say it was just about identical ...

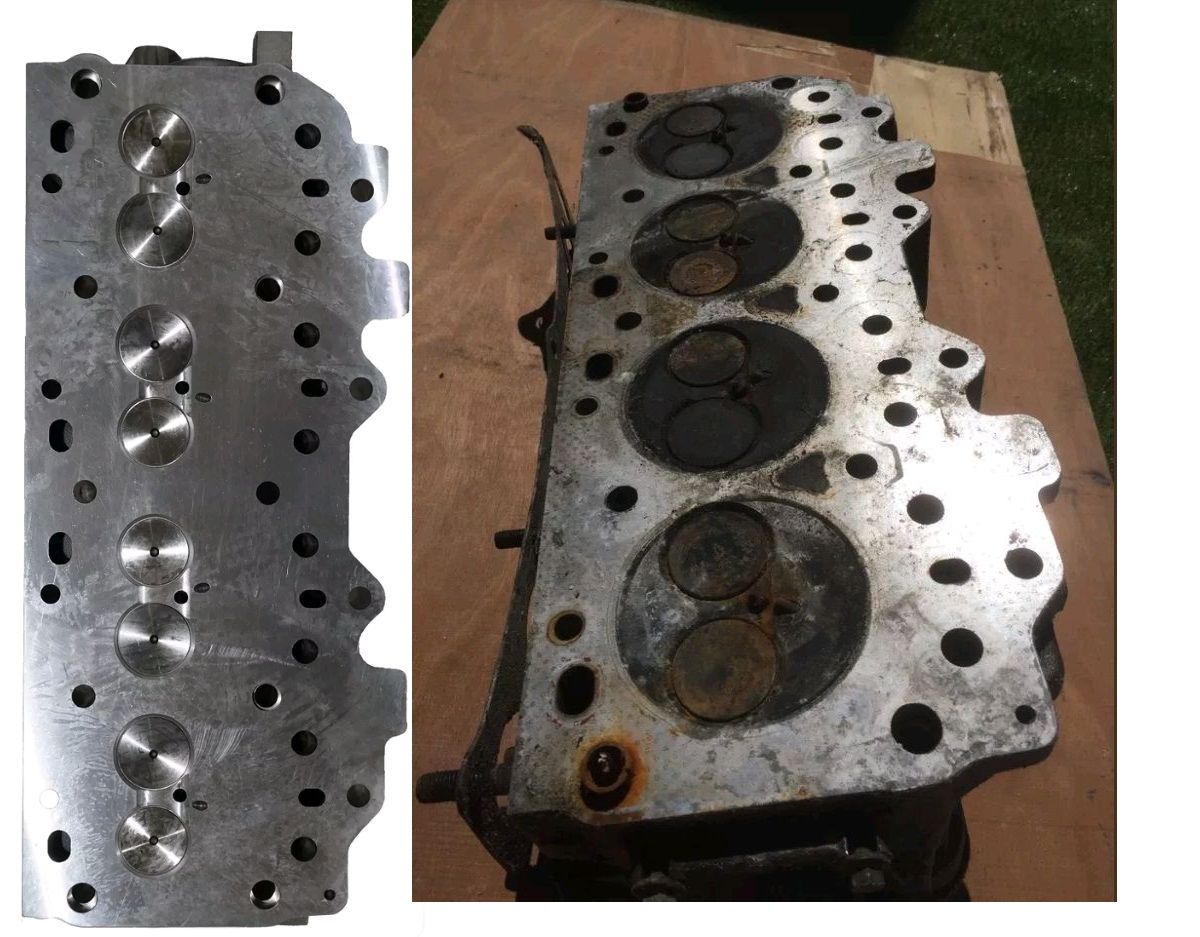

Check this, I re-oriented and sized the pics to more easily check how close they were ..

Matchstick · Jul 24, 2018

Thankyou very much Jamesmartin and Paul D i will get one ordered as i really miss my old land rover...

Paul D i like your defender i had one of those as my first land rover but i never had a winch on it... i think i made a mistake getting rid of it...

kevstar · Jul 24, 2018

Paul D said:
Don't forget yours still has locating dowels in it and a lot of marks from the head gasket, cylinders etc. If yours were cleaned I'd say it was just about identical ...

Check this, I re-oriented and sized the pics to more easily check how close they were ..

View attachment 154087

Looks like they forgot something lol

Matchstick · Jul 24, 2018

Yes i noticed that a bolt hole i think .. o well give that one a miss

kevstar · Jul 24, 2018

Matchstick said:
Yes i noticed that a bolt hole i think .. o well give that one a miss

Send them a msg it could just be a cover picture & not the actual item

neilly · Jul 24, 2018

kevstar said:
Send them a msg it could just be a cover picture & not the actual item

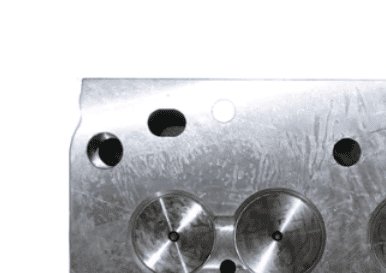

Or just the way the pic was taken and photoshopped, because you can see the diameter here.

Cheers

kevstar · Jul 24, 2018

neilly said:
Or just the way the pic was taken and photoshopped, because you can see the diameter here.

View attachment 154097

Cheers

I did notice the outline of the hole where the hole was ment but no hole was to be seen where it was ment

Paul D · Jul 24, 2018

Yeah, I saw it but thought it was the picture and that there was a hole there. I'd ask them ..
