A

AUTOEMOTIONAL

New Member

• Nov 26, 2011

• #1

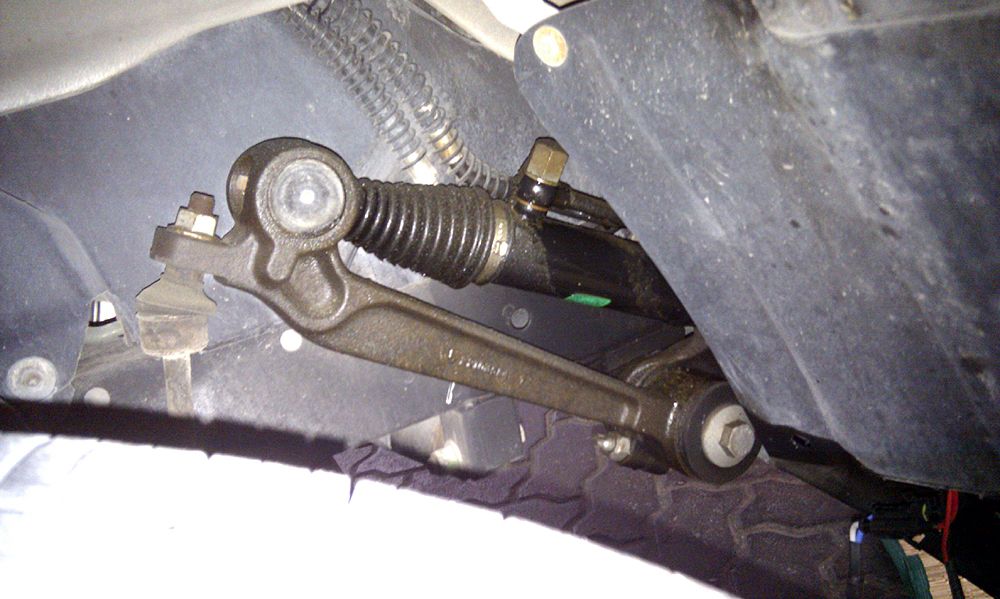

LOVING my new toy! Just sold my P38 today and decided to treat my Disco 2 to tints and xenons and while the lights were being put in we noticed that there was leaking fluid not too much mind you but it was green i think from the passenger side front. Bearing in my I'm in Dubai what is the part and what is the leak folks? I'm definitely not too handy with the hydralic side of things! Thanks!



Attachments

•

  92.5 KB · Views: 469

defcrazy

Active Member

• Nov 26, 2011

• #2

thats the ACE (active cornering enhancment ) arm and the leak seems to be the seals on the line . you may get a turn on the nut and tighten it up so the leak stops or new seals and you should be ok



A

AUTOEMOTIONAL

New Member

• Nov 27, 2011

• #3

Ahh thanks! So the seals are available separately?



sierrafery

Well-Known Member

• Nov 27, 2011

• #4

They are special washers with rubber insertion(made to bear up to 135Bar/1958 lbf.in*), google out RYF100420 ..... e.g. Britcar (UK) Ltd > RYF100420 DOWTY WASHER PIPE>ACTUATOR DIS11 (G)



Last edited: Nov 27, 2011

A

AUTOEMOTIONAL

New Member

• Nov 27, 2011

• #5

Fab guys how many do I need or shall I order a few just in case?



sierrafery

Well-Known Member

• Nov 27, 2011

• #6

there are 2 actuators, one in front and one at the rear...so 4 washers totally, but dont disturb those which doesnt leak.



A

AUTOEMOTIONAL

New Member

• Nov 27, 2011

• #7

Brilliant guys thanks alot!



meego

Well-Known Member

• Nov 27, 2011

• #8

Am I the only one jealous of how bloody clean, and rust free that Disco is????



Dewin

Well-Known Member

• Nov 27, 2011

• #9

meego said:

Am I the only one jealous of how bloody clean, and rust free that Disco is????

Click to expand...

The joy's of not owning a car in rain soaked blighty.



A

AUTOEMOTIONAL

New Member

• Nov 27, 2011

• #10

meego said:

Am I the only one jealous of how bloody clean, and rust free that Disco is????

Click to expand...

I literally said that to my mate today. I'll be putting her up for sale this weekend so will have proper pics, but here in DXB I have yet to see a rusty Disco!
