So thought I start my newbie post by sharing about my Freelander1, Wattson.

I got this off a friend who'd left it to stand(and grow grass and weeds) because it had a gearbox issue which caused it to "kick" hard when it shifted gears from cold (still haven't figured out what the issue is but once it's warm and you restart the car, the gears shift good with the occasional soft kick from 3 to 2 or under hard braking from 3rd).

These are what I have fixed so far:
1. The gearbox fluid was mixing with the coolant - Replaced the gearbox oil heat exchanger to resolve this.
2. The engine misfired like hell - Replaced Coil packs and plugs.
3. The stock radio and fog lights weren't working - Installed new fuses/replaced fried fuses.
4. The exterior window trims were shot - Replaced with used ones from the scrappy.
5. The rear tailgate door wouldn't open consistently - Replaced the motor and lift mechanism.
6. The rear window lift mechanisms were not working - Replaced with new ones.
7. The engine vibrated like nuts - Replaced the lower engine mount (funny just that fixed it)
8. Replaced a number of broken engine hoses and lines that leaked.
9. Aircon Compressor was making a grinding noise - Replaced the pulley bearing and the accessory belt.[GALLERY=][/GALLERY]
9. The interior roof ceiling was saggy - Had this redone by an interior specialist.
10. Interior lights weren't working - Replaced the bulbs with LED ones.

Things I haven't fixed
1. I have not fixed the gearbox "kick" issue and it annoys me every time it happens. Easily the one thing I hate about the car.
2. Leaking oil from the cam area. Tried to trace it and it seems to come from the black covers at the camshaft cover ends. Not gotten round to replacing them.
3. Cruise control doesn't work.

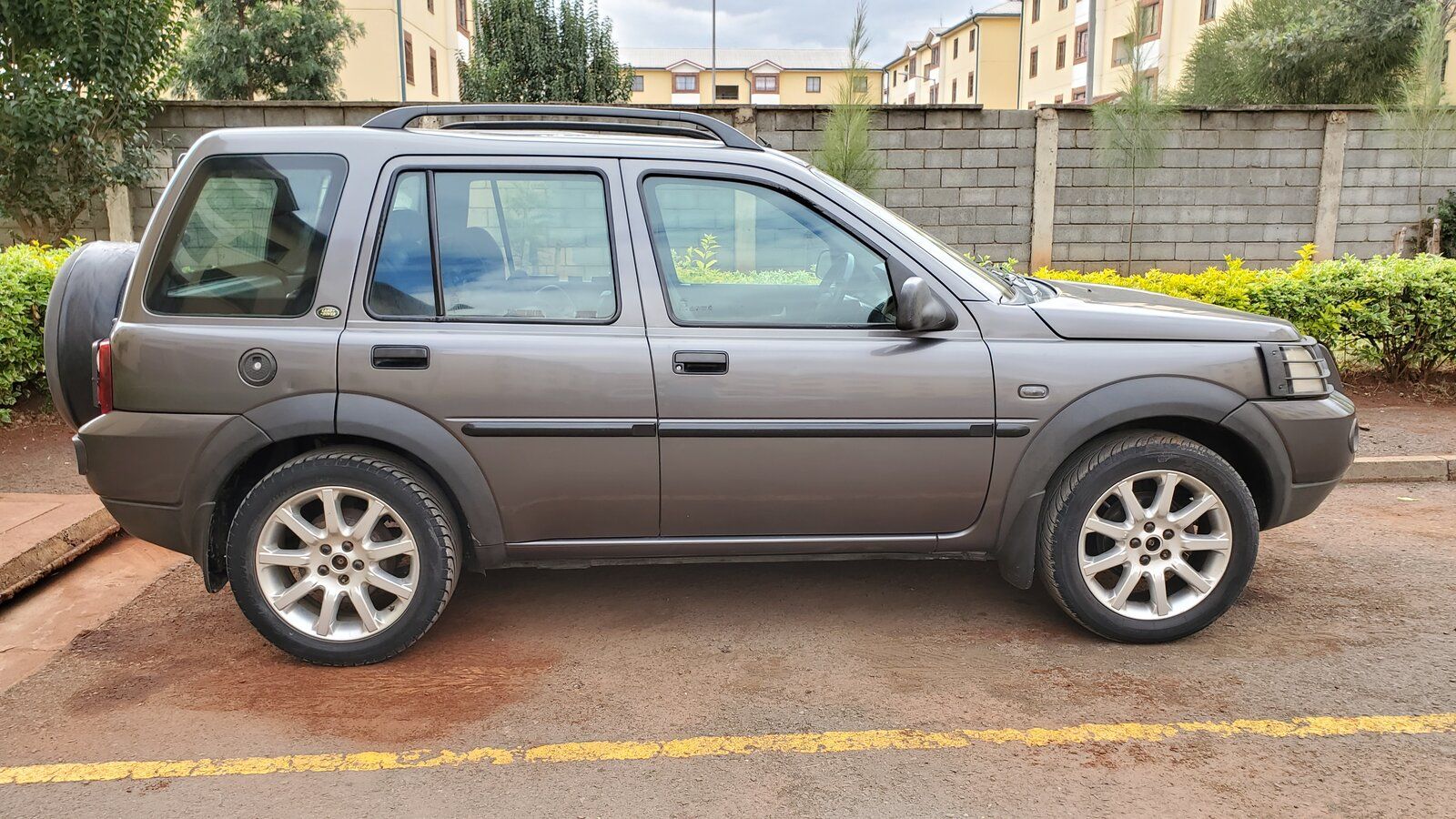

The spec is a Sports pack (I think) with all leather interior with 18" rims. Sadly no seat warmer. Car drives well when not having the gearbox issues.

I bought this "hippo" because I plan to do the following to it, in order:

1. Swap out the front brake system for Brembo 4 piston calipers and 300mm drilled/slotted rotor kit.
2. Swap out the rear brake drums for calipers and drilled/slotted disks with integrated hand-brake.
3. Swap out the hydraulic steering for electric steering.
4. Delete the rear wheel drive (basically make it a 2 wheel drive).
5. Swap out the engine brake vacuum lines for an electric ibooster brake kit.
5. Convert it to fully electric with custom 32KWh battery pack and Tesla drivetrain for a targeted initial range of 100km. This includes the necessary changers, DC-DC converters, BMSs and CAN controllers for the cooling fans etc. I am not retaining any of the LR drivetrain, gearbox or ICE bits.
6. Swap out the analog gauges for dual 3.5 custom digital displays.

Hope to share these projects with the community here.


Last edited:
Project Update:
Decided to start on the rear drum conversion as the front Brembos were delaying in delivery.

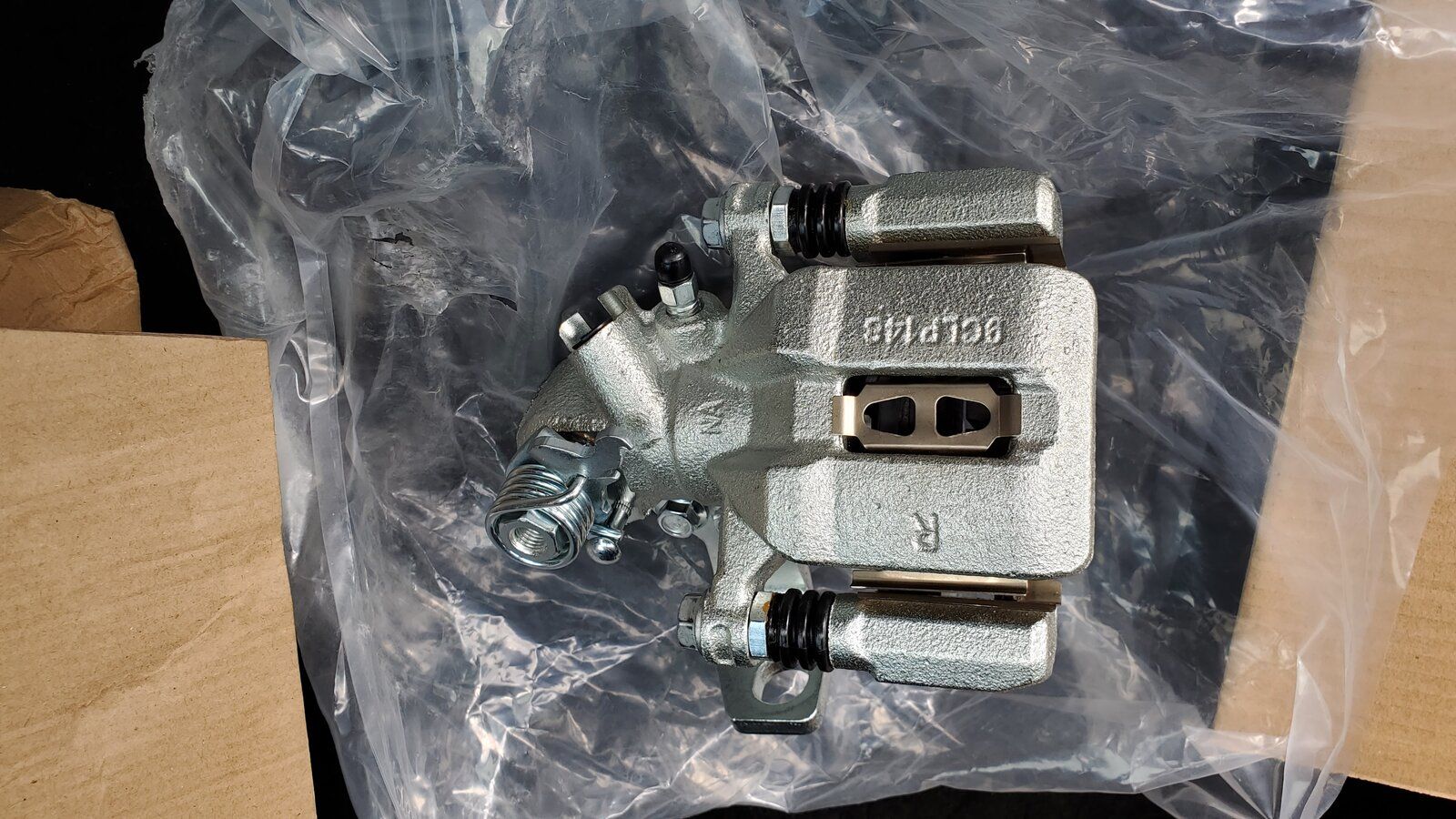

The Parts list:
2xRear Brake Caliper w/ Bracket
2xRear Drilled/Slotted Brake Rotor
2xPair of Ceramic Pads

These are similar brake parts for Honda Civic 2.0L Acura EL RSX 2002-2005 as they share the same PCD and CB.

===LARGE PHOTOS ALERT===

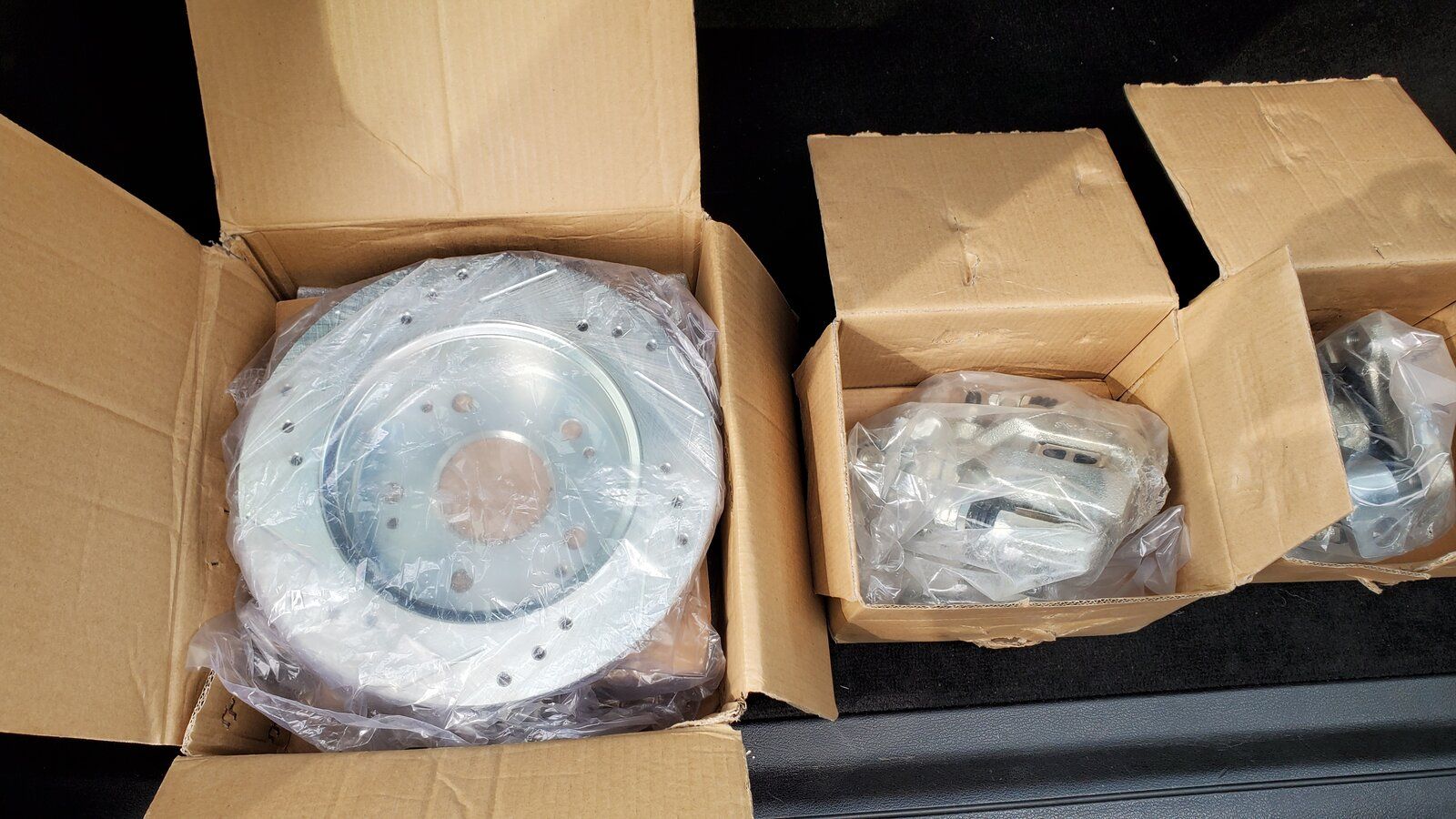

20200722_152010-jpg.217061




I disassembled the rear brake drum to start mapping and building the bits required for the caliper mounts

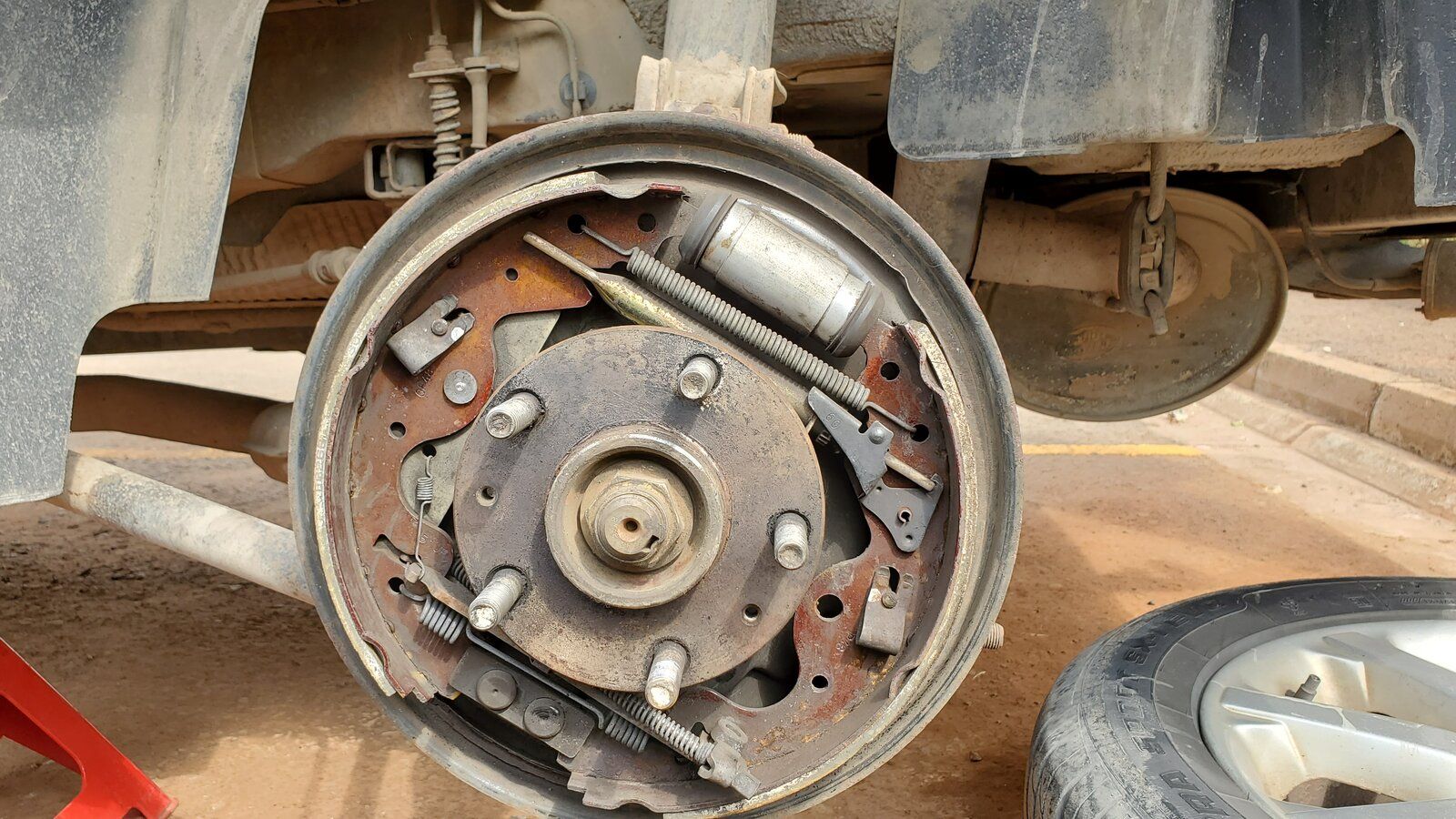

20200724_151326-jpg.217062


Took everything apart without removing the wheel hub and identified where the caliper would be. I got a grinder and trimmed bits off the hub to make the space.

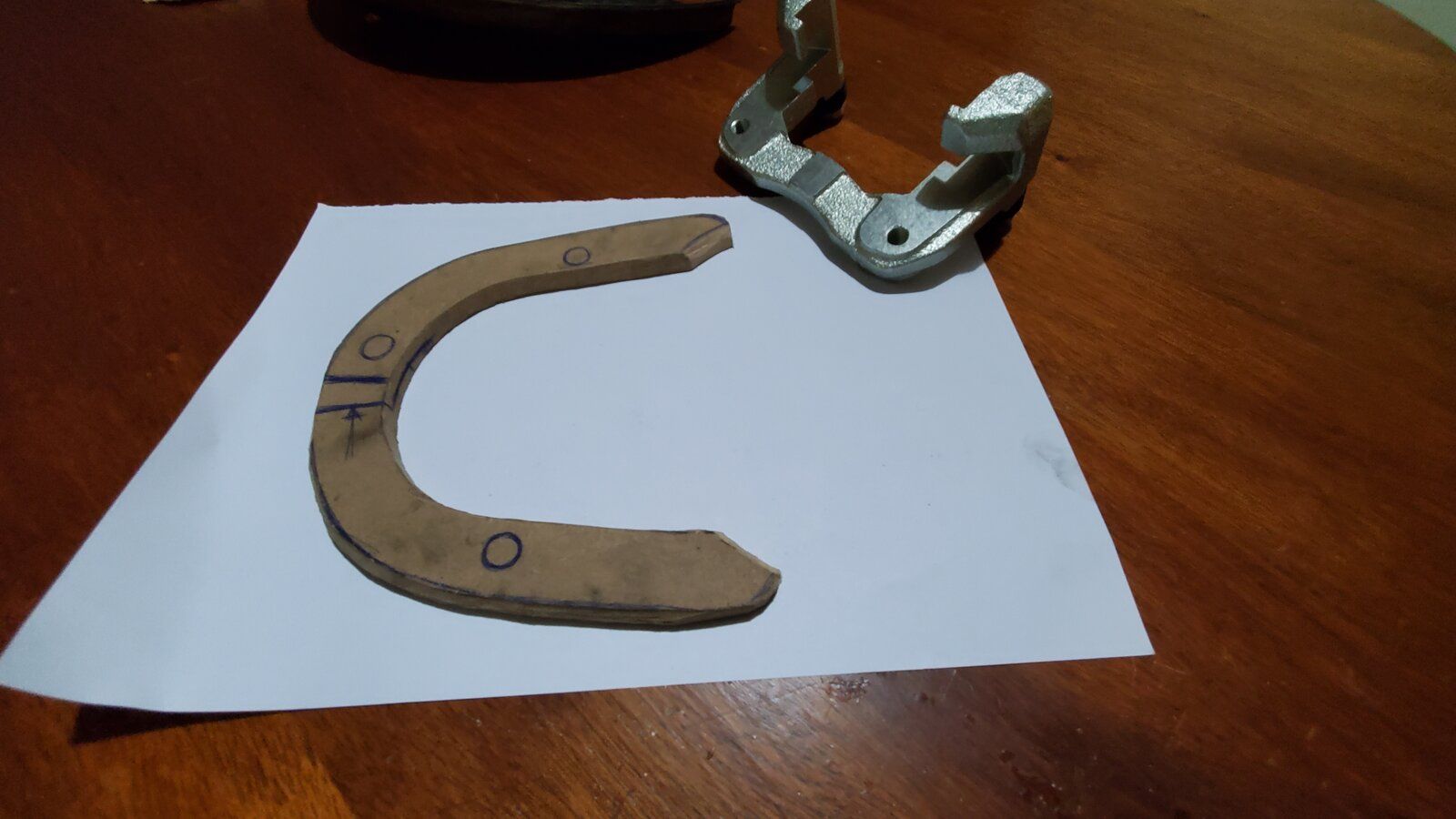

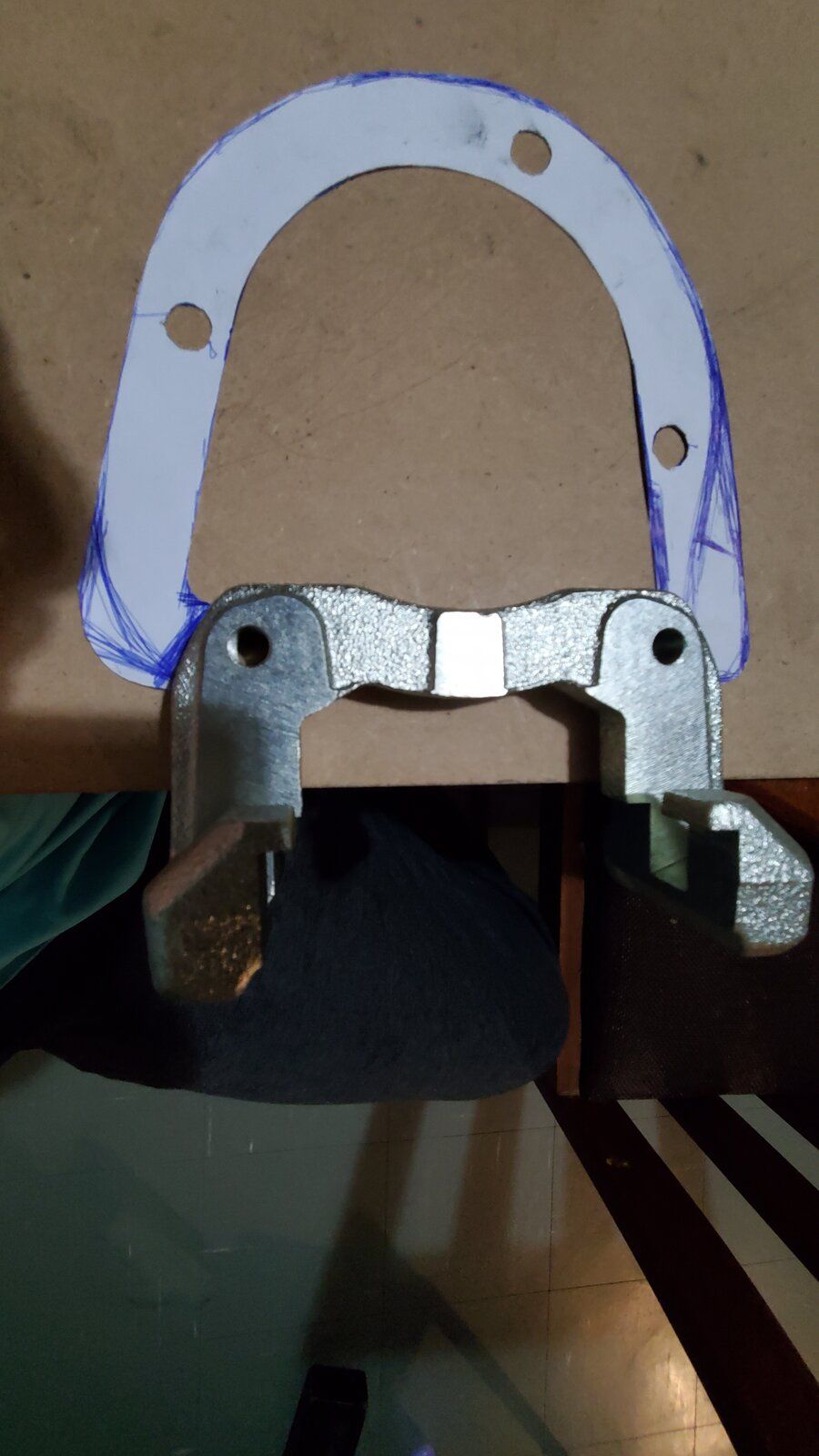

I used 10mm MDF to mock up the caliper mounts. The idea was to mount where the original drum brake rear plate mounted on the wheel hub.

20200724_193230-jpg.217067
20200724_193139-jpg.217068
20200724_194402-jpg.217069


20200724_195436-jpg.217073
20200724_223522-jpg.217074


It is at this point that I realized that for the caliper adaptor to be installed I would have to remove the wheel hub (and rebuild it) which is far too much work and something I didn't want to do.

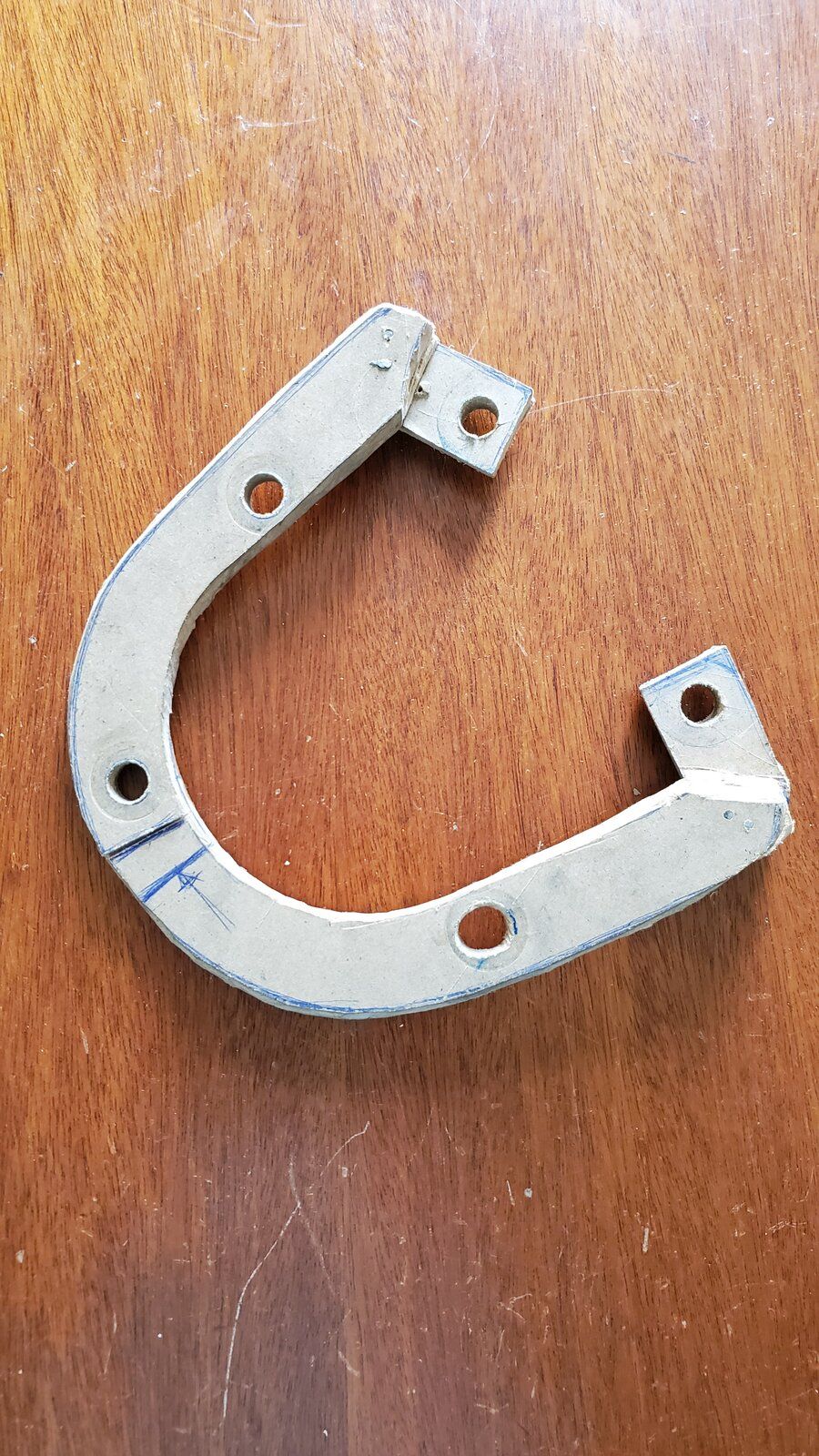

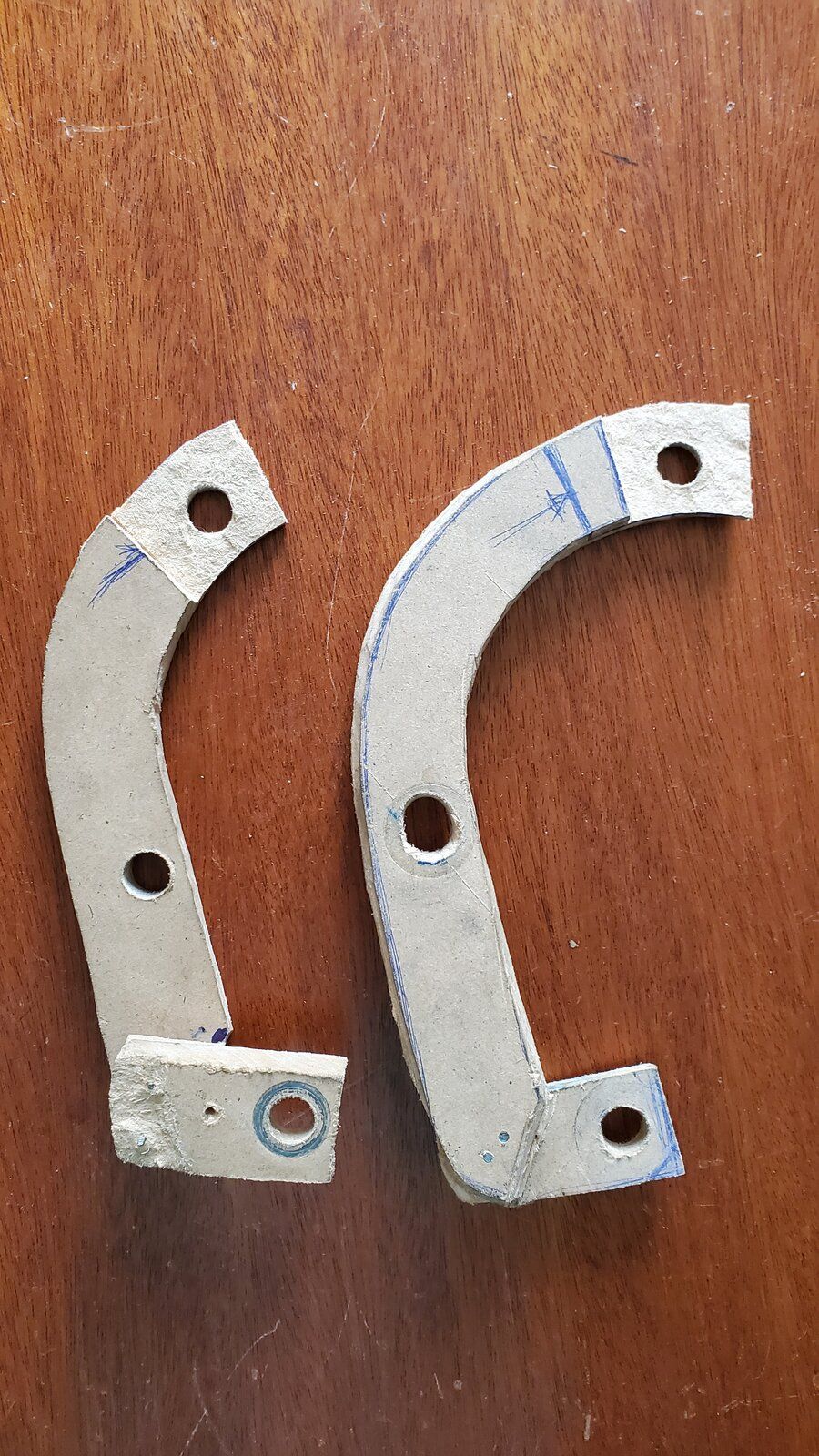

So I decided to make a two piece caliper mount to get around this problem. The two pieces combine to form a single piece around the wheel hub and technically offers 90% the same strength as a single piece.

20200725_164907-jpg.217075


20200725_164934-jpg.217076

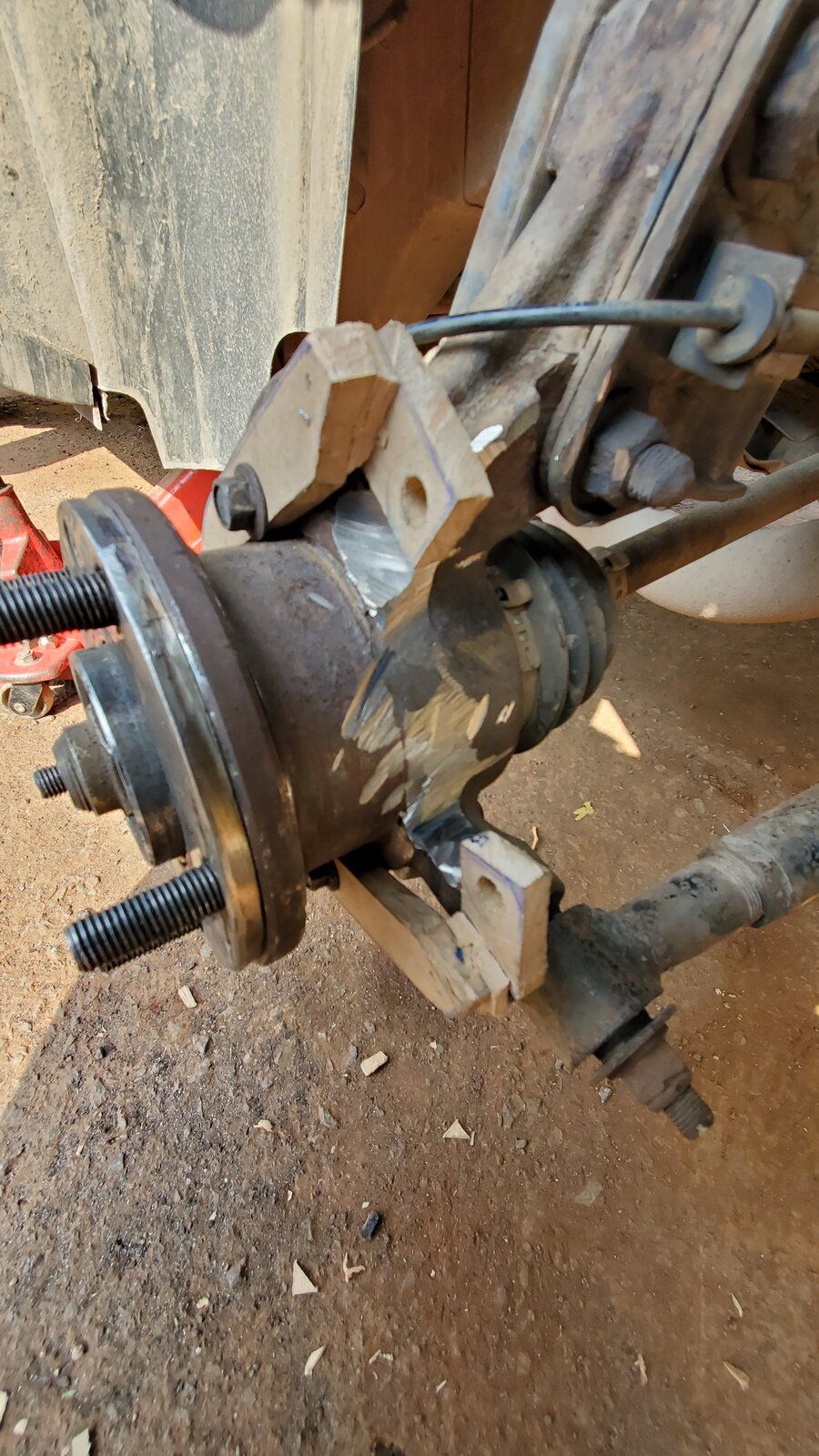

After this I just fitted the MDF mount to the hub and shaved off some bits for clearance.


20200725_153801-jpg.217063

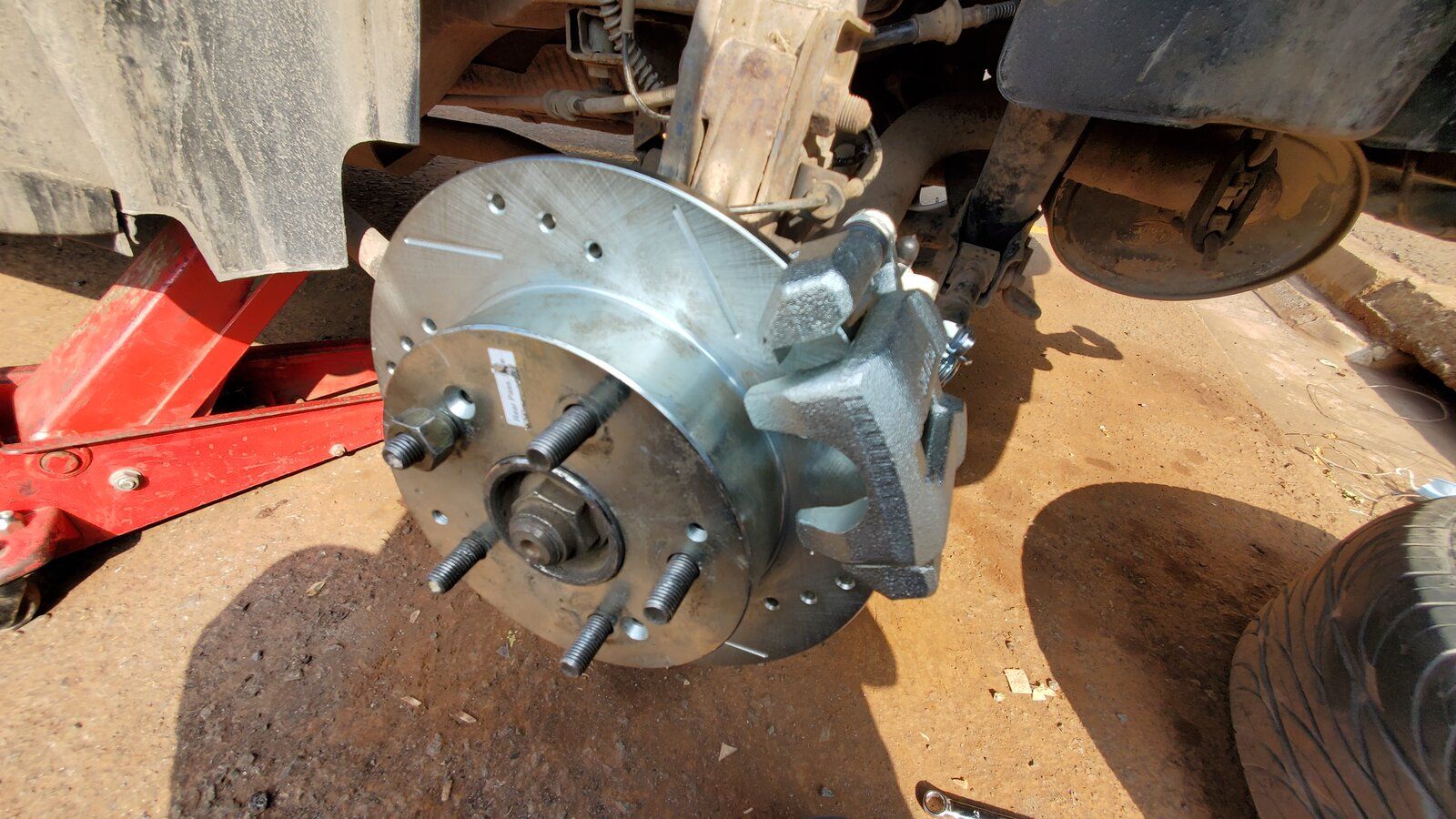

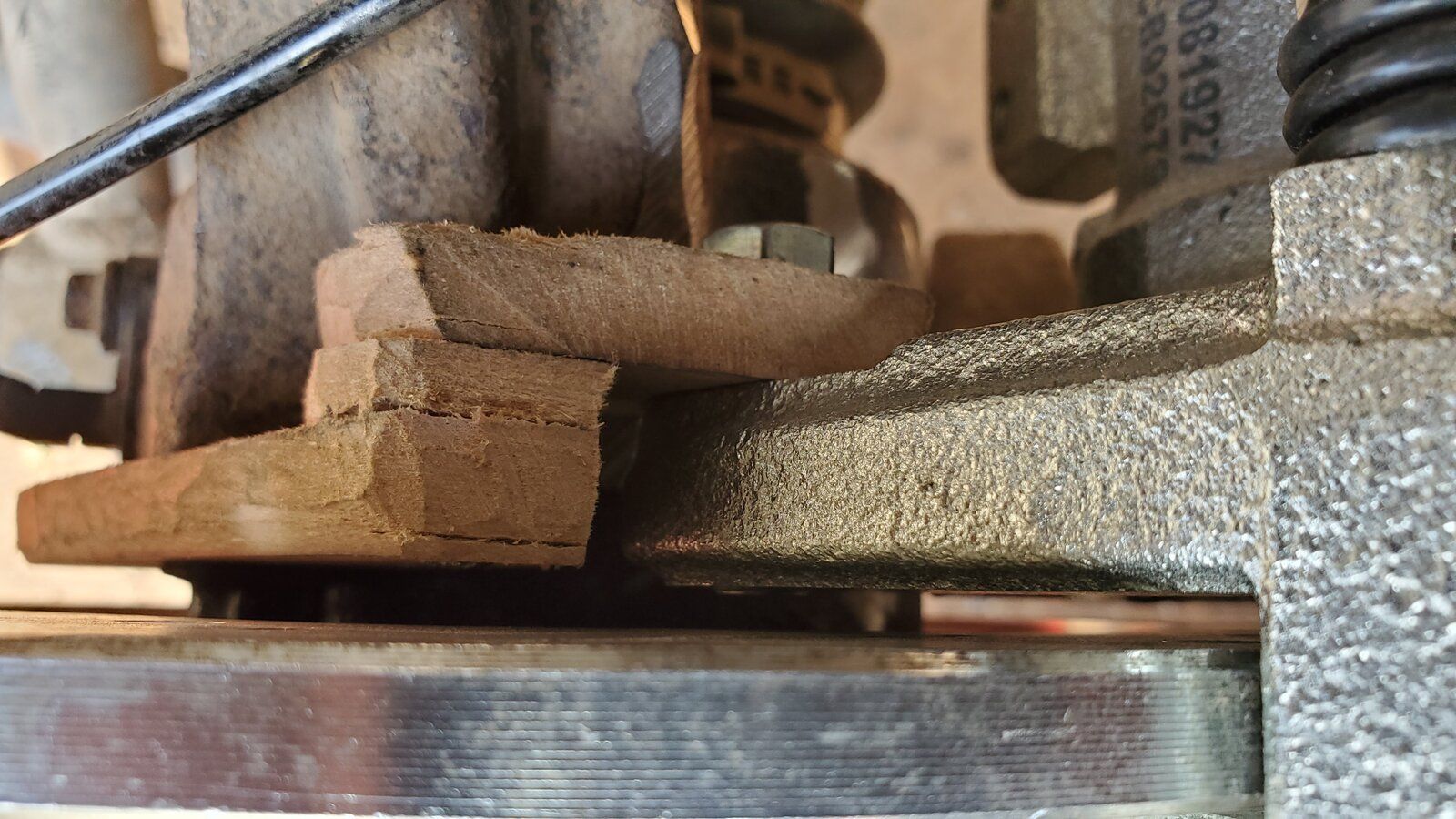

I then did a mock fitting with the calipers and rotors just to make sure the clearances were as planned/recommended.

20200725_154529-jpg.217064
20200725_154753-jpg.217065
20200725_155204-jpg.217066





Once the mock fit the spec I was looking for I proceeded to send the MDF models to a pal at a metal fab shop to machine the mounts. Being also an engineer{albeit structural), he did a second design check to make sure the mounts would be strong enough to withstand the brake forces.

Last edited:

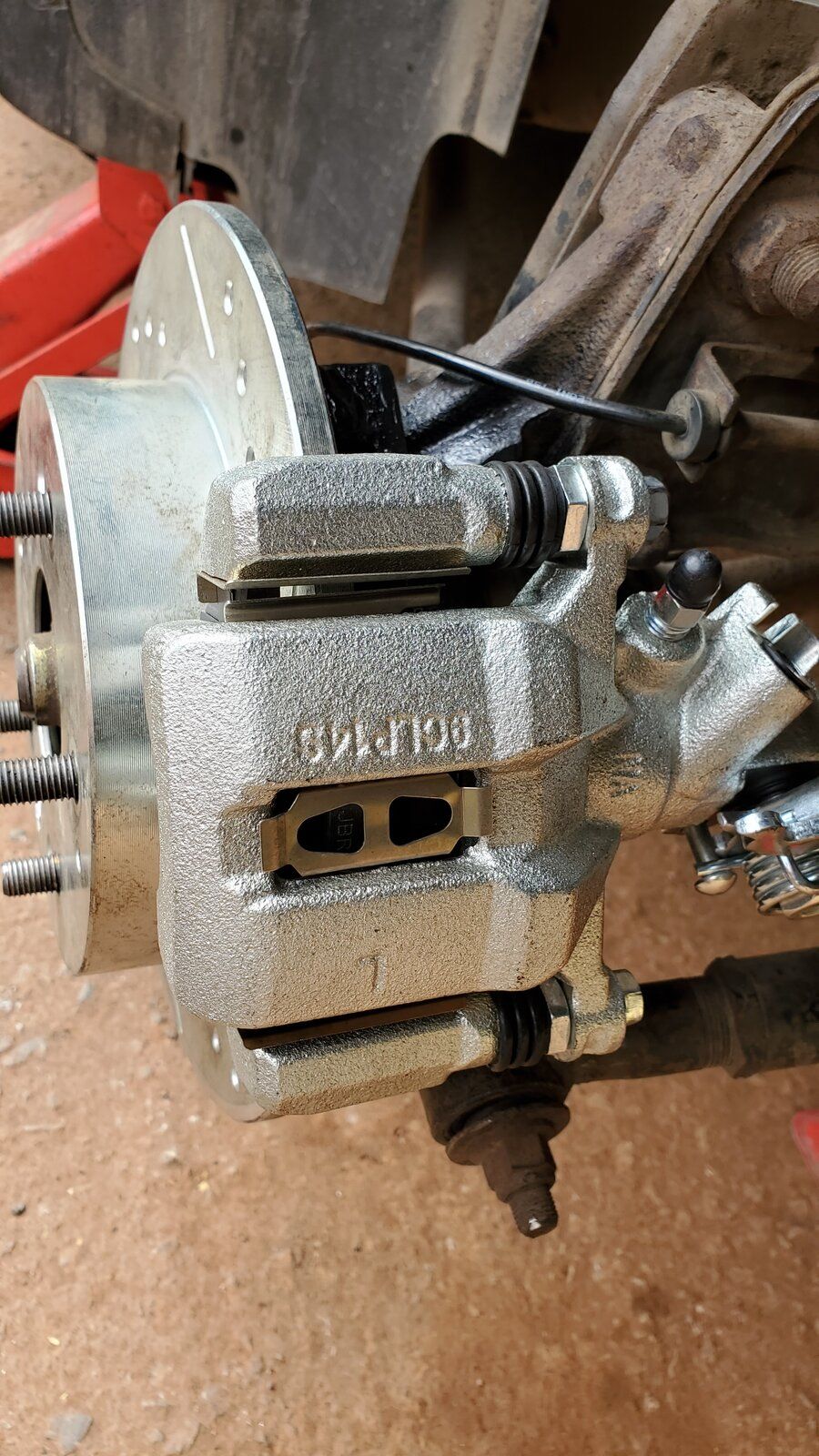

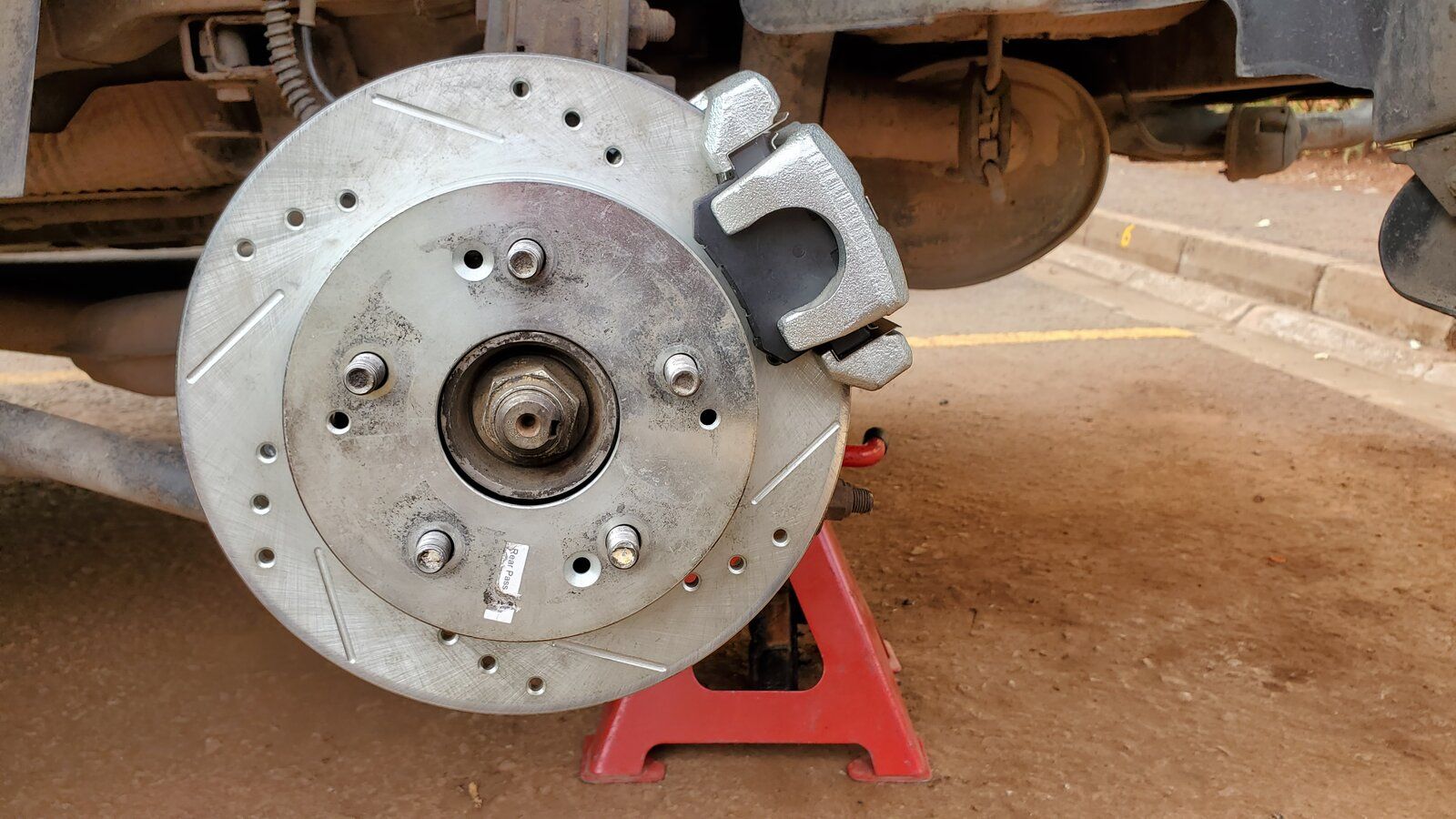

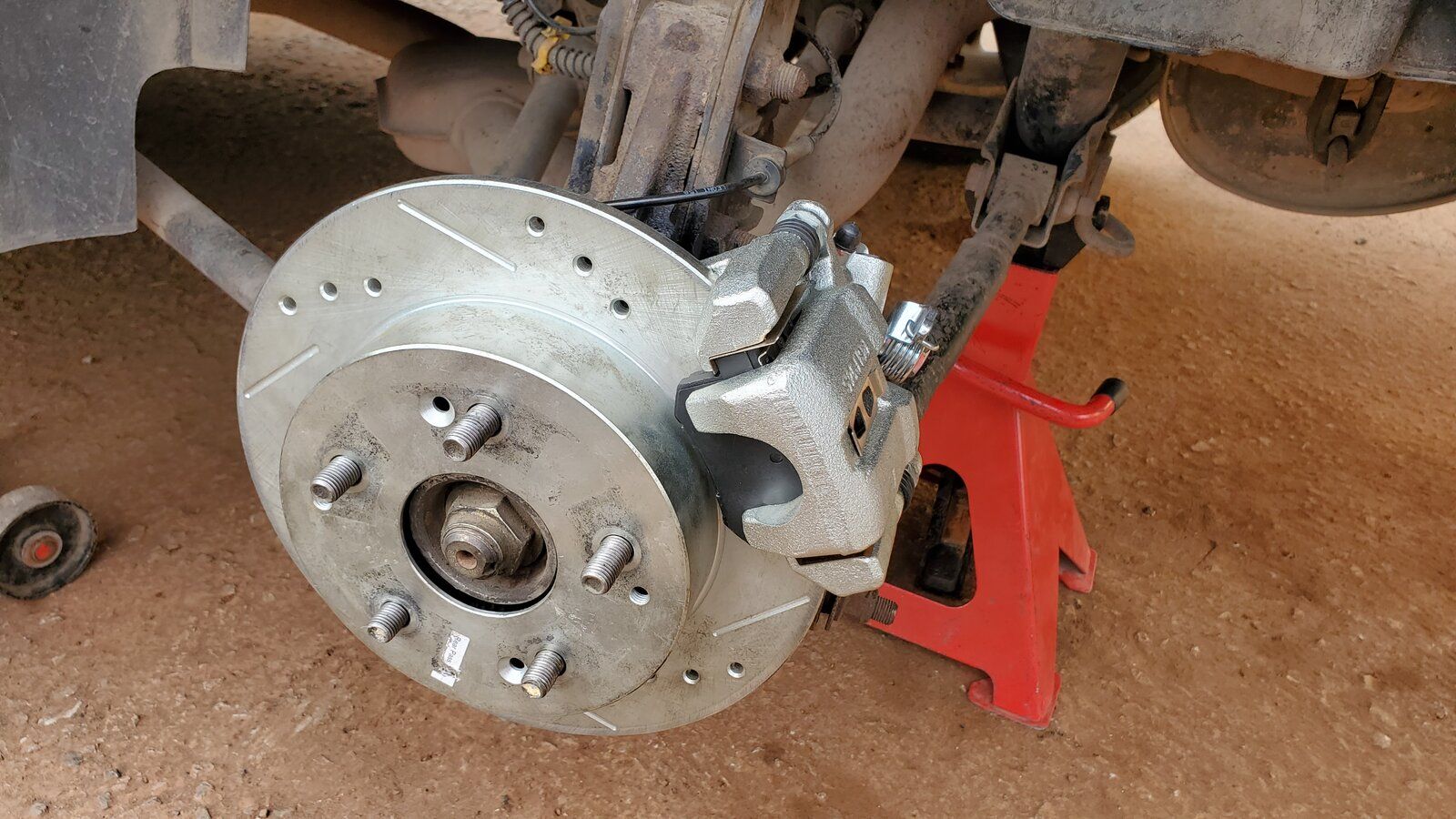

The machined brackets came back and I was too anxious to install them as I needed to close this part of the project. Sorry, only took photos for the finished setup.
I had to paint the grind out bits with high temp rust protecting paint and had new hand brake cables made for the new hand brake mechanism.

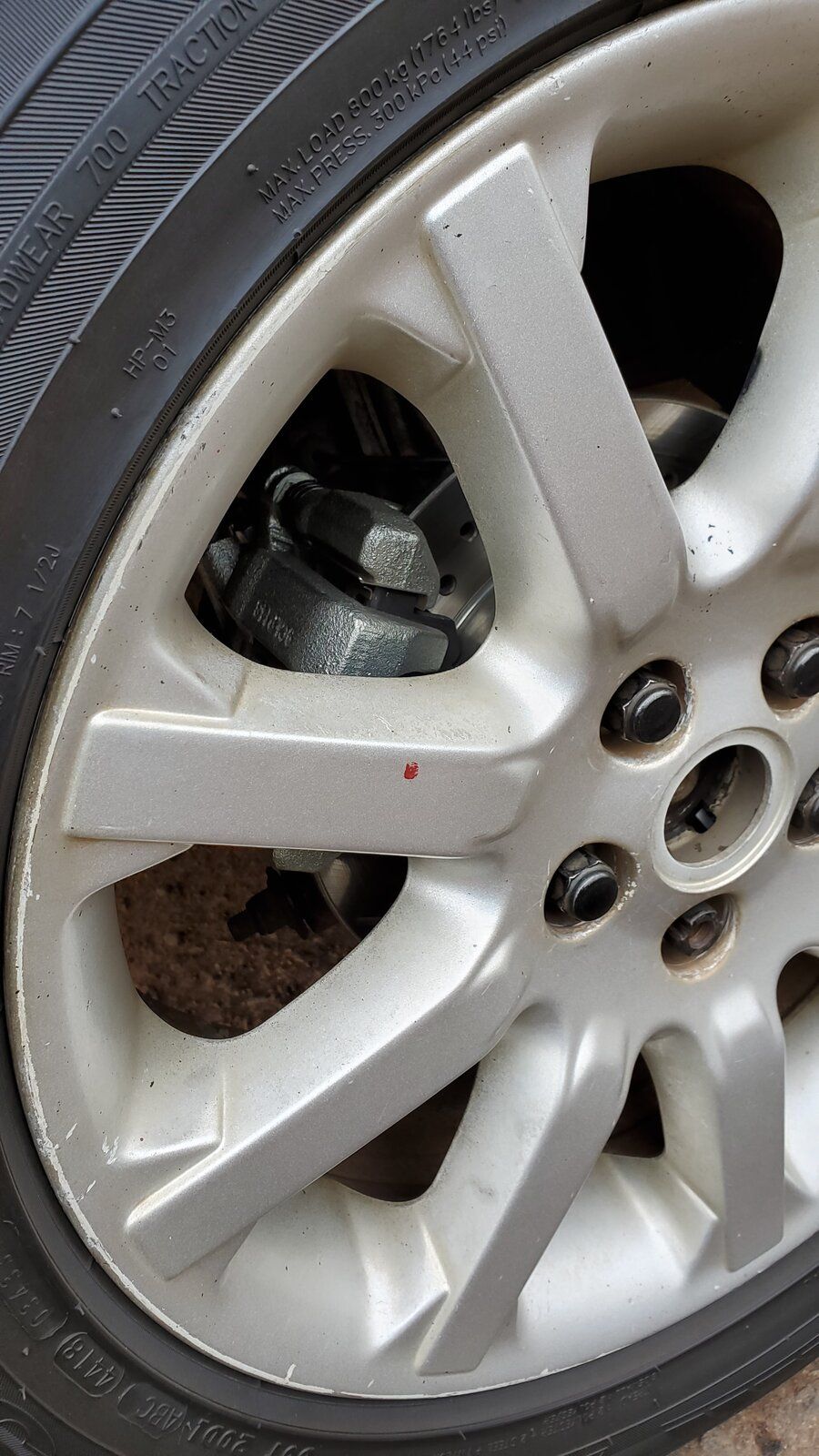

Fitted the rims to make sure everything is clear
