Sparky78 · May 27, 2020

Hi all ,
Newbie to forum here .
I’m not usually the forum type of guy but I’m stuck with this problem and I need help.
I have swapped my wheels for those off A range Rover sport and fitted new TPMS sensors as the old ones were due to be replaced.
Now I have a TPMS fault light constantly lit, I have gone through the new TPMS learn process but the system will not recognise the new sensors.
I have cleared the fault with my Land Rover diagnostic tool and checked The TPMS sensors With a reader and they are working but not talking to the car.
What else can I do without having to take the car to the dealership and get ripped off.
Hope somebody out there can help regards mark.

Stanleysteamer · May 27, 2020

Welcome to the forum!
Can I suggest you go to the "Introduce yourself " section?
Also good idea at the top of a thread to post exact make, model, fuel, auto or not type, detail. Helps us help you.

Sparky78 · May 27, 2020

Cheers I will do that , nice one

sierrafery · May 27, 2020

Hi, did you drive it since? ..and what was the exact fault code description, also did you follow EXACTLY everything as in the owner's handbook ?

Sparky78 · May 27, 2020

Hello ,
I drove it as per the recommendation to learn the new sensors , at over 20kmh for 20 mins , after 10 mins the tpms begins to flash .
Diagnostic reader lists wheel module fault , I clear it but after a restart it’s back a short while after . Will post exact images later when I’m home

sierrafery · May 27, 2020

Then check this out

Sparky78 · May 27, 2020

Cheers Sierrafery ,
I will print this off and read it in depth tonight , just scanning through it , it seems to put me on the right path To getting to the bottom of the problem .
I think it’s going to require diagnostic equipment that’s more capable than the Icarsoft LR V2 I just purchased .
I’m moaning about dealers high costs but I have spent out £250 on diagnostic reader and TPMS tool and to no avail . Maybe I should have just took it to the dealers first off but me being me I hate not being able to do anything to fix the Landy ....

kind Regards
Mark

Sparky78 · May 27, 2020

Sierrafery I had I look at the document you sent and I think this is possibly the key part ?

( Use the Tire Pressure Sensor Replacement routine available in SDD/Pathfinder to write the new wheel unit ID

(s) to the tire pressure monitoring system control module. Then, test drive the vehicle for at least 15 minutes

duration with speed >20MPH and retest for TPMS DTCs )

If this is what's required I gather this is a dealership job ? which is not what thought which is they self learn so to speak ?

what are your thoughts on it ?

Sparky78 · May 27, 2020

I gather this SDD/Pathfinder is dealership software ?

sierrafery · May 27, 2020

Sparky78 said:
I gather this SDD/Pathfinder is dealership software ?

Unfortunately that's above my knowledge

Sparky78 · May 27, 2020

I am surmising it will be a dealer level diagnostic tool , perhaps someone else will clarify this ?

but thanks for the document its been a great help Sierrafery

sierrafery · May 27, 2020

Post the DTC you get cos there is a list which shows possible causes, i'll just have to dig it out

Sparky78 · May 27, 2020

I

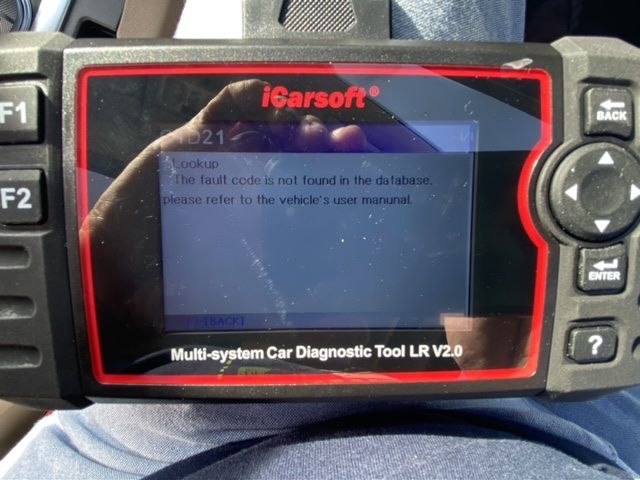

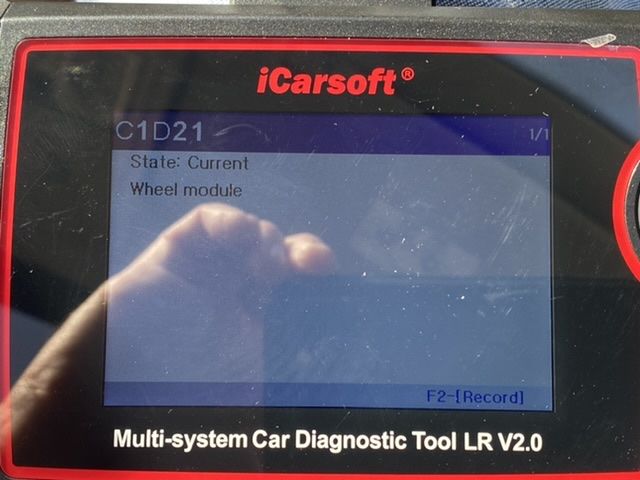

Here is the code C1D21 but in the DTC lookup there is nothing for it on the icarsoft LR V2 ?
Anybody else know the issue ?

sierrafery · May 27, 2020

Here you go:

johnlad · May 27, 2020

I’ve already said in your other thread that Land Rover changed the Tpms in later discovery 4 so the chances are yours aren’t compatible with the car.

sierrafery · May 27, 2020

+1 the sensors must have the correct p/n for the VIN

Sparky78 · May 27, 2020

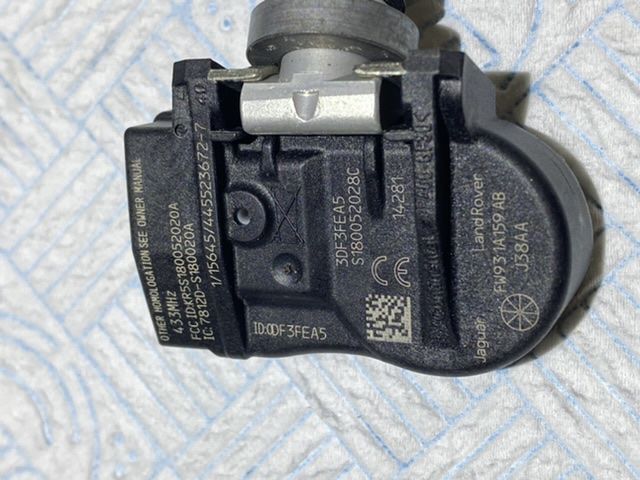

This is what’s on the car now

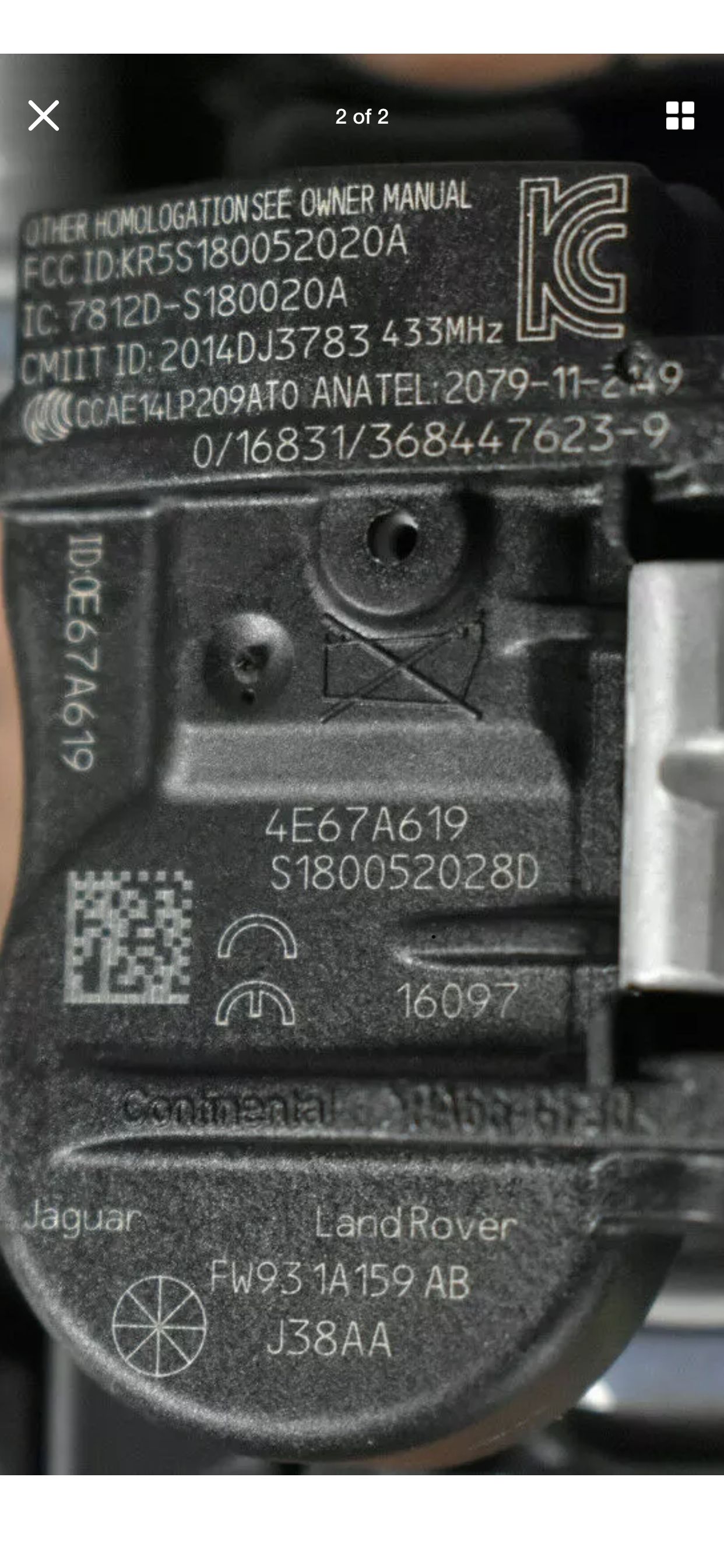

And this is the type that came off the car

Sparky78 · May 27, 2020

When I purchased these off eBay I was told they are in sleep mode and just require activation with a tpms trigger , seems I have been mislead to the tune of another £60 , would have been cheaper to have had the car swapped not the alloys at this rate lol .

sierrafery · May 27, 2020

They are the same but were they new?... 4 at £60 doesnt seem so and as long as they are used you can't rely on them

Sparky78 · May 27, 2020

sierrafery said:
They are the same but were they new?... 4 at £60 doesnt seem so and as long as they are used you can't rely on them

brand spanking new , the guy is still selling them on eBay now as I just checked .
They read fine on the TPMS reader
