FlatbedPilot

Well-Known Member

Full Member

• May 1, 2022

• #1

Got the engine running again in my project disco to find that the fuel pressure regulator is leaking. I spent a few frustrating hours changing it for a spare one I had and that's bloody well leaking too. They're both leaking from the small hole in part number 5 on the drawing below. Now I know you can buy the whole assembly and I will if I have to rather than risk changing in another spare in case that leaks too, but I wondered if part number 5 is available to buy separately? Nowt wrong with the rest of the assembly.



FlatbedPilot

Well-Known Member

Full Member

• May 1, 2022

• #2

Never mind. I found this.



Intestinalworm

Well-Known Member

• May 3, 2022

• #3

There are other kits around with the gaskets, o-rings and pressure regulator you have shown - it has a diaphragm inside which likely leaked. I had an awful lot of prob's with this one some years ago, but maybe X8R have improved it?



FlatbedPilot

Well-Known Member

Full Member

• May 3, 2022

• #4

Well lets hope so.



ronsealdeath

Sagging Member

• May 3, 2022

• #5

Get a good quality one or rebuild kit. At least oem.



Landmark2

Well-Known Member

• May 4, 2022

• #6

Tried variious suppliers today for a genuine LR on but no one has them in stock and are all waiting delivery from JLR. No time given. I've had to order one of the X8R repair kits to see me through. At least they have a Bosch regulator. The original one replaced 9 yrs ago had only gone on the small O ring.
Reading posts on how to replace them, one says to turn the wheels on full left lock to get to the bottom bolt. What acess hole are they using?
Regards,
Griff



FlatbedPilot

Well-Known Member

Full Member

• May 4, 2022

• #7

I got the bottom bolt off mine through the wheel arch using a socket on a couple of long extensions. I don't have the plastic trims between the body and chassis or wheel arch liner fitted though.



Intestinalworm

Well-Known Member

• May 5, 2022

• #8

Preferably you need to be about 6' 3" with the arms of a gibbon, two elbows on each arm, and hands the size of a pixie! Not the easiest thing to access, and the bottom bolt is challenging; watch the little o-ring that sits in the block - falls out! I followed this:

http://www.discovery2.co.uk/Fpr.html



FlatbedPilot

Well-Known Member

Full Member

• May 5, 2022

• #9

I favour tentacles for jobs like this. Long tentacles that split into many small tentacles. And having your eyes on prehensile stalks.



ronsealdeath

Sagging Member

• May 5, 2022

• #10

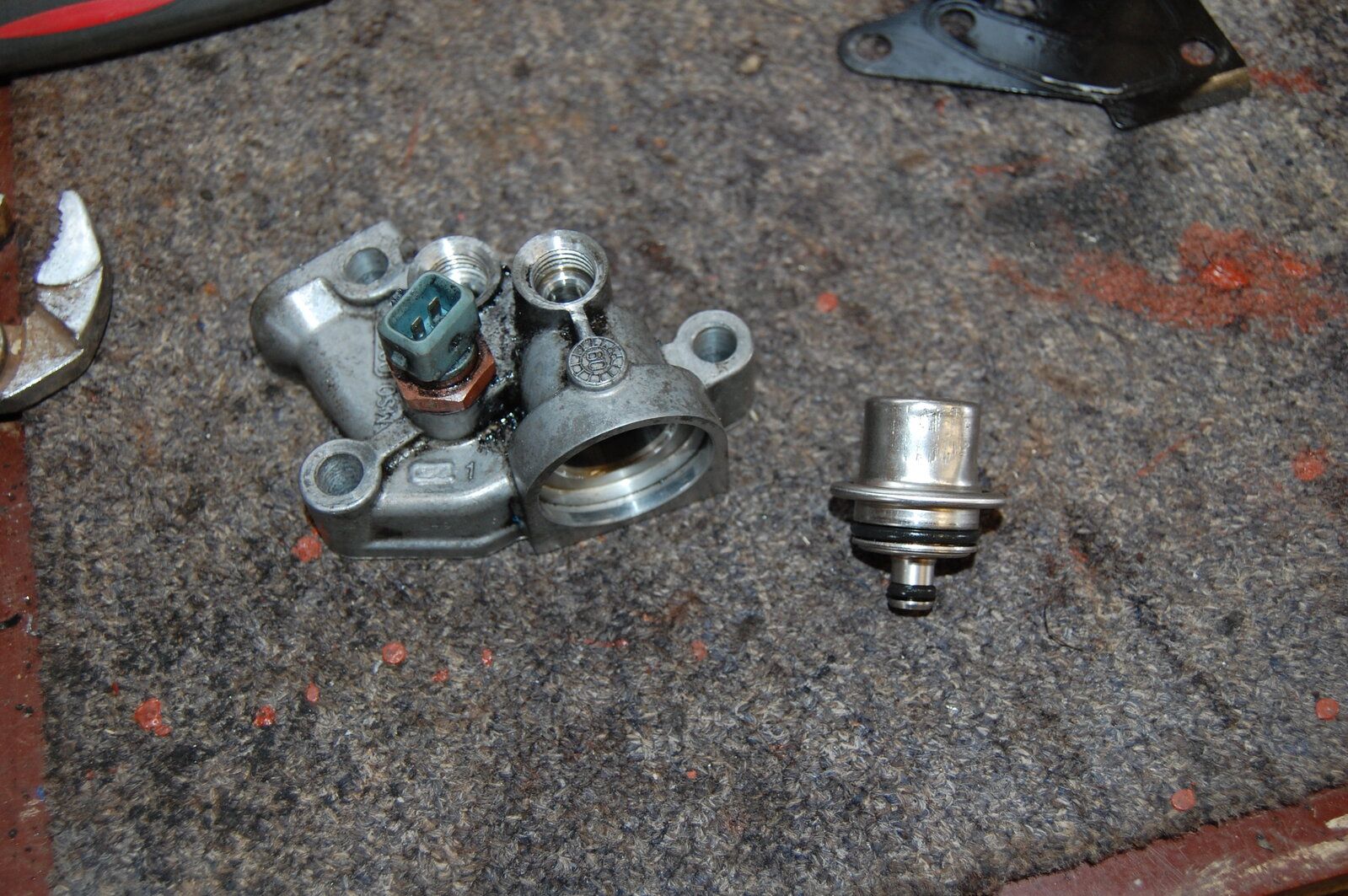

I took all the pipe fittings and sensor off first, then removed from the top. Then same to put back on the new one. Made access much easier with the spanner.



Intestinalworm

Well-Known Member

• May 5, 2022

• #11

DefenderPilot said:

I favour tentacles for jobs like this. Long tentacles that split into many small tentacles. And having your eyes on prehensile stalks.

Click to expand...



Intestinalworm

Well-Known Member

• May 5, 2022

• #12

ronsealdeath said:

I took all the pipe fittings and sensor off first, then removed from the top. Then same to put back on the new one. Made access much easier with the spanner.

Click to expand...

Professional!
