Wife's 2005 TD4 started clattering on Tuesday. As expected it's the crank pulley. Luckily I bought the proper holding tool last year when doing Son's TD4, getting it off wasn't too bad !!

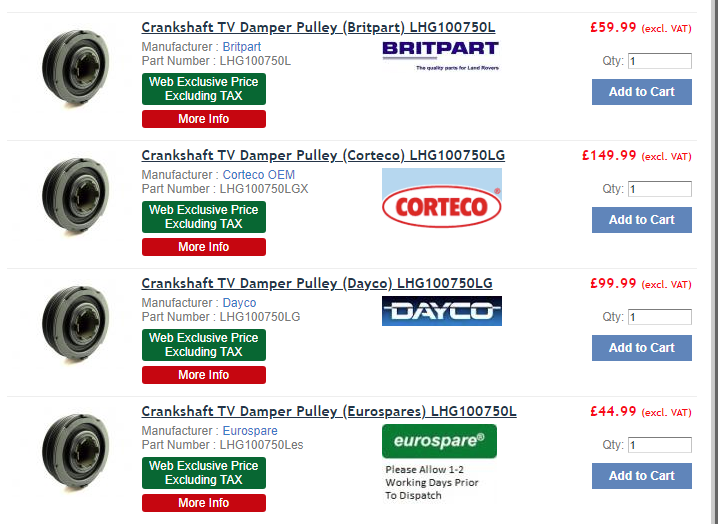

Now gotta decide which to go for. Anyone got longevity experience on the lower cost brands ?

Pete



Attachments

•

  152.2 KB · Views: 110

T

The Pilgrim

Active Member

• Sep 21, 2023

• #2

Hi Pete, would you mind to put a link or serial number of the holding tool that you used?
Thank you,
Stefan



pwood999

Well-Known Member

Full Member

• Sep 21, 2023

• #3

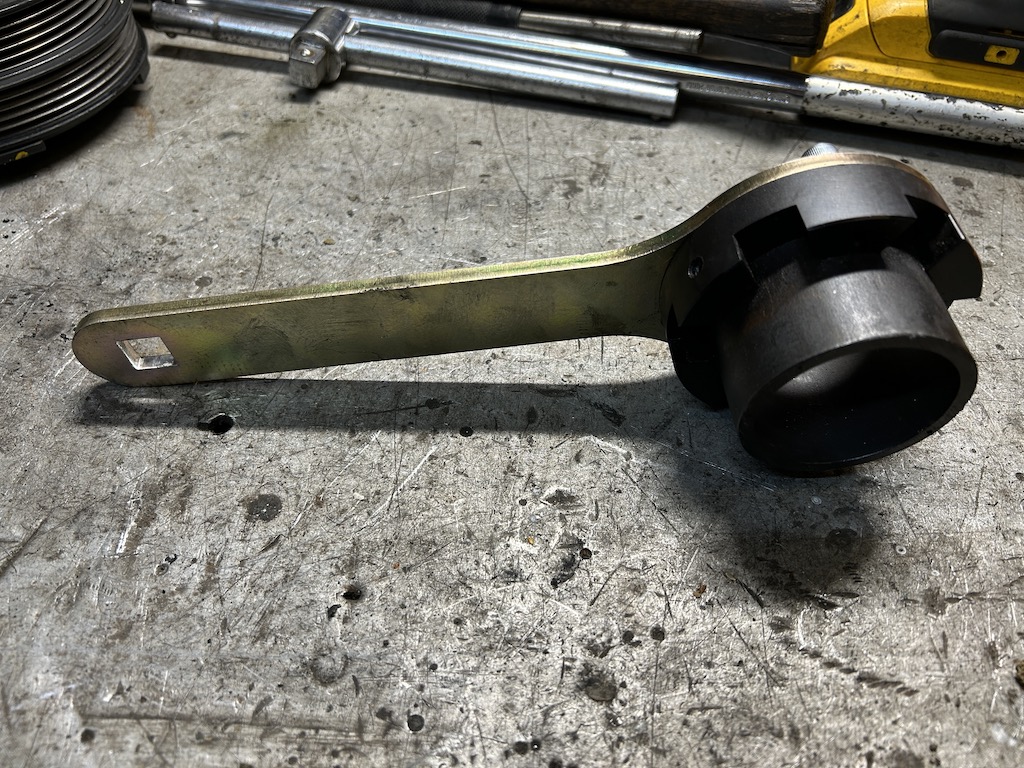

Can't find the original item like mine, but there's plenty of similar out there. Mine has a1/2" hole for adding extension bar, but google search doesn't seem to find this type anymore.

1) 30mins with the crank bolt soaked in RP-90
2) The holding tool with a 1/2" Tee bar against the chassis rail.
3) Solid continuous pull on my breaker bar, until I felt the bolt give way. After that it came out easy.

None of the crank snapping starter motor tricks !!



Last edited: Sep 21, 2023

T

The Pilgrim

Active Member

• Sep 21, 2023

• #4

Thank you. I hope I won't need it...



Nodge68

Well-Known Member

• Sep 22, 2023

• #5

pwood999 said:

Wife's 2005 TD4 started clattering on Tuesday. As expected it's the crank pulley. Luckily I bought the proper holding tool last year when doing Son's TD4, getting it off wasn't too bad !!

Now gotta decide which to go for. Anyone got longevity experience on the lower cost brands ?

Pete

Click to expand...

Use a known brand. Corteco is he OE part, but any premium brand will be fine. Not all come with a new bolt, which is a use once bolt.



pwood999

Well-Known Member

Full Member

• Sep 22, 2023

• #6

Got a Dayco one coming via my son (at staff pricing). The system says it's a kit, so should include the bolt as well.

Hopefully should be ready for pickup in Wycombe by midday today.



Nodge68

Well-Known Member

• Sep 22, 2023

• #7

pwood999 said:

Got a Dayco one coming via my son (at staff pricing). The system says it's a kit, so should include the bolt as well.

Hopefully should be ready for pickup in Wycombe by midday today.

Click to expand...

The Dayco kit comes with the bolt. From memory it was a Corteco in the Dayco box too. It'll be fine anyway.



pwood999

Well-Known Member

Full Member

• Sep 22, 2023

• #8

It is a Corteco pulley & bolt.



pwood999

Well-Known Member

Full Member

• Sep 22, 2023

• #9

Fitted & working again. Happy wife !!

Only challenge was the pulley holding tool was very tight fit into the castellations on the pulley.
