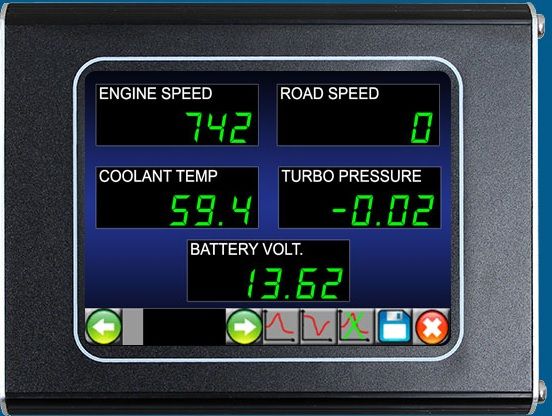

For future reference, "turbo pressure" shown by nanocom instrument mode is in bar calculated by the ECU (MAP - AAP)... it's -0.02 at idle cos the pressure in the manifold is a bit lower than in the airbox, 1.22 shown there is boost not gauge pressure .... the OP's problem at this point seems very like a slipping clutch to me

Nanocom boost.jpg

For future reference, "turbo pressure" shown by nanocom instrument mode is in bar calculated by the ECU (MAP - AAP)... it's -0.02 at idle cos the pressure in the manifold is a bit lower than in the airbox, 1.22 shown there is boost not gauge pressure .... the OP's problem at this point seems very like a slipping clutch to me

View attachment 198766
Reading the first post it says 1.22 bar at full throttle.
As mentioned this is a boost of 0.22 bar gauge.
But then its mentioned that at the waste gate feed pipe a gauge reads 15 psi.
Could it be the MAP sensor is duff?

I think you refuse to understand the obvious which i thought was clearely explained: 1.22 SHOWN BY NANOCOM INSTRUMENT MODE IS 1.22 BAR BOOST (18psi) while at the wastegate was 15 psi which is normal as the pressure drops a bit in that thin pipe

Last edited:
I think you refuse to understand the obvious which i thought was clearely explained: 1.22 SHOWN BY NANOCOM INSTRUMENT MODE IS 1.22 BAR BOOST (18psi) while at the wastegate was 15 psi which is normal as the pressure drops a bit in that thin pipe
Easy boy, I'm not refusing, just confused here.
Is the 1.22 bar absolute pressure as read by the ECU from the manifold pressure sensor?
That was my understanding of the reading.
1.22 bar absolute would be the same as 0.22 bar gauge pressure.
Absolute pressure is measured from zero, so at a standstill you would expect <>1 bar being normal atmosphere pressure.

If you plug a pressure gauge into the bypass line it will usually read gauge pressure (this starts from 1bar) in this case 15 psi which seems pretty close to what you may expect,
In absolute this would read <>2 bar.

raywin said:
Easy boy, I'm not refusing, just confused here.
Read again post 13 and see the pic of nanocom "Turbo pressure" in post 22, the OP has 1.22 in that slot, sorry, i can't explain clearer than that buddy

the OP's problem at this point seems very like a slipping clutch to me

That would seem to fit the description.
However, I would expect that OP would notice the revs rising when the vehicle speed wasn't.
And that there might be a smell from the clutch slipping at speed.
And usually when I have seen slipping clutches it is obvious when you pull away from a standstill.

And usually when I have seen slipping clutches it is obvious when you pull away from a standstill
For a fubar clutch yes but if it's just at the beginning it can slightly slip just uphill under load, i've seen that myself... though the IAT, ECT and FT readings would be relevant too.

Last edited:
Should have mentioned earlier that it's a new MAF that is fitted as that was one of the first things I tried, my old MAF is still in working order so I doubt it's that.
I've decided I'm going to change the radiator and intercooler, the thermostat and coolant and when I do I will check all the hoses to and from the Turbo.
Really I could live with it but it's just annoying
Thanks for all your replys
Stevie
