H

Hicap phill

Well-Known Member

• Nov 13, 2022

• #21

lynall said:

200 and 300 have different cooler pipe set ups at the rad end.
Iirc the threaded adaptors are available on their own.

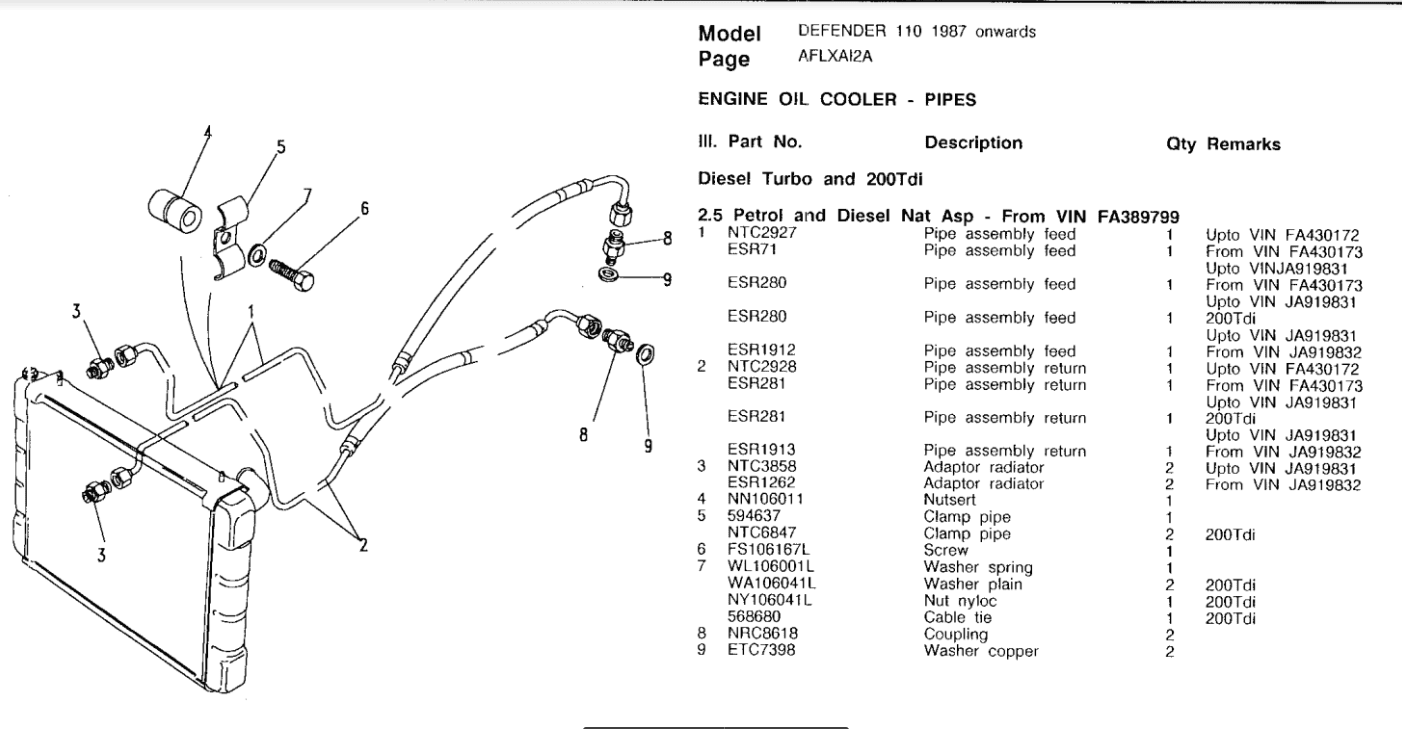

For 200 item 3, no idea on 300 version!
View attachment 278084

Click to expand...

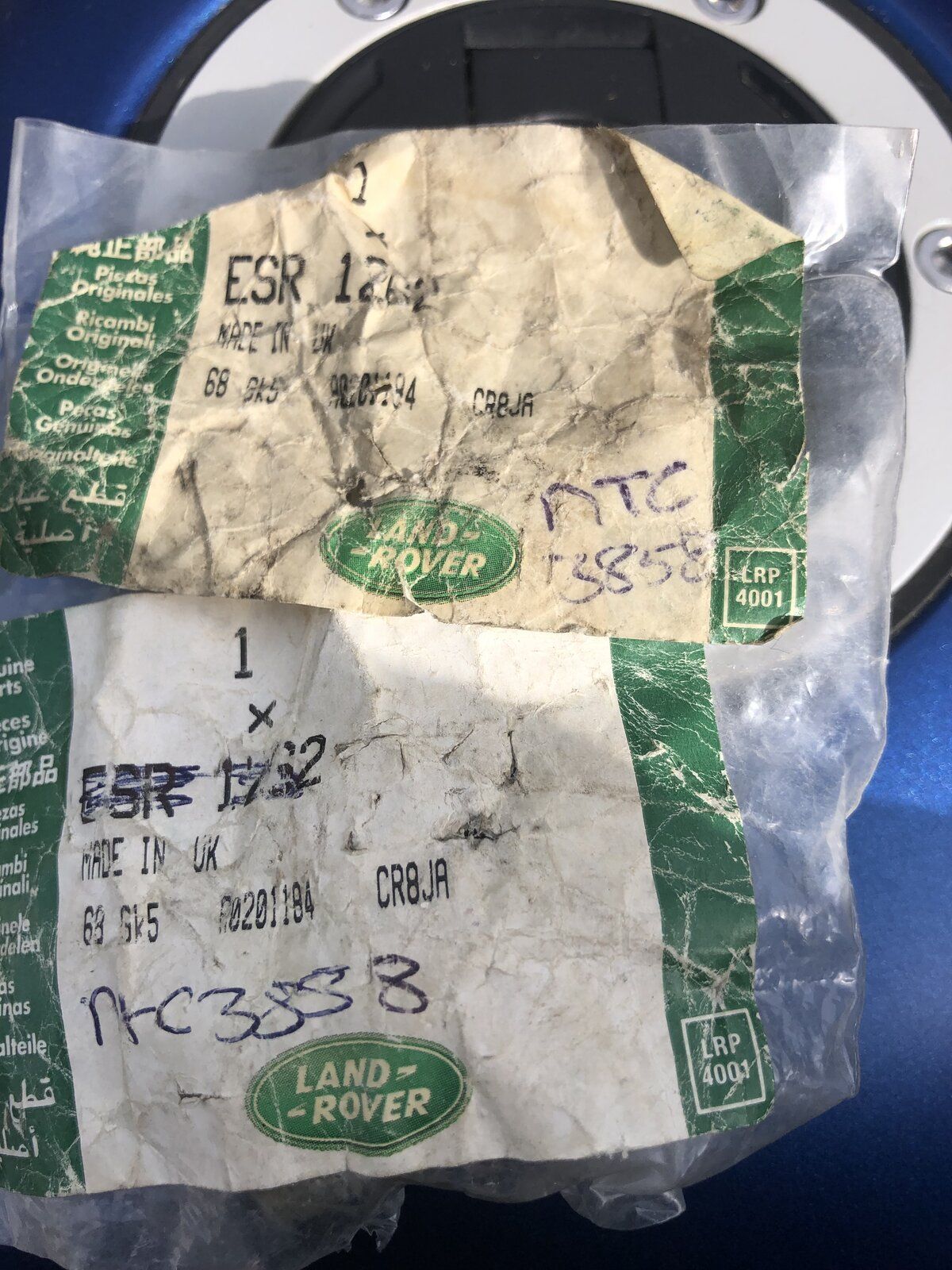

these are 300 TDI fittings for the radiator to oil pipe. Note the part numbers have changed

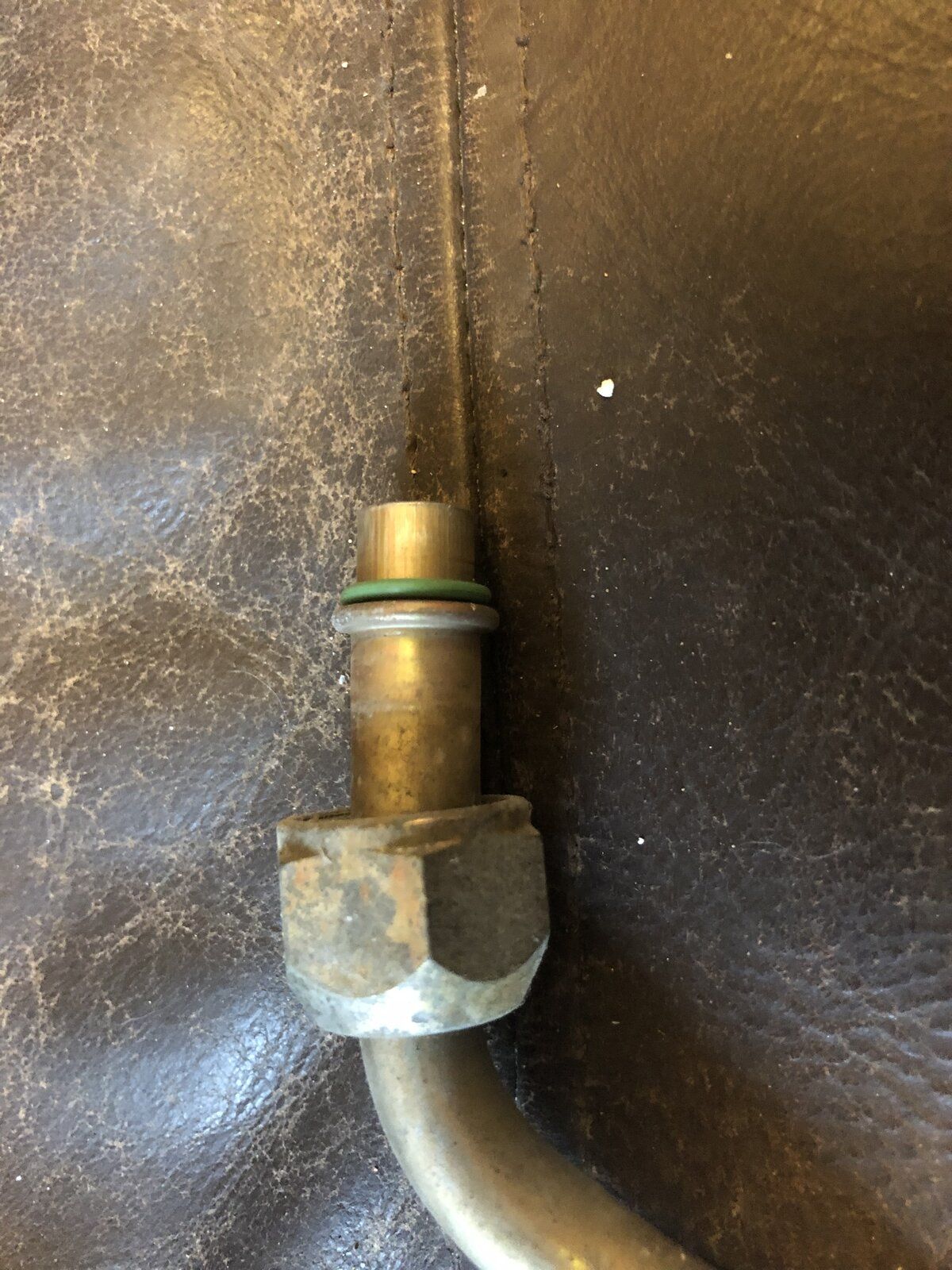

This is a 300tdi end. No copper washer only O ring

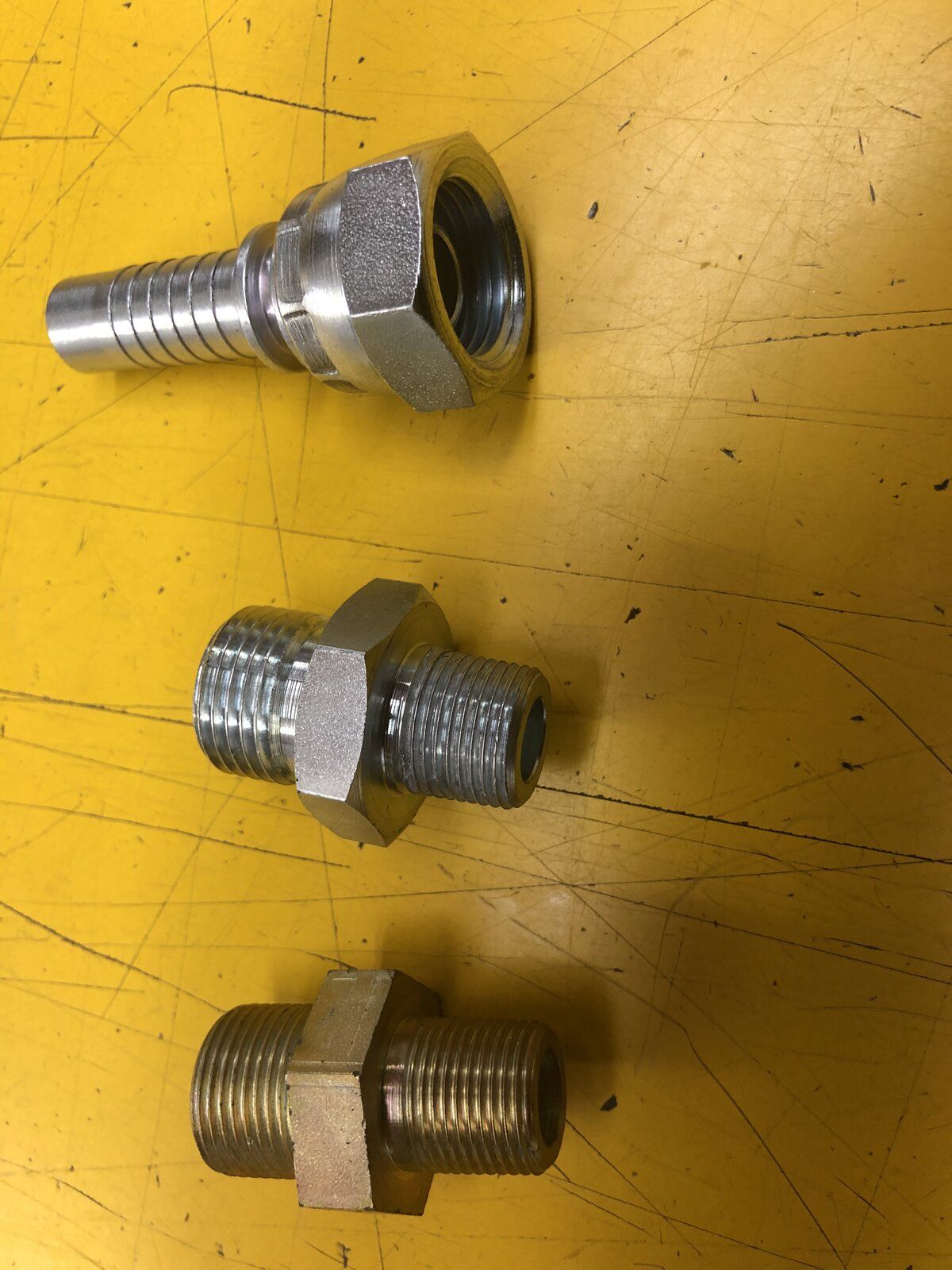

You can get these ends which suits 200tdi from pirtek

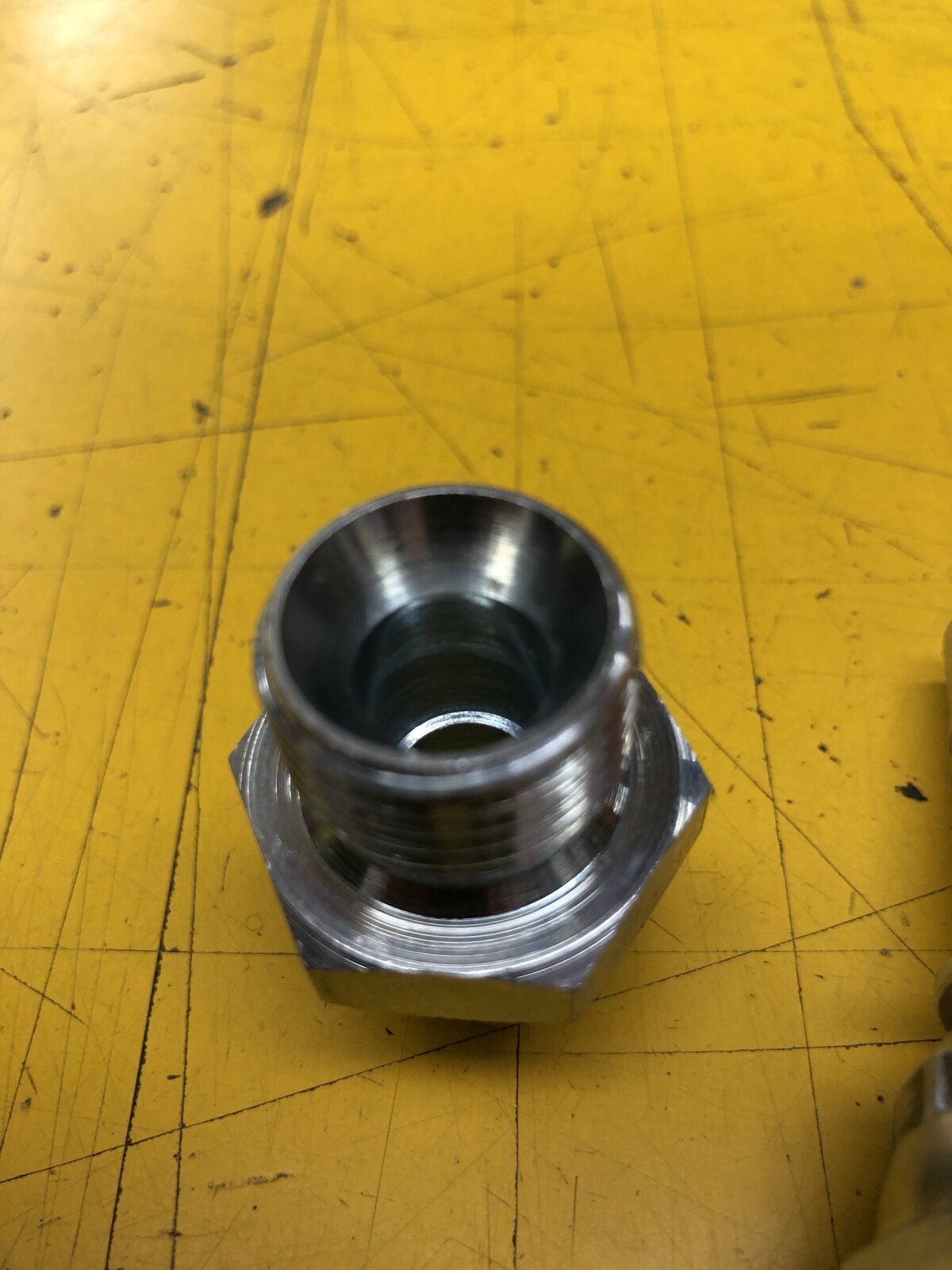

This is a 200end. You can not use these for 300 as pipe ends are different.

Hope this helps ….



Lej

Active Member

• Nov 13, 2022

• #22

Hicap phill said:

these are 300 TDI fittings for the radiator to oil pipe. Note the part numbers have changed
View attachment 278183


This is a 300tdi end. No copper washer only O ring
View attachment 278184


You can get these ends which suits 200tdi from pirtek
View attachment 278185

This is a 200end. You can not use these for 300 as pipe ends are different.
View attachment 278186

Hope this helps ….

Click to expand...

Thank you all so much for your help!

Phill,

I've just got home so I can't check- but please excuse my naivety... Does this mean that the stripped out connection is actually a removeable piece on the radiator end and I can just... replace it?



H

Hicap phill

Well-Known Member

• Nov 13, 2022

• #23

Lej said:

Thank you all so much for your help!

Phill,

I've just got home so I can't check- but please excuse my naivety... Does this mean that the stripped out connection is actually a removeable piece on the radiator end and I can just... replace it?

Click to expand...

We are all here to learn…
On the ends of your pipes will be the connectors that screw into the radiator. These mate the rad & pipes together.

yep these connectors are replaceable.
Look at the earlier post form @lynall which shows the picture & this will help.

Also if you take a photo of what you have damaged we can all see the problem & help.
A photo helps us all



Lej

Active Member

• Nov 13, 2022

• #24

Hi Phill,

Right, so this may not actually be as bad as I thought it might be...

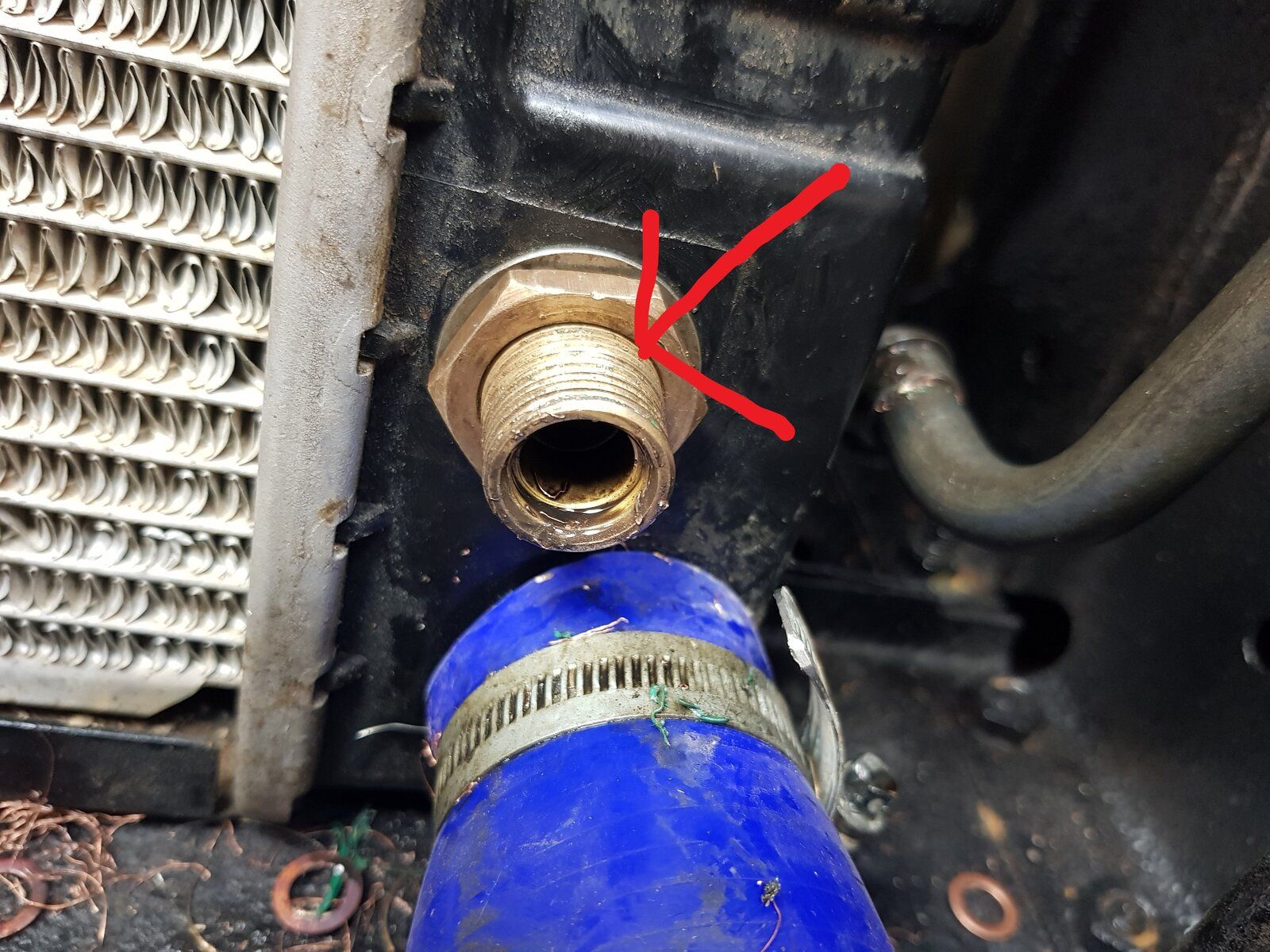

The brass fitting is what I've munched, 3/4 of the thread is now useless.



H

Hicap phill

Well-Known Member

• Nov 13, 2022

• #25

Lej said:

Hi Phill,

Right, so this may not actually be as bad as I thought it might be...

The brass fitting is what I've munched, 3/4 of the thread is now useless. View attachment 278237

Click to expand...

Yep replaceable

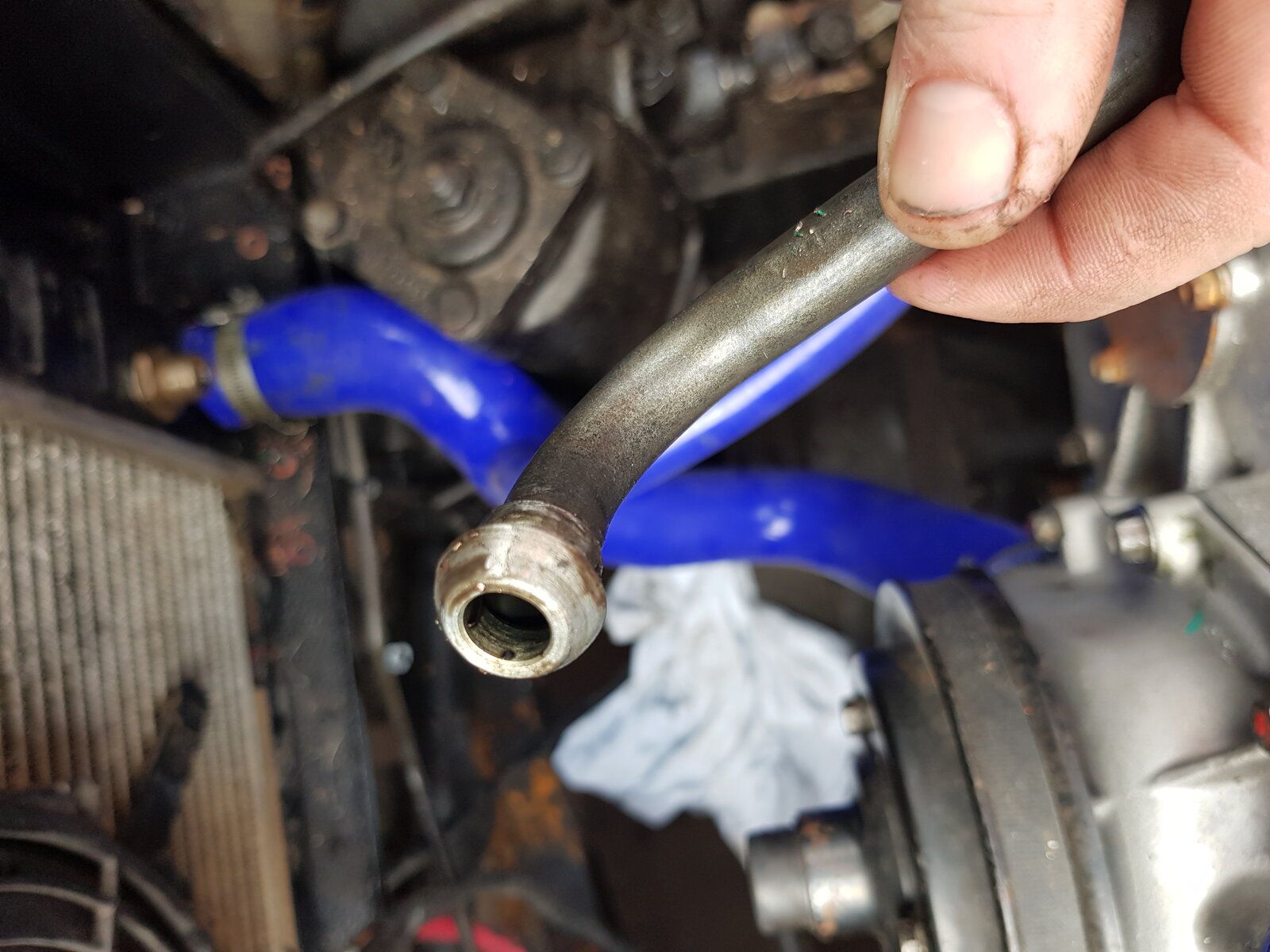

Can you take a photo of the oil pipe end?



H

Hicap phill

Well-Known Member

• Nov 13, 2022

• #26

Looks 300tdi
Ntc3858



Lej

Active Member

• Nov 13, 2022

• #27

Yippee! I like an easy fix.. Not a fan of simple things going wrong, but can't have it always...



Lej

Active Member

• Nov 13, 2022

• #28

Hicap phill said:

Looks 300tdi
Ntc3858

Click to expand...

That's where it got me confused,

The pipes I have would be 200 tdi, but coupled up with a 300tdi rad connection? So it's been the wrong connection the whole time I've had it...



H

Hicap phill

Well-Known Member

• Nov 14, 2022

• #29

Whhoooo(how did I miss all your earlier photos????)
That’s a 200 end of the pipe…
You need a different end to what I have quoted
Use number 3 off @lynall picture.



Lej

Active Member

• Nov 14, 2022

• #30

I shouldn't say that really, It'll probably go wrong again now...

Looking at the fittings you've posted pictures of above, wouldn't the last picture be the fitting I'm after? As both the male and female ends will be curved?

Also, will I need a washer?



tottot

Well-Known Member

• Nov 14, 2022

• #31

Thats the one, only washer you need is the one between fitting and rad body



Lej

Active Member

• Nov 14, 2022

• #32

tottot said:

Thats the one, only washer you need is the one between fitting and rad body

Click to expand...

Thank you,

Would that be part number: NRC8618



tottot

Well-Known Member

• Nov 14, 2022

• #33

I do not do much with part numbers on items like washers, just go to my box of copper or Dowty [ washers with a rubber seal in the centre] washers and pick one that fits. The one on your rad would very likely be fine.
