S

SimonM

New Member

• Mar 30, 2006

• #1

Hello all,

Sorry to make my first post a question, but I've just bought a series 3 petrol landy and now it won't start.

It turned over very slowly earlier this evening and eventually fired, but then made a loud screeching / grinding noise which was independant of the clutch operation but did vary with engine speed. This stopped after about a mile, but now when I try to start it the starter spins but doesn't engage or turn the engine.

Am I right in thinking that I've destroyed the starter or could it be something more serious?

Thanks,
Simon



S

slob

Well-Known Member

• Mar 30, 2006

• #2

take it off and clean up the bendex, the slidey bit that has the gear on it..it should slide back and forth easily



yella

New Member

• Mar 30, 2006

• #3

sounds a bit like you may have run it with the bendix engaged, possibly burn't it out



helpme

Active Member

• Mar 30, 2006

• #4

you might be looking at a new starter motor



S

slob

Well-Known Member

• Mar 30, 2006

• #5

and i was trying to offer a glimmer of hope to the laddy



8{|>

New Member

• Mar 30, 2006

• #6

helpme said:

you might be looking at a new starter motor

Click to expand...

no it's definitely a pc monitor



helpme

Active Member

• Mar 30, 2006

• #7

thats sweet of you sweet



S

slob

Well-Known Member

• Mar 30, 2006

• #8

i know



yella

New Member

• Mar 30, 2006

• #9

you must be getting in touch with your freelander side



S

SimonM

New Member

• Mar 30, 2006

• #10

Thanks - I'll have a look at the weekend and let you know how I get on!



S

slob

Well-Known Member

• Mar 30, 2006

• #11

you bastid i don't have a gaylander side!!!! i'm going to sulk now



S

SimonM

New Member

• Apr 1, 2006

• #12

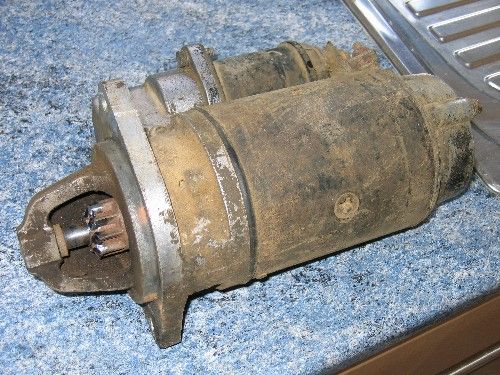

OK I have the starter off and as suspected the bendix has been well and truly chewed up. There are some marks on the ring gear but I'm hoping that they're not too bad.

However, the guy at the local motor factors tells me that the starter that I had on my series 3 is actually from a Defender. It is a combined starter and solenoid.

Will it cause me any problems if I refit the same type of starter or should I go for a series 3 starter and separate solenoid - assuming that's what it should have?

Thanks,
Simon



Attachments

•
  Car pics 027.jpg

  67 KB · Views: 187

8{|>

New Member

• Apr 1, 2006

• #13

While the starter motor is out have a look at the ring gear on the engine. How badly worn is it?



helpme

Active Member

• Apr 1, 2006

• #14

i would replace like for like if it works ok



S

SimonM

New Member

• Apr 1, 2006

• #15

Trouble is I don't know if it works OK or not - I've only driven it home so far!

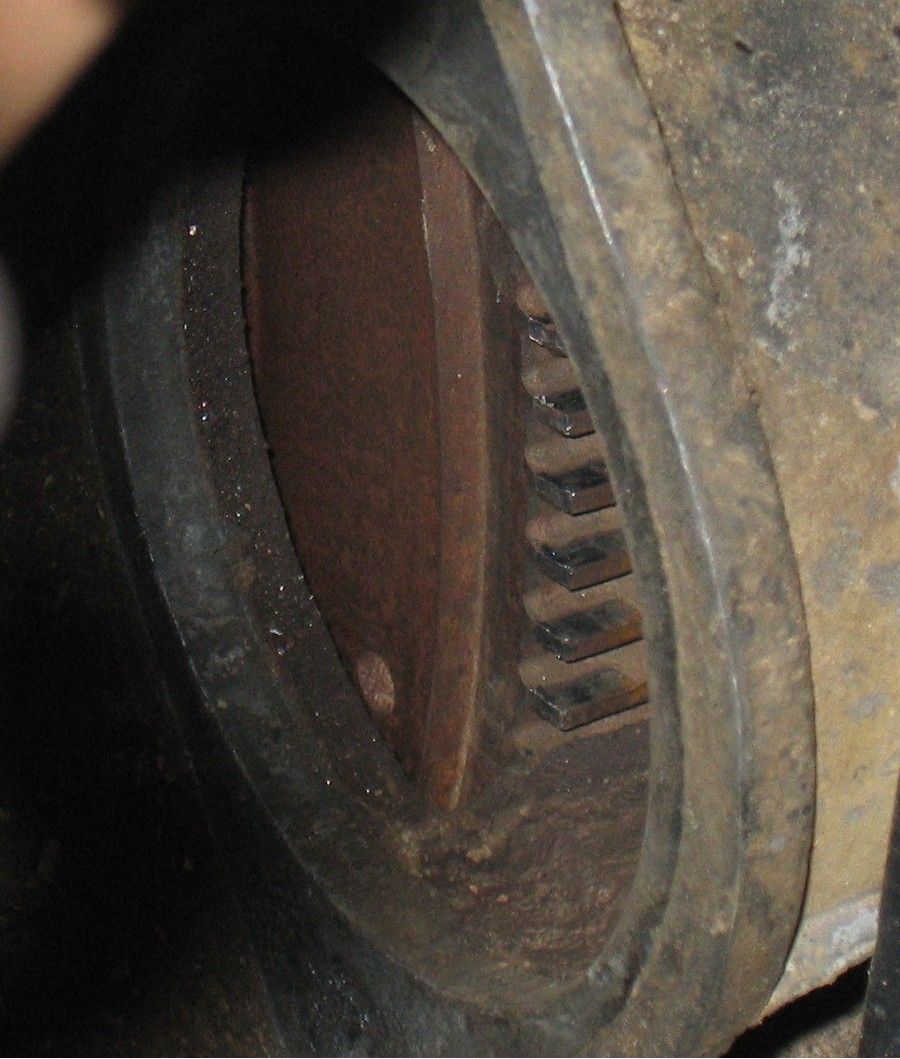

The ring gear doesn't look too bad to my untrained eye. Although there is some damage to the teeth I'm hoping to get away with just a new starter. What I'm not sure about is whether the problem was caused by an incorrect starter being fitted or is it just because the starter has had it?



Attachments

•
  Car pics 031.jpg

  139.6 KB · Views: 172

helpme

Active Member

• Apr 1, 2006

• #16

have you tested the starter out of the car



8{|>

New Member

• Apr 1, 2006

• #17

SimonM said:

Trouble is I don't know if it works OK or not - I've only driven it home so far!

The ring gear doesn't look too bad to my untrained eye. Although there is some damage to the teeth I'm hoping to get away with just a new starter. What I'm not sure about is whether the problem was caused by an incorrect starter being fitted or is it just because the starter has had it?

Click to expand...

Ring gear looks fine - the starter hasn't chewed it up so swap like for like.



ormus

New Member

• Apr 1, 2006

• #18

make double sure you put the right one back in, they are not compatable with the incorrect ring gear.



S

SimonM

New Member

• Apr 1, 2006

• #19

Right - so the problem could have been caused by the Defender starter that was fitted, and I should put back a series 3 starter and a separate solenoid?

What's confusing me is that the Series 3 Repair Operation Manual shows a starter that looks similar to the one that I have - i.e. has a solenoid attached to it.

Did the series 3 2 1/4 petrol have a starter with an attached solenoid at any point? If so does anyone have the part number?

Sorry for so many questions - I'm new at this and just want to make sure I fit the right one!

Cheers,
Simon



ormus

New Member

• Apr 1, 2006

• #20

my info is that the series 111 had either type of starter fitted!
