H

Horse

New Member
:confused: Hi,

01 Td 4 Freelander, Just serviced , found that intercooler hose was damaged, this was replaced , howerver the wagon is bleching blue smoke on start up and when ideling , Smoke stops when the wagon is floored and their is no loss of power.
Can any one point me in which direction to look for the possible causes.

Cheers

Hi, just a few things to check
1. Check the engine oil level if it's overfilled it'll smoke.
2. With engine running remove the dipstick if oil comes back up the tube then theres some back pressure which probably means the valve press breather may be blocked It's on the top of the engine between the air filter and injectors (plastic assembly with 4 allen studs about £25)
3. Check all the vaccuum pipes are connected and in good fettle.I recently had problems with smoke but also had a loss in power turned out to be the vaccuum pipe down to the tutbo had chafed at the back of a clip no visible untill I started messing around removing this that and the other.
4. Make sure all the hose clips have been properly tightened cause if not she'll bleed air which'll cause smoke.
Hope this gives you some pointers & I'm sure some of the experience available on here will be able to sort you out.

Horse said:
:confused: Hi,

01 Td 4 Freelander, Just serviced , found that intercooler hose was damaged, this was replaced , howerver the wagon is bleching blue smoke on start up and when ideling , Smoke stops when the wagon is floored and their is no loss of power.
Can any one point me in which direction to look for the possible causes.

Cheers
Click to expand...
hi horse . . .run it for a bit, sometimes when the hoses go ya git er lot of oil contamination that still burns orft , but should not last longer than 100 miles, if still belchin then another problem. . .:)

Cheers ,

Done the trick , removed the cover and found the filter completly blocked , i then cleaned the filter to get me over the weekend and the results were instant, no more smoke. I have since purchased a new filter and have fitted it already .

cheers hrse

The Mad Hat Man said:
yu change the filter - then the horse, Minge?

wot planet yu on?
Click to expand...
so yer change the filter, , ,then get a new horse. . .ang on ,i'm not stupid,wot ,if you never had a horse ta start wiff. . .do ya, , ,jist change the filter? ok, wot fligin filter ffs. . . .:confused: :confused: :confused:

oops - silly question!

ops ,
The Small filter on top of the stove next to the main air filter , Oil breather filter i think.

Cheers

nice one, less pennies for the stealers more hay for the hoss
[ROB THE STEALERS & SPEND IT ON THE 4 WHEELERS !!]
Sheriff

Horse said:
ops ,
The Small filter on top of the stove next to the main air filter , Oil breather filter i think.

Cheers
Click to expand...
vacuum inlet breather. . .it never gits looked at ,cost very little un i would say change bout 35,000miles, , ,nice one horse :) :) :)

has anyone got a picture of this filter and where it is ive had a look under mine and i cant see it!!!
should have gone to specsavers

It dangles down't back of yer engine ,above the turbo (or there abouts)
looks just like an in-line fuel filter !

mattdonut said:
has anyone got a picture of this filter and where it is ive had a look under mine and i cant see it!!!
should have gone to specsavers
Click to expand...

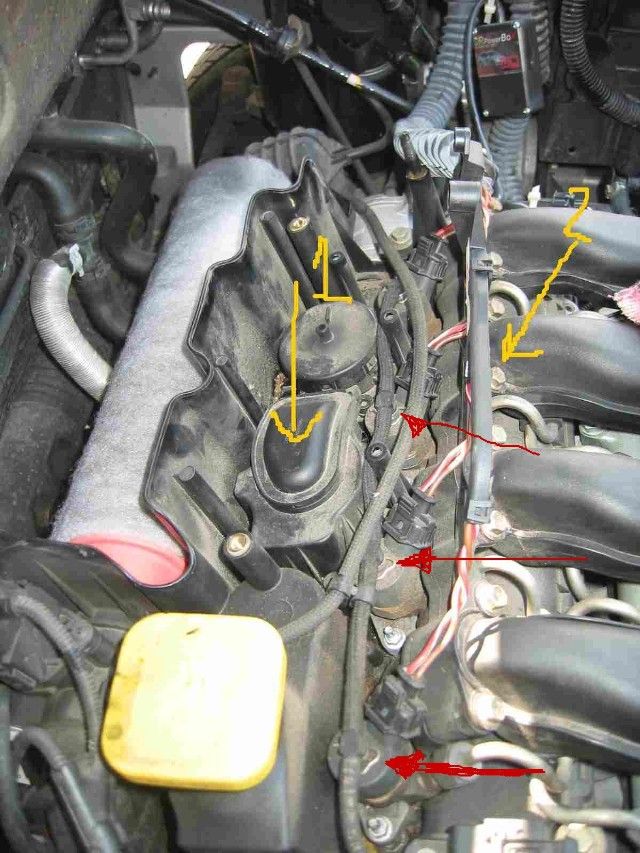

It's the 'thing' closest to the airfilter. (With the yellow arrow and # 1 on it).


Attachments

  • 16%20decompresion%20valve.jpg
    113.9 KB · Views: 681
cheers mondo and willo ive seen the inline one and its clean like new what is it supposed to do?
ill have a look at the one in willos picture
thanks both

no no no. . .wot willo shows is called the decompresion filter this one is at back er engine to the left ,un like mondo sis looks like on old fashion in line glass fuel filter[but its plastic] un its got a clear pvc tube that runs into sumware. . . . .dribble gulp. . . .i'm goin back ta zog. . .:rolleyes: :rolleyes: :rolleyes:

Hi there,

Is there supposed to be a tube on both ends of the filter?, I was checking mine and there is only a tube on the upper end, the bottom end is open to the atmosphere!

Thanks,

P.S. My TD4 had been running perfect, but suddenly started smoking heavy black smoke and loosing power yesterday. Same problem?
