border
Well-Known Member

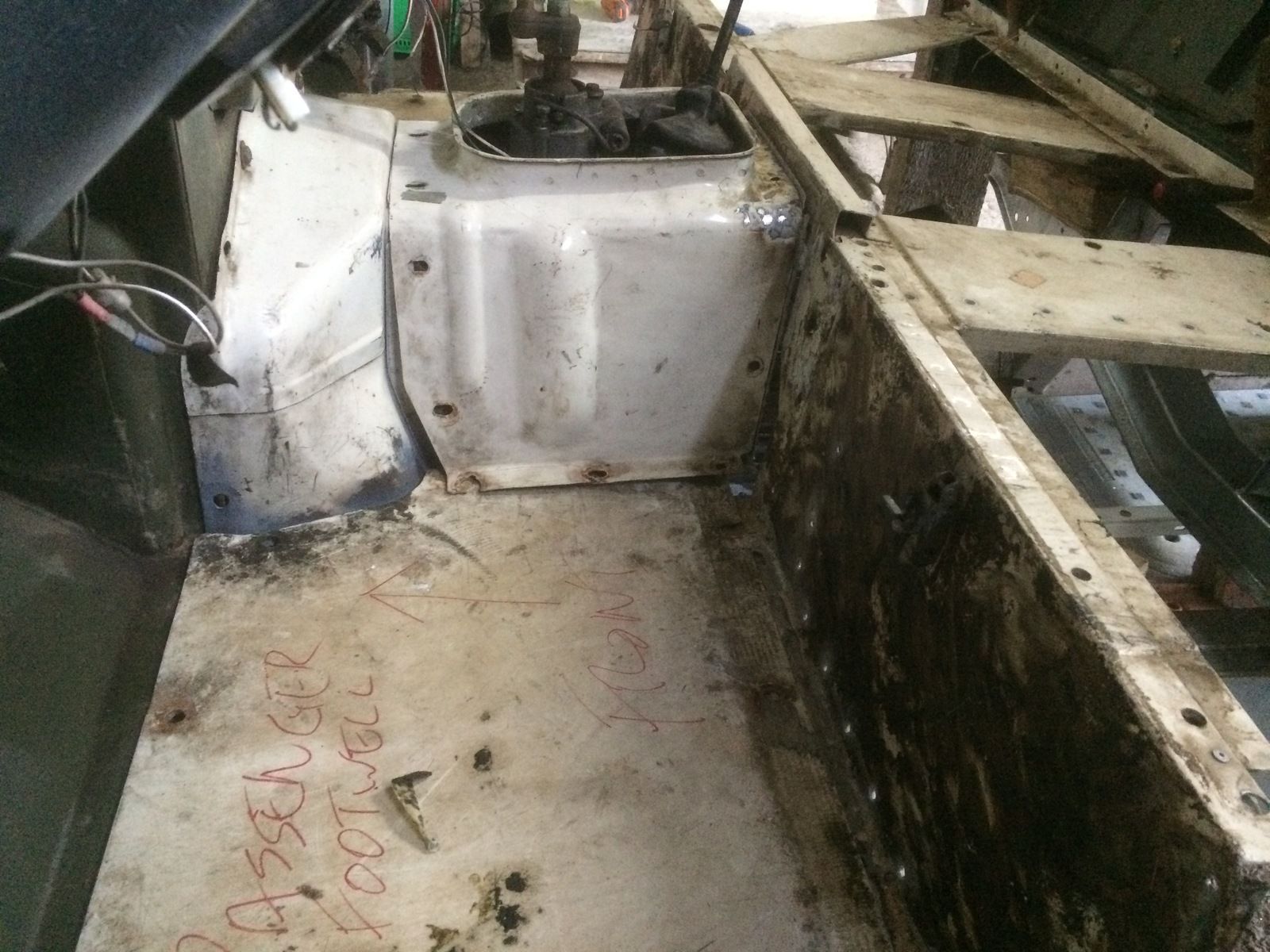

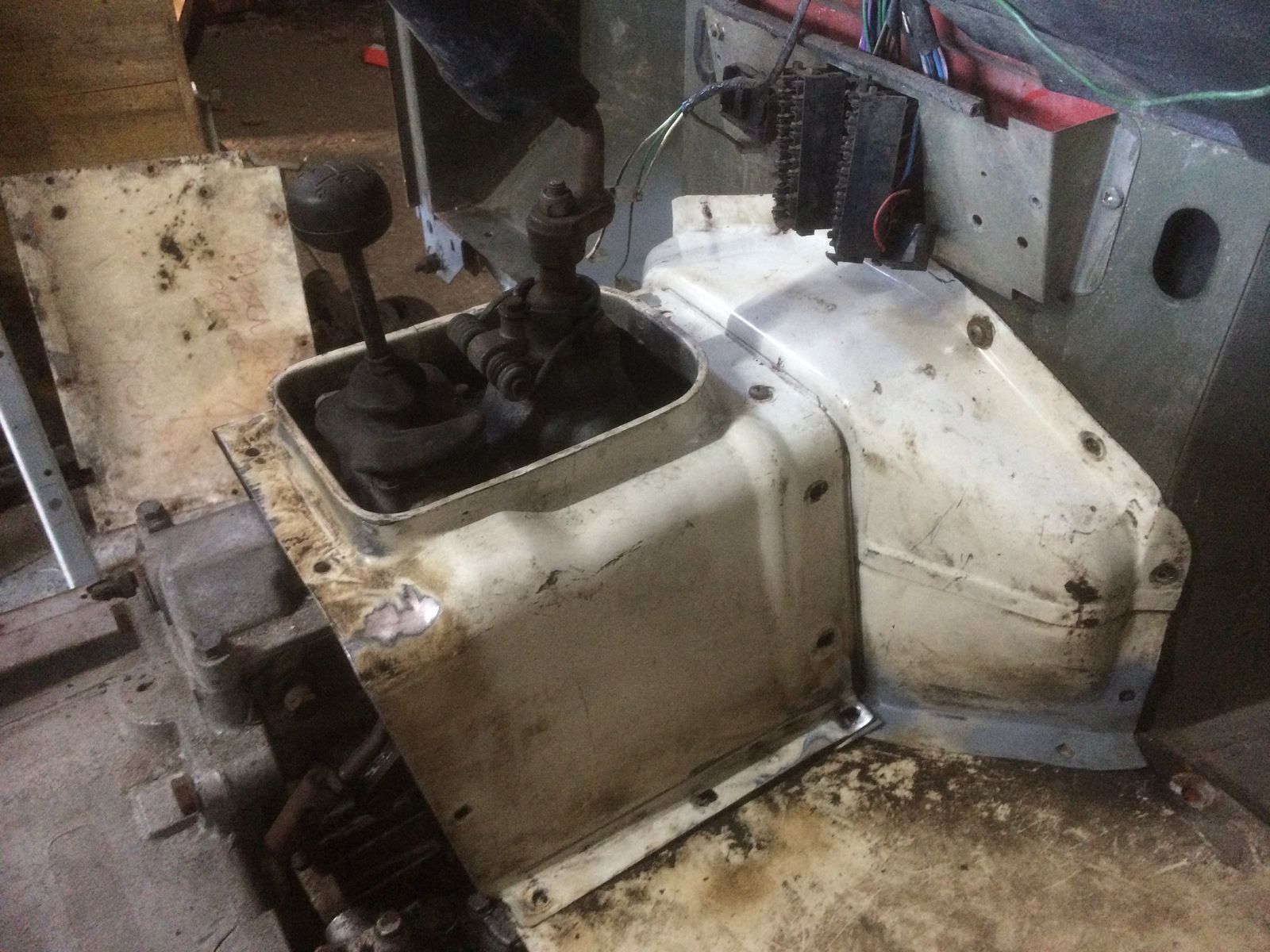

It is maybe the wrong Tunnel James, as the white 200 tdi ones fit much better in these pics,
jamesmartin
Well-Known Member
depends what your doing if fitting transmission in 200tdi position above are correct if fitting in 300 position the others are correct but transmission isnt in the correct place
border
Well-Known Member

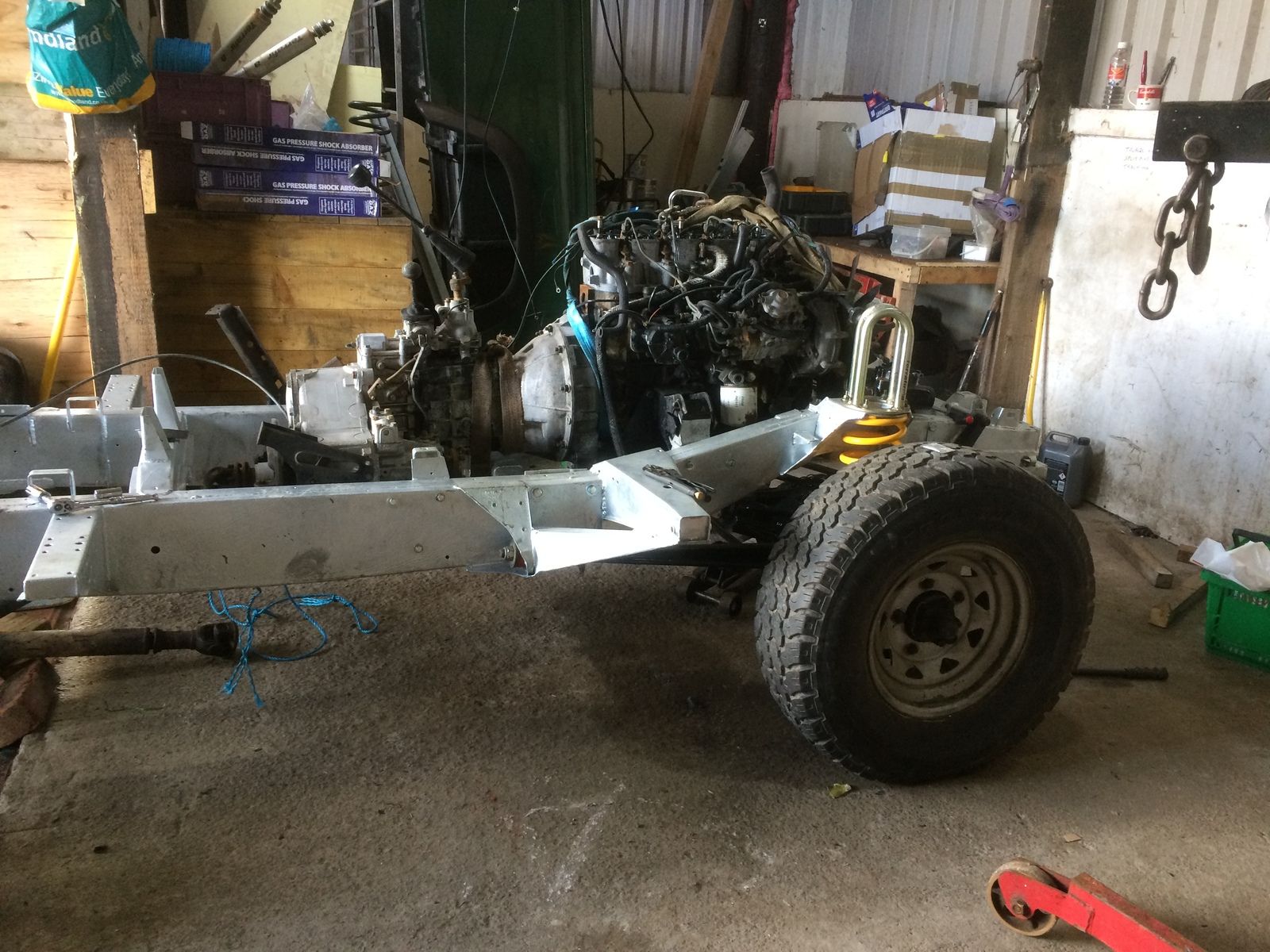

LT77 Mated to Disco 300tdi To be honest aint got a clue what position they are in, Will look at my other posts to find out as you have helped me on loads of them.
jamesmartin
Well-Known Member
if you fit a 300 and long bell housing box you either leave transmission in original position ie 200 tunnel floor plates etc and modify to fit engine , or fit engine right forward to rad and move transmission forward too ie engine now uses std 300 fittings and hoses etc
border
Well-Known Member
O M G Now you have got me thinking the worst again. I'm sure there's a thread on here somewhere about which mounts ect I used , will find it.
mick 1986
Well-Known Member

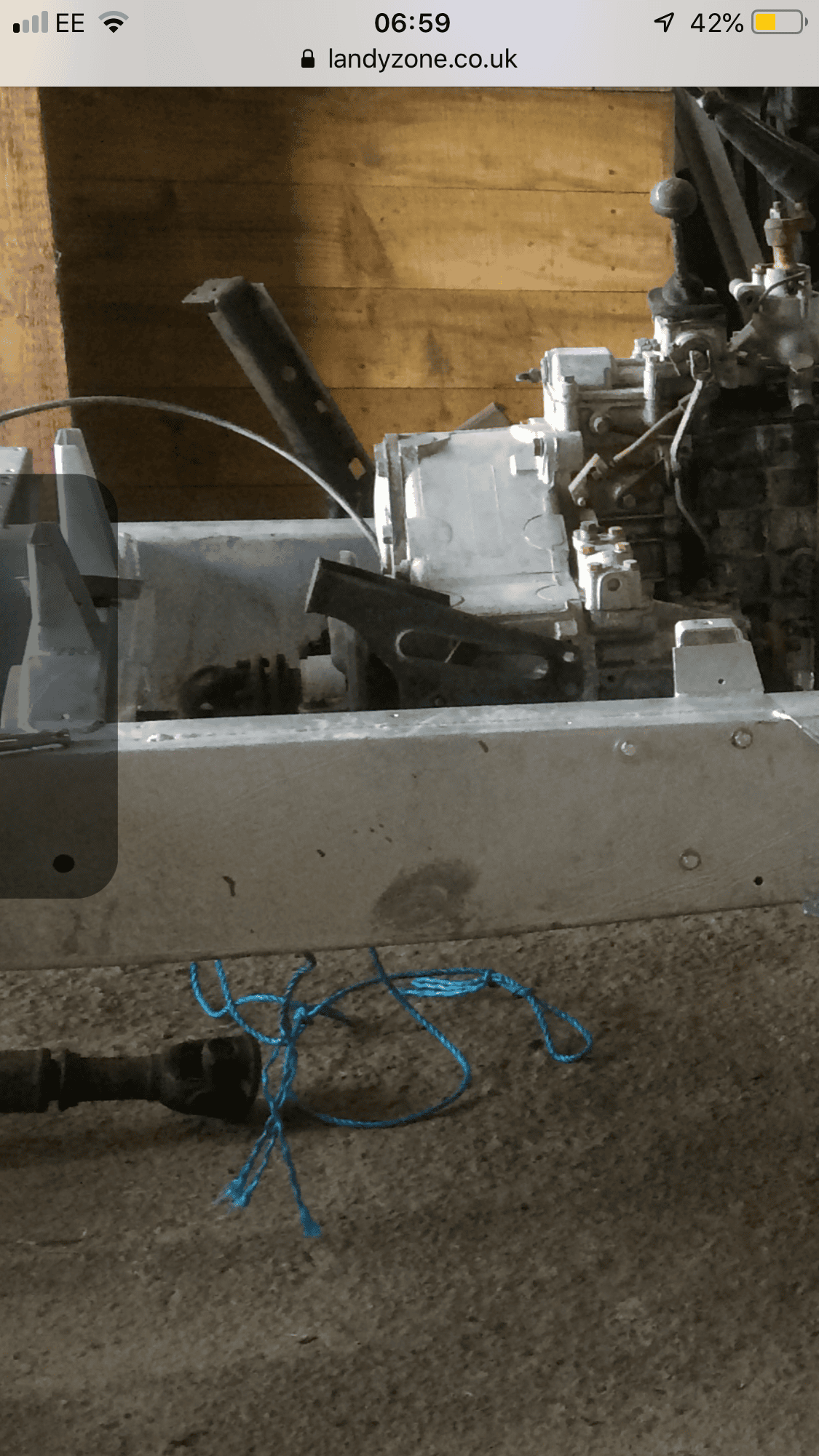

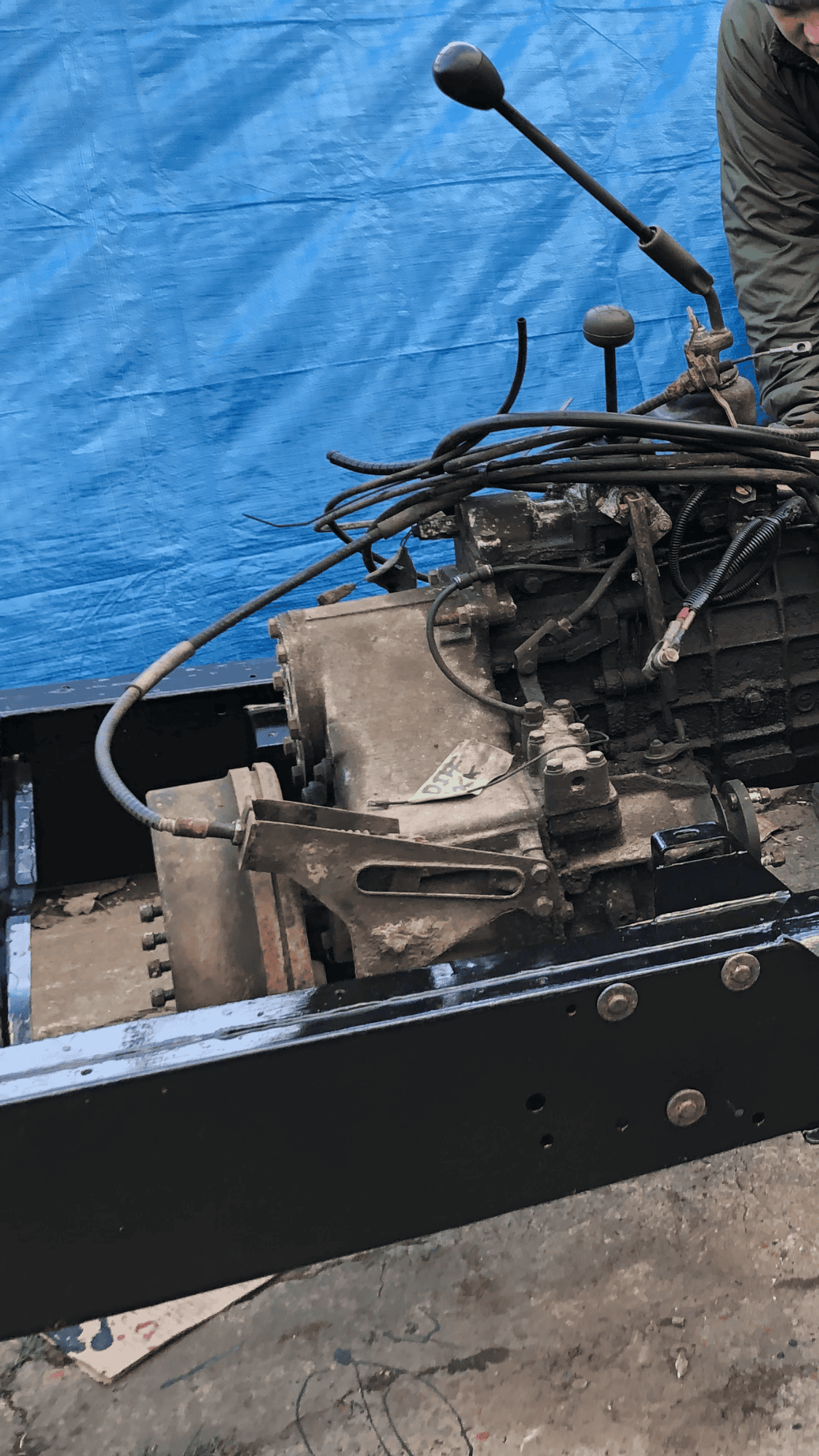

Looking at my photos, I don’t have one that is the same angle as yours, but out transfer boxes appear to be in similar positions. I say similar, because it looks like they are within an inch or so of each other. That would say to me they have intended yours to be in the 200tdi position.
Look at the position of the seatbox to chassis mount, relative to the transfer box linkage housing in these photos.
border
Well-Known Member
They look to be near enough the same Mick. Thanks for photo
Rougharse Racing
Well-Known Member
Your 200tdi tunnel fits because your gear-box is in the standard 200tdi position.
The plastic 300tdi tunnel does not fit around the levers because 300tdi transfer boxes are fitted 2 inches further forward and yours is not.
All you need to do is to modify the front of your seat box to match the 200tdi tunnel and you are sorted.
Everything is in the standard position for a 2.5 N/A - 2.5 TD- 200tdi, but not 300tdi, all you need is the correct combination pf parts.
The plastic 300tdi tunnel does not fit around the levers because 300tdi transfer boxes are fitted 2 inches further forward and yours is not.
All you need to do is to modify the front of your seat box to match the 200tdi tunnel and you are sorted.
Everything is in the standard position for a 2.5 N/A - 2.5 TD- 200tdi, but not 300tdi, all you need is the correct combination pf parts.
mick 1986
Well-Known Member
That’s what I thought. I would think that going 200tdi parts will be the easiest to get a decent fit and finish.
border
Well-Known Member
Yes so
yes so do I lm on the lookout for plate for seat box now, I’m sure one will come up somehow
jamesmartin
Well-Known Member
as already said yours is in 200 position as youve used those mounts not the 300 cross member mount which pushes transmission forward, theres a choice of where you want engine to fit, as lr did or leaving transmission in 200 position
border
Well-Known Member
Thanks James so can I / should I use the white 200 tunnels??
jamesmartin
Well-Known Member
yes if you want to leave transmission in 200 position and so leave props floor plates etc as was ,and leave alterations to hoses,exhaust pipe, fan, etc fitting the engine further rearward than would be as a std 300 tdi,so using std 300 hoses, etc etc
border
Well-Known Member
Thanks James will leave it where it is Did you have to frighten me like that.lol
border
Well-Known Member

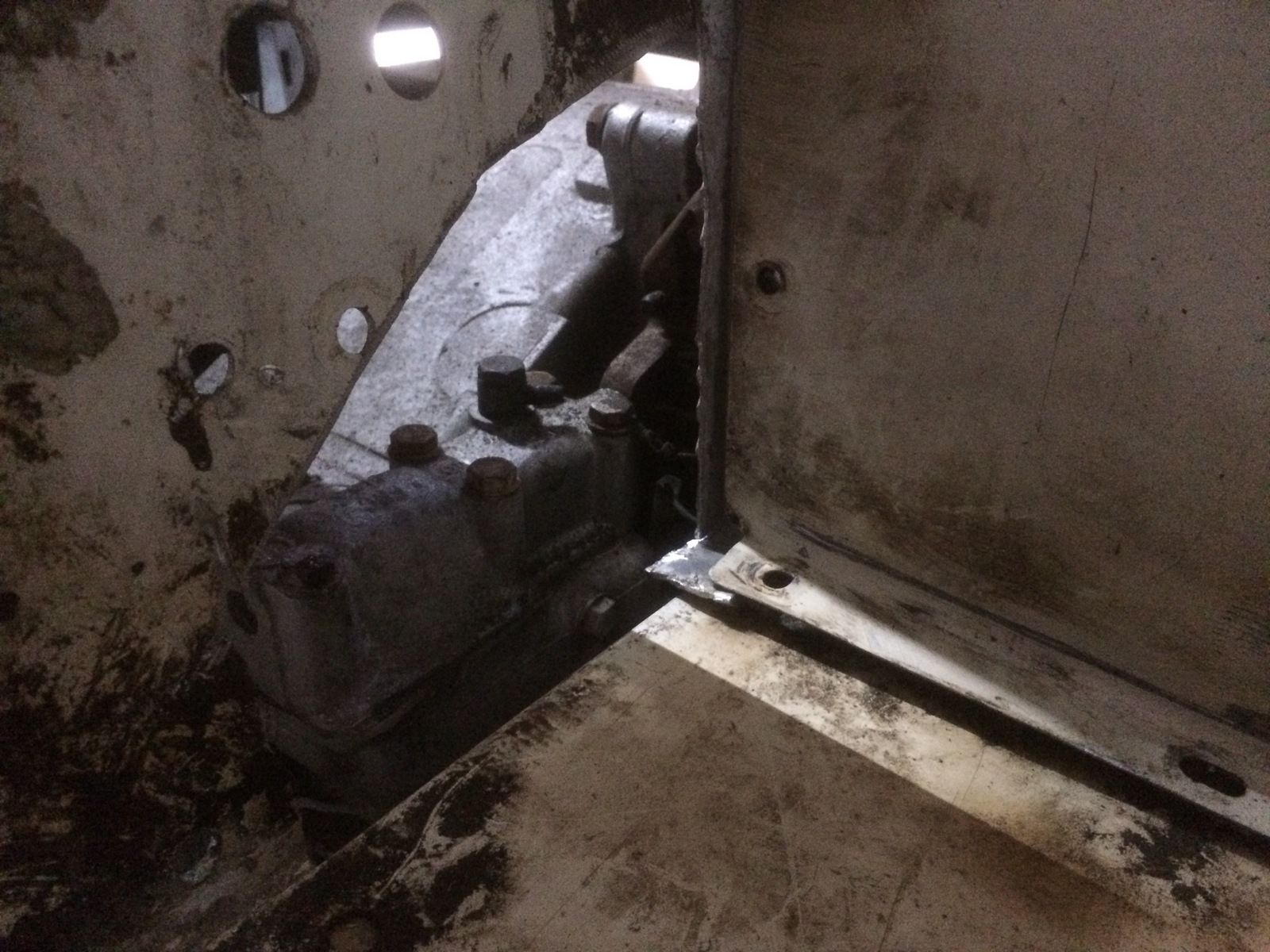

Cant afford another box so looking for a panel to swap over on my box, Please don't Laugh as I'm not much good at stuff like this but I made this tonight, if all else fails finding a spare bit I think this might just work. maybe should have made a little wider then it is. I used the old box to Mock Fit it.
All holes line up right, but the hardest bit will be fitting it in the right place on to my box after taking the 300 off. Theirs a big gap to fill in as well.
All holes line up right, but the hardest bit will be fitting it in the right place on to my box after taking the 300 off. Theirs a big gap to fill in as well.
Attachments
Hicap phill
Well-Known Member
Why not flat sheet across the hole & make the bracket out the excess like genuine?
Simple cut out & fold. Do this after the tunnel is in so it lines up.
Simple cut out & fold. Do this after the tunnel is in so it lines up.
border
Well-Known Member
Finally got seat box put together, everything lines up just about perfect, so will go ahead and fit it.

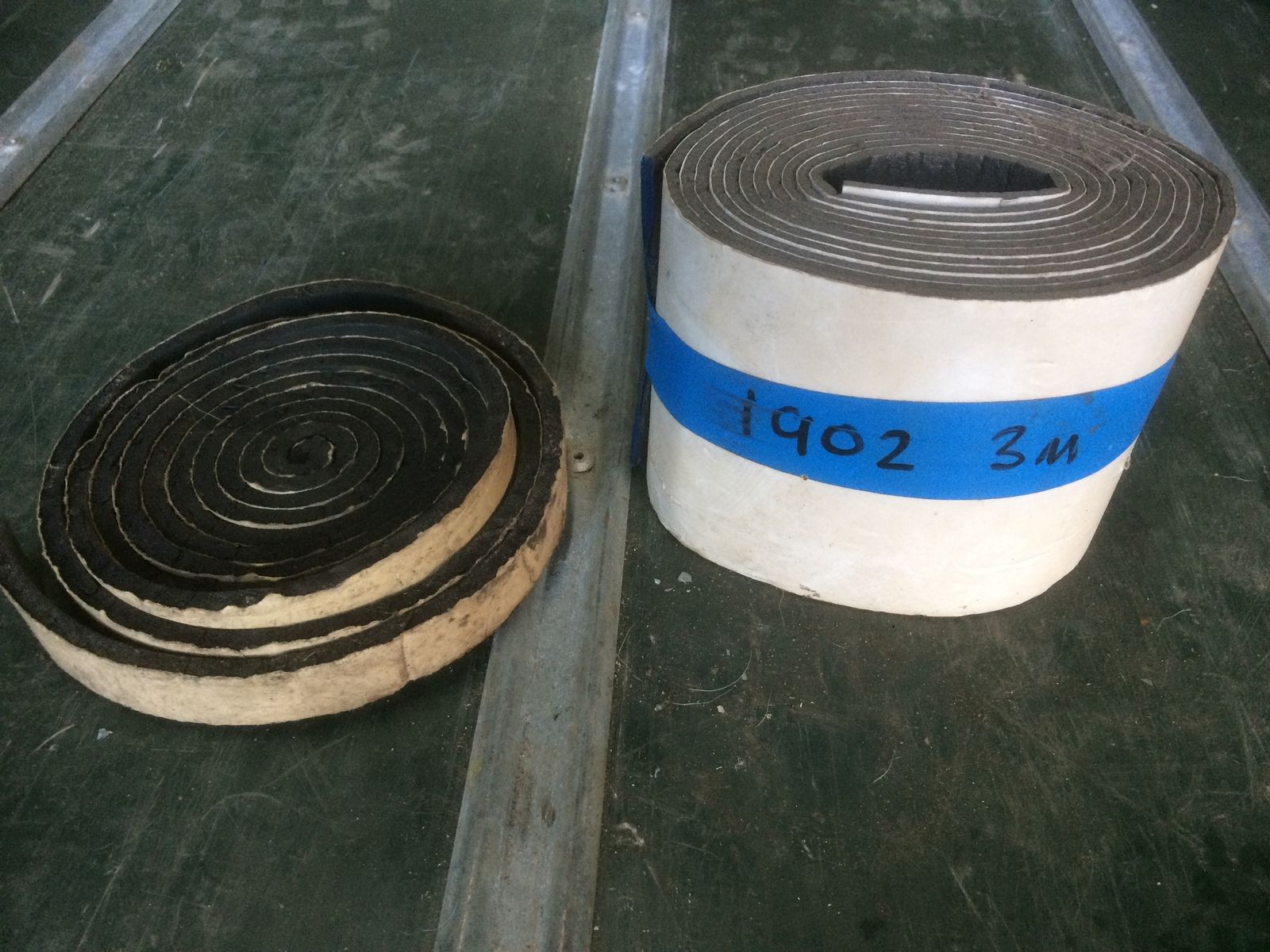

Just a couple of questions before I start, First does the floor panel go Under the tunnels or other way round ? Second got this seal stuff with it, does this go on Every Join ??
Just a couple of questions before I start, First does the floor panel go Under the tunnels or other way round ? Second got this seal stuff with it, does this go on Every Join ??
Attachments
Hicap phill
Well-Known Member
Floor pans on top. I used a foam on all my joints.
