The NATO hitch is a piece of crap designed by the army. We suffered them for twenty years, and trailers coming adrift was a real worry.
The Landy hitch height and the tow-ring height of a Sankey trailer are MUCH higher than the 18" to 20" a standard small trailer hitch height should be.
CharlesY
The Landy hitch height and the tow-ring height of a Sankey trailer are MUCH higher than the 18" to 20" a standard small trailer hitch height should be.
CharlesY
Another point youi may wish to think about.
The road springs of the Sankey are fit to take the weight of the empty trailer PLUS a good half a ton more plus 50% on top. We used to fill ours with three layers of full jerry cans and had no trouble with springs at all.
These tough springs will make the trailer suspension very stiff when running empty or light-loaded, and for a camper you might want to use a much lighter softer spring, and a damper.
In my days with 222 Squadron RCT we had the REME convert a couple of Sankeys into little mobile offices, known as Dog Kennels for pretty obvious reasons. They were very useful indeed, wired for field telephones, 12 volt lights, Tilley lamp too, maps on one wall, bed on the other side, and a space for making coffee and heating compo.
Those were the days!
CharlesY
The road springs of the Sankey are fit to take the weight of the empty trailer PLUS a good half a ton more plus 50% on top. We used to fill ours with three layers of full jerry cans and had no trouble with springs at all.
These tough springs will make the trailer suspension very stiff when running empty or light-loaded, and for a camper you might want to use a much lighter softer spring, and a damper.
In my days with 222 Squadron RCT we had the REME convert a couple of Sankeys into little mobile offices, known as Dog Kennels for pretty obvious reasons. They were very useful indeed, wired for field telephones, 12 volt lights, Tilley lamp too, maps on one wall, bed on the other side, and a space for making coffee and heating compo.
Those were the days!
CharlesY
Last edited:
90truckcab
Well-Known Member
aye , ah use me sankey wide track every day fer moving sand , stone, concrete blocks , fire wood ,bricks and steel around, i do hundreds of miles with it, the NATO hitch is a must in my opinion, along with an original 12 pin plug, hitch goes on the cross member in the 4 holes that are factory drilled , no exeption , they dont go on a drop plate, if your trailer has a towing eye / A frame and brakes , the nato hitch must be the same height, i dont see the point in putting the eye on the underside of the a frame either as done erlier in the fred! yer dunt need steps or awt on a landrover yer use fer WORK !
if yer want a large light weigh trailer go to b&q and get one fer £280 or a ifor trailer as a lot lower to make a trailer tent out of, also on a standard 50mm ball.
and one thing ne one has done on here is put a jocky wheel on ! how do you unhitch a trailer with 3/4 of a tonne of concrete blocks on , and rest it on the front leg ? the back legs are handy , i also have a NATO hitch on the front bumper , good for pushing trailer in to a tight space as the sankey int so good fer reversing with , seems people only have sankeys on here as a weekend toy, :doh: use it to its full potential , or else yer towing 3/4 of a tonne of empty trailer round for nothing, just to keep yer lunch box in ! it dont add up to me,
Thats different!
Do you fit the skinny split pin across the latch?
We had several incidents of a trailer jumping the hitch if that pin wasn't in place.
CharlesY
90truckcab
Well-Known Member
yeah wont leave me yard with out the pin in the top, even empty, yer never kno.
pluss its a good habbit to get into, hahahah its supprising howmany people reverse without dropping the clamp over the bar ! that makes me laugh when it rears up on them , them bars are so easy to bend too !
anthony5351
Active Member
QUOTE"i dont see the point in putting the eye on the underside of the a frame either as done erlier in the fred! yer dunt need steps or awt on a landrover yer use fer WORK !
if yer want a large light weigh trailer go to b&q and get one fer £280 or a ifor trailer as a lot lower to make a trailer tent out of, also on a standard 50mm ball."
Your needs are clearly different from mine. I have a NAS spec rear step on the back of my 90 and therefore without dropping the eye on the sankey to under the a frame the sankey wouldn't tow at a level height. I wanted a camping trailer for a good price, and thats what i got.
Being a tiff in the REME i am more than capable of a good bodge!!!!!!!
if yer want a large light weigh trailer go to b&q and get one fer £280 or a ifor trailer as a lot lower to make a trailer tent out of, also on a standard 50mm ball."
Your needs are clearly different from mine. I have a NAS spec rear step on the back of my 90 and therefore without dropping the eye on the sankey to under the a frame the sankey wouldn't tow at a level height. I wanted a camping trailer for a good price, and thats what i got.
Being a tiff in the REME i am more than capable of a good bodge!!!!!!!
90truckcab
Well-Known Member
fair enough, i work my series and sanky like a bitch, but if yer only using if as you are its more than good enough, there a good trailer
90truckcab
Well-Known Member
on the door or a wheel carrier? shunt make a difference, nato hitch thru the x-mamber, that also holds the drop plate with the 50mm ball on, is yer wheel low/ big tyre?
landrovermilfer
Active Member
just a thought and i might be talking bowlocks but would it still foul if you fitted one of them swing away wheel carriers ?
90truckcab
Well-Known Member

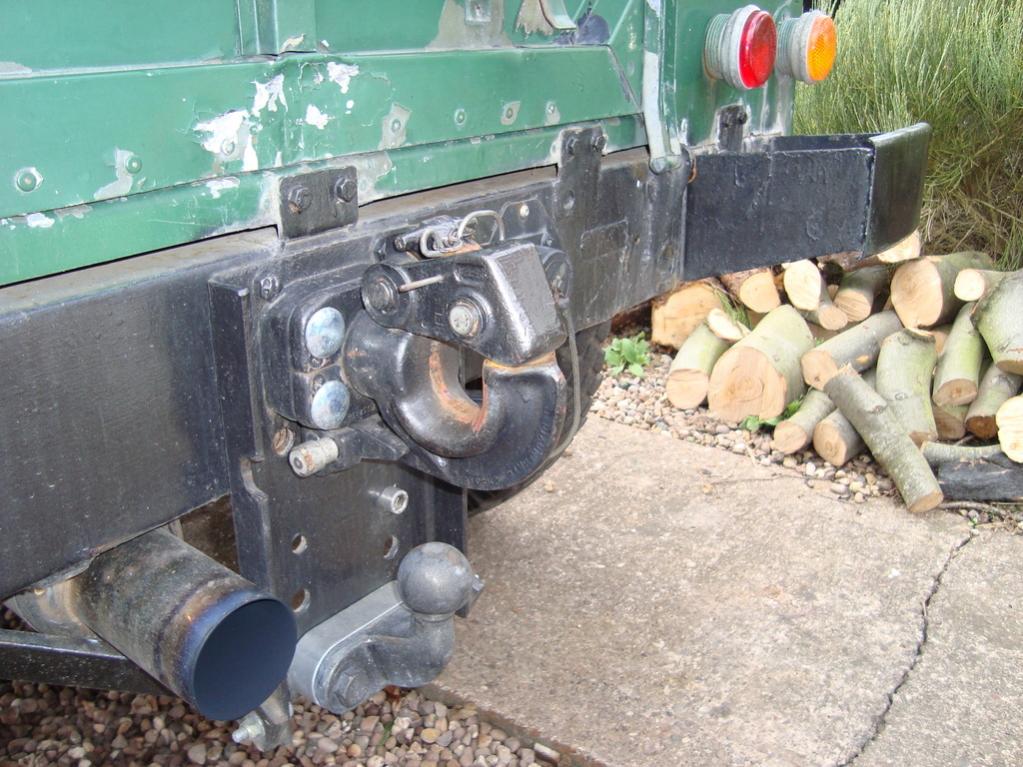

![DSC00041[1].jpg](/data/attachments/8/8690-51bc7b9b919d723e4ab0d912c08e54ca.jpg)
90truckcab
Well-Known Member
the bottom of the tyre on a carrier will be near the bottom of the door, if the door misses the hitch the wheel will? rite?
bustersbus
Well-Known Member
Works ok on mine with the wheel carrier..
Only thing that will foul the spare wheel is the jockey wheel when it's up
Only thing that will foul the spare wheel is the jockey wheel when it's up
90truckcab
Well-Known Member
there we go , cheers buster, thats like the pic i were tryin to find, had on on me old 110 never had a prob with it,
ooooh you have a jockey wheel on yer sankey ? posh eh? ah got a leg with a lump of steel on it !
ooooh you have a jockey wheel on yer sankey ? posh eh? ah got a leg with a lump of steel on it !
90truckcab
Well-Known Member
make a striking arm that reaches the old position , by extending it . or move the lot underneath ! personaly i wouldnt do it .
then again most people who use a sankey for a camper or trips, dont use it to its full potental , weight wise, so might be safe enough
