border
Well-Known Member
Just chassis loom If I can get away with using whats on Bulkhead.
Wildefalcon
Well-Known Member
To be honest, the smart move is to spend the money.
I've rewired using cable, and it's fine, but I know my way around a series loom. There's a lot to be said for learning about electrics by doing, but at the end of the day a new loom, correctly coded and coloured, is a joy to work on.
I've rewired using cable, and it's fine, but I know my way around a series loom. There's a lot to be said for learning about electrics by doing, but at the end of the day a new loom, correctly coded and coloured, is a joy to work on.
Turboman
Mab An Gov
That is what I would do. Just buy a new one and fit it. Quite easy if you are building a vehicle from a chassis.
And gets you 20 years or more of trouble free motoring, without wondering if your motor is going to catch fire or grind to a halt.
border
Well-Known Member
Which are the best looms to buy ?
Blackburn
Well-Known Member
These have a good reputation and shorter lead time than Autosparks
Shop • The Wiring Harness Company
Thought you where trying to do this on a budget?
Is there no old harnesses amongst your mates stash of parts?
Shop • The Wiring Harness Company
Thought you where trying to do this on a budget?
Is there no old harnesses amongst your mates stash of parts?
Shippers
Well-Known Member
If your not competent with auto electrics using an old harness could lead to a major headache if it's been messed about with in the past...landys and electrics?!...buy a new loom...lol
border
Well-Known Member
There does look like there's one sticking out of knackered 109 chassis but it looks hacked to bits, gonna try and dig it out this weekend to see what it's like
Bobsticle
De Villes Advocaat
Your just no fun are you
Hicap phill
Well-Known Member
Engine bay end should be fine as in the dry.
If this loom is going into an 88” you should have plenty of slack to remake the ends.
Just check loom with either a multi meter or working light
border
Well-Known Member
Mines 109 too
Hicap phill
Well-Known Member
You may still have some extra length
border
Well-Known Member

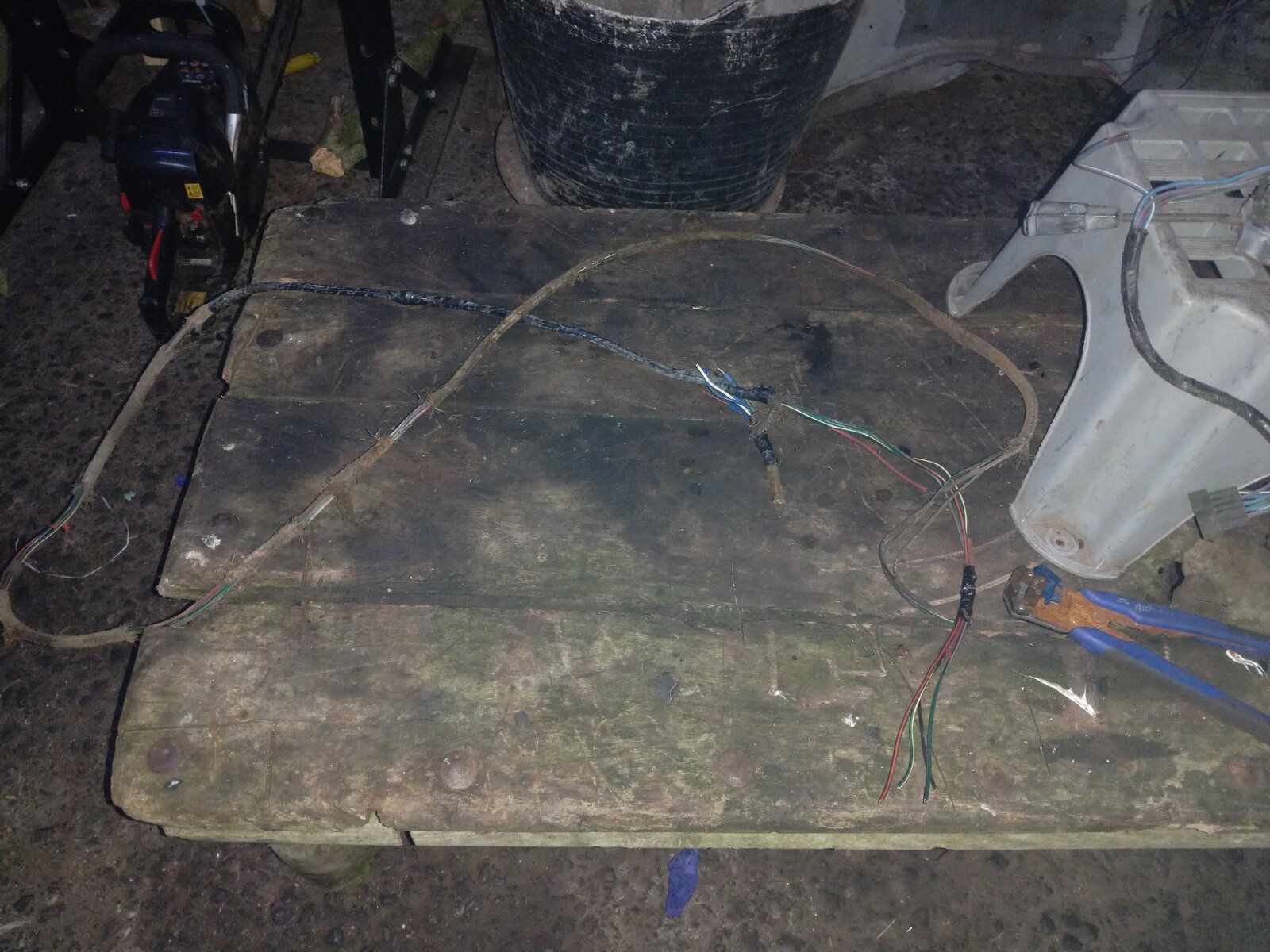

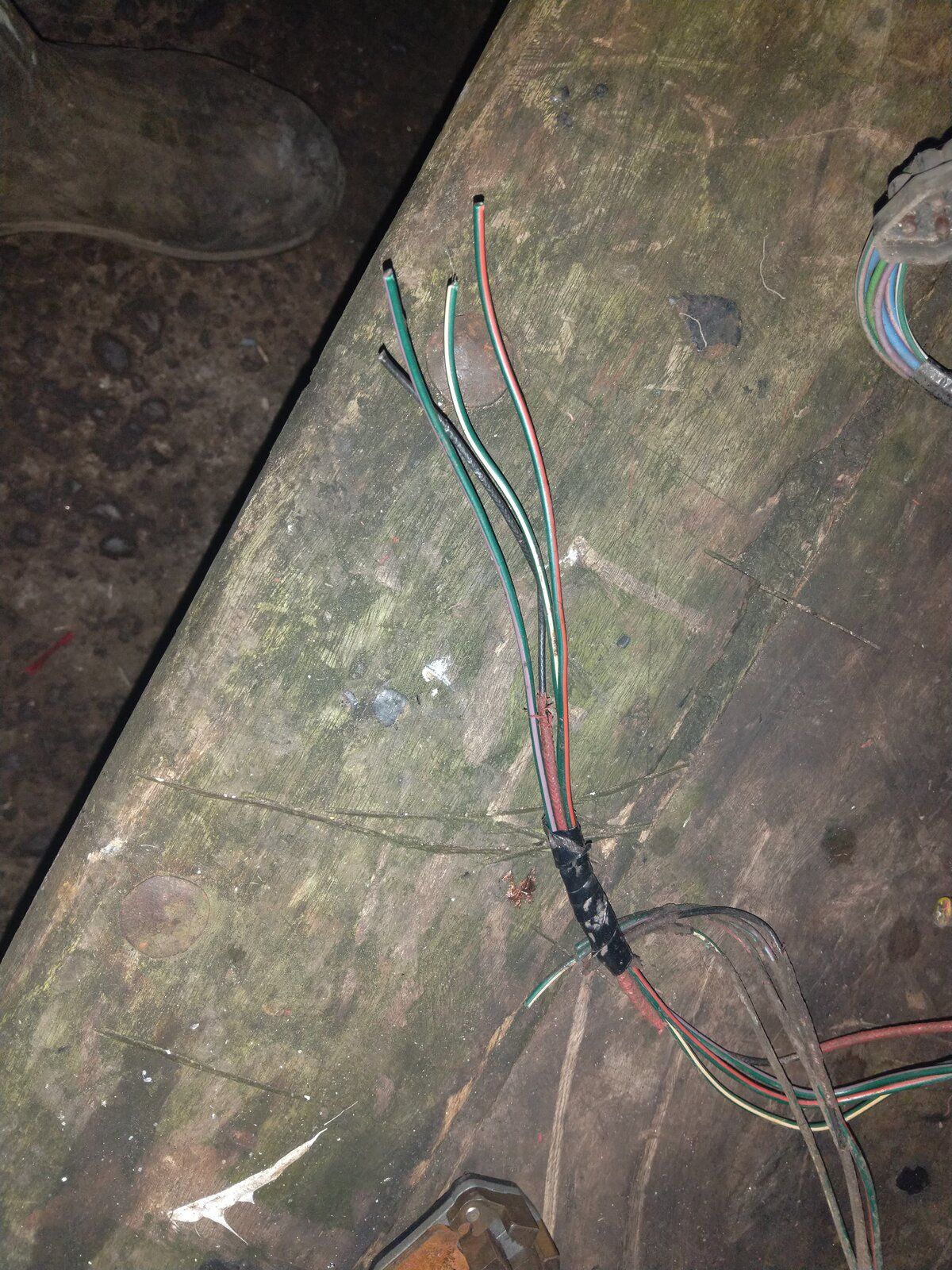

This is it , was cable tied along chassis, from front to rear, 4 wires in it.You may still have some extra length
border
Well-Known Member
Will Send pics later
border
Well-Known Member
N
Not sure if it was the original one .
Attachments
Hicap phill
Well-Known Member
You need more than 4 cables in a loom.standard loom is inside the chassis.
Indicator left
Indicator right
Brake light
Side lights
Earth
Fog light(unsure of your year)
Fuel gauge (you may also need low level light)
I always run an earth so you are not relying on body/chassis
Use either a 7 core or 13 core supplied from caravan/trailer places this allows you other options in the rear
border
Well-Known Member
Might try the 13 core, then as you say will have plenty left for other options.
Sometehing like this sounds a lot better then 200 quid plus for a made up loom 13 core euro cable for caravan & trailer electrics (westerntowing.co.uk)
Then again someone or something might change my mind, its easy done
Hicap phill
Well-Known Member
That looks good. & 5 of the cores are a larger size.Might try the 13 core, then as you say will have plenty left for other options.
Sometehing like this sounds a lot better then 200 quid plus for a made up loom 13 core euro cable for caravan & trailer electrics (westerntowing.co.uk)
Then again someone or something might change my mind, its easy done
Getting it through the chassis isn't a joy, it's a fecking pain in the arris ...
border
Well-Known Member
Just hope I will be able to match up to correct wires in bulkhead. then still not sure about a fuse box ect.
Ive gotten one through a defender once, was not to bad actually, cant see the series been much different.
