T

truckerdan

New Member

• Jan 28, 2013

• #21

50 pence said:

Mine had the brown plug coming out of the carpet under each seat, but I had to fit the elements to the seats.

To be sure if you have the wiring in the car you need to remove the switch panel in the centre consul and see if you have the two connectors for

Click to expand...

Yeah there is two plugs behind the switch panel but nothing on the seats so i would need the elements it might be worth trying a breakers maybe



P

ProbablyTD5

New Member

• Jan 29, 2013

• #22

Right then here are the connectors i have found



Attachments

•

  212.8 KB · Views: 530
•

  351.6 KB · Views: 502
•

  410.5 KB · Views: 472
•

  470.1 KB · Views: 422
•

  525.3 KB · Views: 395
•

  529.8 KB · Views: 407

Last edited: Jan 29, 2013

P

ProbablyTD5

New Member

• Jan 29, 2013

• #23

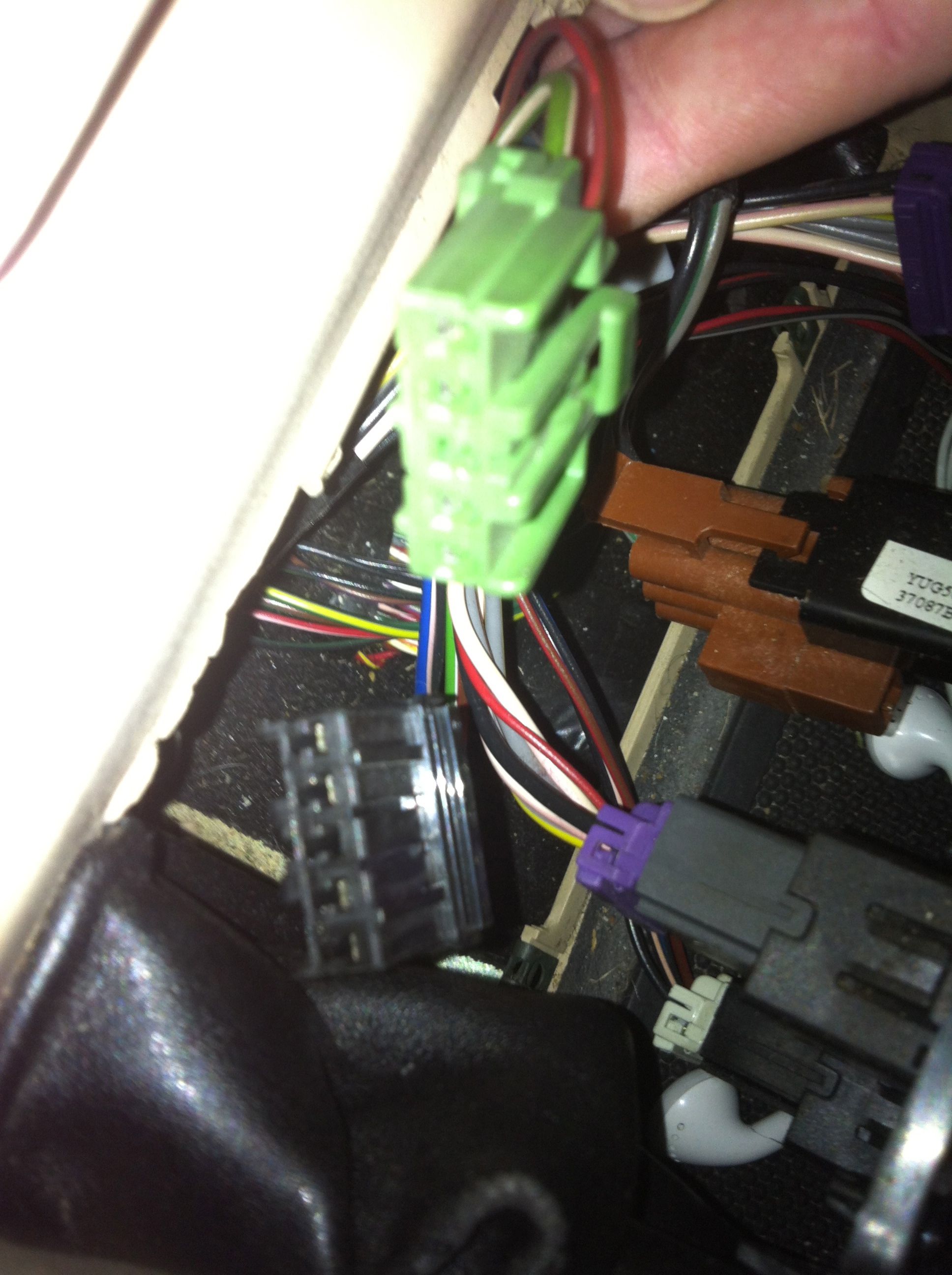

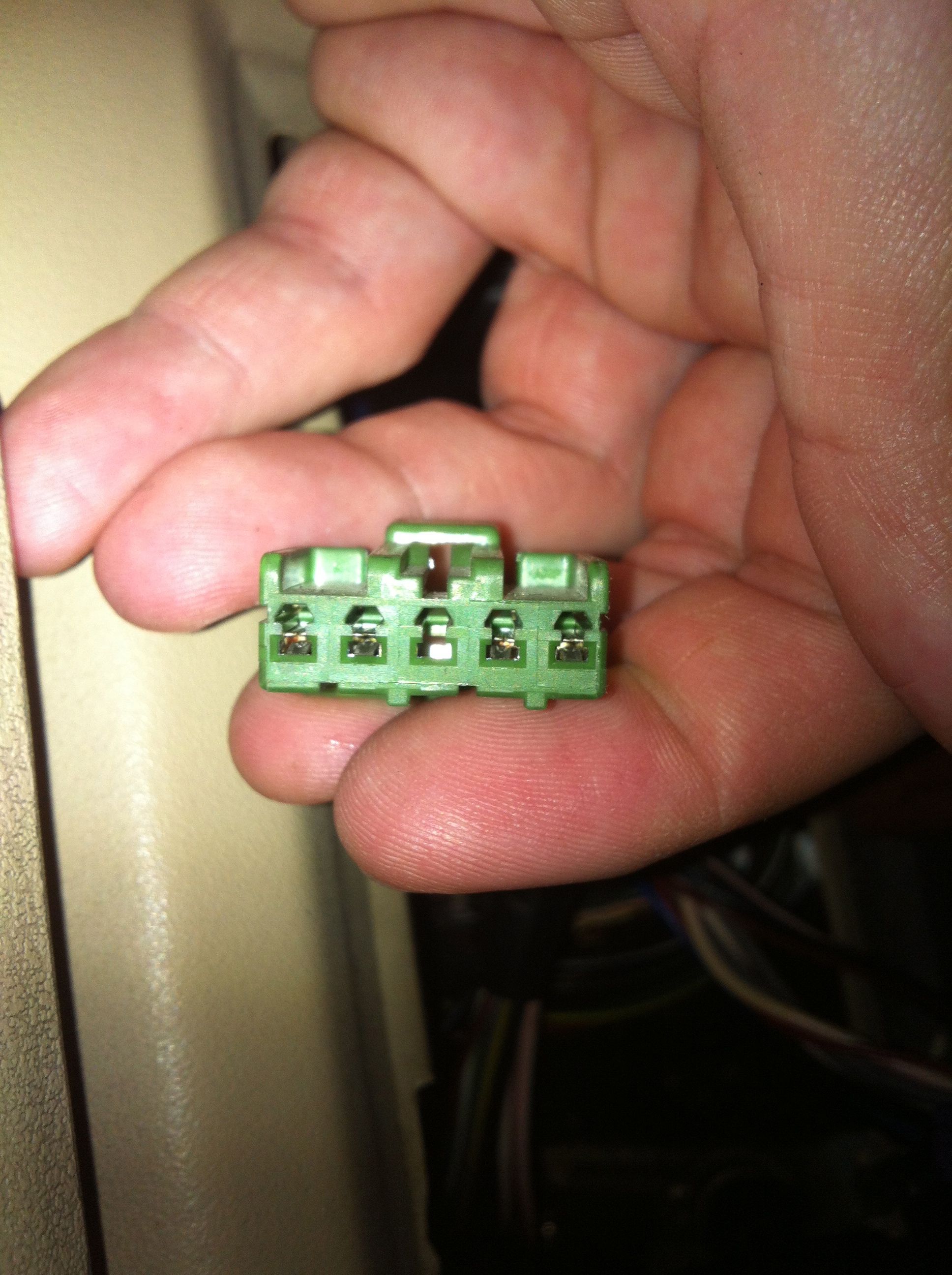

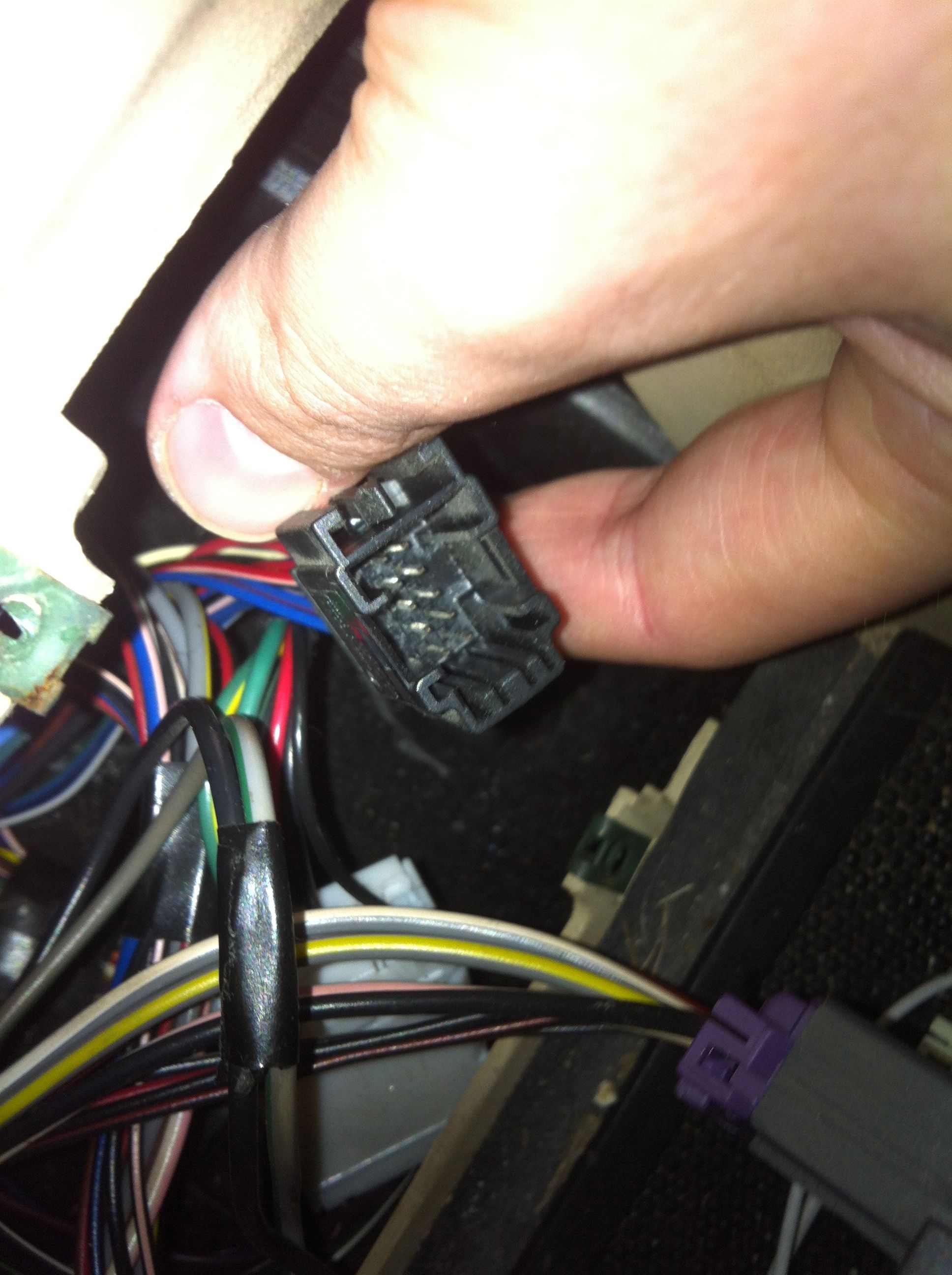

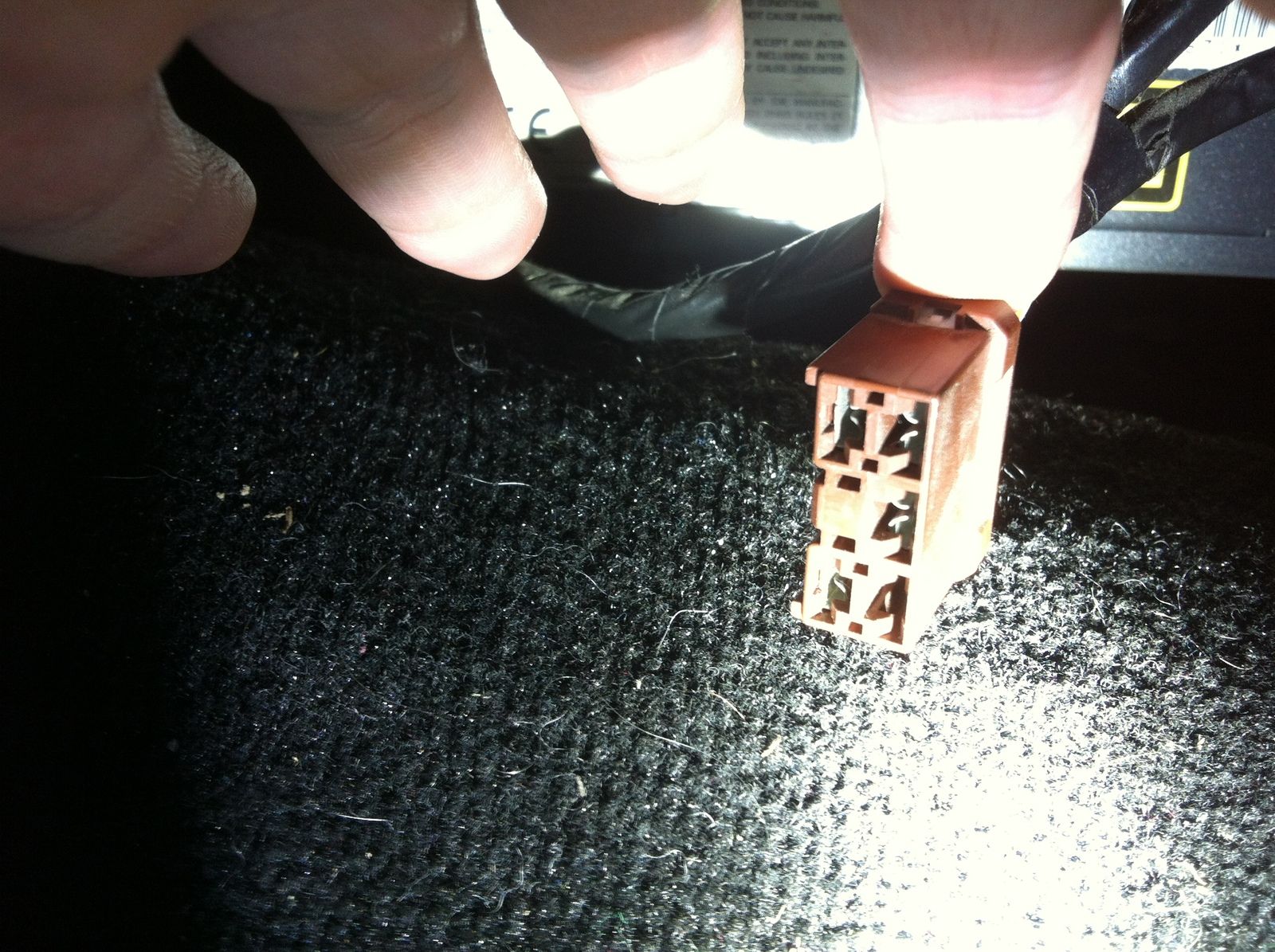

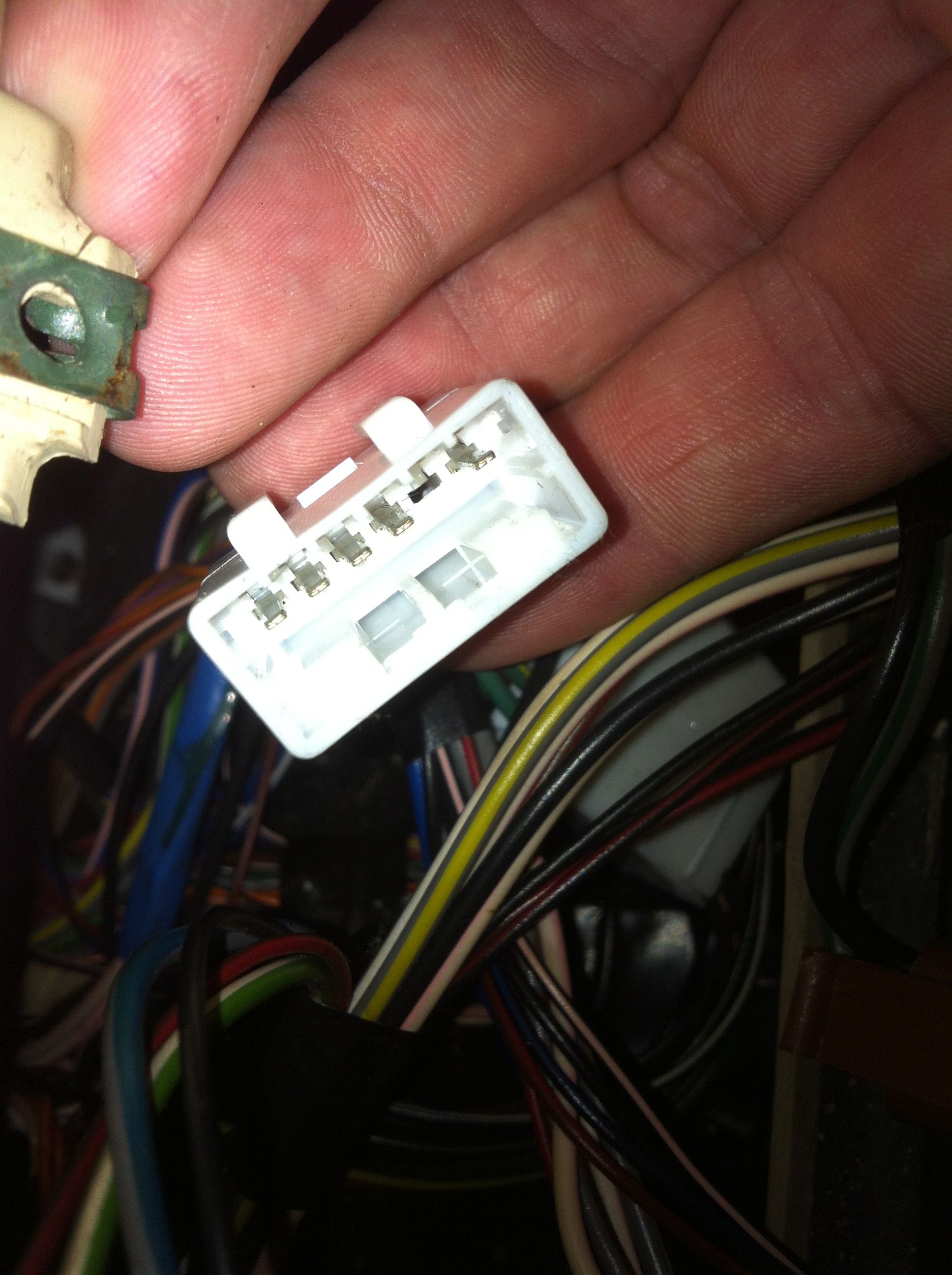

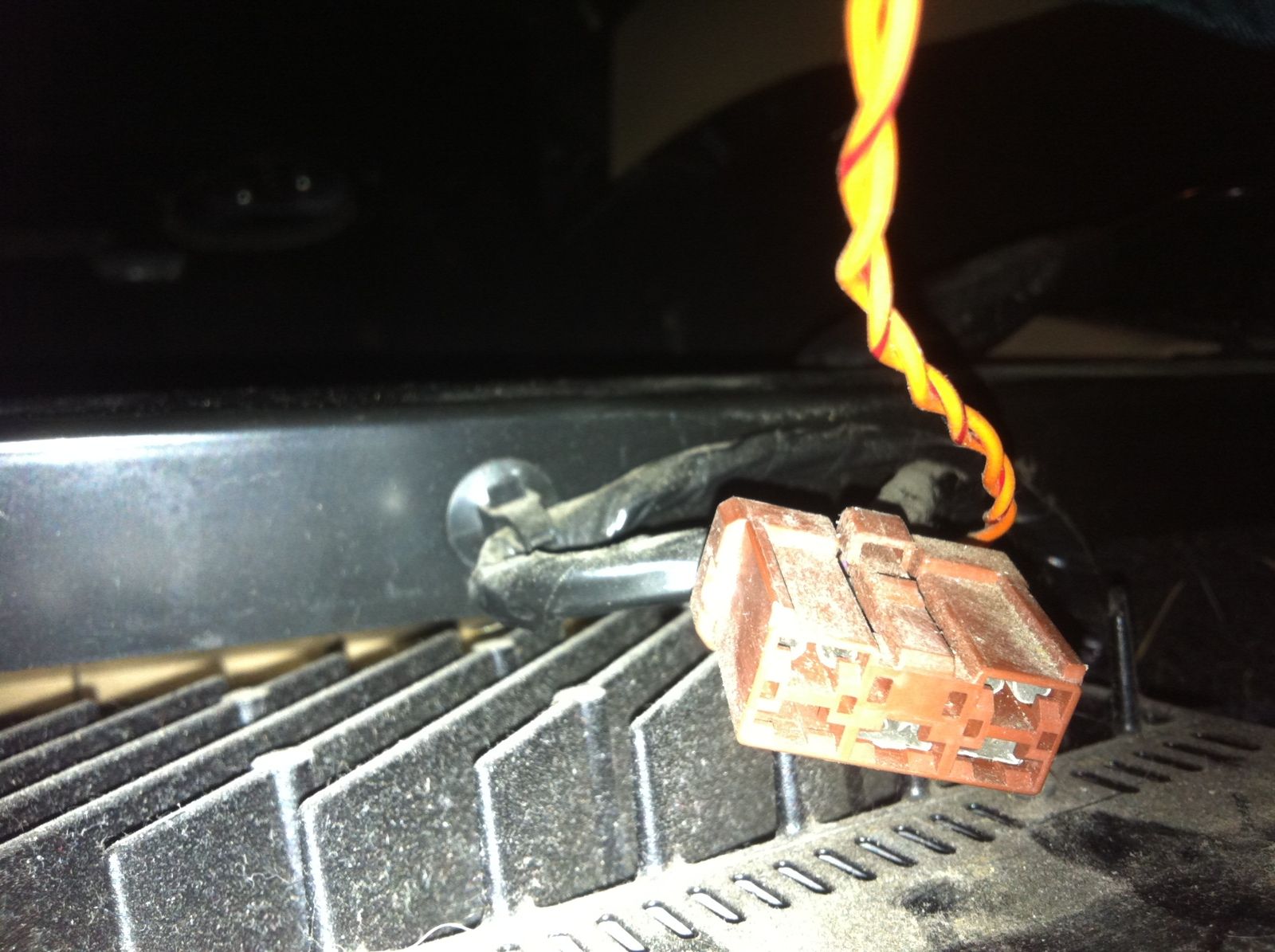

the first two are under the seat the rest are from the centre console. green and black are the same style, the black and white are not similar to any of them? what do people think?



50 pence

New Member

• Jan 29, 2013

• #24

ProbablyTD5 said:

the first two are under the seat the rest are from the centre console. green and black are the same style, the black and white are not similar to any of them? what do people think?

Click to expand...

You're in !!!!.

All you need is the 4 seat heater pads, 2 switches and a new consol switch fascia.

Cheers..



P

ProbablyTD5

New Member

• Jan 29, 2013

• #25

ah so does this not mean that the heater pads are not already there?



T

truckerdan

New Member

• Jan 29, 2013

• #26

ProbablyTD5 said:

ah so does this not mean that the heater pads are not already there?

Click to expand...

If the wire from that brown plug goes to your seat then you do



P

ProbablyTD5

New Member

• Jan 29, 2013

• #27

so if the wire it attaches to comes from the front of the seat or rear of the seat? that means it already has the pads installed?



HenryD

Active Member

• Jan 29, 2013

• #28

There are only two wires in the plug that comes out of the seat,why not just try power and earth to them and see if owt happens.



50 pence

New Member

• Jan 29, 2013

• #29

HenryD said:

There are only two wires in the plug that comes out of the seat,why not just try power and earth to them and see if owt happens.

Click to expand...

Theres actually 4 in the female brown plug. If you cross terminals 1 and 4 in the switch connector youll find 12 volts at the brown plug.

All you need is the four heater pads. They are joined in series so you only have one male brown plug coming out of the rear bottom of the seat.

Cheers.



P

ProbablyTD5

New Member

• Jan 29, 2013

• #30

In this video on the page after i have done what this guy says i still need to install the pads then i guess?

Land Rover Heated Seat Activation Kit | Land Rover Electrical Kits
