Beneagles said:
+1 on the timber/jacking technique although possibly use 2 jacks, for stability?
:)
Click to expand...

I think that is why it is usual to lift the whole tub off. Avoid damage, and possible injury if the tub slips off the jack while you are working underneath.
When I have done it before, we lifted the whole tub, and carried it backwards, placing it on blocks on the ground while we dealt with the chassis issues.

Turboman said:
I think that is why it is usual to lift the whole tub off. Avoid damage, and possible injury if the tub slips off the jack while you are working underneath.
When I have done it before, we lifted the whole tub, and carried it backwards, placing it on blocks on the ground while we dealt with the chassis issues.
Click to expand...
Yep, makes sense when doing major works, but I think Wolfie just wants to raise the rear edge a couple or three inches, slide the rail in, and get it back down as quickly as possible.
:)

Beneagles said:
Yep, makes sense when doing major works, but I think Wolfie just wants to raise the rear edge a couple or three inches, slide the rail in, and get it back down as quickly as possible.
:)
Click to expand...
It may work, although I have not seen it done. Having gone to the trouble of unbolting all the stuff, I would be keen to have a look underneath.
Especially at the area of the upper rear crossmember, often a rot spot.

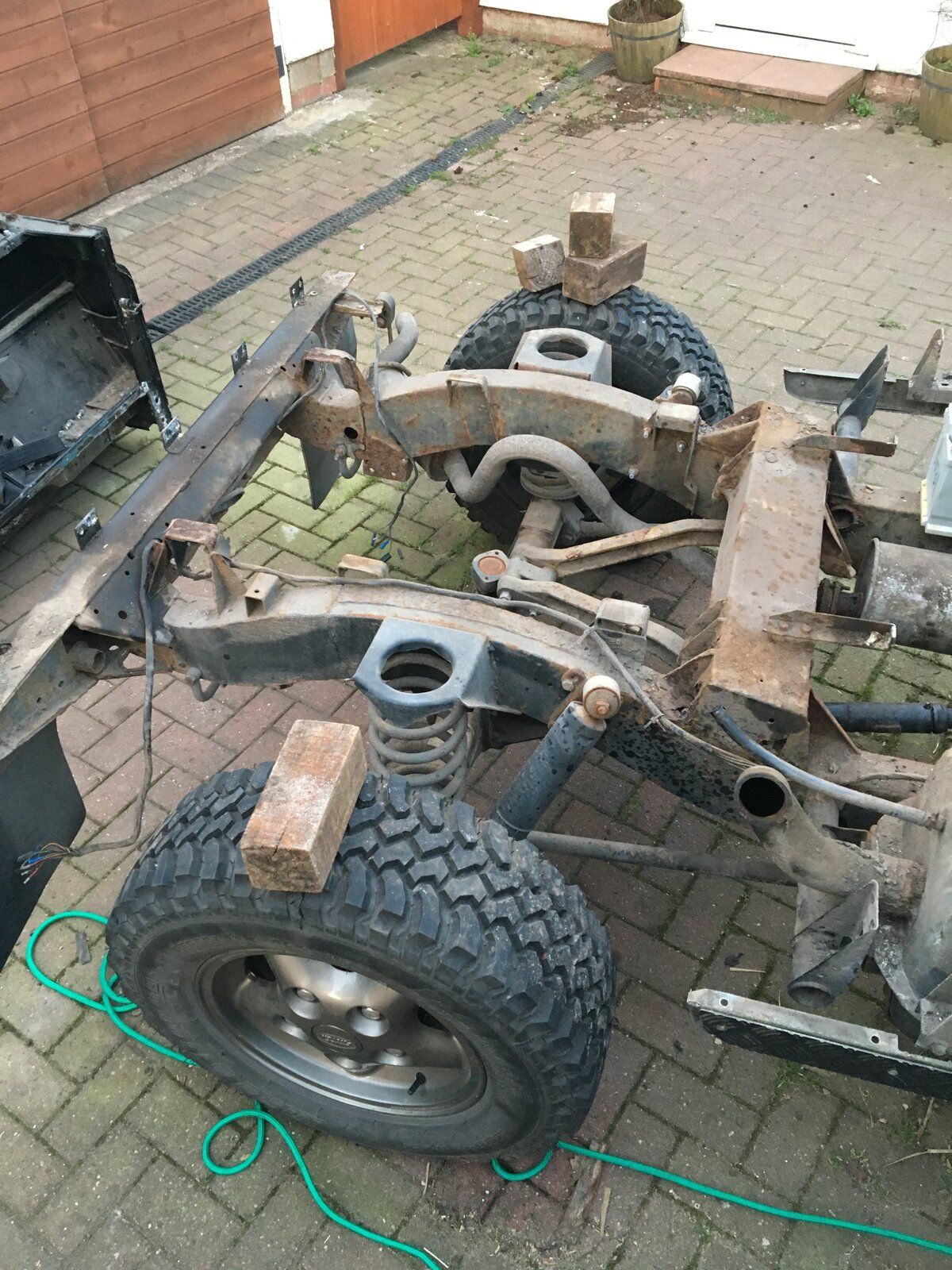

Should end up like this. I took mine off at the weekend. Not that many bolts. More on the seat box section.


Attachments

  • D6CE9AE2-46F3-45AF-8B30-8E1363082B25.jpeg
    390.4 KB · Views: 117
I could do with replacing all of the floor struts and top hat parts but that's another job for another time, I don't want to go down the route of taking it off the road for a long period and ploughing money into it again. I do have a list of jobs as long as my arm to be working on and the rear body corrosion is one I've been putting off. I do need to replace both rear outriggers at some point so maybe then I'll remove the tub but for now it's just getting lifted a little and the new rail slid into place

Looks like that rear outrigger replacement may be much much sooner than I anticipated. The bolts holding the body onto the mount have been an absolute pain in the **** to get out. After trying for three nights I've managed to remove 3 from one side but in the process my outrigger is starting to look a little skeletal lol

the_wolf said:
Looks like that rear outrigger replacement may be much much sooner than I anticipated. The bolts holding the body onto the mount have been an absolute pain in the **** to get out. After trying for three nights I've managed to remove 3 from one side but in the process my outrigger is starting to look a little skeletal lol
Click to expand...
Aye, it's a bugger once you start mate. I'll refer you back to my post #23 :( Everything is fixable though :)

Al2O3 said:
Aye, it's a bugger once you start mate. I'll refer you back to my post #23 :( Everything is fixable though :)
Click to expand...
Last time I thought right I'll take it off the road a bit and I'll fix this then I'll fix this it ended up snowballing, was off the road for a year and before I knew it I'd fitted a galv bulkhead, welded the chassis, fitted a new roof, rebuilt the engine etc... lol. New outriggers ordered so the old ones are just getting cut off and I'm not wasting time messing around with those bolts again. I'll get this rear support rail fitted at some bloody point!

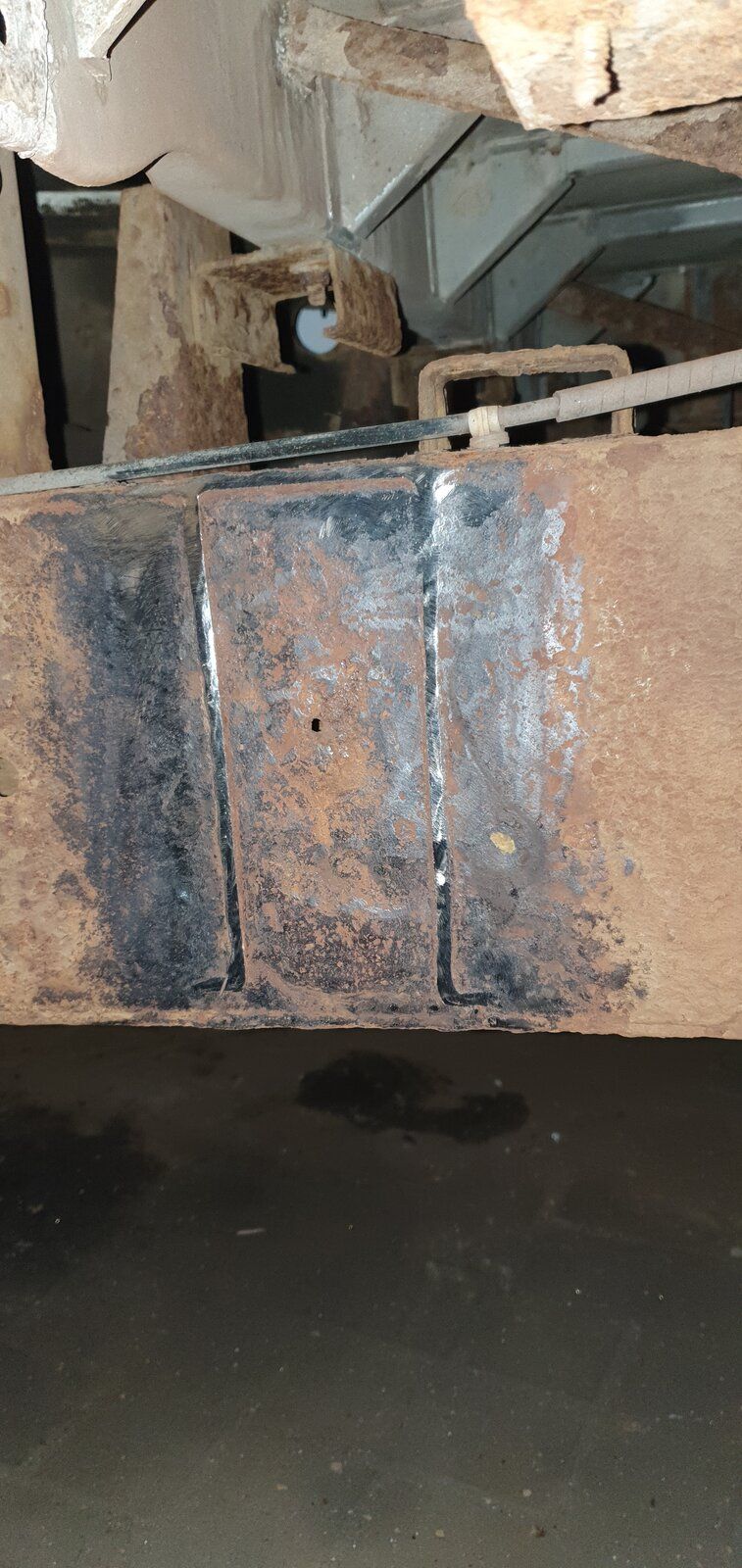

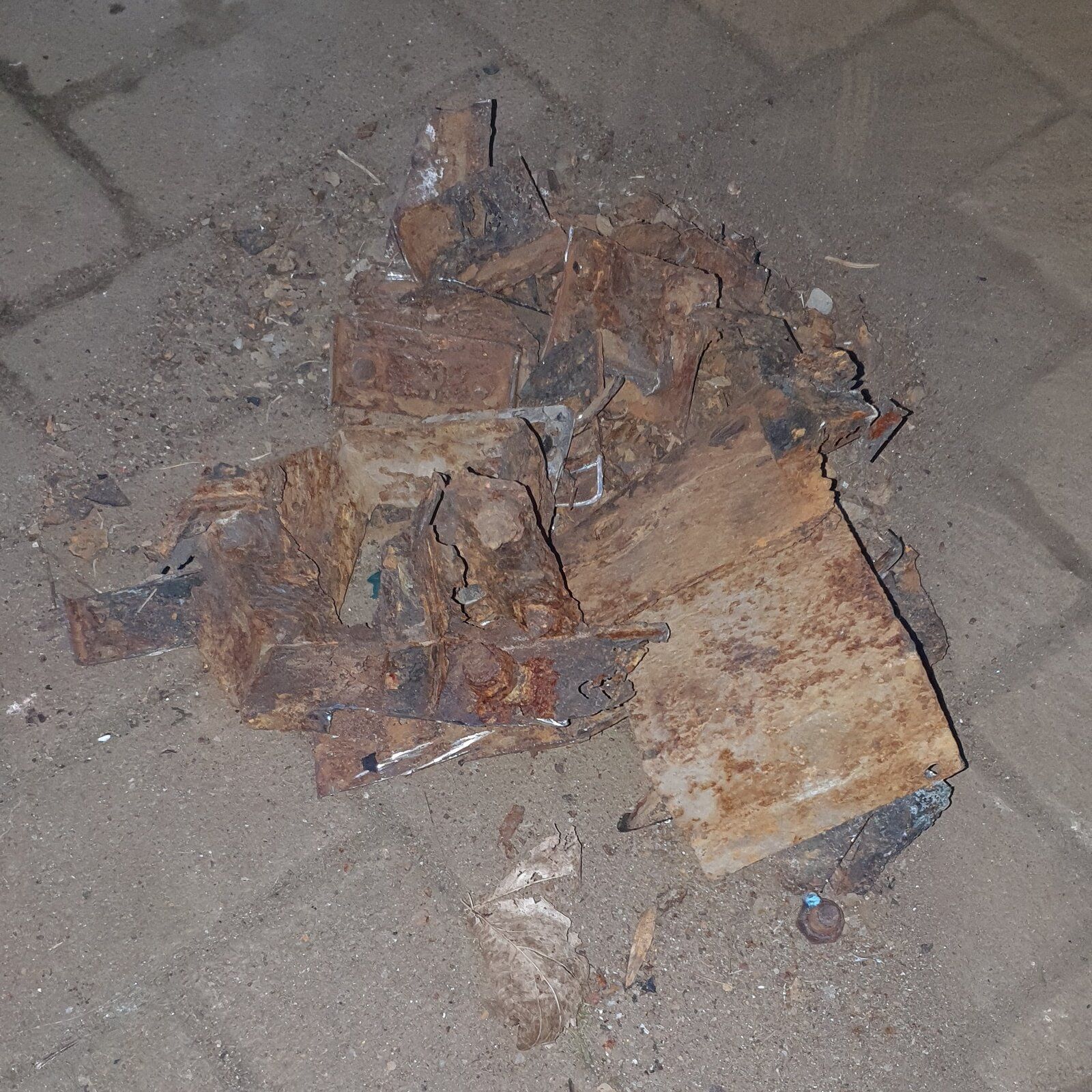

For the curious this is the remains of my rear outrigger. Nowt but rust holding that up :|


Attachments

  • IMG_20210409_202234_076.jpg
    543.1 KB · Views: 119
  • 20210409_204438.jpg
    212.1 KB · Views: 135
the_wolf said:
For the curious this is the remains of my rear outrigger. Nowt but rust holding that up :|
Click to expand...
How are the bottoms of the supports of the upper rear crossmember looking?

Take a screwdriver, and poke into the bit in front of the upright. If it goes through, they are fairly easy to plate while you have the rear body off.

Turboman said:
How are the bottoms of the supports of the upper rear crossmember looking?

Take a screwdriver, and poke into the bit in front of the upright. If it goes through, they are fairly easy to plate while you have the rear body off.
Click to expand...
What parts do you mean and I'll have a look. I'm pretty sure I'll find a lot more rust but what I don't know can't stress me lol

the_wolf said:
What parts do you mean and I'll have a look. I'm pretty sure I'll find a lot more rust but what I don't know can't stress me lol
Click to expand...
Upper rear crossmember, almost above the axle. There are uprights that attach it to the top of the chassis, and the plates that brace them are a perfect rust trap. MOT fail, testers often don't spot it, but if one does, it is a lot of work to rectify.

Quit easy to plate with the body off, though.

Just to add to this that replacing the rear tub support turned into a much bigger job where I ended up replacing both rear outriggers and the body mounts too. Lifting the tub up once it was unbolted did make my arsehole twitch a bit! but once I'd managed to wangle the support rail into place, drop it back down and bolt it all together it does look a lot better. No more corroded rear end plus I got a good bit more work done than I'd planned. Just a million and one other things to go...

Well done Wolf. I sometimes wonder why some of the designs are like they are - it's like the design team were funded by the ministry of bad ideas! But then I look at my K reg 90 and I am amazed when I see a vehicle of a similar age on the road. Our vehicles are in the main working classic cars.

I am struggling getting the fill/level plug out of my swivel. Whilst applying plusgas I decided I would take my bumper off - I am sure you can understand what happened!

My MOT man while he does mot's on classic cars, you know the types that do a couple of hundred miles per year, he says my 1990 truck is by some way the oldest working vehicle he sees.
Good bit of weight reduction going on there Strangeglove.:D

tottot said:
Good bit of weight reduction going on there Strangeglove.:D
Click to expand...

Yep, just a bit. I need to do some further investigation to see the affected area and make good to suit. I have some 100x50 box section off-cuts so I will fab something up from them. In time it will be a new chassis, but for now just a make good repair (though I will do it properly). If anyone has any decent links to defender dumb-iron replacement, please let me know.

If I were doing that job I would not bother replacing the bit at the bottom where you are supposed to fit the supplied [ when new ] Land rover jack [ rubbish thing ] Just weld in some box section the bumper would fit over [ normal nuts and bolts not those plates would work now like a series] and drill holes for a couple of jate rings low down on the box .

the_wolf said:
I've searched and searched and for the life of me I can't find a write up on this anywhere. I need to replace the rear tub support (the long W shaped rail that bolts the rear of the tub to the crossmember). I've got all bolts and rivets out that I can see but can't figure out how to remove.
Can anyone offer any advice? Thanks in advance.
Click to expand...
How did you get on with just lifting the rear body for access, I've the same to do to a 2015 wagon before it goes too far. Anything you can highlight before I tackle it

ta
