Hicap phill said:
5 pins total

2 top
1 centre
2 bottom

May have just figured it out...
Live to centre
Top is the switch so other must be earth

Earth on the bottom
Leaves 1 pin left?
May be live for other led?

All switches are the same using these For fan,hi beam,fogs reverse lights.
All are just switching relays

Keep the info coming. It's what I like about this forum
Click to expand...

Hi mate

Glad it’s helping , lol

With the switch out, If u use ur multimeter on ohms u can find the continuity on live and switched live so thats 2 X out of the way , other 2 are earths so the last one should be from ur instrument panel live that should light up ur legend

Hope that makes sense

So live Into the switch , when turned on the led should come on and switched live out

Searching through all my pics to see what I can find

@Hicap phill

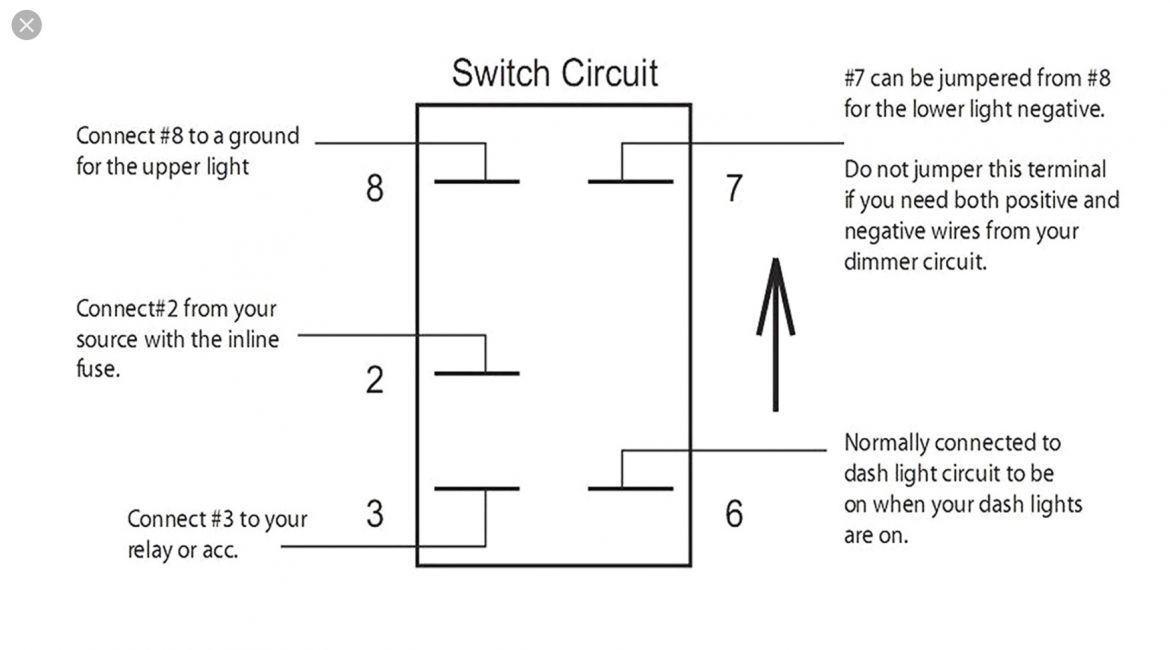

Just found this , not 100% though , see what u think plse


@gstuart
Used 3,2,8 off the wiring diagram & wired to dash legend symbols.
Tried the other combinations but could not get these to light up.

I also had a rdx round switch which lights up straight away on 3 pins.

I hate car electrics :mad:
Wired up 3 relays just have to do 1 more for the glow plugs.

Thanks all for your help :)

Hicap phill said:
@gstuart
Used 3,2,8 off the wiring diagram & wired to dash legend symbols.
Tried the other combinations but could not get these to light up.

I also had a rdx round switch which lights up straight away on 3 pins.

I hate car electrics :mad:
Wired up 3 relays just have to do 1 more for the glow plugs.

Thanks all for your help :)
Click to expand...

Ur very welcome

We all know what it’s like thinking it’s going to be a 5 x min job then turns into a head scratching one, lol

Useto have all the fun when I wired up central heating systems, ie, remove a room thermostat cover and find 5 x black wires and have to trace them back

Plse let us know how things go
