Flossie
Well-Known Member
12 nuts, standard m8 nuts if you lose any.Think I will actually didn't realise I removed that many nuts off the manifold
I need to source an m8 nut because the manifold has been taken off before previously and noticed a nut missing the inside one at the end nearest to the windscreen. Either a bugger to bolt in or lost it taking the manifold at the time.
RangeRoller dt
Well-Sprung Member
You have metal inlet so if you take the manifold off you’ll have to carefully clean the old ones off and replace the gaskets - STC2203 x6.
Easier just fit the pipes with it on. You can get away without replacing the gaskets on a later plastic manifold. The metal is like cheese so be careful not to gouge it, a used/dulled scourer works well
Easier just fit the pipes with it on. You can get away without replacing the gaskets on a later plastic manifold. The metal is like cheese so be careful not to gouge it, a used/dulled scourer works well
Datatek
Well-Known Member
It is not always possible to replace the leak off pipes without removing the manifold, depends on the orientation of the injectors.
Do you know if the gasket on a 2.5 bmw is a full gasket or 6 separate ones? Thanks
You did it with the manifold in place? Wow. That must be really tricky to do.
Take the manifold off! You'll need a magnet in a stick to catch the nuts unless you're blessed with small hands. 12 nuts, as others have said. That one nearest the bulkhead (windscreen) on the underside also should have a bracket attached which holds the breather tubes in place. You slip that over the bolt before adding the nut and tightening up.
Attachments
brianp38dse
Well-Known Member

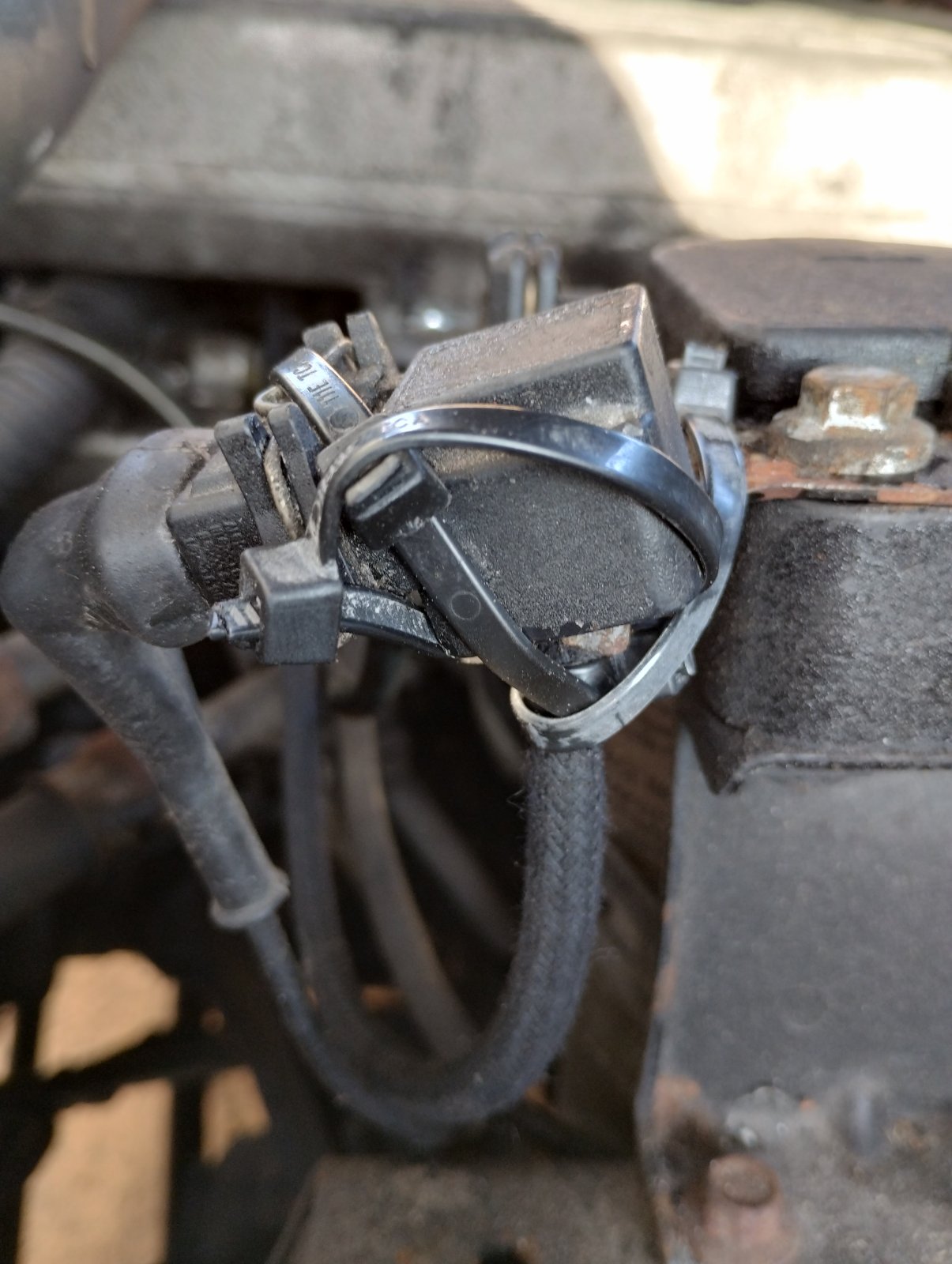

If its attached to the fuel filter housing its the MAP sensor about £40 new
I've botched it for now but the car has lost a lot of power. Hopefully I can find one online
brianp38dse
Well-Known Member
They are on fleebay there is a used one for £19 or new going up to £70
RangeRoller dt
Well-Sprung Member
ERR3561
