Yours would definitely need the extra cables for the amp to work. I’ve seen the LEAR number on the amp so know it’s definitely correct and ATD did say if I had the amp ending 30 I’d need additional cables which one alone was £150! Definitely not the case with mine but still struggling to see why there’s no volume..
It is the BMW54 spec I thinkHold the bus!!
I just noticed your screenshot says L322(Ford) . You have BMW spec
gold rover
Well-Known Member
Maybe double check? I'm only guessing due to pic
If it is the BMW spec send the guys at ATD a message , they're really good, and really helpful
The Ford audio systems with MOST were from 2005 -2010 I think. I’ve had problems with no screen on these but managed to sort out
gold rover
Well-Known Member
Have you read through this just incase it helps https://audiotechdirect.com/blog/range-rover-20022004-l322-radios-obstacles-/
I have read through it thank you and still can’t sort it
did you ever have sound from the old unit?
gold rover
Well-Known Member
Good find.
This is a more drawn out/in depth of the explanation the guys gave me by email. I was going for option 3 , as it was the only one that kept all speakers in play.
I still think the issue is either the ATD guys think,they supplied for a Vogue with satnav unit OR the unit received is the Ford compatible.
Looking at the link I posted it only relates to the BMW head unit and not the one fitted to the HSE.
So do all l322s have the speakers wired to the rear quarter and either plugged into an amp OR connected directly to the harness to the head unit?
Or does the HSE have the speakers wired directly to the dash?
So do all l322s have the speakers wired to the rear quarter and either plugged into an amp OR connected directly to the harness to the head unit?
Or does the HSE have the speakers wired directly to the dash?
The explanation in the article doesn’t relate to my amp unfortunately as it’s not a DSP. I’ll try emailing them with all the photos and see if they can explain how to sort it.
Looking at this video from Powerfuluk it shouldn't need much in the way of extra cables.
When I purchased the car the original radio was pixelated and didn’t work so I haven’t heard a sound from the old unit.
Hopefully the previous owner hasn't butchered the wiring for a different head unit and then replaced it with the standard one again before you bought it.
The wiring looks good, someone’s been in the dash as a few of the screws are missing. All of the harnesses are in tact with the surround and clips and can’t see that water has got into the boot either. The audio holder looks complete too which makes me think the audio system has not been replaced at some point.
gold rover
Well-Known Member
I hope you get a fix. Not just for you but for anyone else who follows
You say you have an amp in the boot so have you bypassed it?

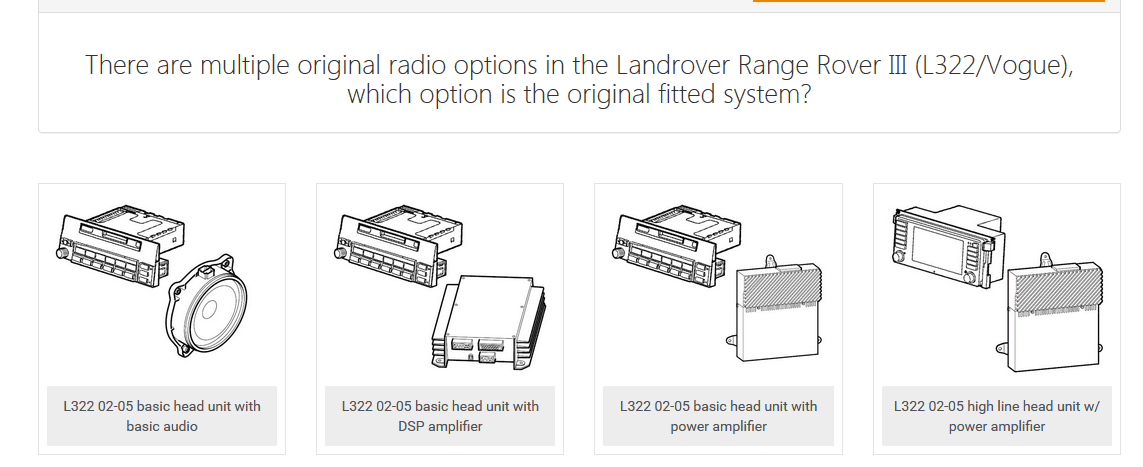

Also does the amp look like one of these?
Also does the amp look like one of these?
Seems there are options for those of us with touch screen DSP now..........HOW MUCH
https://incartec.co.uk/Landrover/Ra...e/Stereo-Upgrade-Single-Din/Alpine-Single-Din
https://incartec.co.uk/Landrover/Ra...e/Stereo-Upgrade-Single-Din/Alpine-Single-Din
Mine is the third one along basic with amplifier no DSP.
I’ve taken the amp out today and would say that’s the problem as the connectors are corroded by water damage I would say. I’ve ordered a second hand amp so will hopefully receive by Wednesday and see if that sorts it …
