RangeRoller dt · Oct 11, 2019

No codes on an L322 means one thing. Your diagnostics is fooked

kevstar · Oct 11, 2019

Henry_b said:
Aye!

Can never have too many

I thought that its wrong I tell ye lol

Tillytomp · Oct 13, 2019

So took it out on Friday for an hour, came back and filled it up with fresh v power diesel ( was still about 1/4tank) still black smoke
Took it to Crawley and back today and just gentle acceleration and there's loads of black smoke (but sometimes there's none)
I had a look under the bonnet and couldn't see any split pipes (not 100% sure on where I'm looking)

Any other input?

Henry_b · Oct 13, 2019

Tillytomp · Oct 13, 2019

Ah cool I shall have a look tomorrow
Really appreciated

Henry_b · Oct 13, 2019

Tillytomp said:
Ah cool I shall have a look tomorrow
Really appreciated

Yer!

2 turbos check both pipes.

They split, very very common.

Usually on a place you can't see!

IE on the bottom!!

Also worth checking the clips that secure them!!

Happy hunting!!

Tillytomp · Oct 13, 2019

OK cool, is the other pipe in the opposite location to the one shown, are they easy to remove?

Henry_b · Oct 13, 2019

Tillytomp said:
OK cool, is the other pipe in the opposite location to the one shown, are they easy to remove?

Yep the turbos straddle the engine

Easy'ish to remove, wif a bit O patience

Tillytomp · Oct 13, 2019

Can't thank u enough mate
I will get my hands dirty tomorrow

Henry_b · Oct 13, 2019

Tillytomp said:
Can't thank u enough mate
I will get my hands dirty tomorrow

Getting dirty is mandatory with an ole' TDv8

Hopefully it's a simple split pipe

Tillytomp · Oct 13, 2019

Henry_b said:
Getting dirty is mandatory with an ole' TDv8

Hopefully it's a simple split pipe

I do hope so, when my missus looses faith in a car, that's the end of it

Tillytomp · Oct 14, 2019

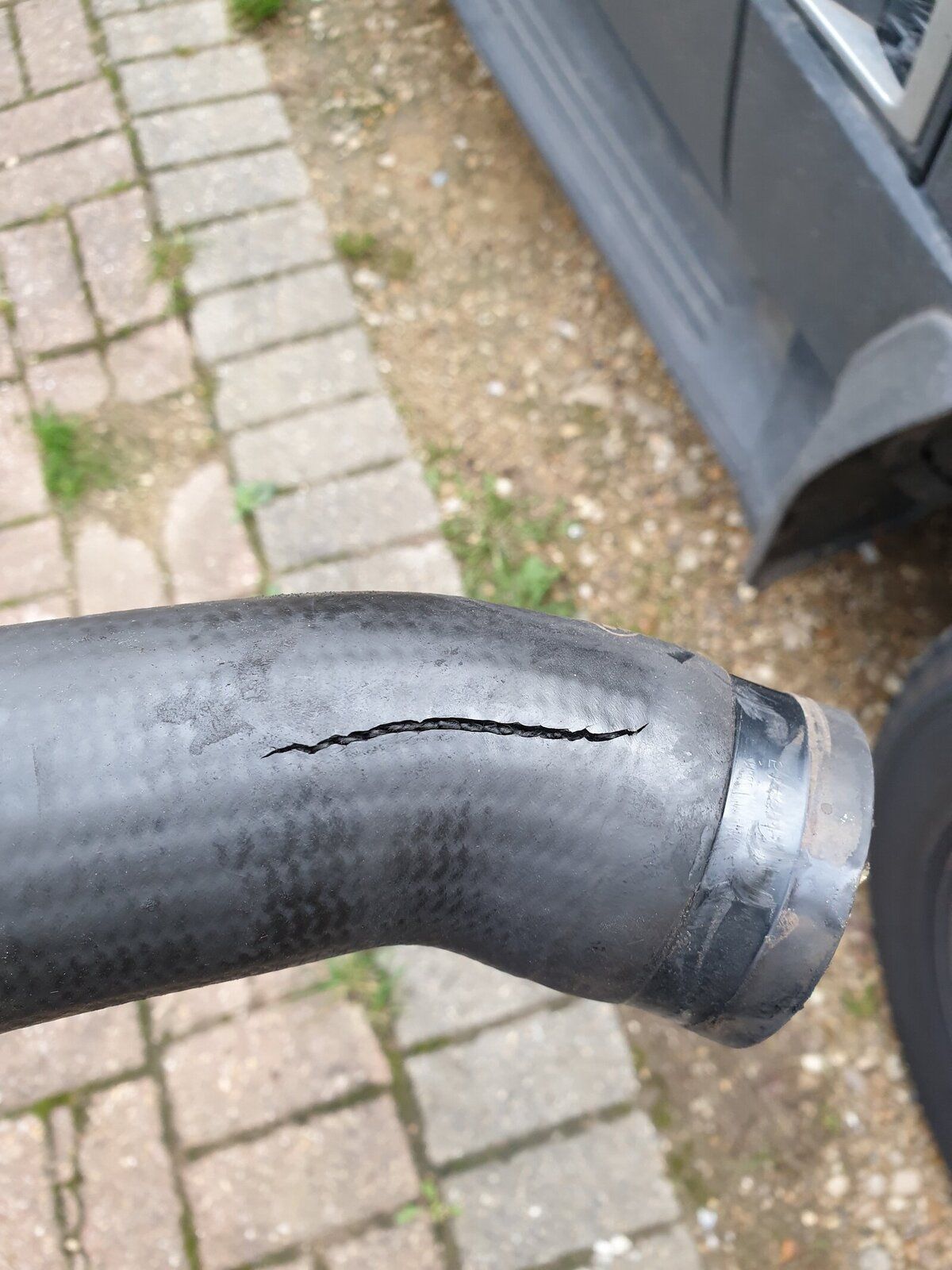

So had a feel today and hurrah found a 2"split in the right side pipe
So I now have a couple of questions pls
The right pipe was really soft but split
The left pipe is almost rock hard
shall I replace both?
They look fairly easy to fit, are they (im OK with a spanner)
OEM or brit part?

Mark Piercy · Oct 14, 2019

I would examine the other pipe as best as possible and decide from there. I not sure if there are silicone versions of these yet?
your call based on your findings.

Mark Piercy · Oct 14, 2019

Tillytomp said:
So had a feel today and hurrah found a 2"split in the right side pipe
So I now have a couple of questions pls
The right pipe was really soft but split
The left pipe is almost rock hard
shall I replace both?
They look fairly easy to fit, are they (im OK with a spanner)
OEM or brit part?

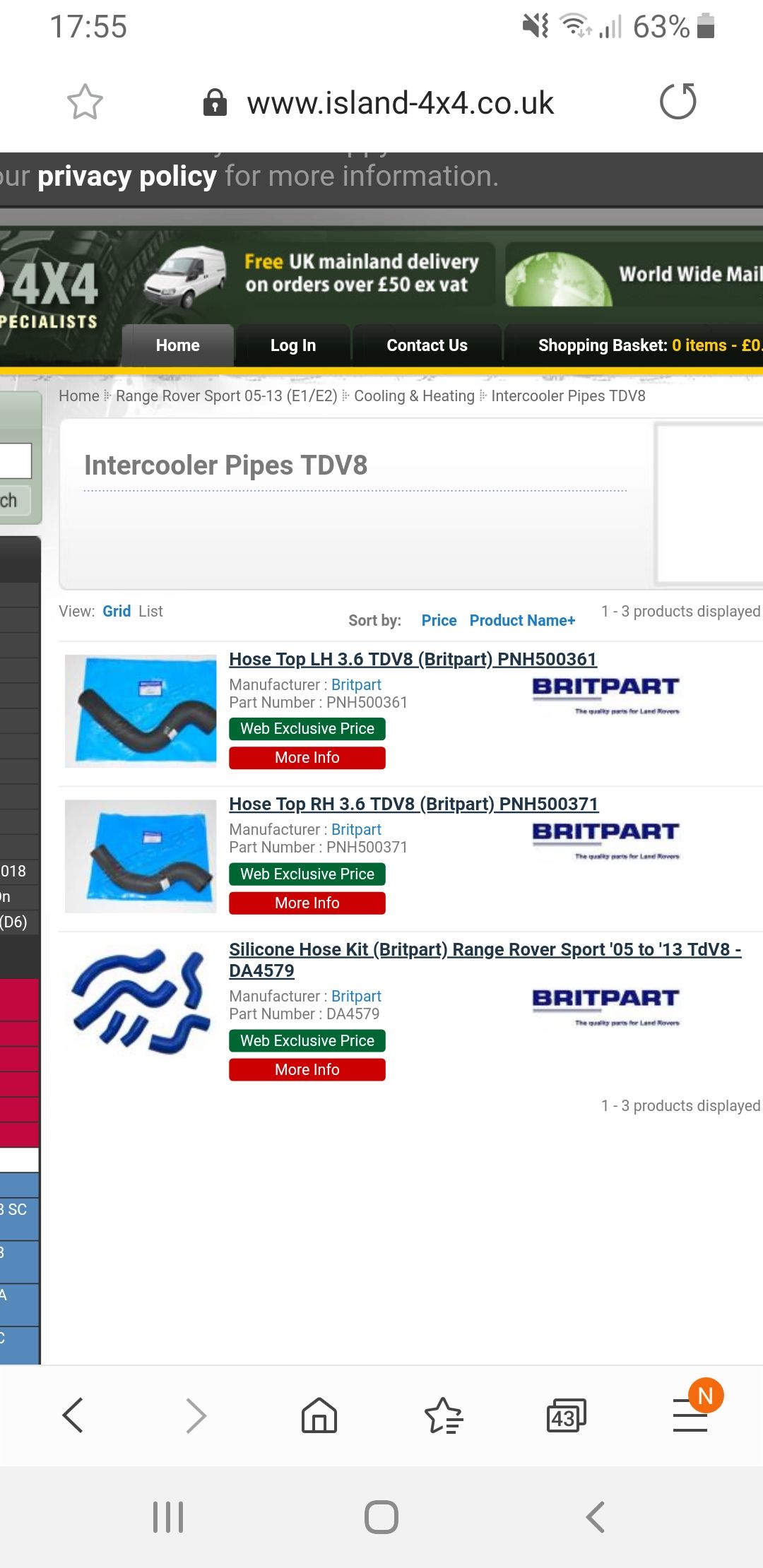

sorry, I couldn't make that screen shot out!!
are they all supplied by the part of brit?

Henry_b · Oct 14, 2019

Replace both!

Tillytomp · Oct 14, 2019

I'm gonna replace both just as a precaution, will get ahold of the local landy specialist tomorrow and hopefully pick them up

Are they easy to fit ?

Henry_b · Oct 15, 2019

Yep easyish fit

Tillytomp · Oct 15, 2019

Henry_b said:
Yep easyish fit

All done

Tillytomp · Oct 15, 2019

Tillytomp · Oct 15, 2019

Hopefully should be OK now
Have the gap iid coming so need to look into that now
