Was posted before, but here's how to resolve the footwell connector problem.
- Look at the wires in the plugs. Should all be different colours, and same colour pin-socket each side of the connector
- Then check somebody hasn't tampered previously, and figure out what.
- Cut the offending connectors off.
- Solder each wire to its matching colour (remembering to slide the heat shrink over first !!
- Have a beer when done.
tomcat59alan
Well-Known Member
Was posted before, but here's how to resolve the footwell connector problem.

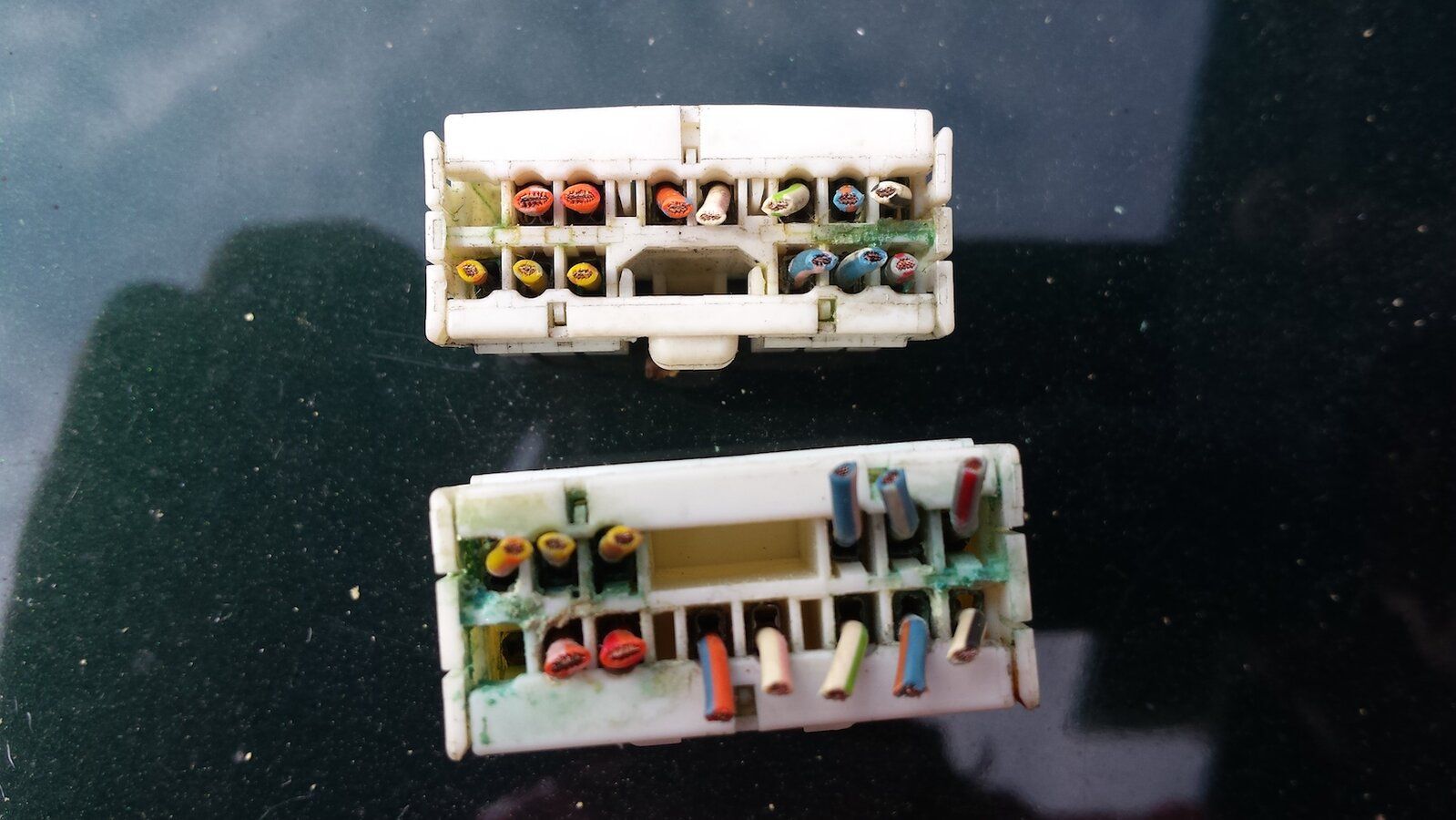

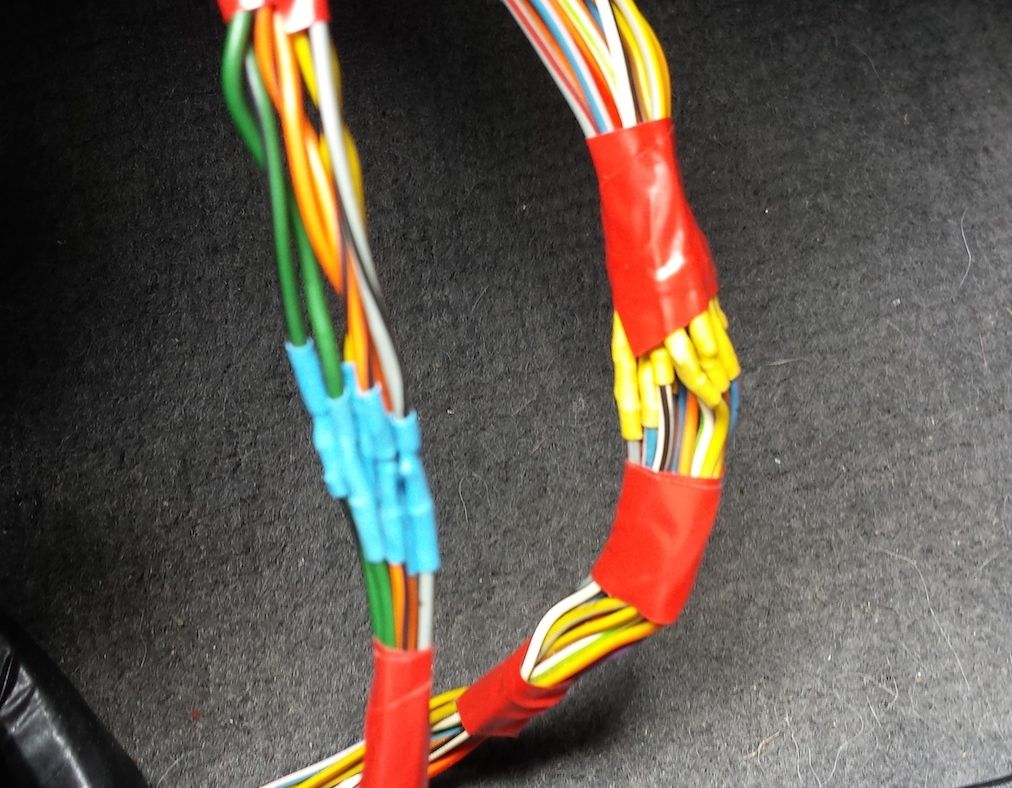

View attachment 224030 View attachment 224029
- Look at the wires in the plugs. Should all be different colours, and same colour pin-socket each side of the connector
- Then check somebody hasn't tampered previously, and figure out what.
- Cut the offending connectors off.
- Solder each wire to its matching colour (remembering to slide the heat shrink over first !!
- Have a lots of beer when done. Edited for accuracy.
Is the head unit original or aftermarket ? If the latter, then the installer has probably bodged the wiring.
Original High Line HU should have 10-way C224B from the radio, with a pair of wires to each amplifier. Check the continuity from this to each door amplifier. They are a balanced pair, so a break in either will cause buzz, but the audio might still work.
Also check Pin-6 on each door amplifier is properly grounded. All four amps have different ground points !!
Original High Line HU should have 10-way C224B from the radio, with a pair of wires to each amplifier. Check the continuity from this to each door amplifier. They are a balanced pair, so a break in either will cause buzz, but the audio might still work.
Also check Pin-6 on each door amplifier is properly grounded. All four amps have different ground points !!
