R

Ryan_mag

Member

• Sep 3, 2019

• #1

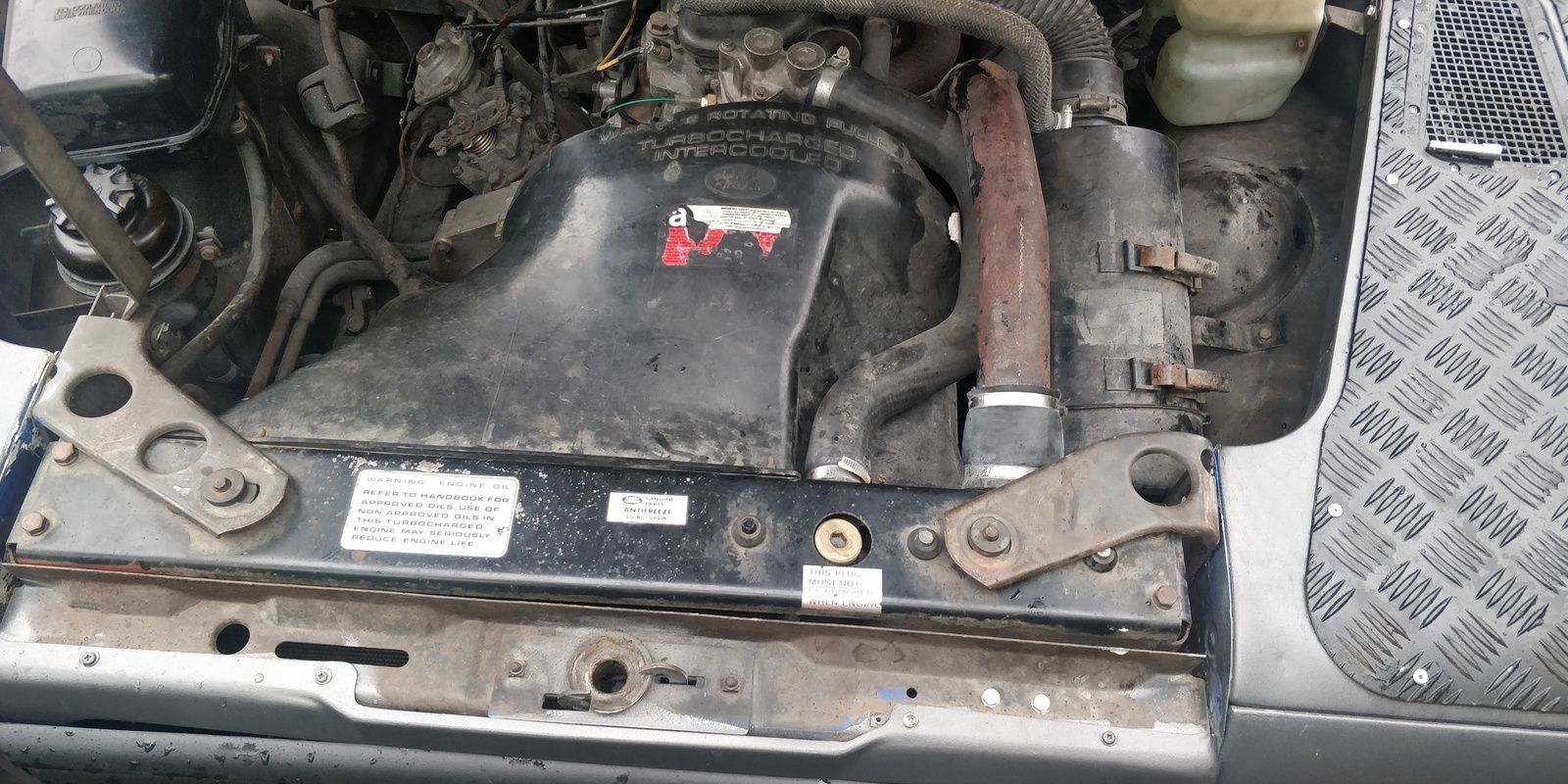

Defender 200tdi radiator giving me a bit of a headache can't get it to sit square. Dosent bother me except it means my fan catches the fan cowl.
What way is the top of the radiator held in place there dosent seem to be any adjustment in the brackets

Thanks in advance



Attachments

•

  255.2 KB · Views: 73

Turboman

Mab An Gov

• Sep 3, 2019

• #2

Ryan_mag said:

Defender 200tdi radiator giving me a bit of a headache can't get it to sit square. Dosent bother me except it means my fan catches the fan cowl.
What way is the top of the radiator held in place there dosent seem to be any adjustment in the brackets

Thanks in advance

Click to expand...

2 brackets at the top, the bits that attach to the rad have rubber mounts.
The brackets adjust by moving the bracket where it attaches to the panels at the sides.



R

Ryan_mag

Member

• Sep 3, 2019

• #3

I can't see any adjustment in them the bolts seem to be fixed



C

Colthebrummie

Well-Known Member

• Sep 3, 2019

• #4

Loosen off all the fittings and see if you can wiggle it straight. Most landrovers aren't built completely straight to begin with. Brummie car makers are given hammers but not set squares cos they are for poofs.

Col



Turboman

Mab An Gov

• Sep 3, 2019

• #5

Ryan_mag said:

I can't see any adjustment in them the bolts seem to be fixed

Click to expand...

There should be slight movement in the bracket with all the fittings loosened, if there isn't, create some using a rat tailed file in the holes in the panel.

Or, like he says^^^^^, just use brute force.



H

Hicap phill

Well-Known Member

• Sep 3, 2019

• #6

If that’s a standard fit engine, check engine mounts as well.
That’s if the marks of the fan are on the lower cowl.



C

Colthebrummie

Well-Known Member

• Sep 3, 2019

• #7

As a next to last resort, file a bit off the tips of the fan blades.

Col



Turboman

Mab An Gov

• Sep 3, 2019

• #8

Colthebrummie said:

As a next to last resort, file a bit off the tips of the fan blades.

Col

Click to expand...

They will probably file a bit off themselves in use, or off the inside of the cowl, whichever is softer!



H

Hicap phill

Well-Known Member

• Sep 3, 2019

• #9

Colthebrummie said:

As a next to last resort, file a bit off the tips of the fan blades.

Col

Click to expand...

Still learning from you...
Would you hold the sand paper while the engine is running?



C

Colthebrummie

Well-Known Member

• Sep 3, 2019

• #10

Hicap phill said:

Still learning from you...
Would you hold the sand paper while the engine is running?

Click to expand...

Not me personally, but I have a rather stupid brother.

Col



zeaphod

Well-Known Member

• Sep 3, 2019

• #11

The radiator frame is located onto two lugs on the chassis at the bottom, worth checking these are still intact/in the right place - and that the little rubber bushes are still intact.
