Keow Helghor
Member
Lol long studs?
blue beasty
Leaks an prone to bits dropping off
flat
Well-Known Member
Were you able to remove the old studs and fit the new ‘in situ’ without dismantling everything?
Marmaduke
Well-Known Member
I've been told it's possible to do it with the aid of a scissor type ball joint remover
Marmaduke
Well-Known Member
Thank you@Marmaduke , that's a very smart looking 2A you have there
v8250
Well-Known Member
v8250
Well-Known Member

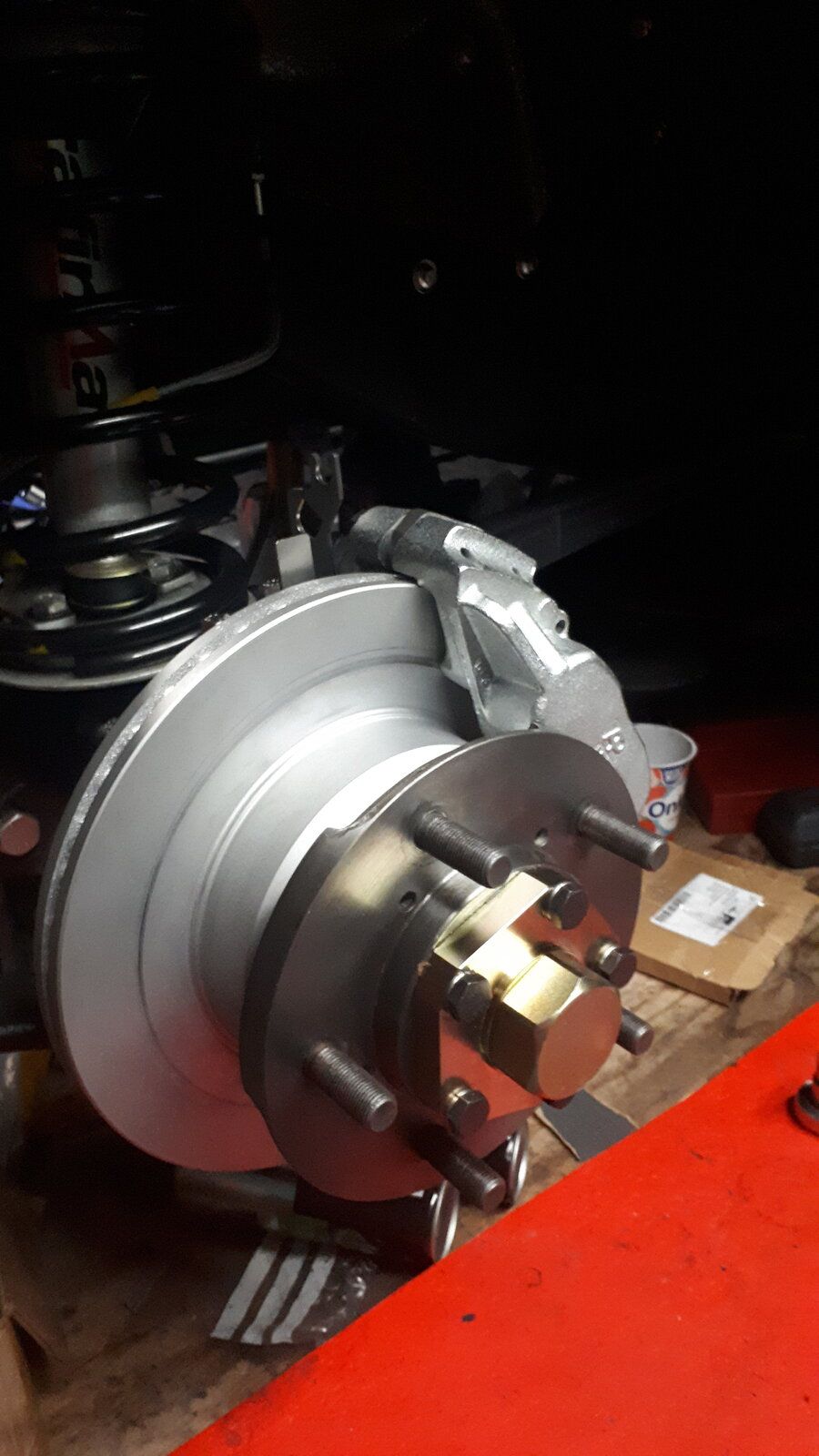

No, the hubs needs removing to press out + being the spotlessly clean mechanoporn ocd chap that I am have replaced all the bearing and seals + new HD drive members at the same time
v8250
Well-Known Member
I doubt it, the 60mm studs wouldn't fit especially the fronts with discs as there's no space - personally, trying to fudge something isn't worth it when it's only a weekend's work to strip, press out, rebuild, press home...and have spotlessly clean new axles/hubs
eta: 3 down, 1 to go...just popped in for a bacon and eggs lunch
wireman
Well-Known Member
So would I

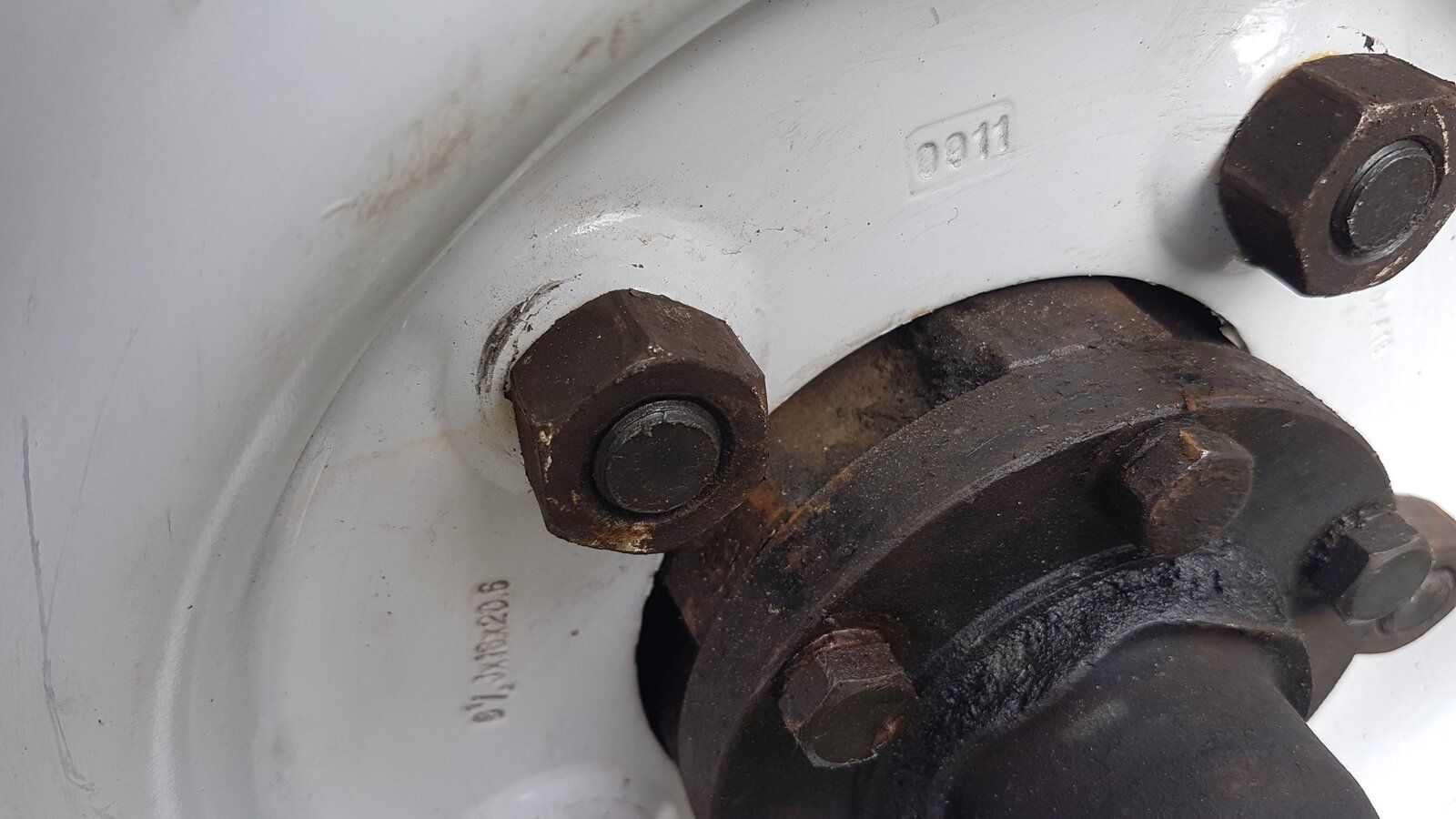

These are 45 mm thread and around 50 mm OA, the STD are 40 mm thread. These work out at 3/16 longer and will look like this on a genuine LR HD rim:
https://www.ebay.co.uk/itm/45mm-x-1...e=STRK:MEBIDX:IT&_trksid=p2057872.m2749.l2649
Don't trust the part number, it should be the longer stud but some sellers use that number for the 40 mm. Just make sure its 45mm thread.

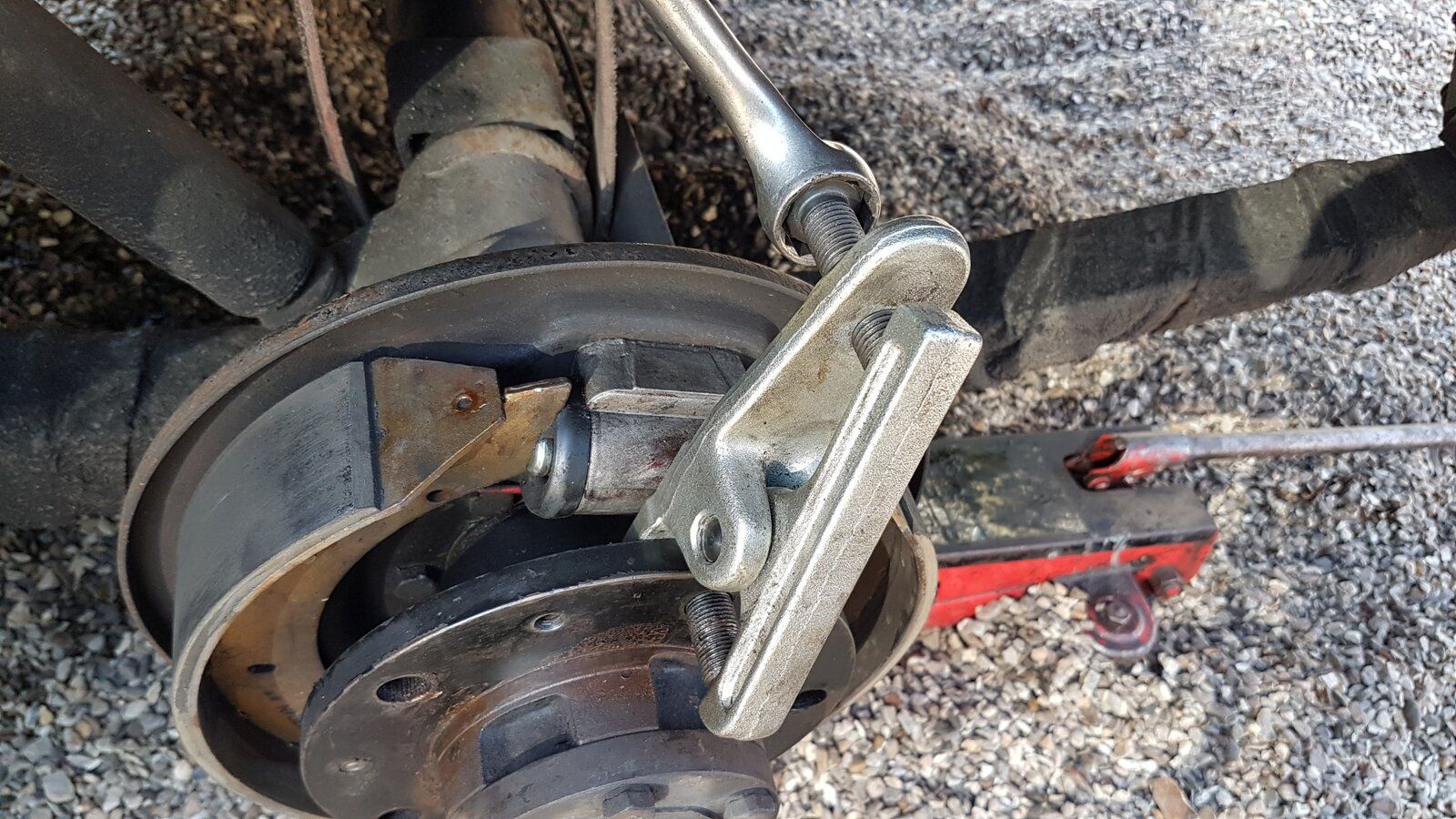

This is a large size splitter and I had to open out the fork by 1/6" to clear the stud heads. There's one spot where there's enough clearance. Admire the wrapped springs while you're there.
https://www.ebay.co.uk/itm/45mm-x-1...e=STRK:MEBIDX:IT&_trksid=p2057872.m2749.l2649
Don't trust the part number, it should be the longer stud but some sellers use that number for the 40 mm. Just make sure its 45mm thread.
This is a large size splitter and I had to open out the fork by 1/6" to clear the stud heads. There's one spot where there's enough clearance. Admire the wrapped springs while you're there.
flat
Well-Known Member
cool thanks
what did you wrap the springs in? I am thinking of doing the same with my Sankey trailer
Use Denso tape or this stuff which is very similar from Toolstation:
https://www.toolstation.com/petro-tape-10m/p57185
The 2" needs too many wraps and the 4" is too wide, 3" is about right.
Its sticky, very sticky, sticker than that.
https://www.toolstation.com/petro-tape-10m/p57185
The 2" needs too many wraps and the 4" is too wide, 3" is about right.
Its sticky, very sticky, sticker than that.
wireman
Well-Known Member
46 mm studs at Paddocks
https://www.paddockspares.com/frc5926k-wheel-stud-46mm.html
Only 48p each. 60 mm ones
https://www.paddockspares.com/frc7577-wheel-stud-60mm.html
£4.74!!! How can they justify a ten fold price increase for 15mm more metal?
https://www.paddockspares.com/frc5926k-wheel-stud-46mm.html
Only 48p each. 60 mm ones
https://www.paddockspares.com/frc7577-wheel-stud-60mm.html
£4.74!!! How can they justify a ten fold price increase for 15mm more metal?
v8250
Well-Known Member
Guys,as you know I've just fitted 60mm 10.9 studs - pricewise, if you search online you can find bulk buy costs that are nowhere near some of the prices generally quoted. I ended up buying mine as 20 off for low cost back in February as saw them at heavily discounted rate and they arrived in Land Rover G part serial #'d bags.
I think this is central to the whole issue. Because the so called "Wolf studs" can be anywhere up to £6 each which adds up to £120 which puts people off. The 45/46mm fit Wolfs just fine and at 48p that's a £9.60p job which a whole world different. That or shop around for the 60mm on offer, either way I think the dealers pricing up the 60mm studs and not also pointing to the 46mm have to take some blame for the whole argument about stud legnth.
Thats far too clean and tidy. When I fitted my modular I wasn't happy about the amount of stud pertruding but enough is enough and once loose a bit more isnt gonna make much difference. But if its cheap and quick I would consider it no brainer.
landy-lee
Well-Known Member
I am just about to buy some 45mm studs the same part number as your link. Will i need metric or imperial tread nuts?
flat
Well-Known Member
the nuts you have already will work, it’s just a stud swap.
assuming you have a defender and not a series. It will be metric wheel nuts
Agreed, std M16 nuts, should be the same. Just double check that they have the 45 mm in stock not the 40.
Someone asked about the spring wrap, its Denso tape or "petro" tape if you are near a Toolstation, use the 3" version, 2" is too narrow and 4" won't wrap easily.
Its horrendously sticky and messy but once on its stays on for several years. I reel should do 2 springs.
Someone asked about the spring wrap, its Denso tape or "petro" tape if you are near a Toolstation, use the 3" version, 2" is too narrow and 4" won't wrap easily.
Its horrendously sticky and messy but once on its stays on for several years. I reel should do 2 springs.
