border · Mar 10, 2020

Disco 300 Tdi conversion in to 110.
Nearly got my engine bay finished, Need Air box and washer bottle soon,

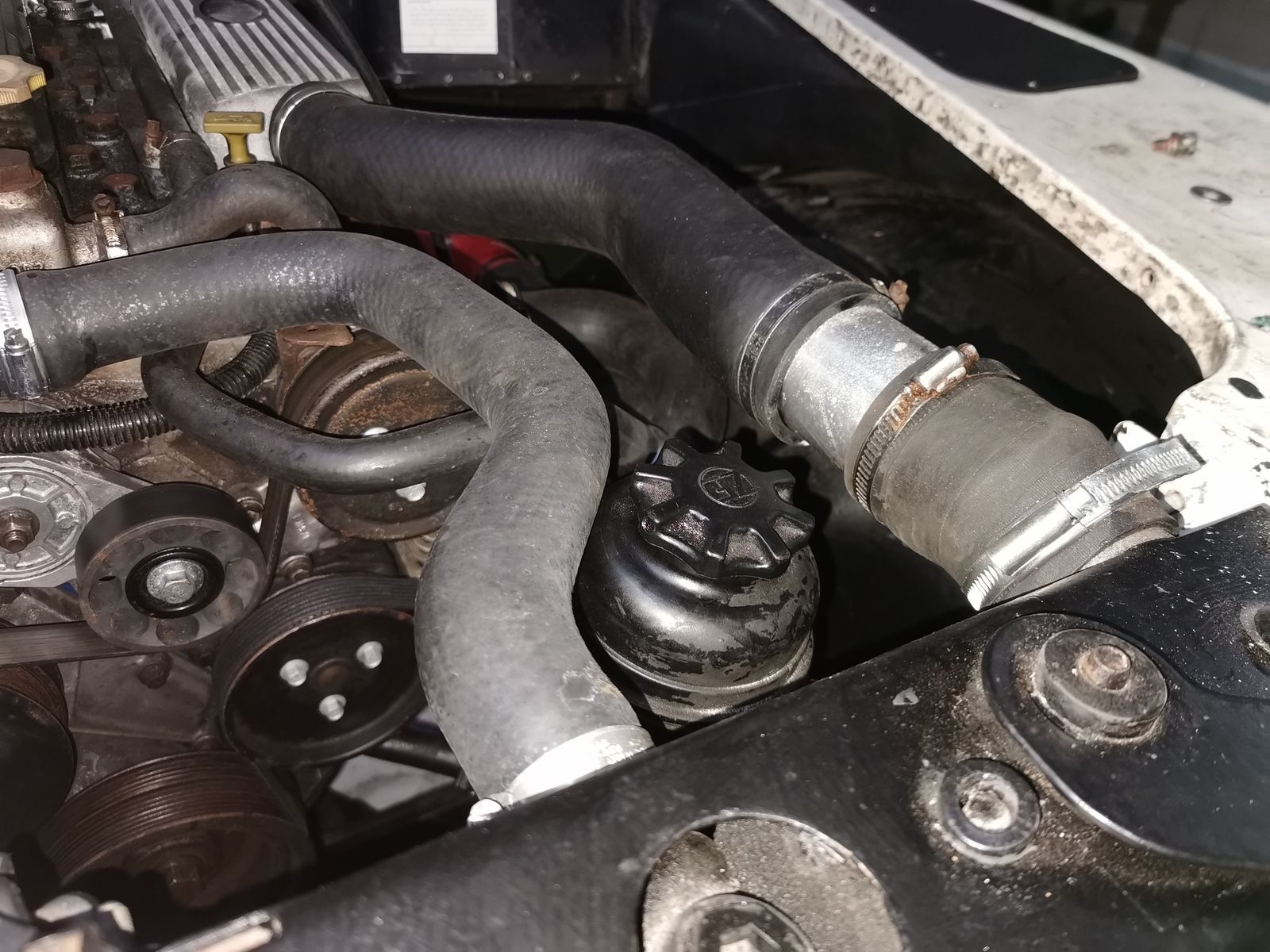

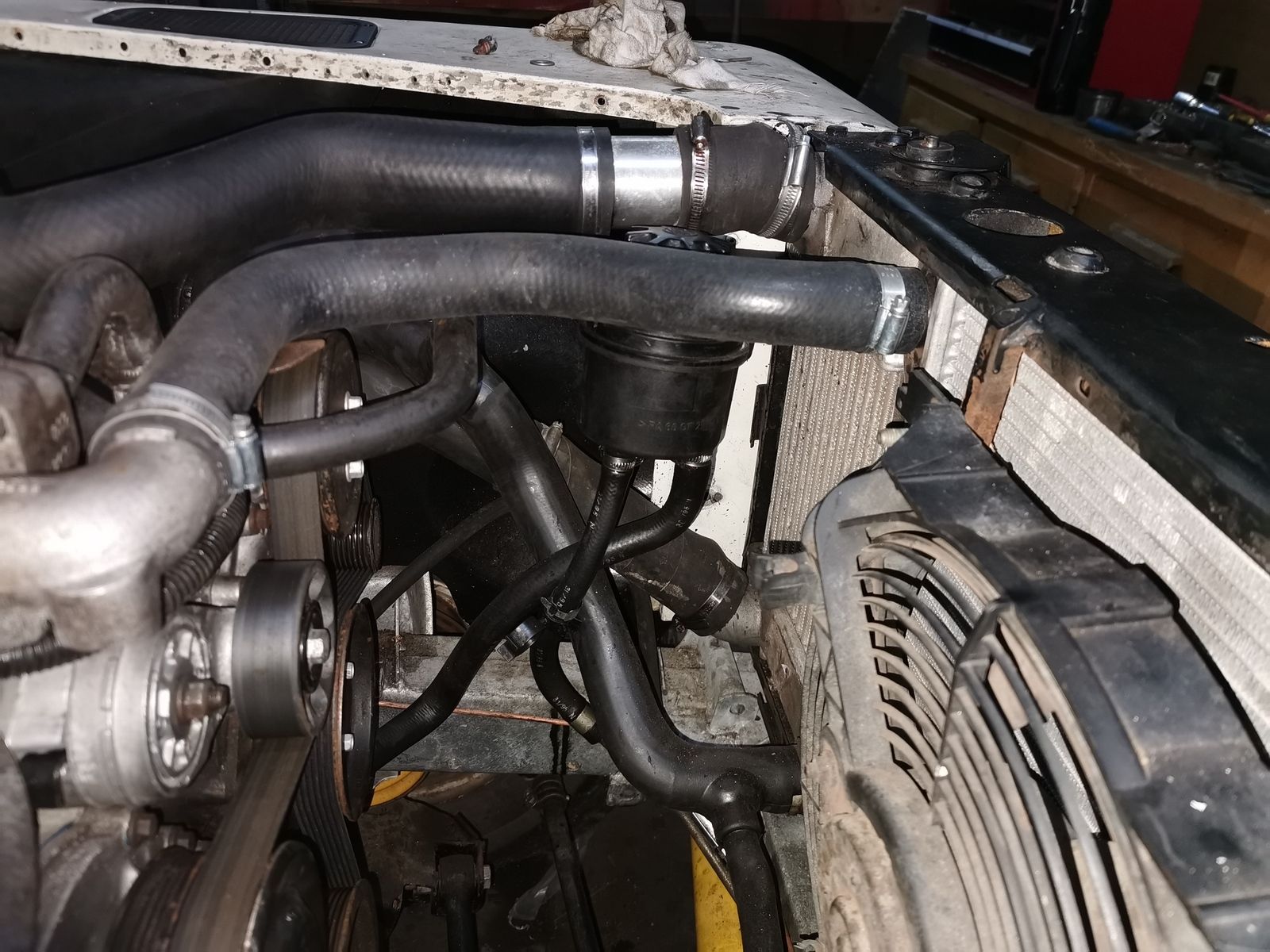

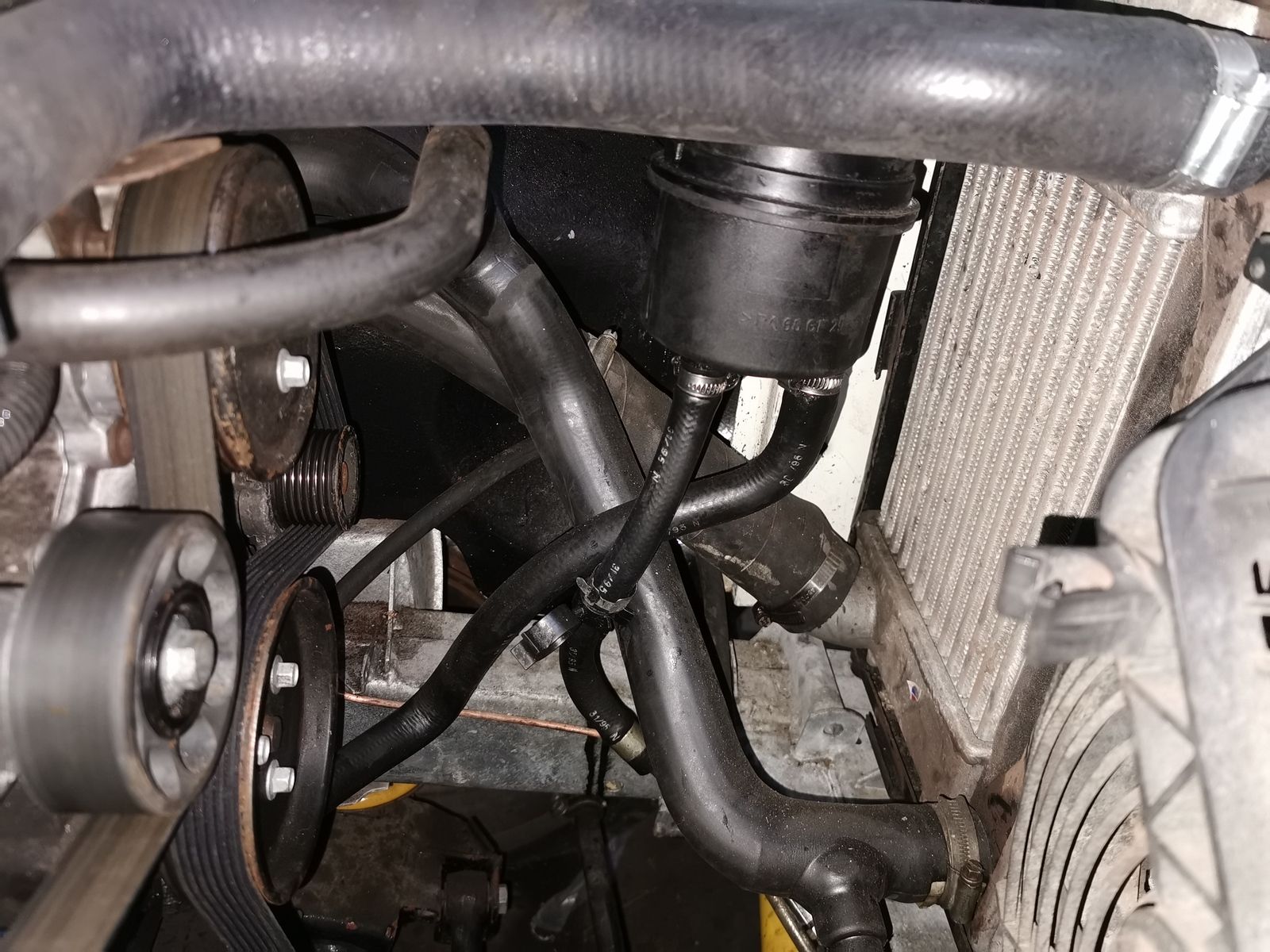

Next puzzle is my power steering Res, Think it needs to be a little higher then it is now in pics.
I had the pipe from box to pump lengthened to fit. I can easily lengthen one of the rubber pipes on the Res but the other is clamped on to the metal part of the pipe, Is there any way I can make this one longer without having to take back off ? Ican move it further along nearest the passenger wing, wherever it goes I will also have to make some kind of bracket to hold it in place, Been looking at other peoples pics of same conversion, but cant really see how they have done it.
Anyone done this before ?

jamesmartin · Mar 10, 2020

border said:
Disco 300 Tdi conversion in to 110.
Nearly got my engine bay finished, Need Air box and washer bottle soon,
Next puzzle is my power steering Res, Think it needs to be a little higher then it is now in pics.
I had the pipe from box to pump lengthened to fit. I can easily lengthen one of the rubber pipes on the Res but the other is clamped on to the metal part of the pipe, Is there any way I can make this one longer without having to take back off ? Ican move it further along nearest the passenger wing, wherever it goes I will also have to make some kind of bracket to hold it in place, Been looking at other peoples pics of same conversion, but cant really see how they have done it.
Anyone done this before ?

because its not a pressure pip you can split it and use a tube and hose clips

border · Mar 10, 2020

jamesmartin said:
because its not a pressure pip you can split it and use a tube and hose clips

Cheers was hoping I could do something like that. Any ideas of how to fit the Res bottle to hold it secure. ?

border · Mar 11, 2020

Found some hose long enough for the thicker pipe from pump to bottle, but struggling to find some kind of tube to join the smaller 12 mm one from pipe to bottle. any ideas of what would fit ?

jamesmartin · Mar 11, 2020

Amazon product

border · Mar 11, 2020

jamesmartin said:
Amazon product

Looks perfect stupid me was thinking about something a lot longer for some reason.
Is 17mm the right one to fit in to the 12mm rubber hose ?,

jamesmartin · Mar 11, 2020

border said:
Looks perfect stupid me was thinking about something a lot longer for some reason.
Is 17mm the right one to fit in to the 12mm rubber hose ?,

youd want 12mm

border · Mar 11, 2020

jamesmartin said:
youd want 12mm

Thanks will look for something local tomorrow.

border · Mar 11, 2020

Halfords got these but only 13 mm might be able to push them on. https://www.halfords.com/tools/fuse...e-connectors-straight-13mm-hfx372-869149.html

jamesmartin · Mar 11, 2020

if you dip hose ends in a jug of boiling water to soften them first

border · Mar 11, 2020

jamesmartin said:
if you dip hose ends in a jug of boiling water to soften them first

Will do Thanks Again

border · Mar 12, 2020

Got the connections sorted, forgot to take some bloody boiling water. The bottle will come up to the right height now, when I get them joined. but will have to make some kind of bracket to hold it in place on the wing.
Anyone got any pics of how they have done it ?

jamesmartin · Mar 12, 2020

bolts to inner front edge of wing
https://www.google.co.uk/aclk?sa=l&...=2ahUKEwiHwq6A3pXoAhUBYBoKHbn2A04Qvhd6BAgBEDs

border · Mar 12, 2020

jamesmartin said:
bolts to inner front edge of wing

Did you put pic on there James cant see it ,

jamesmartin · Mar 12, 2020

border said:
Did you put pic on there James cant see it ,

ive added a link

border · Mar 12, 2020

jamesmartin said:
ive added a link

Thanks Mate got it.

Rougharse Racing · Mar 12, 2020

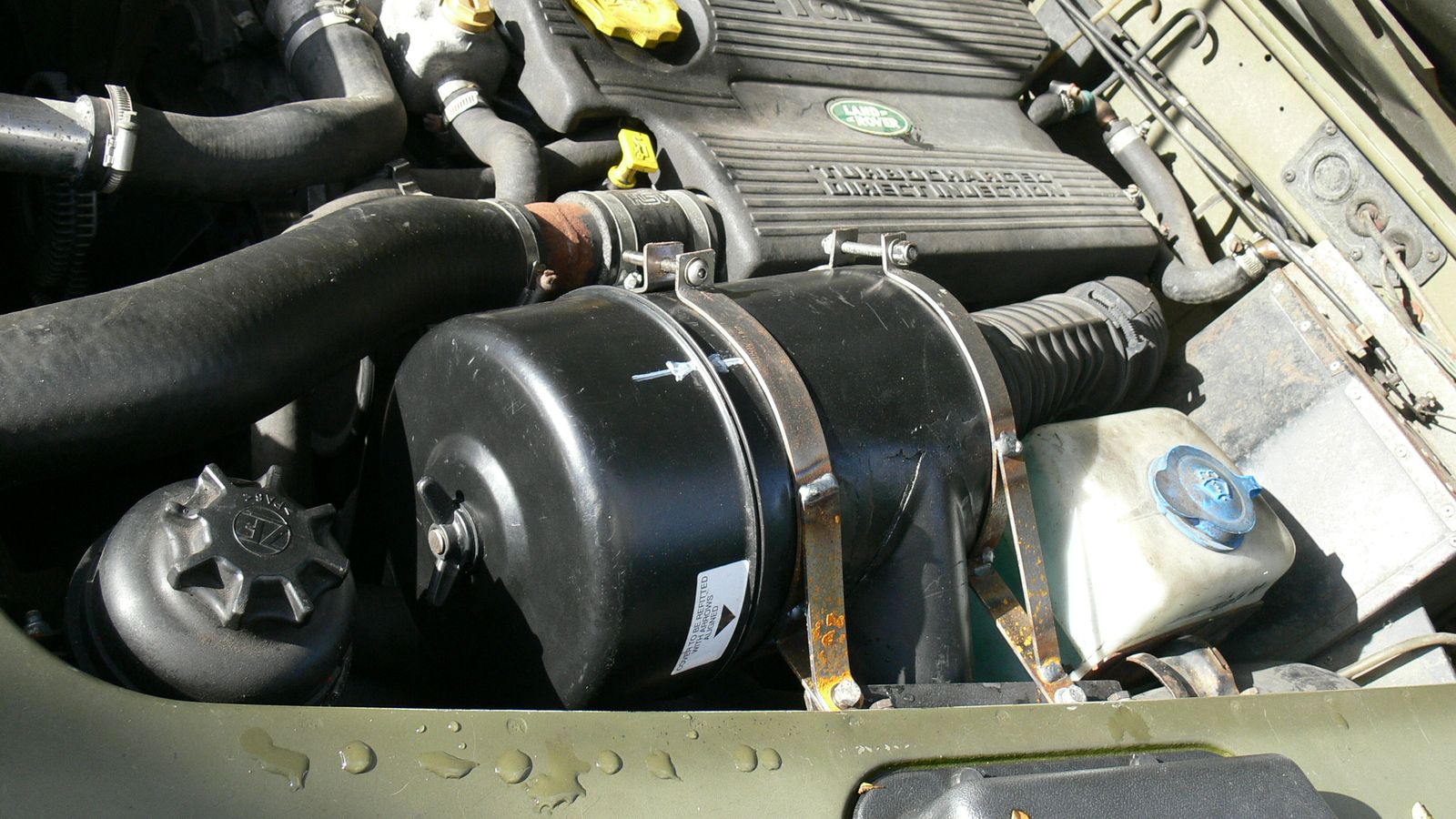

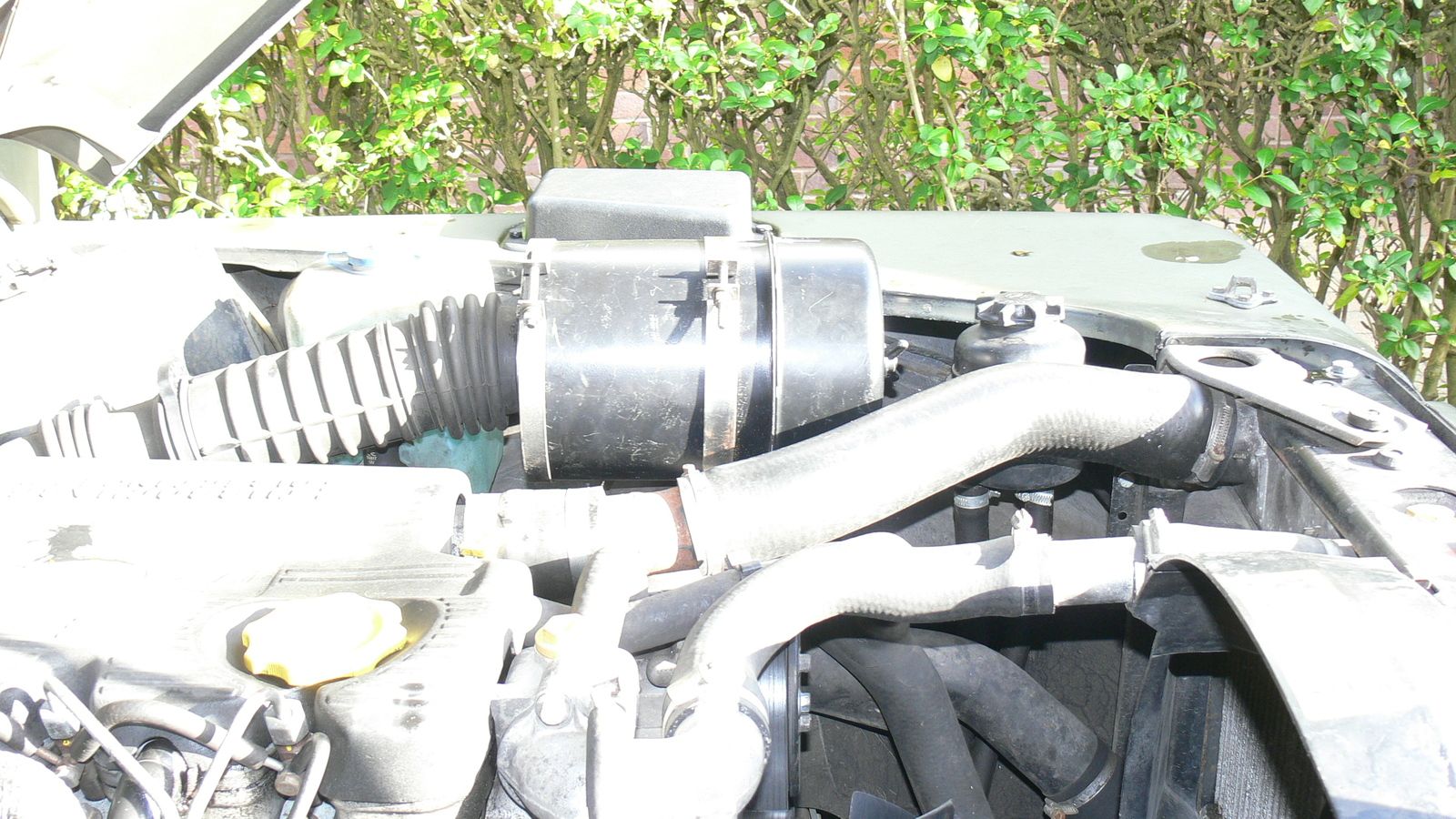

This is where the reservoir is on mine, I attached it to the inner wing behind the radiator, there is a vertical seam that it can be bolted to.

border · Mar 12, 2020

Rougharse Racing said:
This is where the reservoir is on mine, I attached it to the inner wing behind the radiator, there is a vertical seam that it can be bolted to.

View attachment 202821 View attachment 202822

That Pic is Just what I wanted to see Mate, Thanks. Mine is situated just where yours is but was starting to worry that I had it on the wrong side as I need air box and washer bottle in too. Which are my next jobs .
I am waiting for an air box like yours from a mate, but I dont have a clue which washer bottle to use, I have one off Disco but it is far too big.
Would love more pics and info on how you have fitted these in that space, as it is the exact space I have left.
Cheers

Rougharse Racing · Mar 13, 2020

The washer bottle bracket was separated and re-welded so the bottle was an inch or so nearer the heater.

border · Mar 13, 2020

Rougharse Racing said:
The washer bottle bracket was separated and re-welded so the bottle was an inch or so nearer the heater.

Was your washer bottle the original one ?, think I'll have to find one.
