Nodge68
Well-Known Member

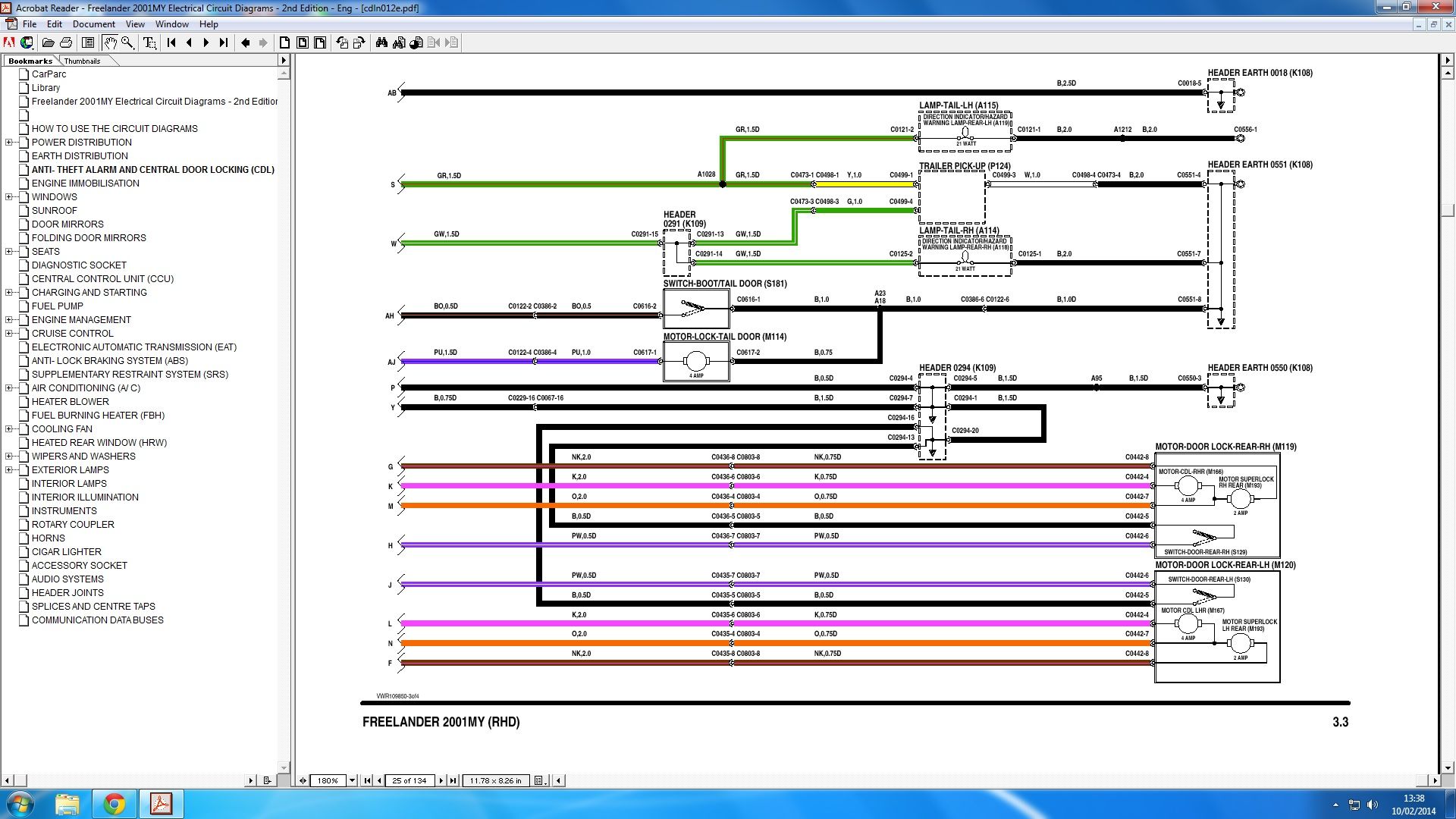

Lock is the K (pink) wire
Unlock is the O (orange) wire
Earth is earth
The CCU simply reverses the polarity of the 2 door motor wires. So the pink would go to 85 on 1 relay and 86 goes to earth.
The other relay orange goes to 85 with 86 to earth.
Both relays 30 goes to earth.
Both relays 87 to blue/black.
Last edited:
Nodge68
Well-Known Member
Lock is the K (pink) wire
Unlock is the O (orange) wire
Earth is earth
The CCU simply reverses the polarity of the 2 door motor wires. So the pink would go to 85 on 1 relay and 86 goes to earth.
The other relay orange goes to 85 with 86 to earth.
Both relays 30 goes to earth.
Both relays 87 to blue/black.
Just a thought.
I think the NK (brown/pink) might be a better wire to correct to instead of the K (pink) wire. This would mean the mirrors only work on deadlocks and not the internal door push button.
Yes the deadlock would be better idea,
hopefully if i get time i will see if it is something to wire inside the door or under the dash
then see how much wire i need to buy lol
Nodge68
Well-Known Member
Yes the deadlock would be better idea,
hopefully if i get time i will see if it is something to wire inside the door or under the dash
then see how much wire i need to buy lol
It's wireable from the CCU and take 1 wire to the dash switch or close to it.
You won't need much wire. I did look into making Diy kits a while back, but never got round to actually doing anything about it.
