Do you just let the parts soak in the Brick acid for a while ?
Would this one do ? Bostik Concentrated Mortar & Brick Cleaner 5L (toolstation.com)
Would this one do ? Bostik Concentrated Mortar & Brick Cleaner 5L (toolstation.com)
border
Well-Known Member

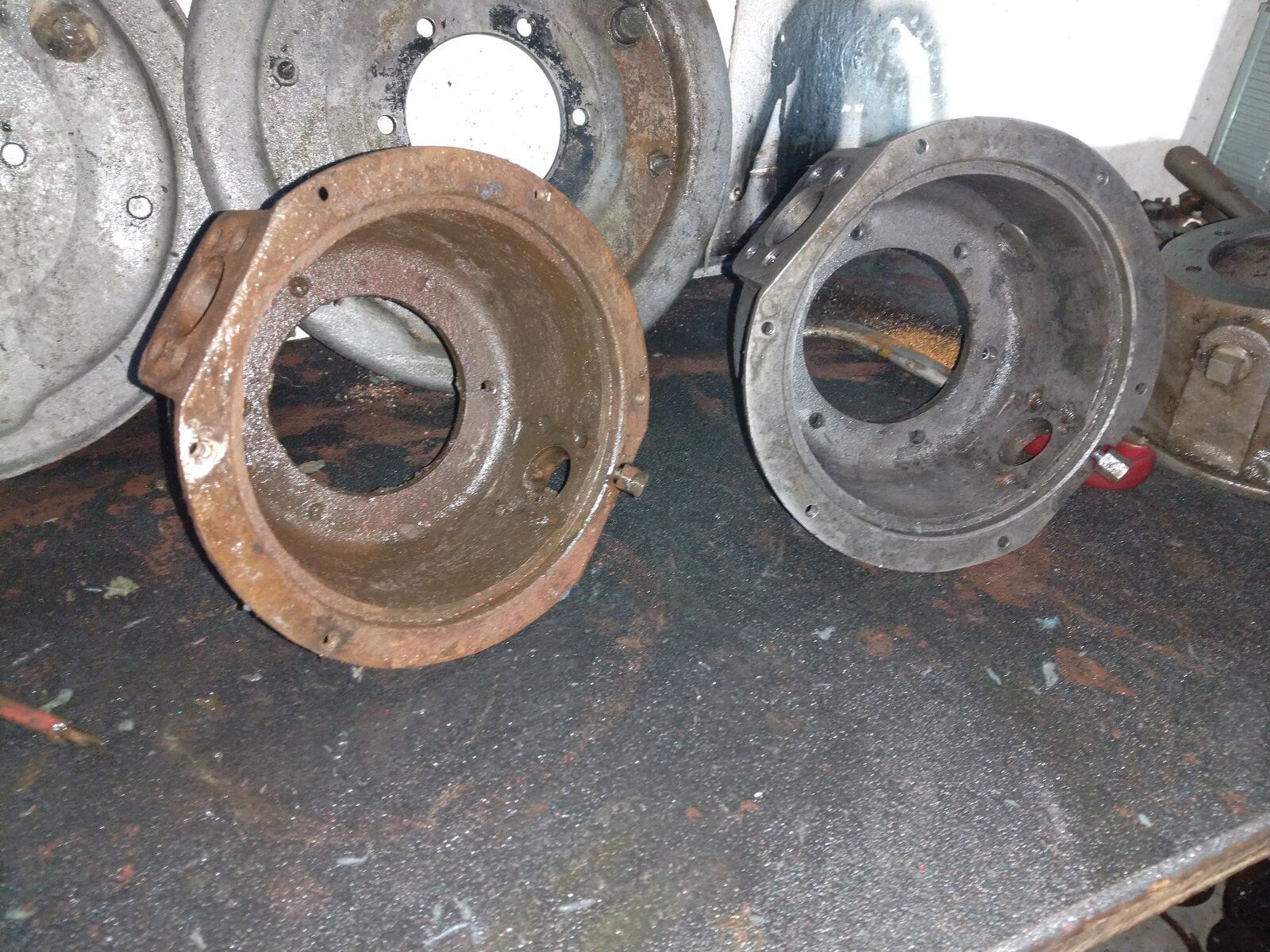

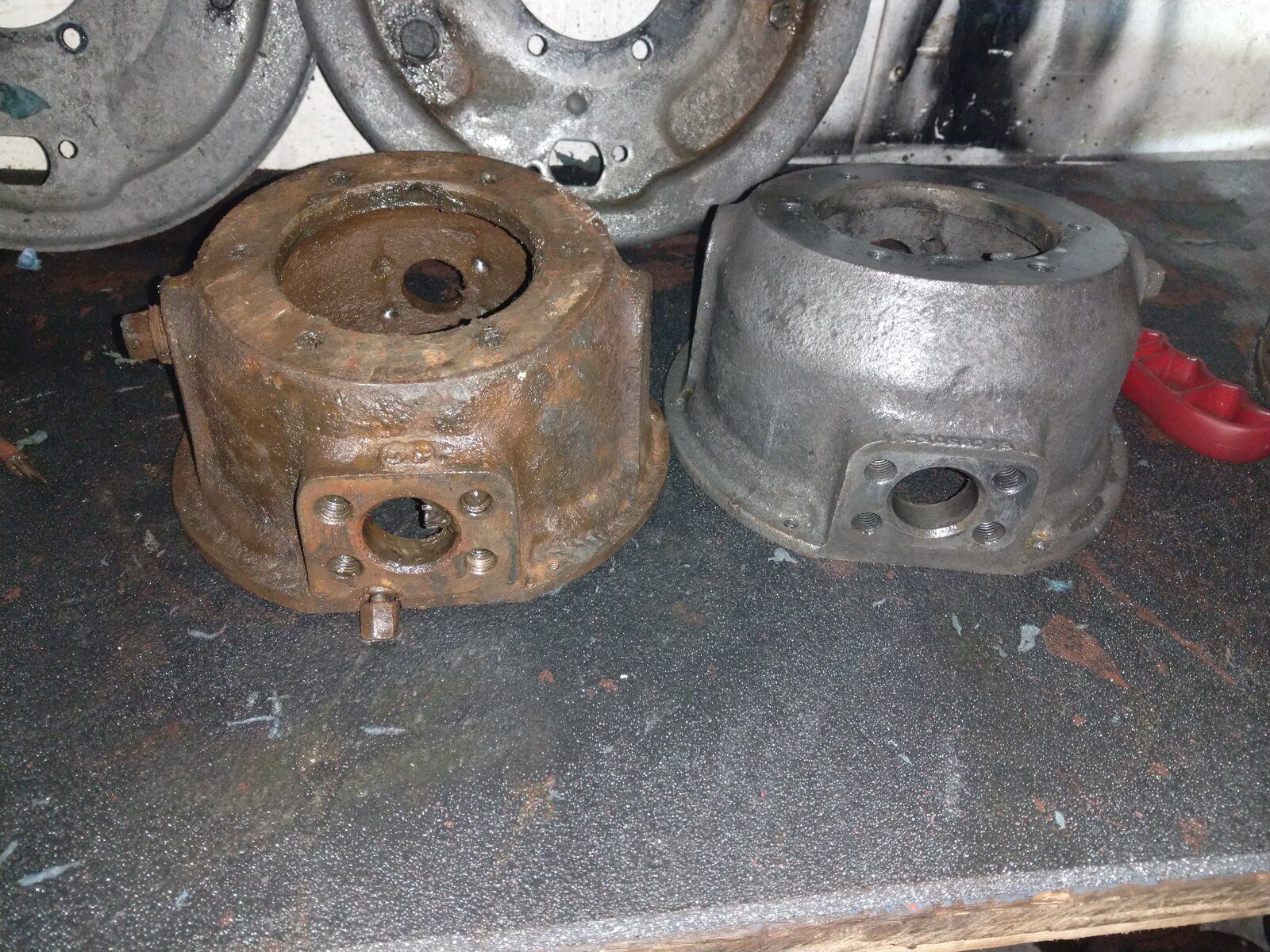

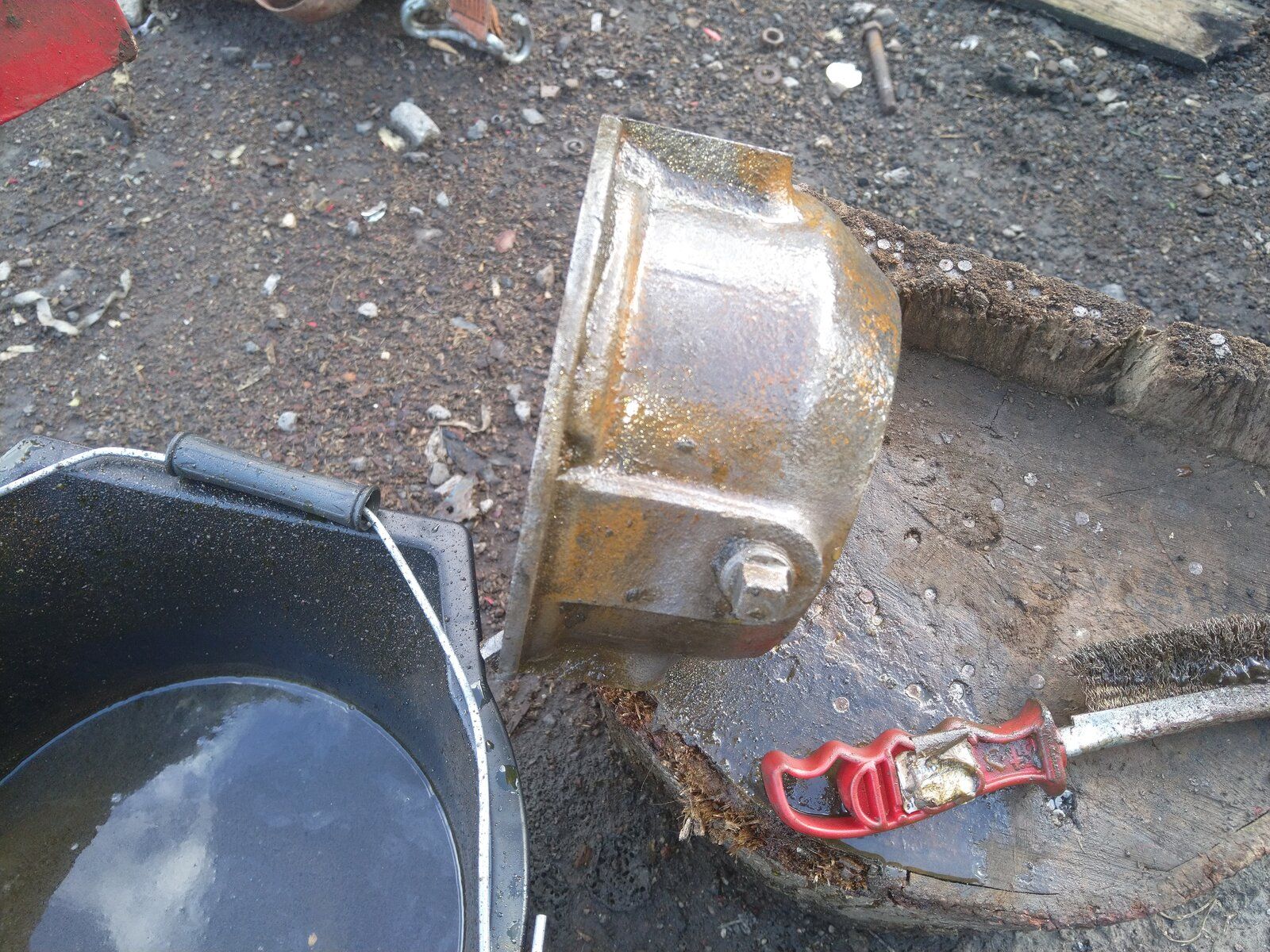

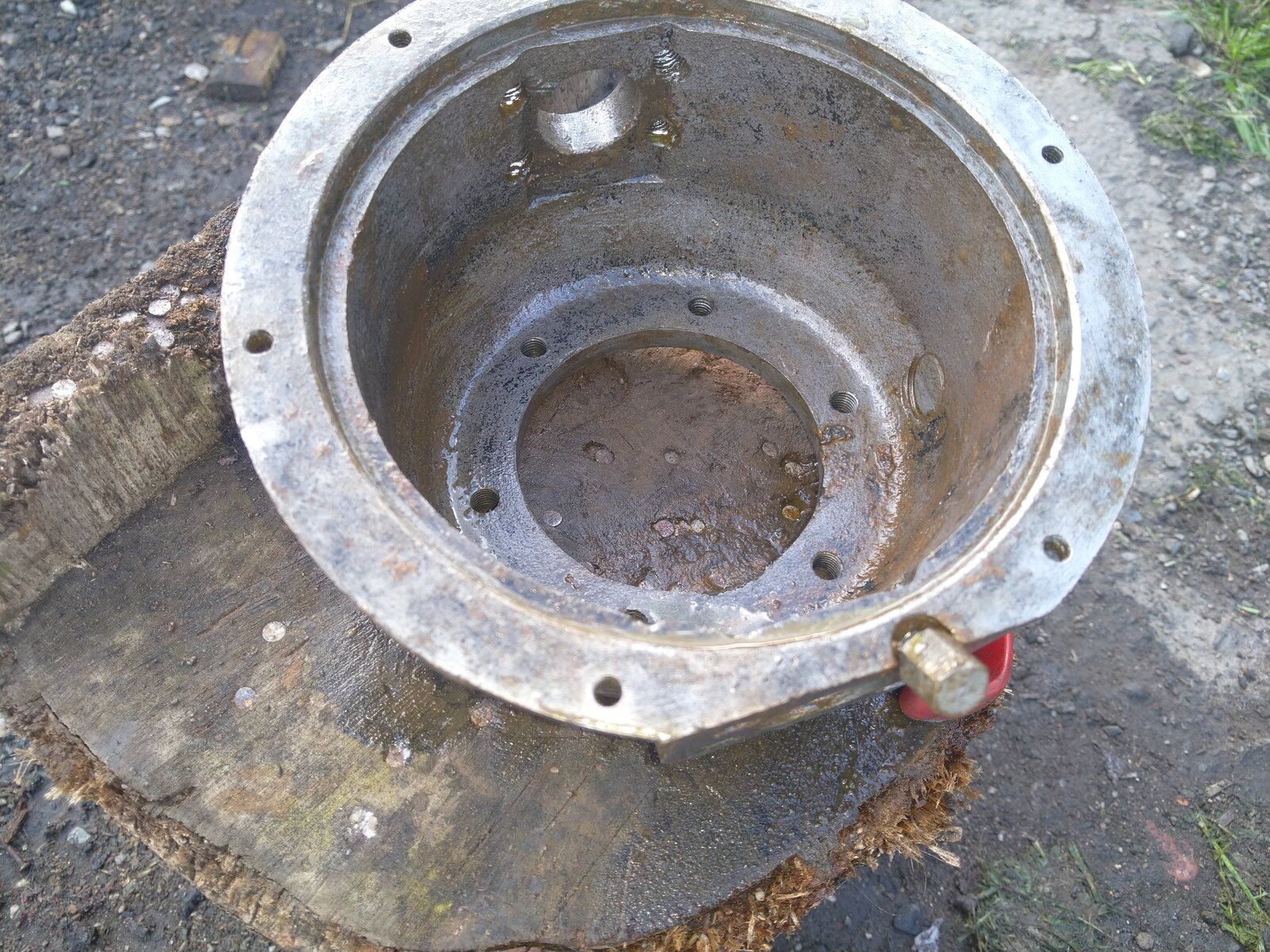

Gave it a go today and very pleased with the outcome so far, these housings were only in for a couple of hours, left them in with the backing plates till tomorrow night, hope they don't disintegrate

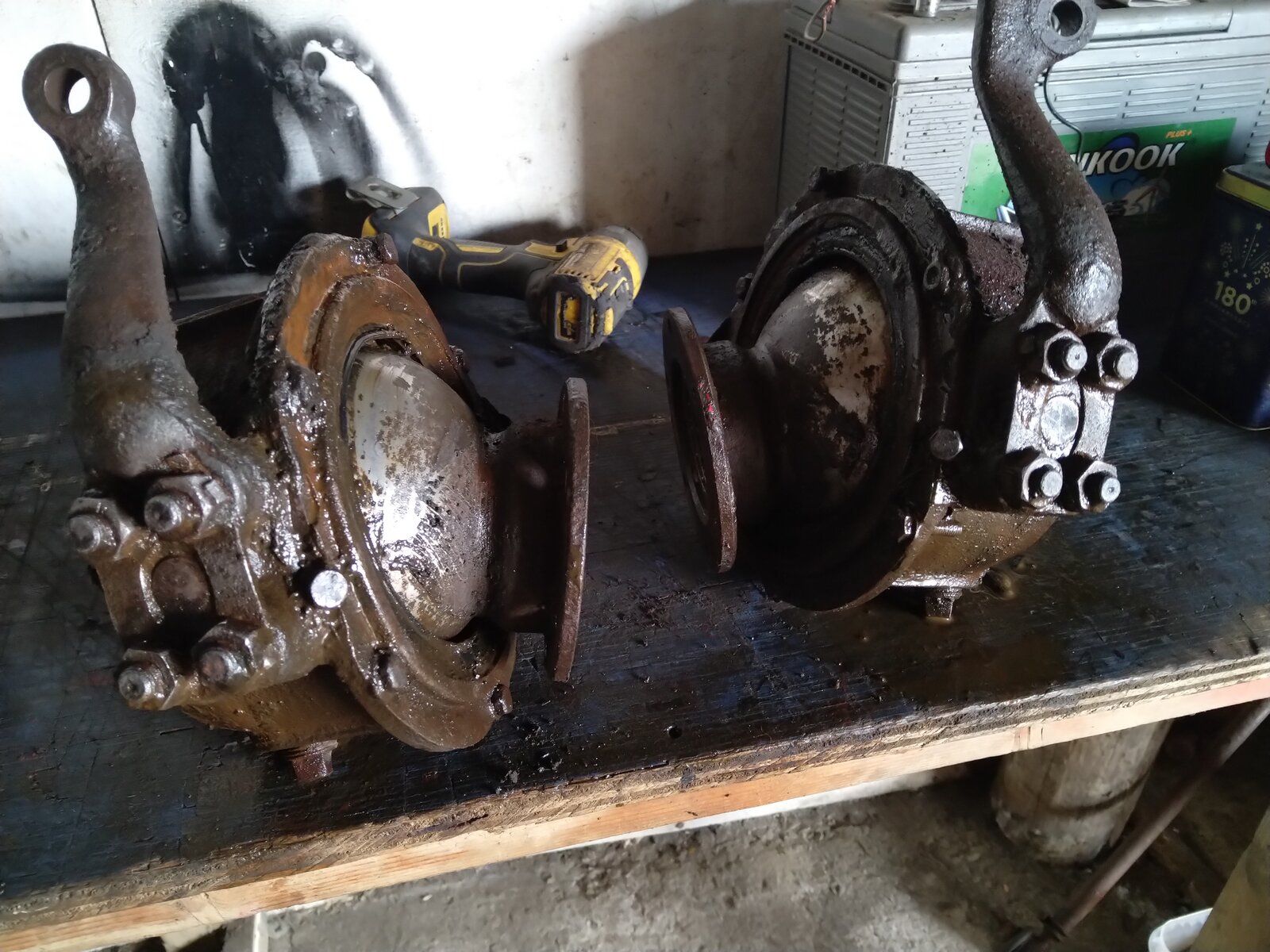

first pic is what they were like before the insides were rotten.
first pic is what they were like before the insides were rotten.
Attachments
steve2286w
Well-Known Member
The acid stuff you bought looks ok , mines a different brand so old label wore off. It would be worth getting oil and grease off first as this might stop,acid working , also keep your liquid cleaner, I guess you can keep on using it.
I found there could be hard scale on , that after acid bath would need hitting with centre punch to get scale off then out back in ,
DONT leave too long certainly not overnight as you will find it starts to eat clean metal and leave a pitted surface , not big issue on the housings apart from the gasket face , by careful placing/ submersion you can prevent some delicate areas getting the treatment
The electrolysis method good for bigger parts as v cheap but does take overnight , I’m away at the mo when I get bad I’ll see if I can find some epics of when I did the axle
I found there could be hard scale on , that after acid bath would need hitting with centre punch to get scale off then out back in ,
DONT leave too long certainly not overnight as you will find it starts to eat clean metal and leave a pitted surface , not big issue on the housings apart from the gasket face , by careful placing/ submersion you can prevent some delicate areas getting the treatment
The electrolysis method good for bigger parts as v cheap but does take overnight , I’m away at the mo when I get bad I’ll see if I can find some epics of when I did the axle
border
Well-Known Member
Will take them out tonight then wash them down with something ready for priming. Still got the Hub's to go in then start on the rear bits. Need to find something big enough for leaf springs
steve2286w
Well-Known Member
Could always knock a few bits of wood together to make a box and line with polythene, or trench in soil
border
Well-Known Member

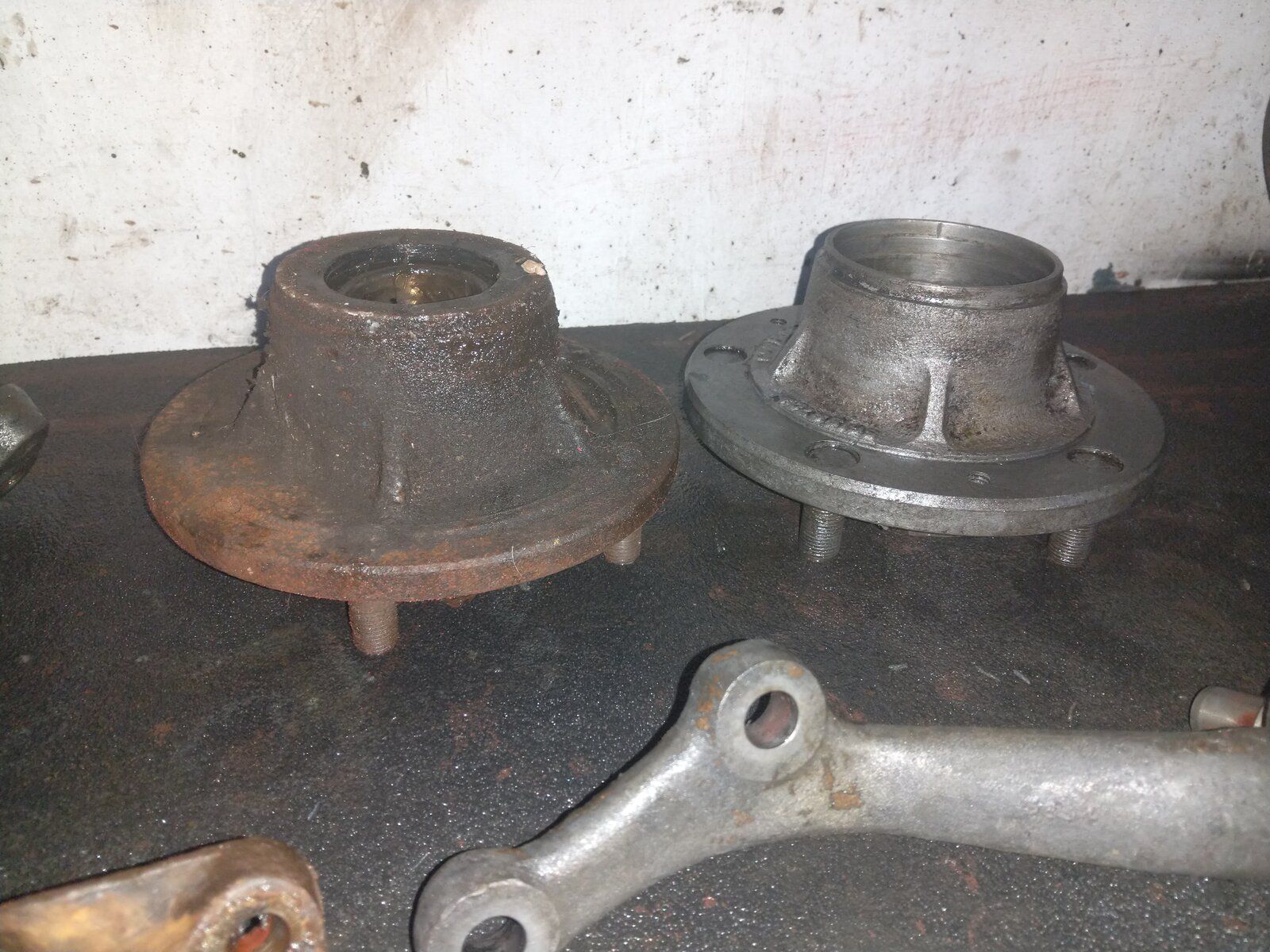

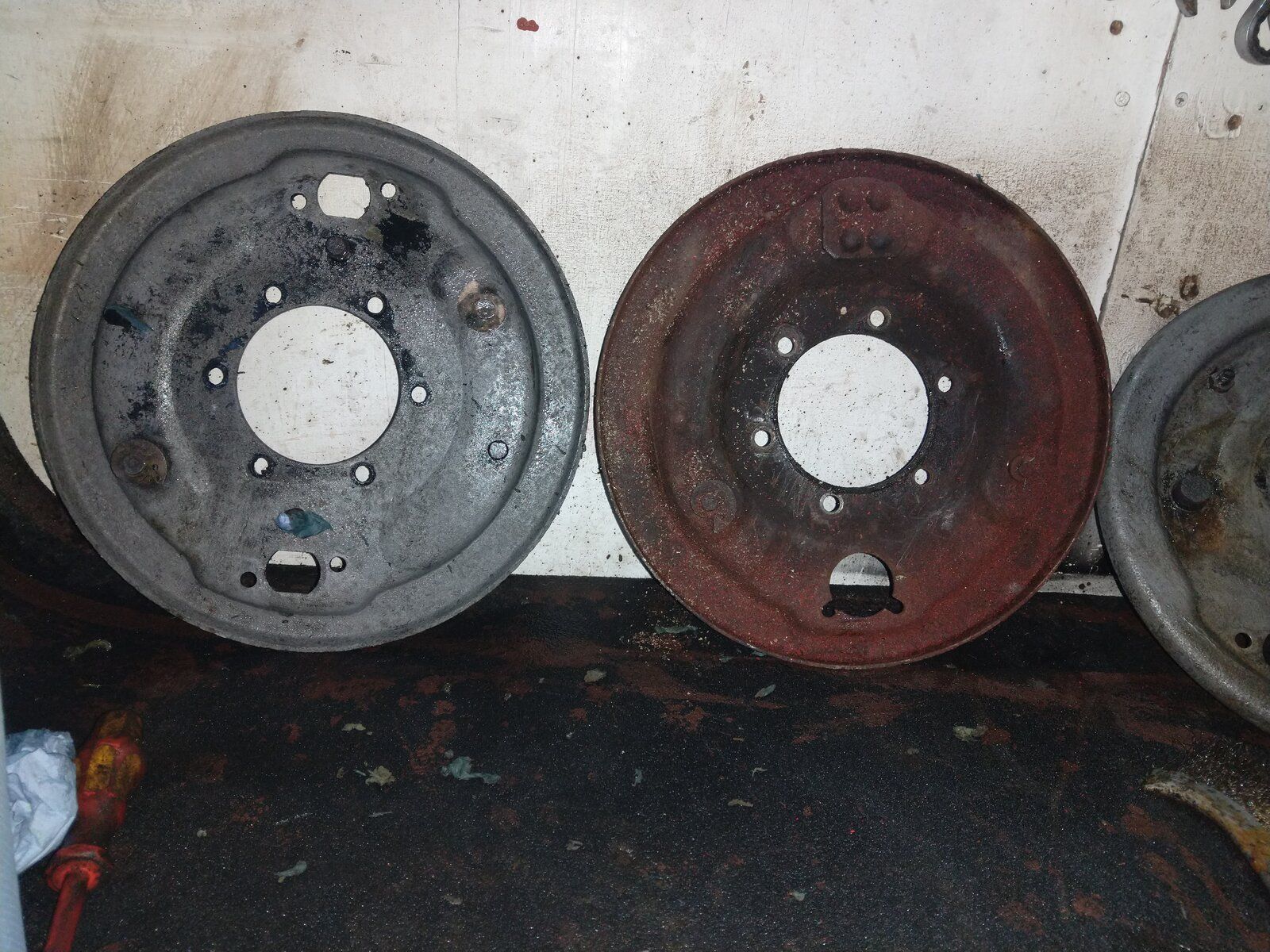

Few more pics, for comparison before and after, really pleased with the outcome.

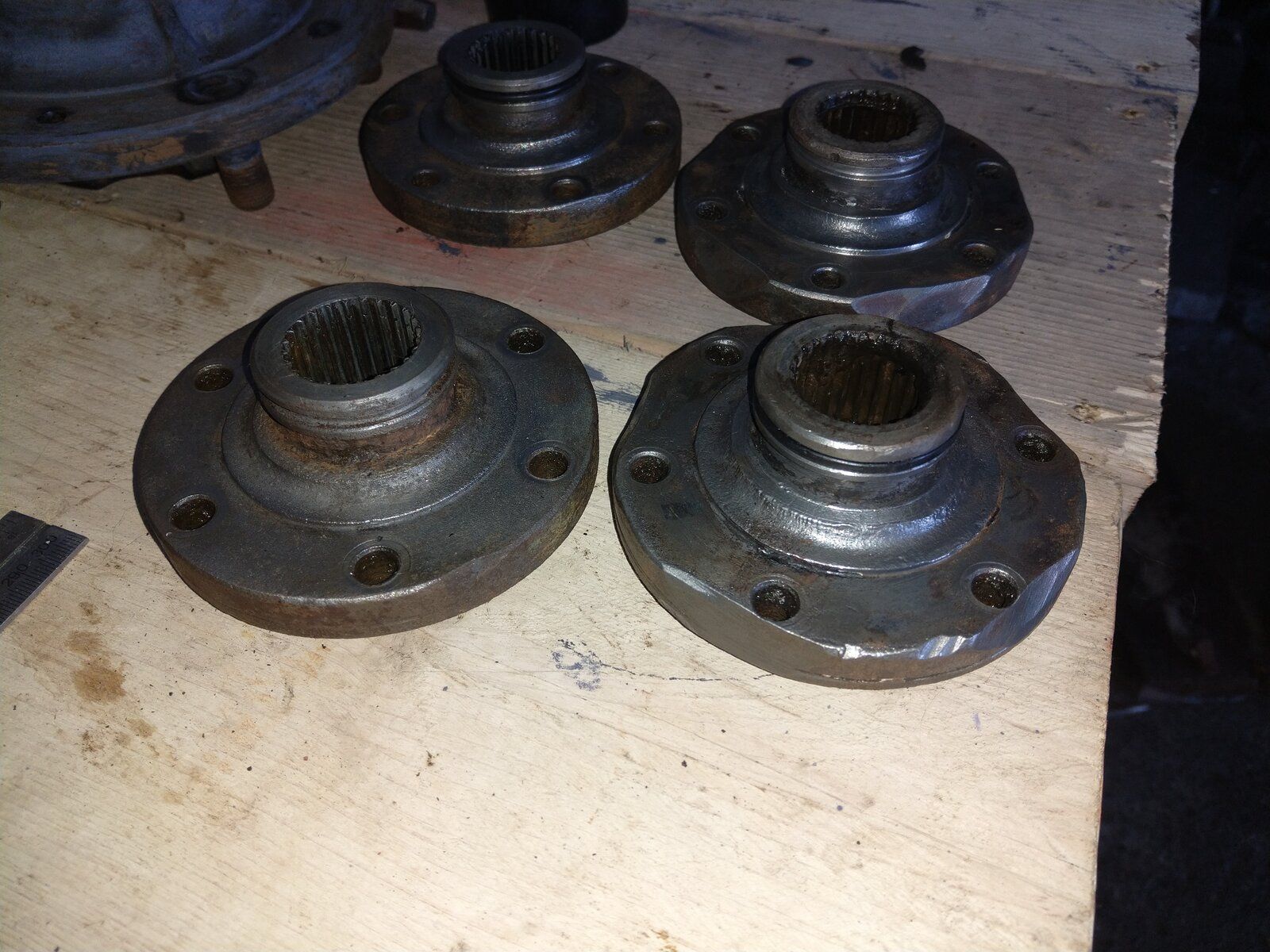

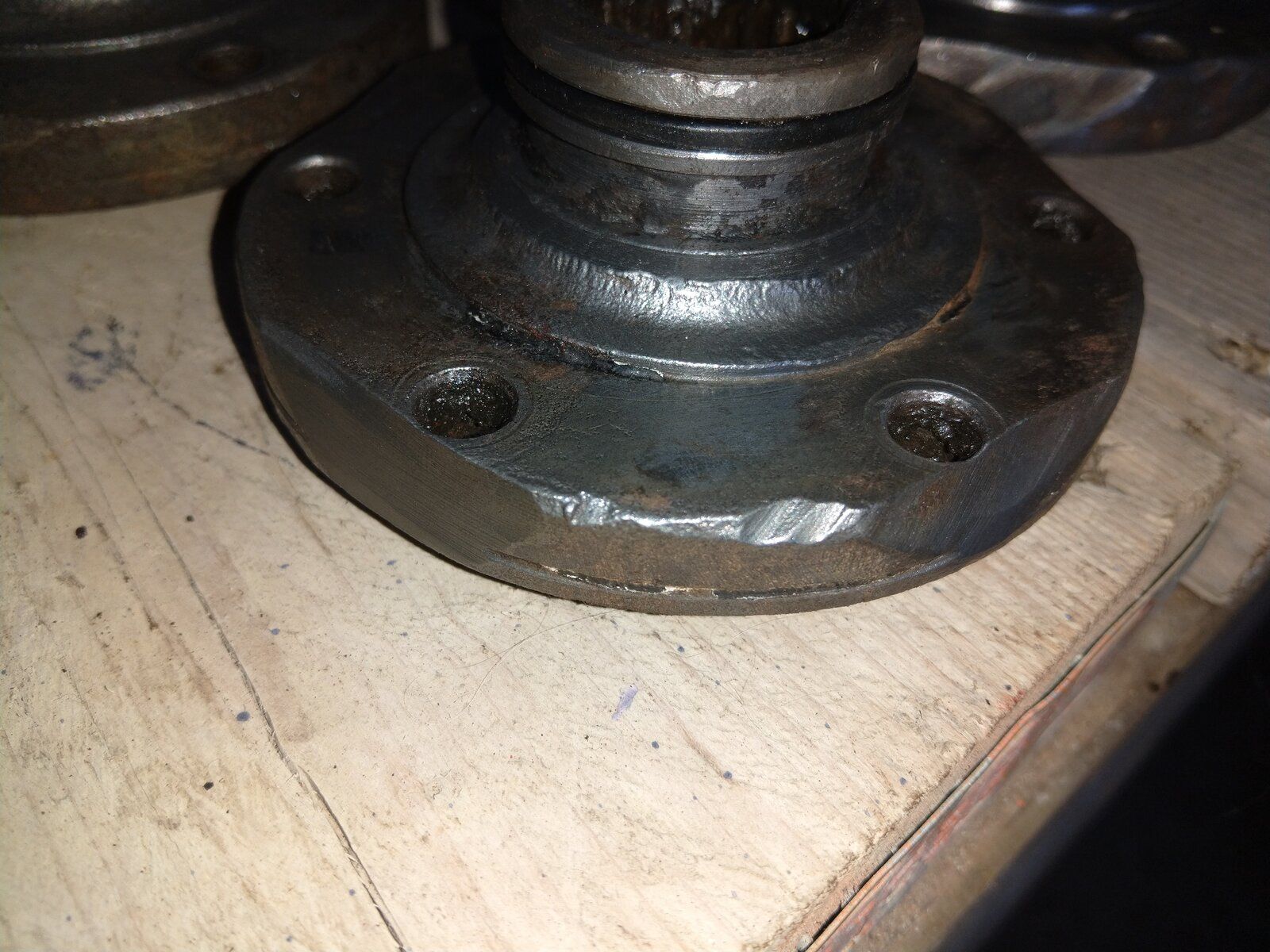

Backing plates and Housings were in all night, but the Hubs and Arms were only in for a couple of hours tonight and have come up as good.
Gave them a wash with some TFR stuff I have might give them a first coat of Primer tomorrow.
Backing plates and Housings were in all night, but the Hubs and Arms were only in for a couple of hours tonight and have come up as good.
Gave them a wash with some TFR stuff I have might give them a first coat of Primer tomorrow.
Attachments
steve2286w
Well-Known Member
Cracking job, saved a whole lot of cup brushing and dust everywhere.
border
Well-Known Member

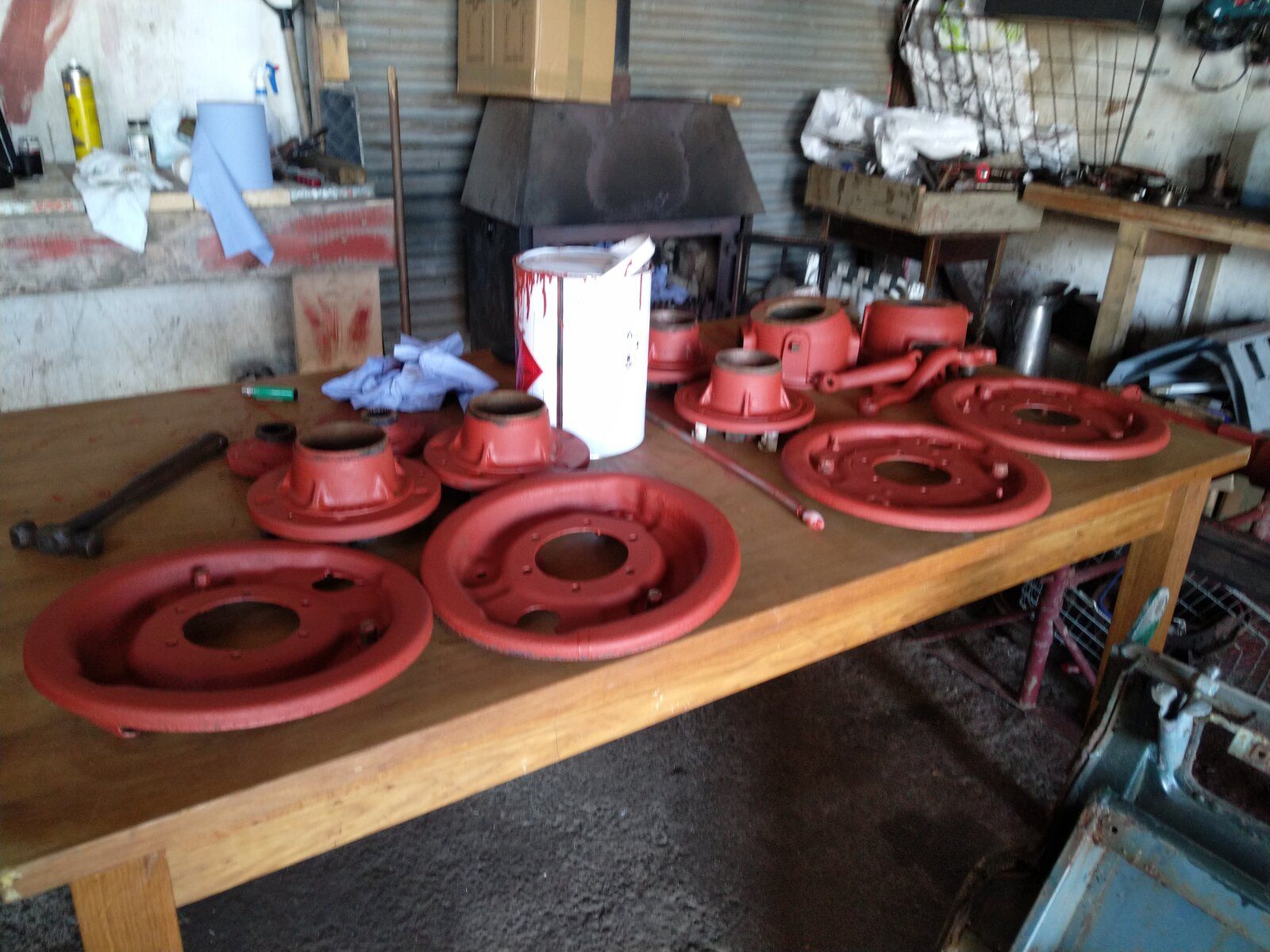

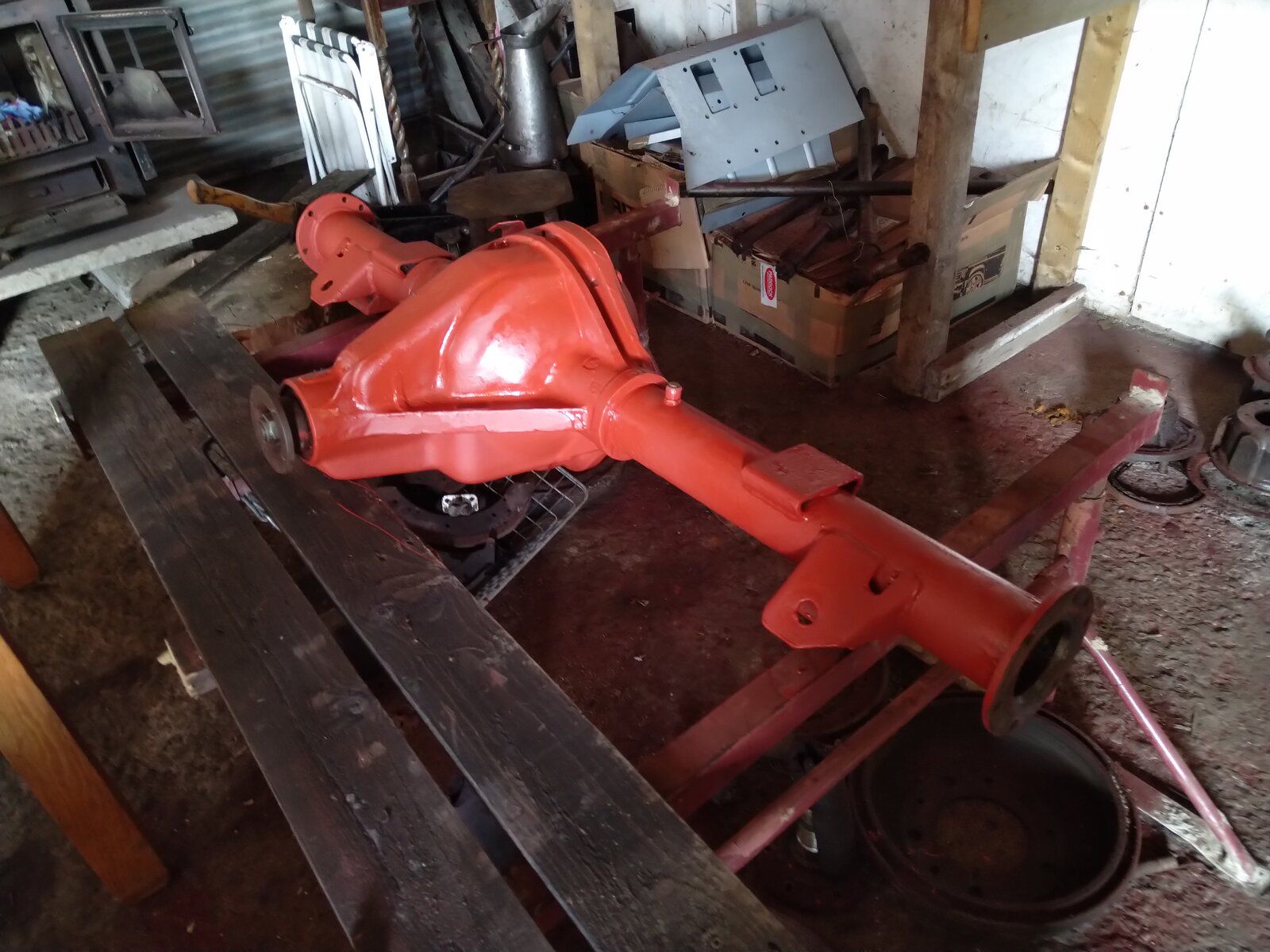

This saves all of that . will give them a quick spray with primer to keep them clean as oedered some red oxide and Corroless Top Coat, they should look brand new when painted.
border
Well-Known Member

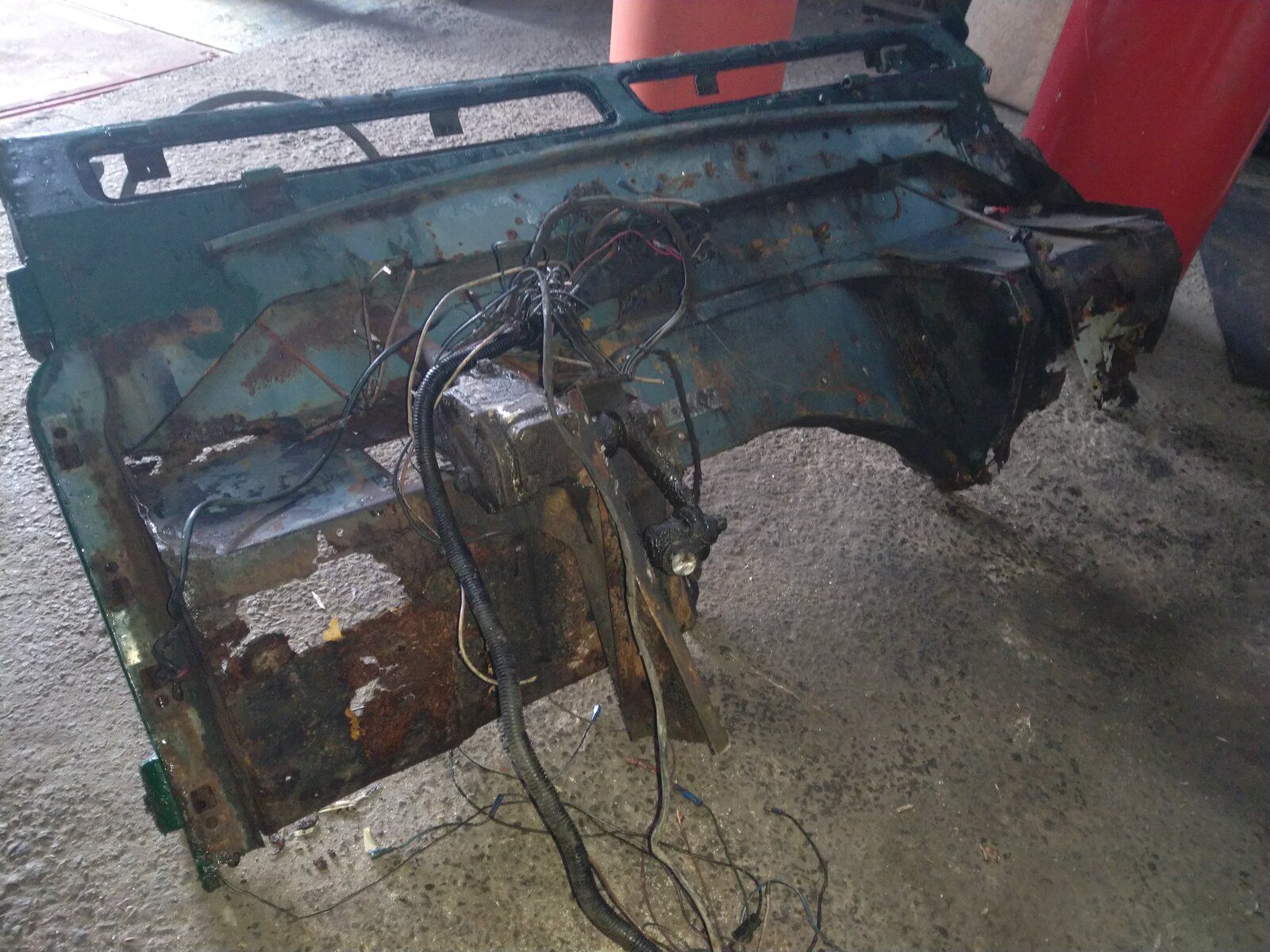

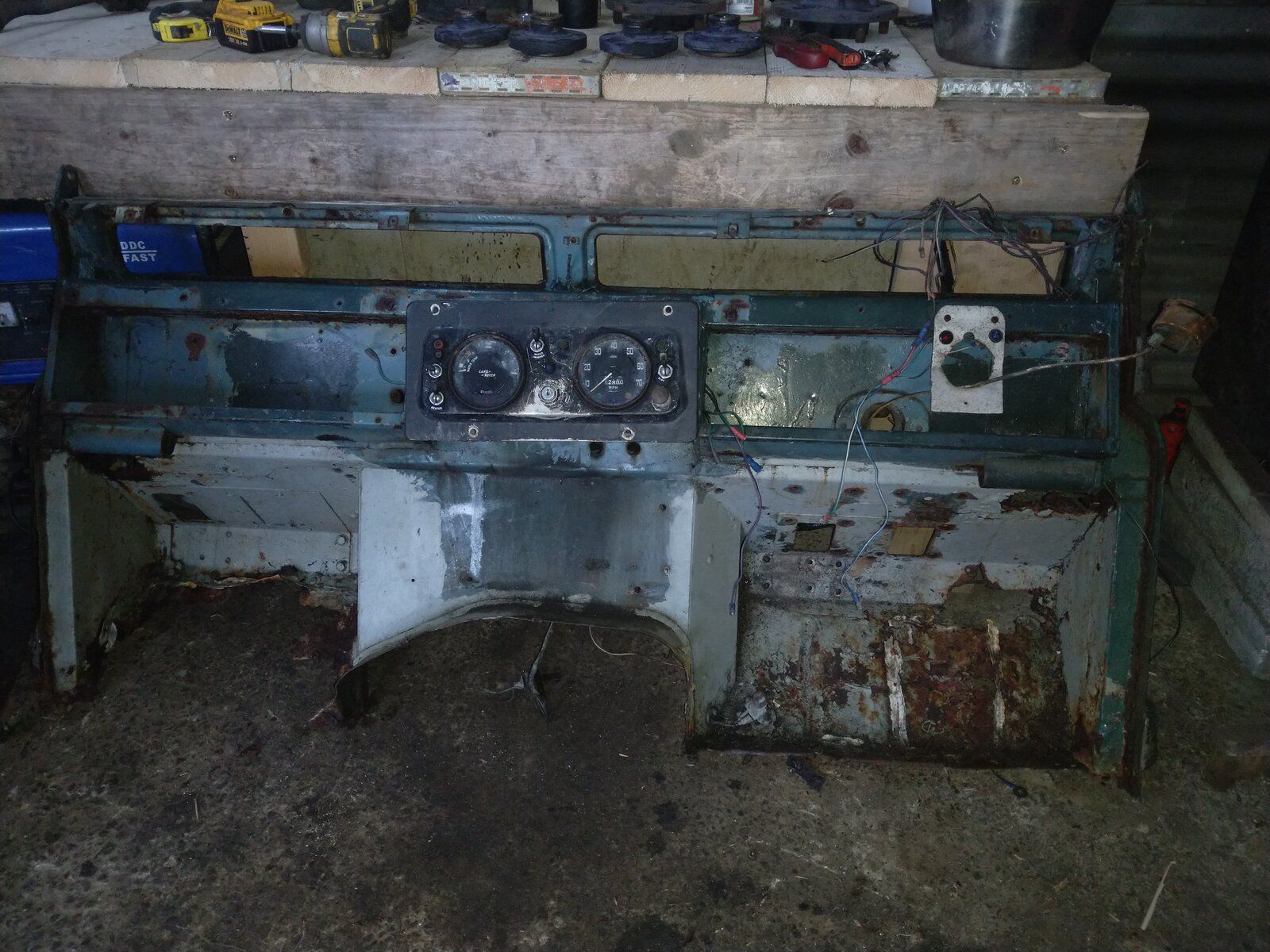

Still waiting of paint coming so thought Id bring this in to strip down.

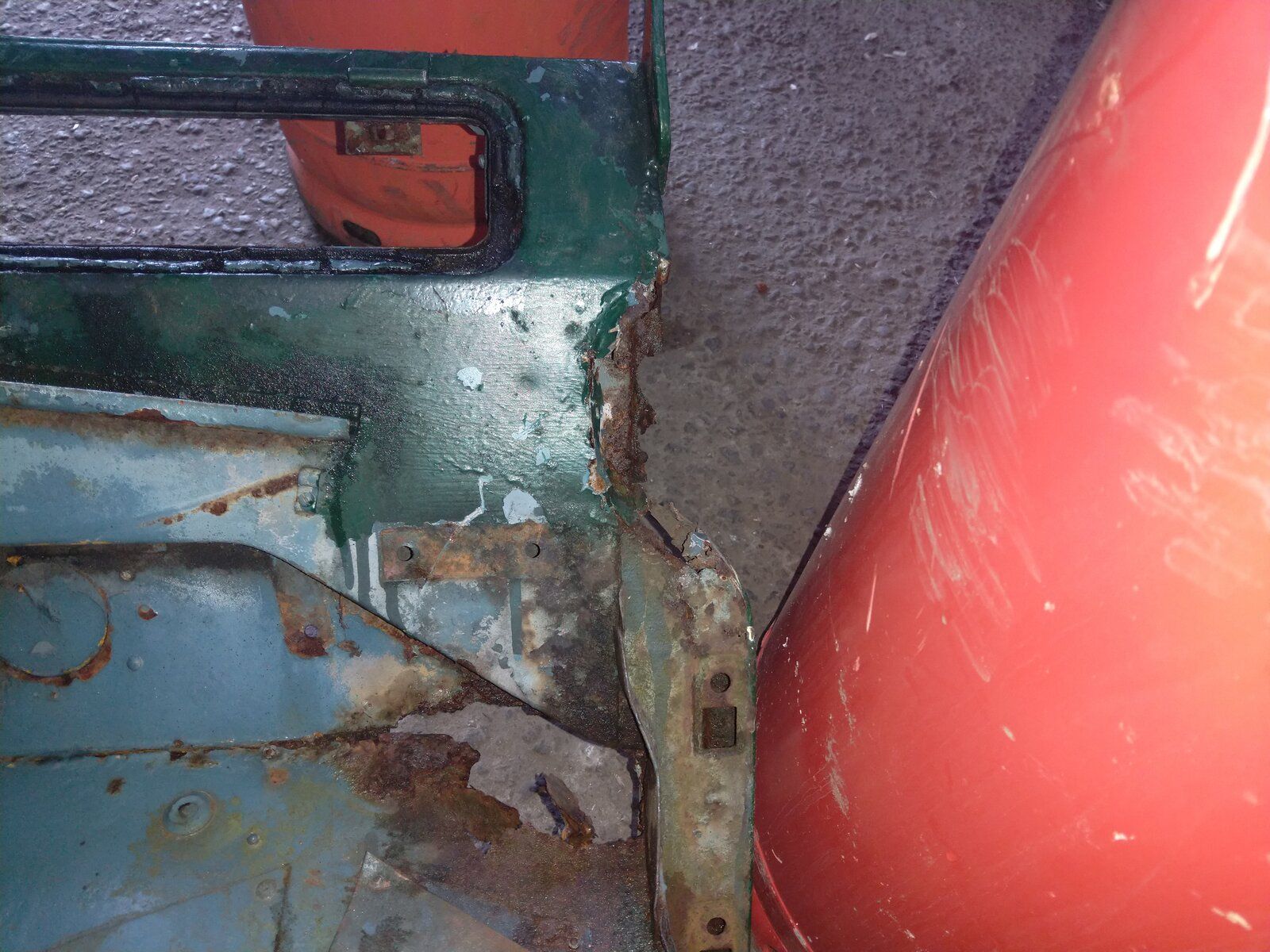

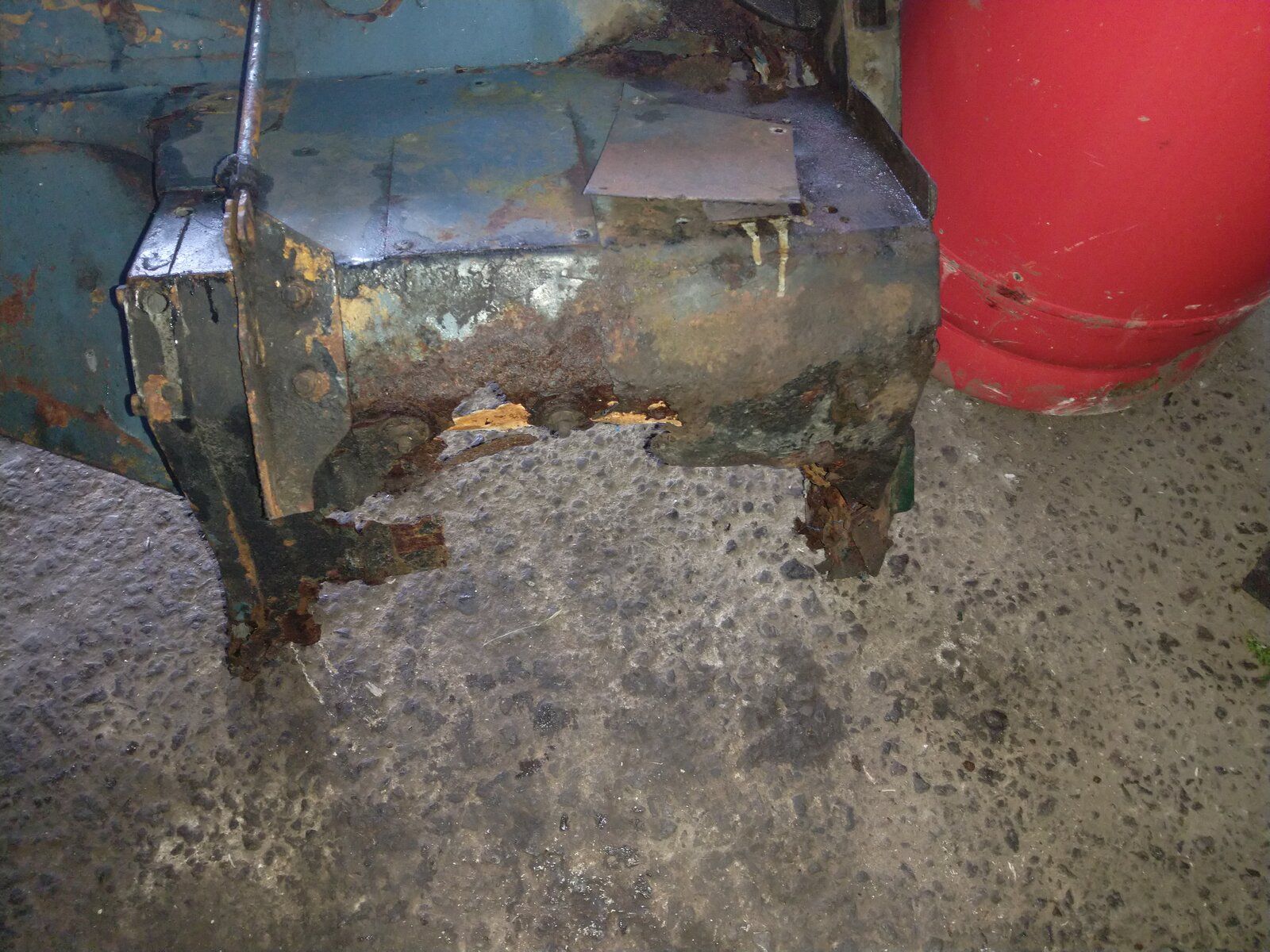

Not sure if its fixable ? Im sure you lot have seen worse. I have both new footwells from YRM but need the sides and feet too.
Not sure if its fixable ? Im sure you lot have seen worse. I have both new footwells from YRM but need the sides and feet too.
Attachments
border
Well-Known Member
I think the bits that need replacing are bits you can buy, the rest seems solid, got a welder mate will see what he says.
If its to far gone then it means more money to spend looking for another.
border
Well-Known Member

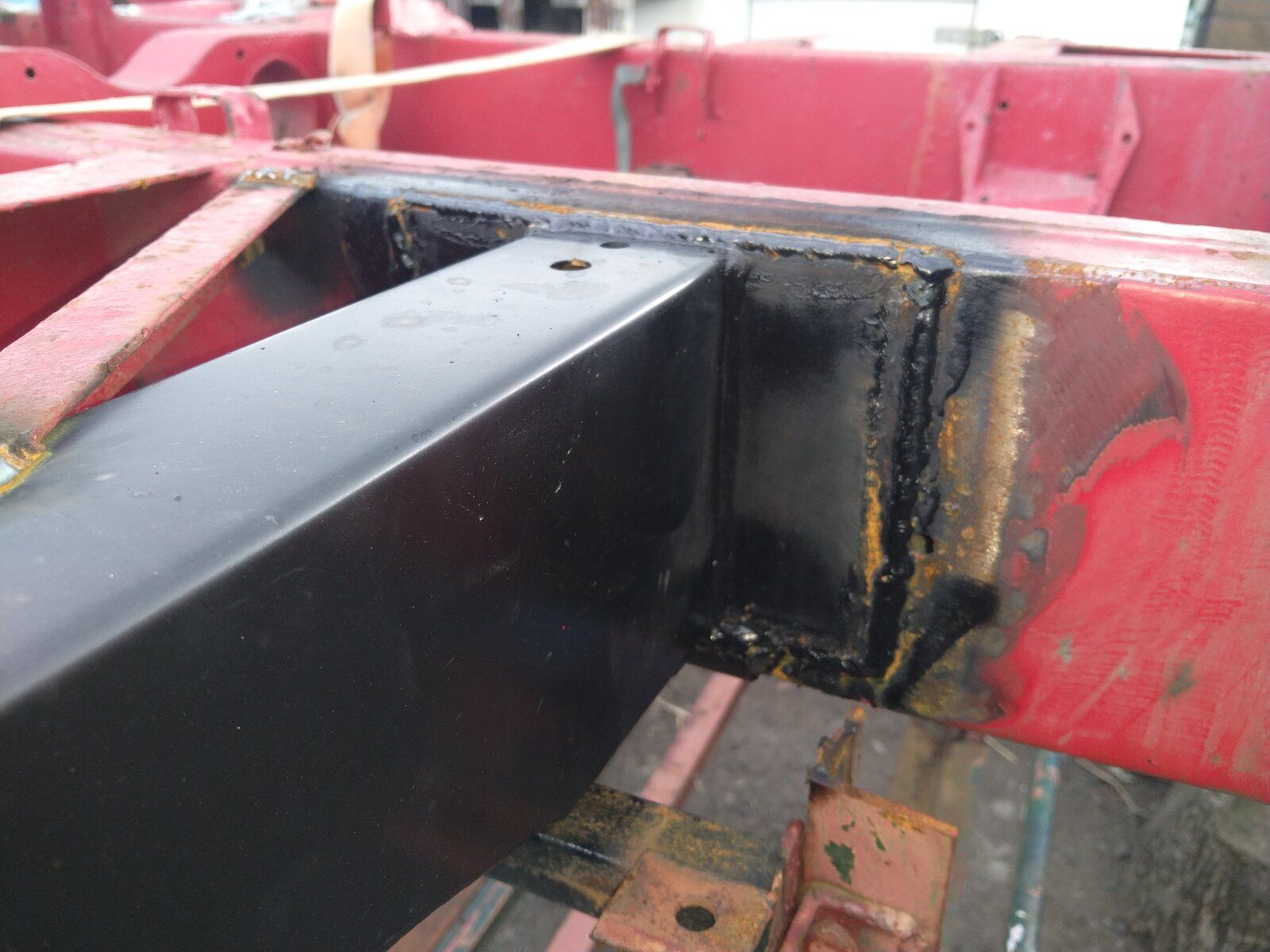

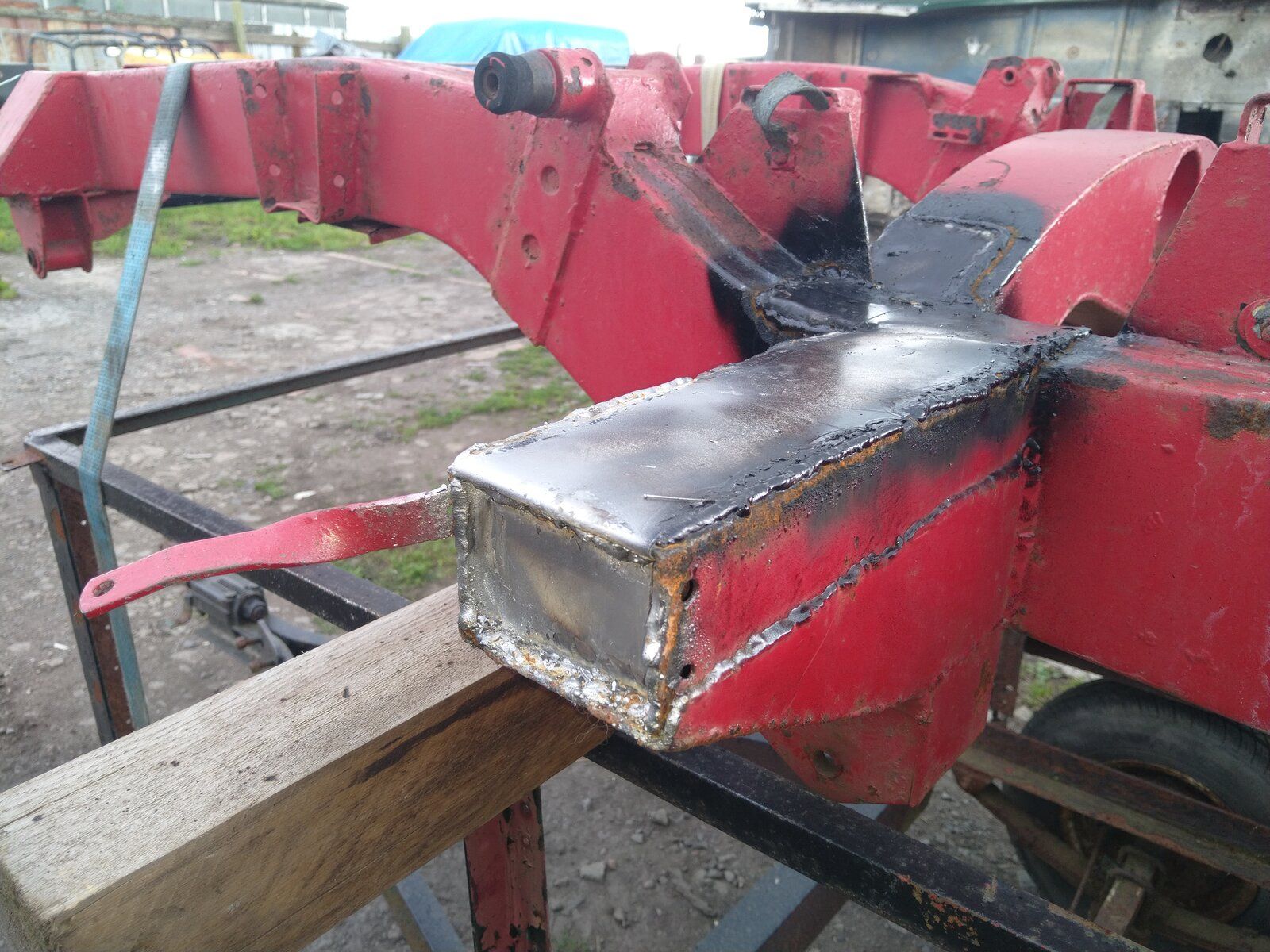

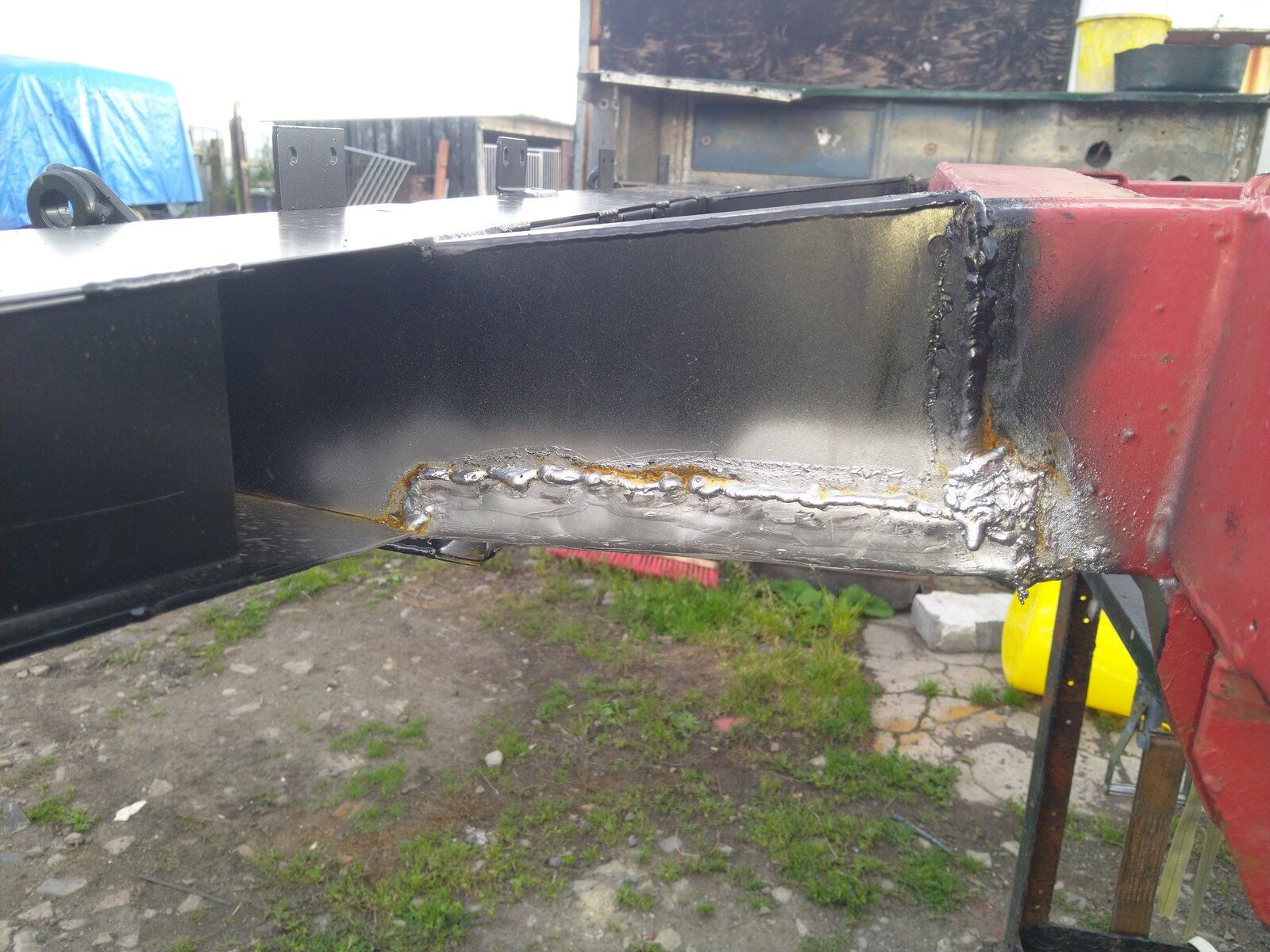

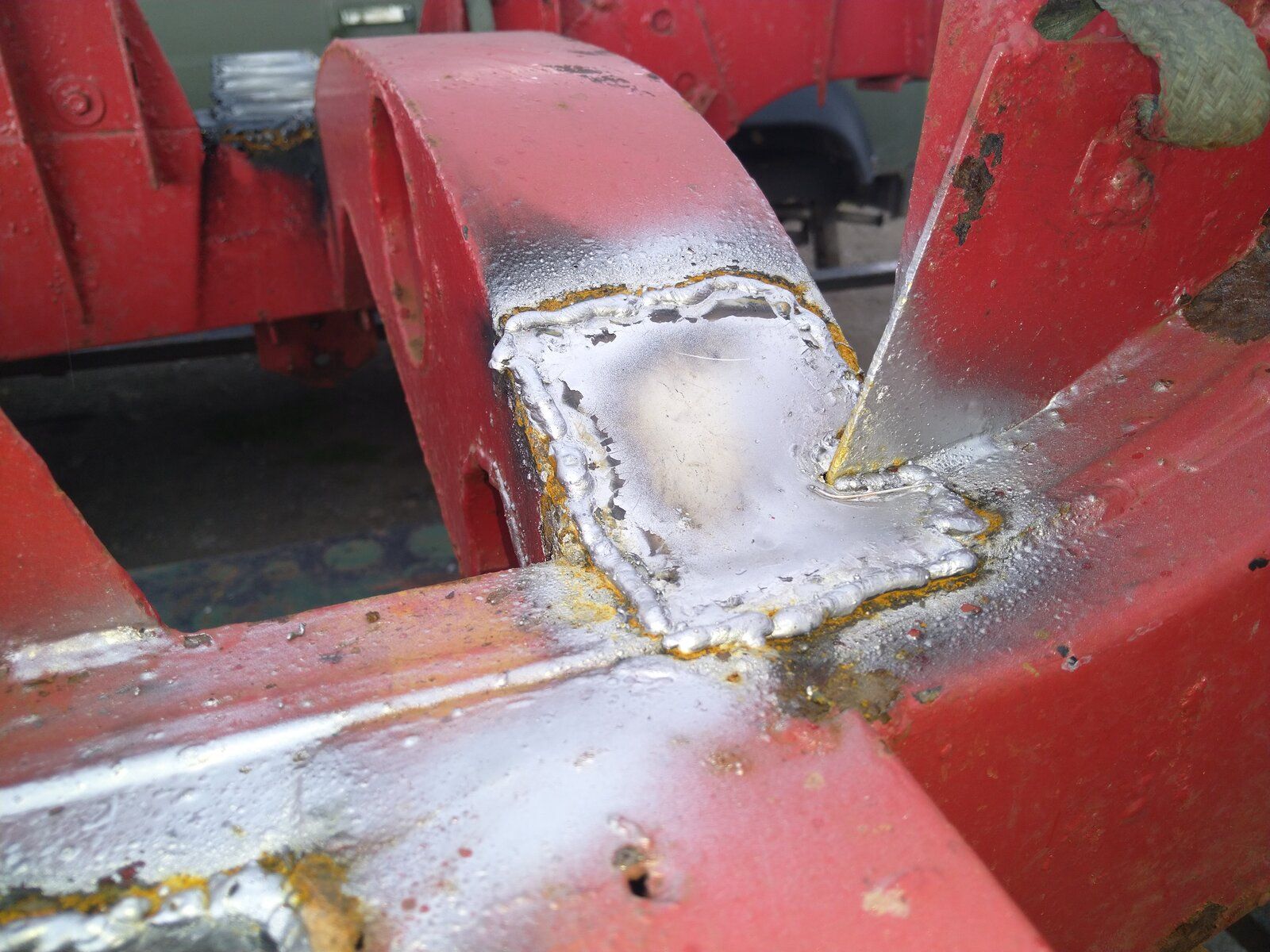

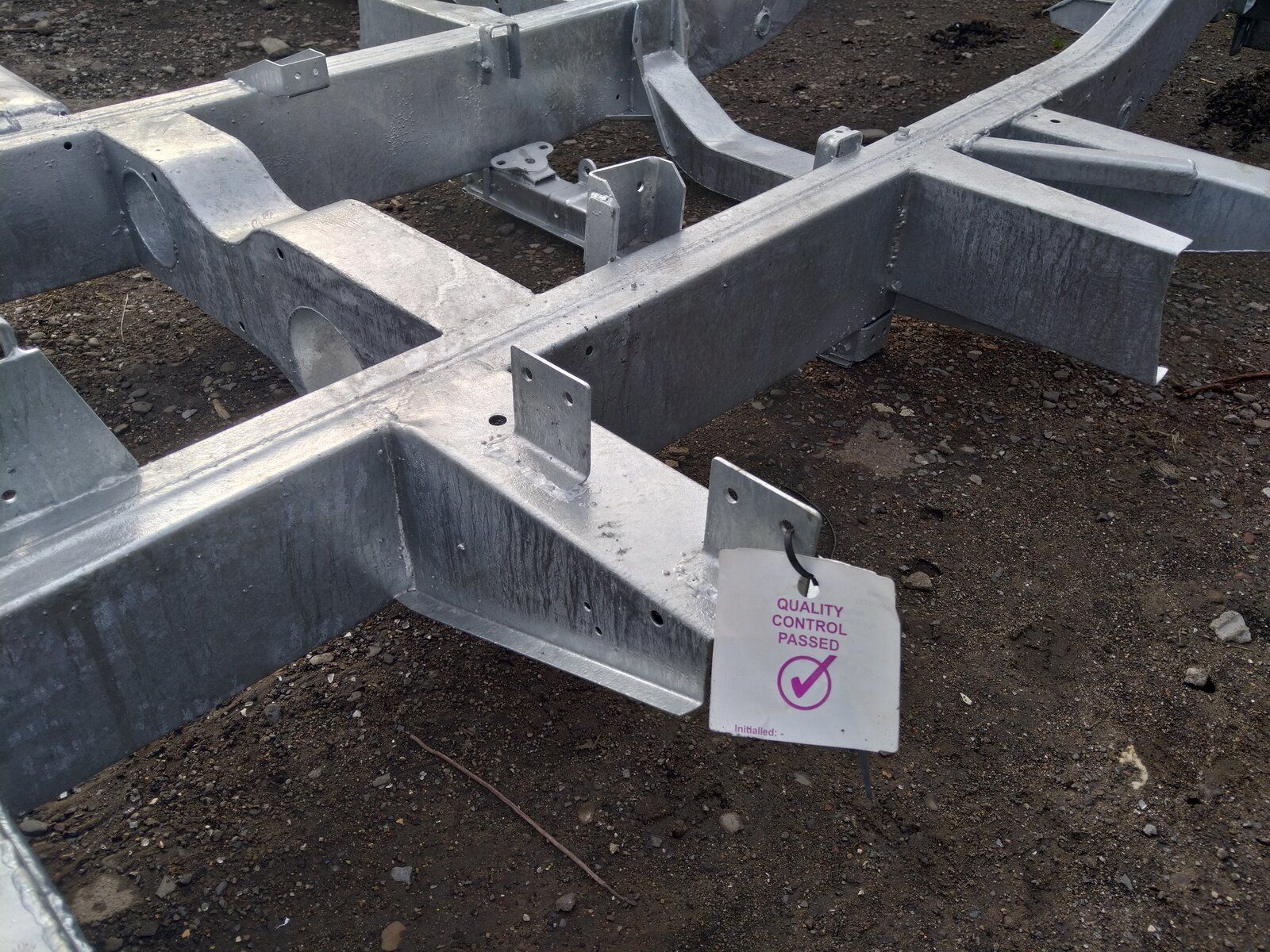

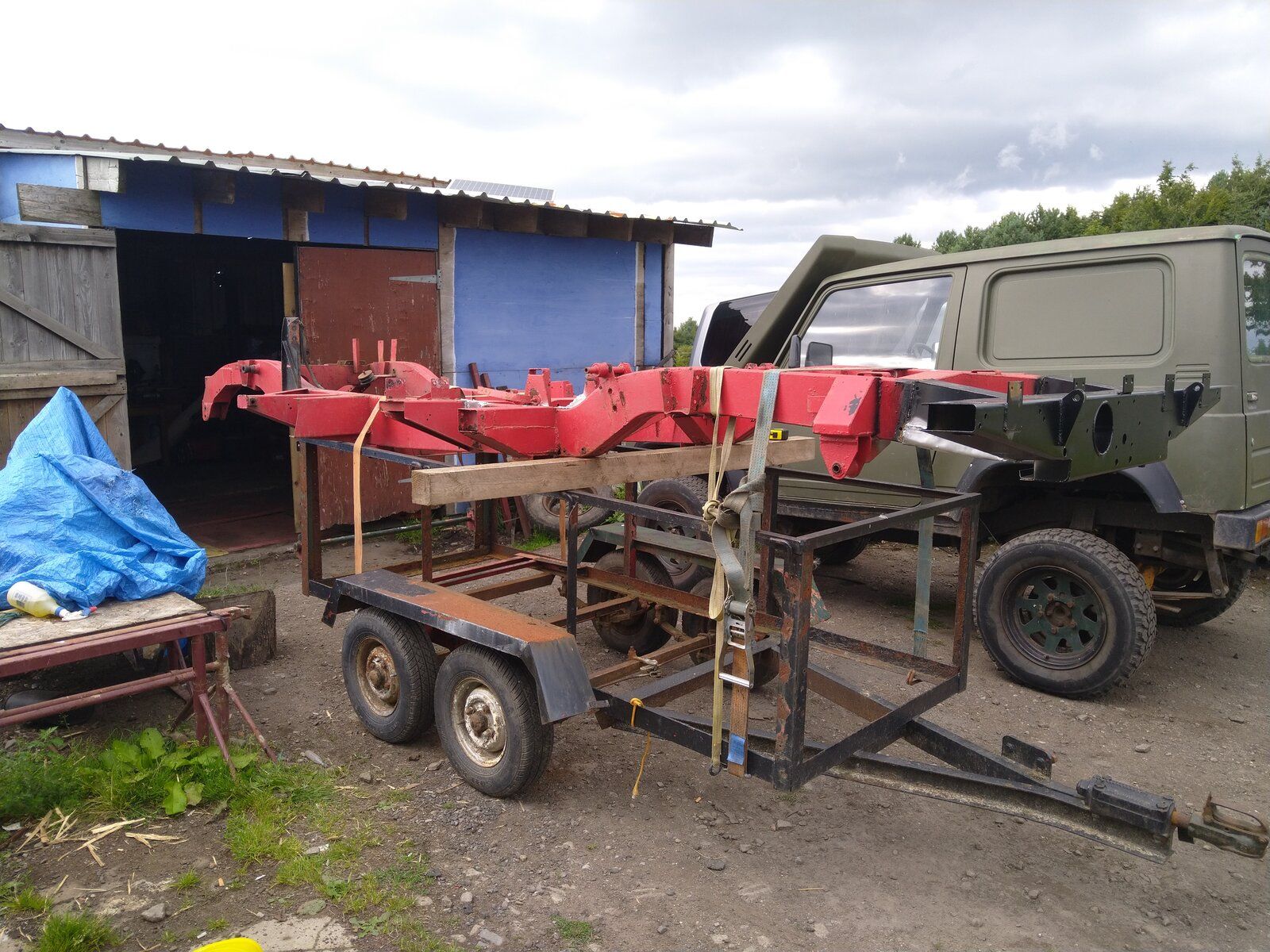

Finally got my Chassis back welded up new crossmember, outrigger and a few patches. Can get cracking on now with it.
I aint a welder so not sure if this welding is good decent or bad Ill leave that to you welders on here to comment.

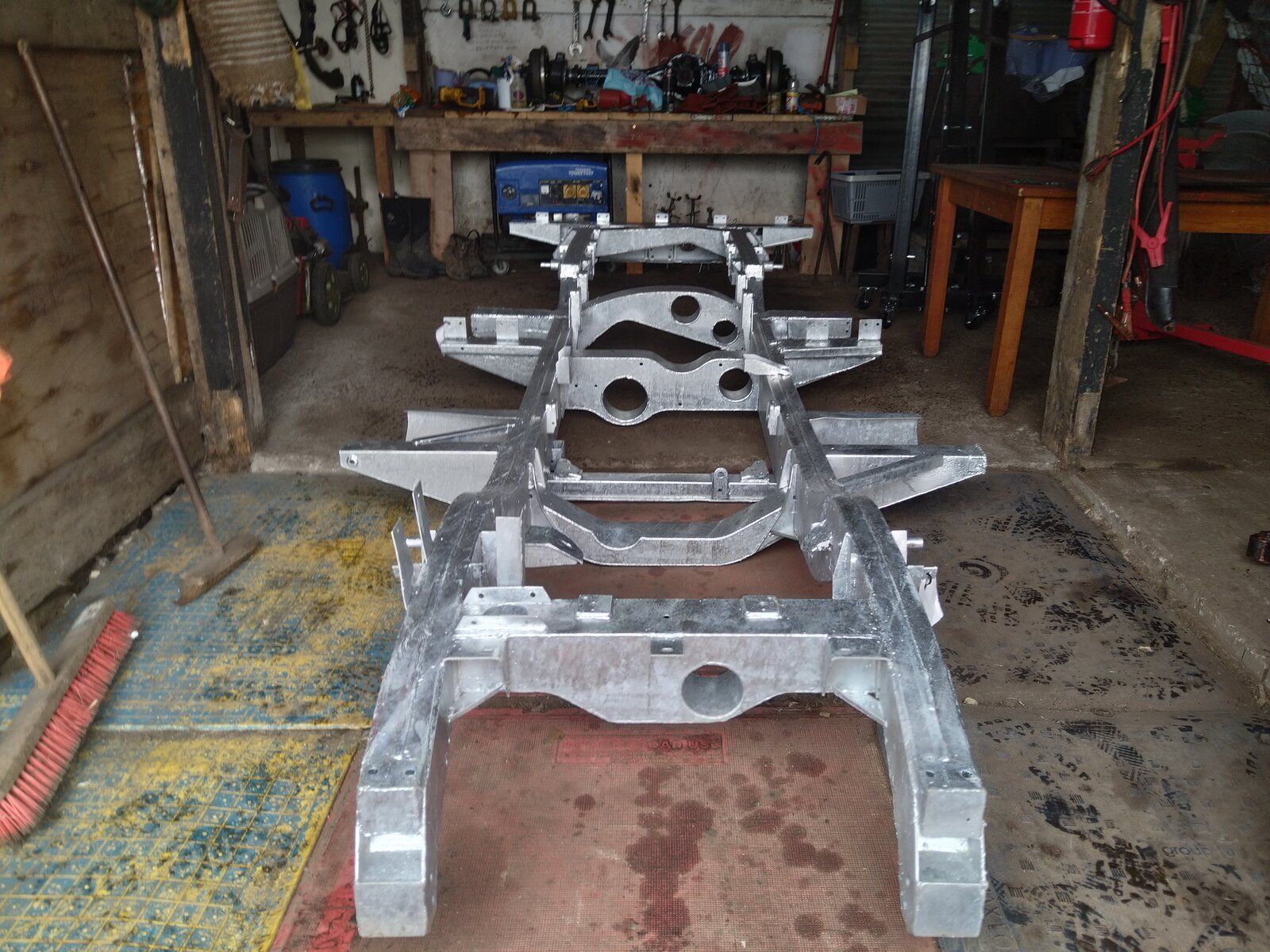

Its getting shot blasted next week will then decide weather to prime and paint or get it Galvanised. still not sure what to do yet.
I aint a welder so not sure if this welding is good decent or bad Ill leave that to you welders on here to comment.
Its getting shot blasted next week will then decide weather to prime and paint or get it Galvanised. still not sure what to do yet.
Attachments
border
Well-Known Member
Starting to get myself motivated again. Got some temporary wheels on rear axle, front tomorrow.

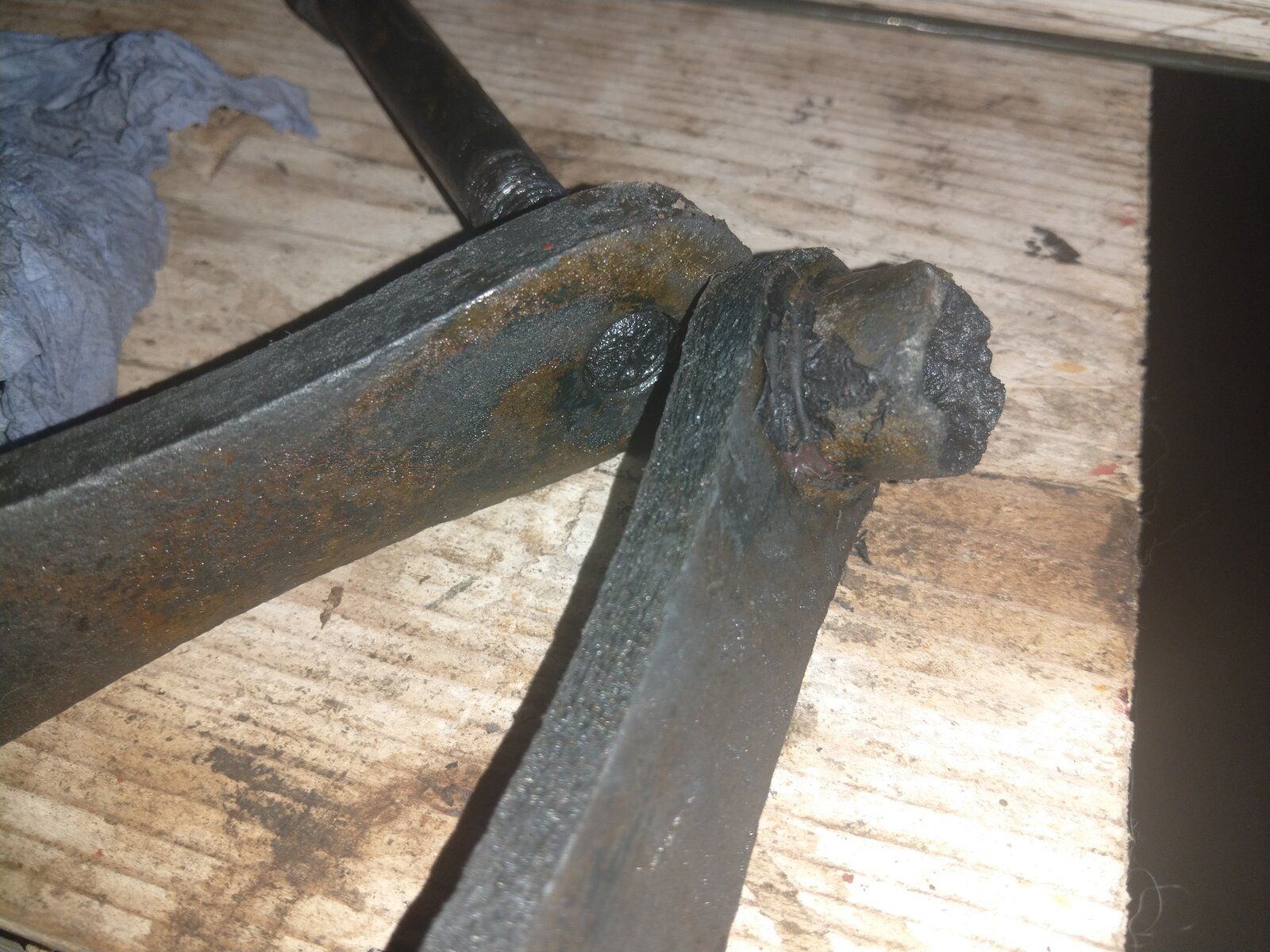

Was hoping to get springs on then get chassis rolling then remembered Id left the shackle thingys in the brick acid cleaner, usually leave them in a couple of days, but these were in for there about 3 weeks have to order some now, dont think there too dear.
Was hoping to get springs on then get chassis rolling then remembered Id left the shackle thingys in the brick acid cleaner, usually leave them in a couple of days, but these were in for there about 3 weeks
have to order some now, dont think there too dear.Attachments
border
Well-Known Member
Got a bit done since my last post on this thread.

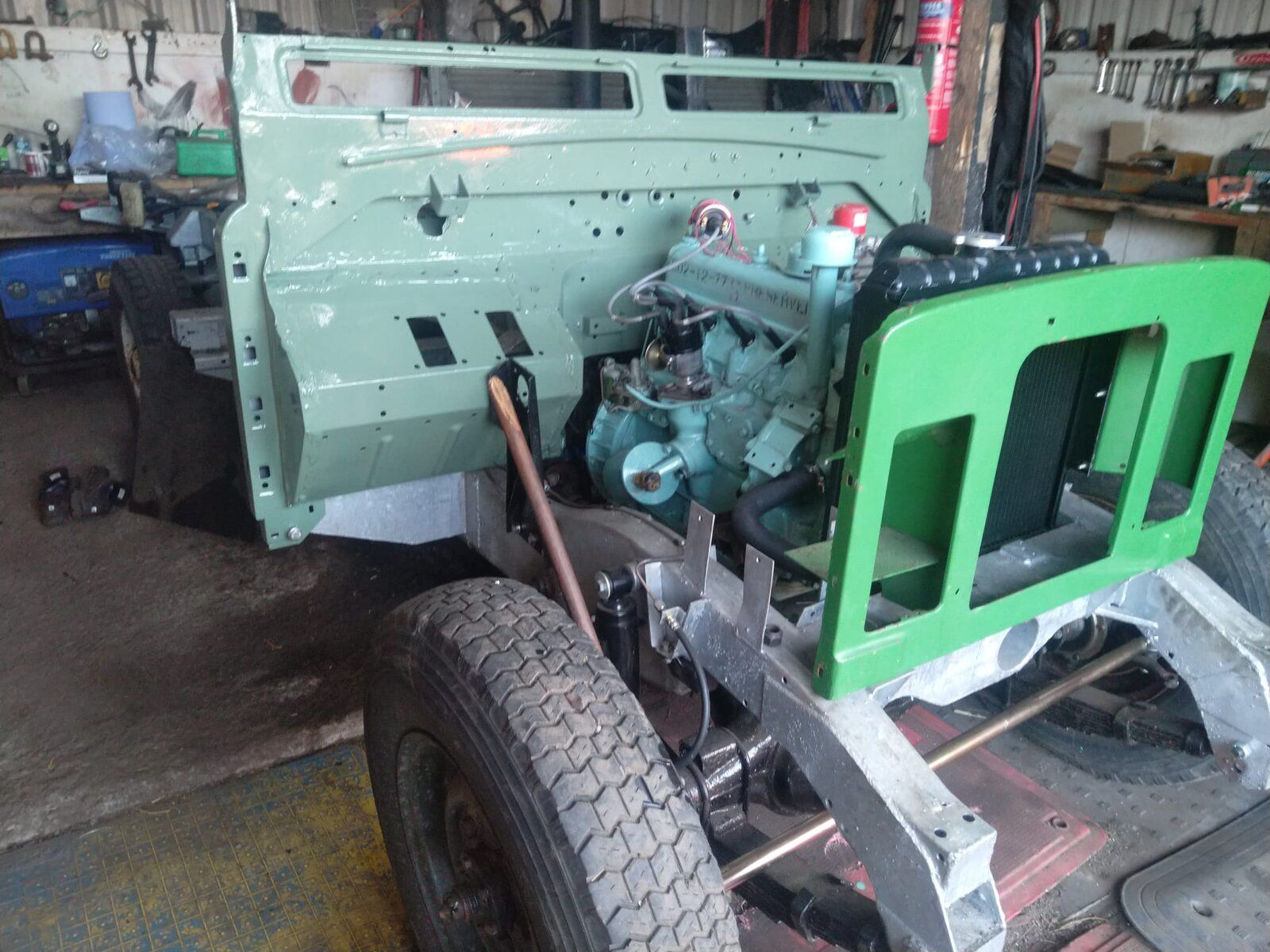

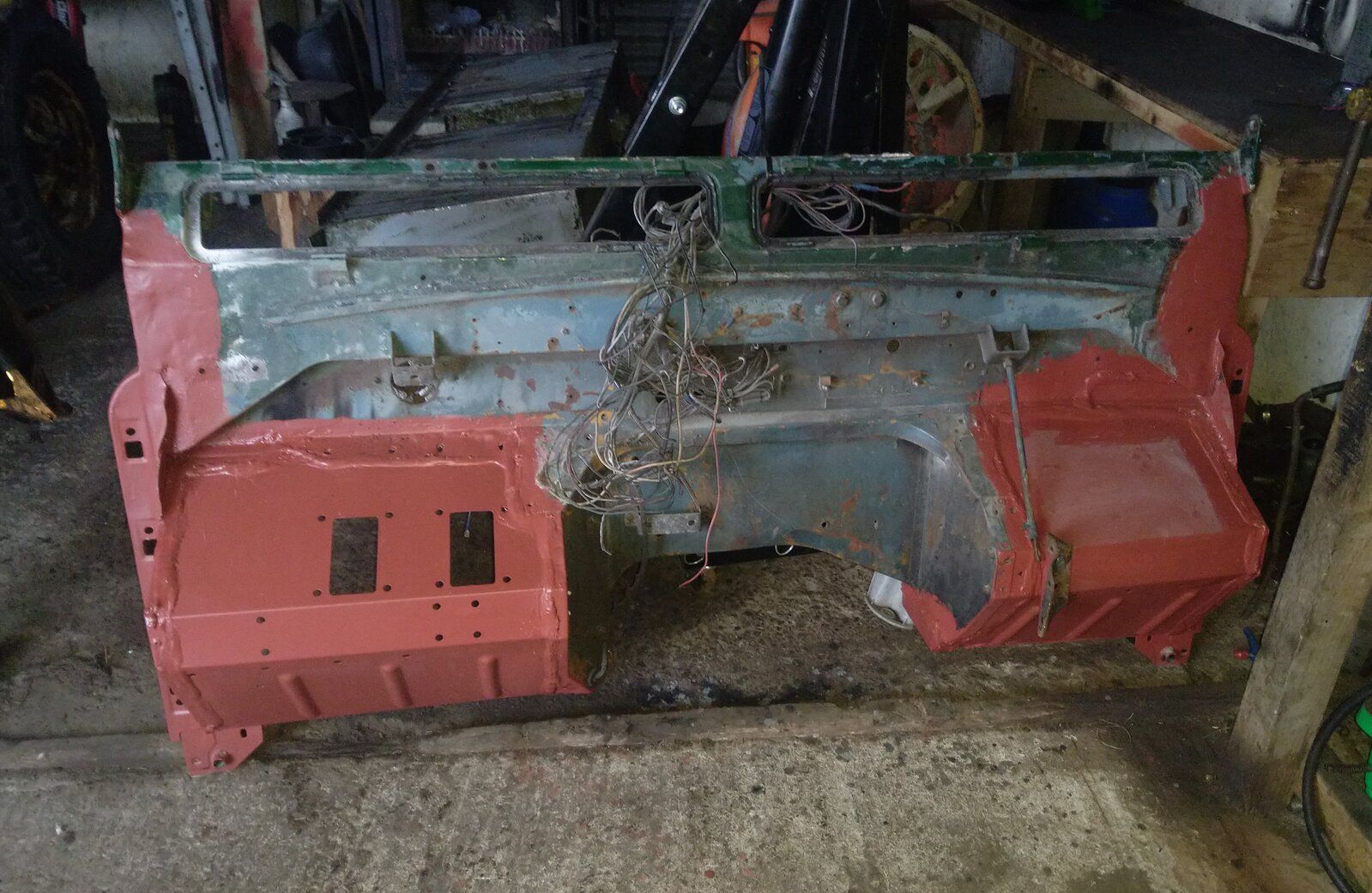

Chassis rolling now, new brake pipes, bulkhead back all welded up and fits perfect.

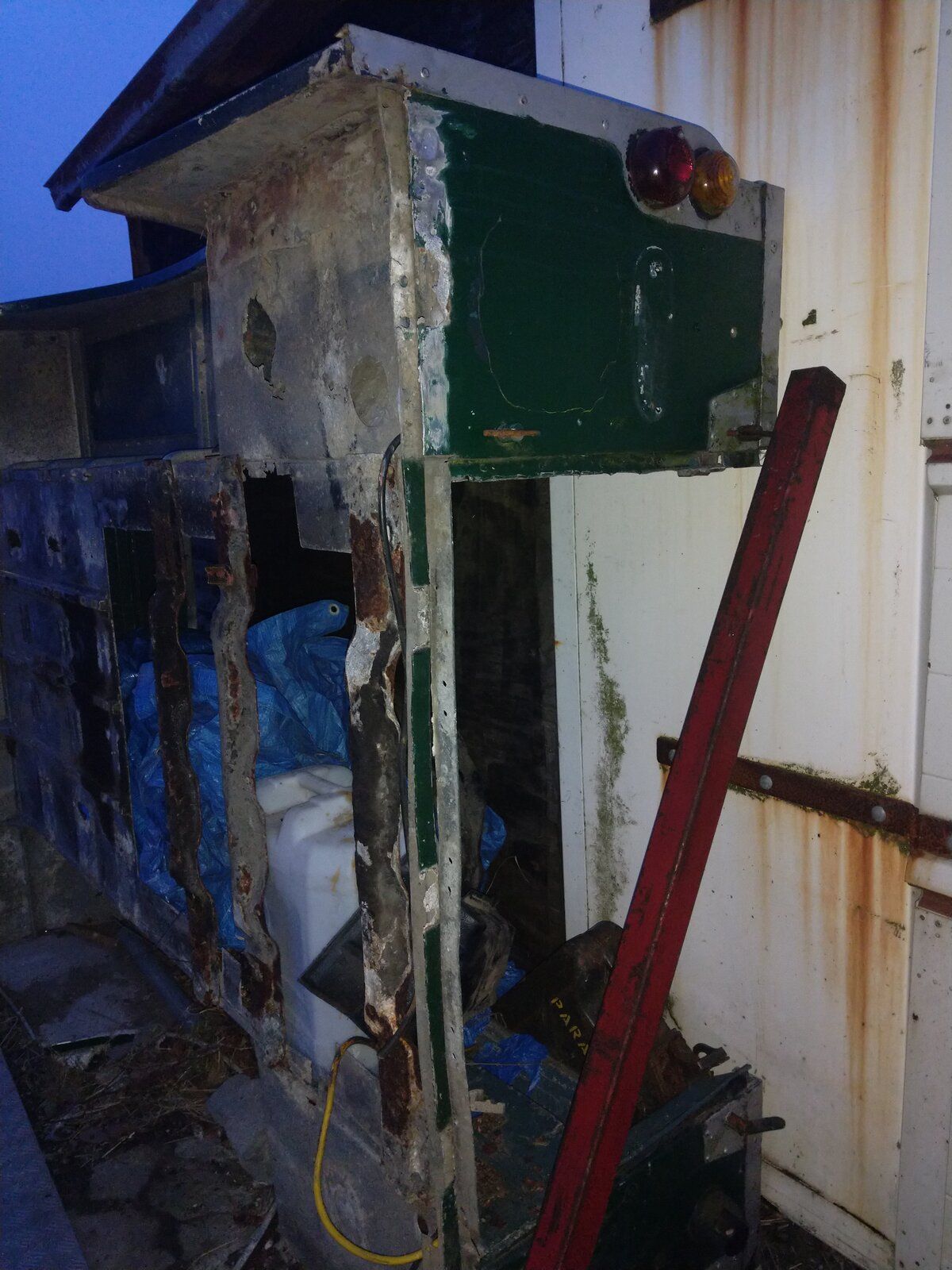

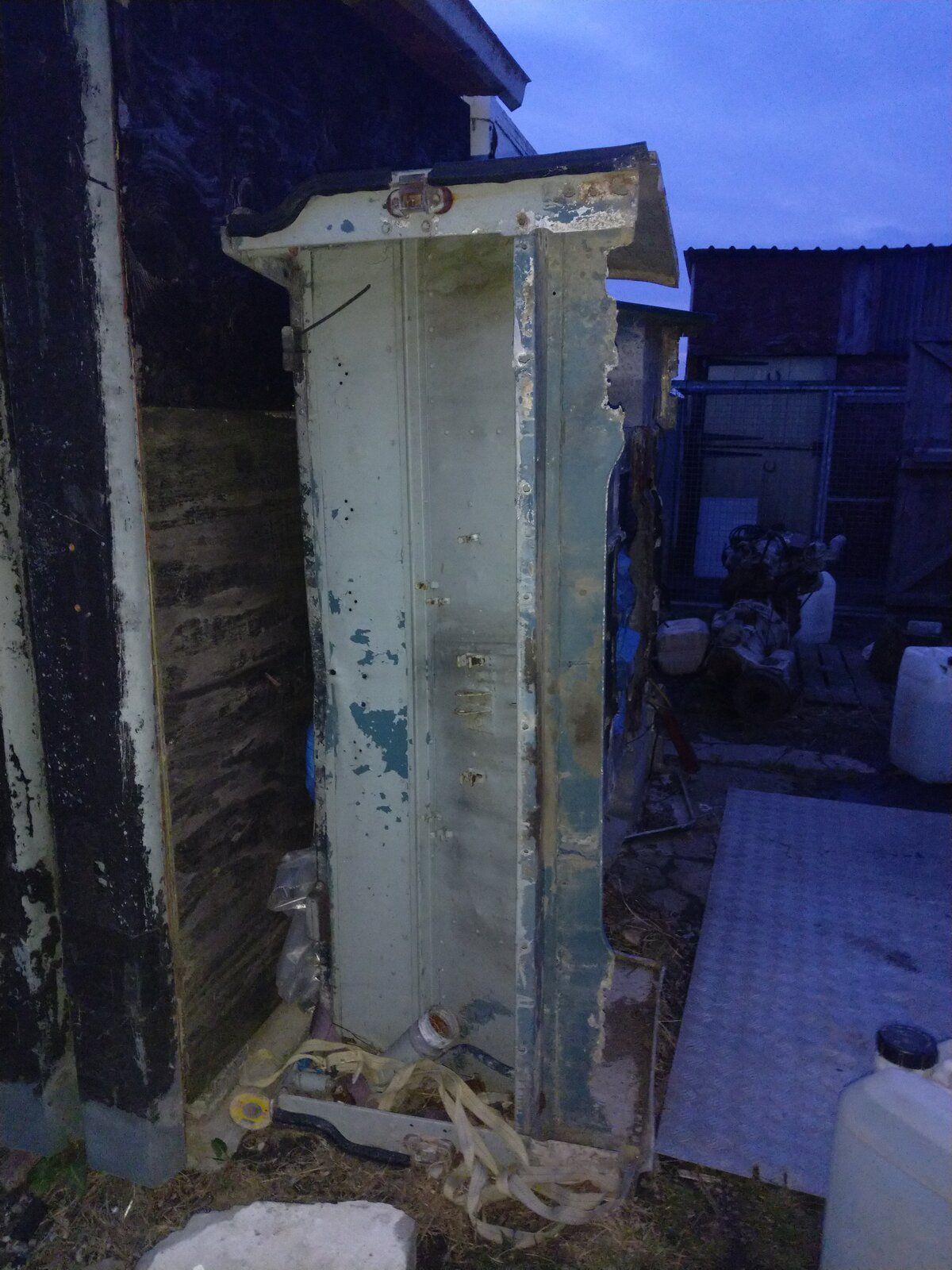

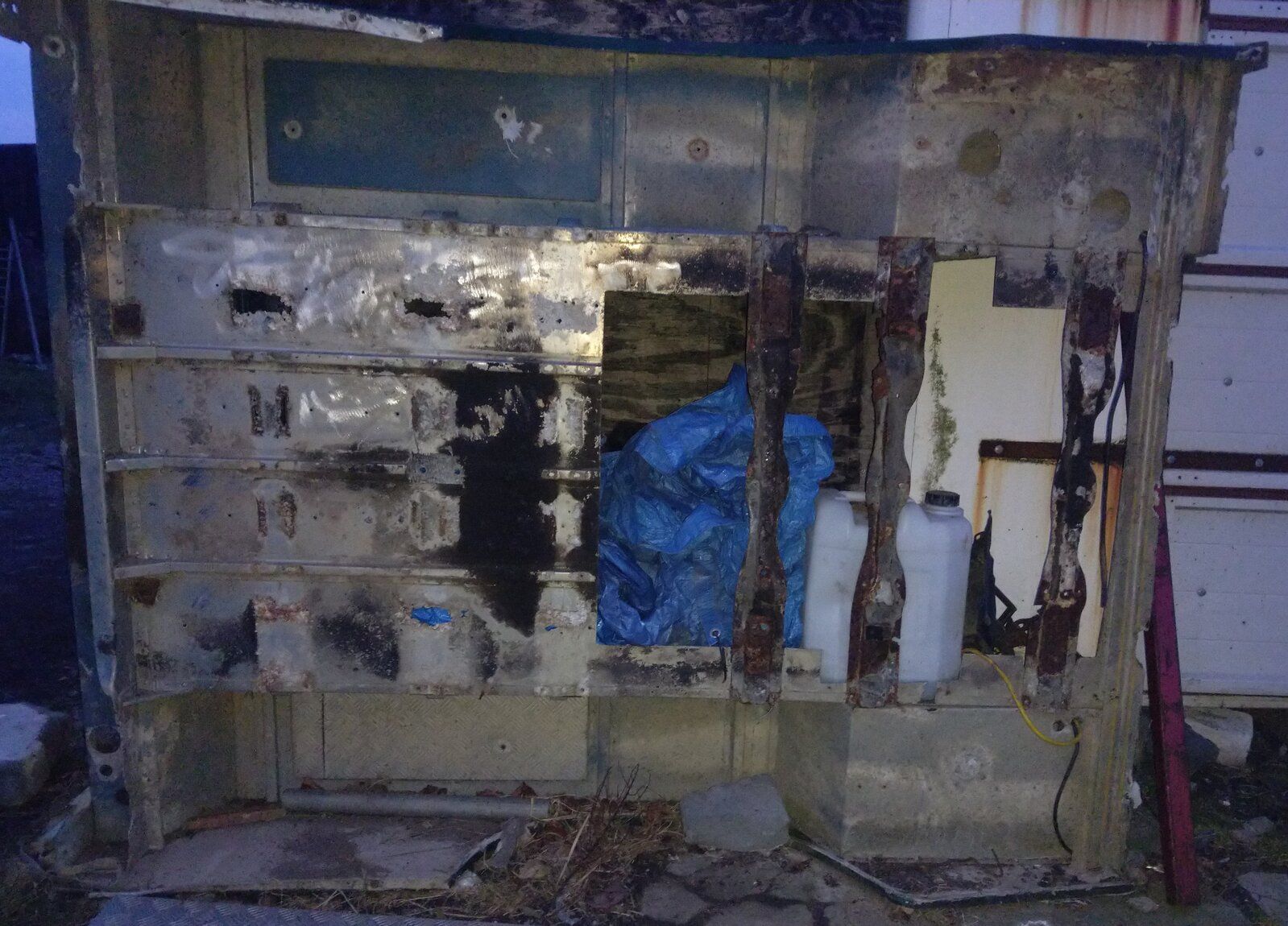

Rear tub next I think but it does need a bit of work, on mounting holes front and rear, got one of these for the rear Rear Body Mounting - LR Defender & Series - YRM Metal Solutions (yrmit.co.uk) but not sure what to do for front holes, any Ideas ?

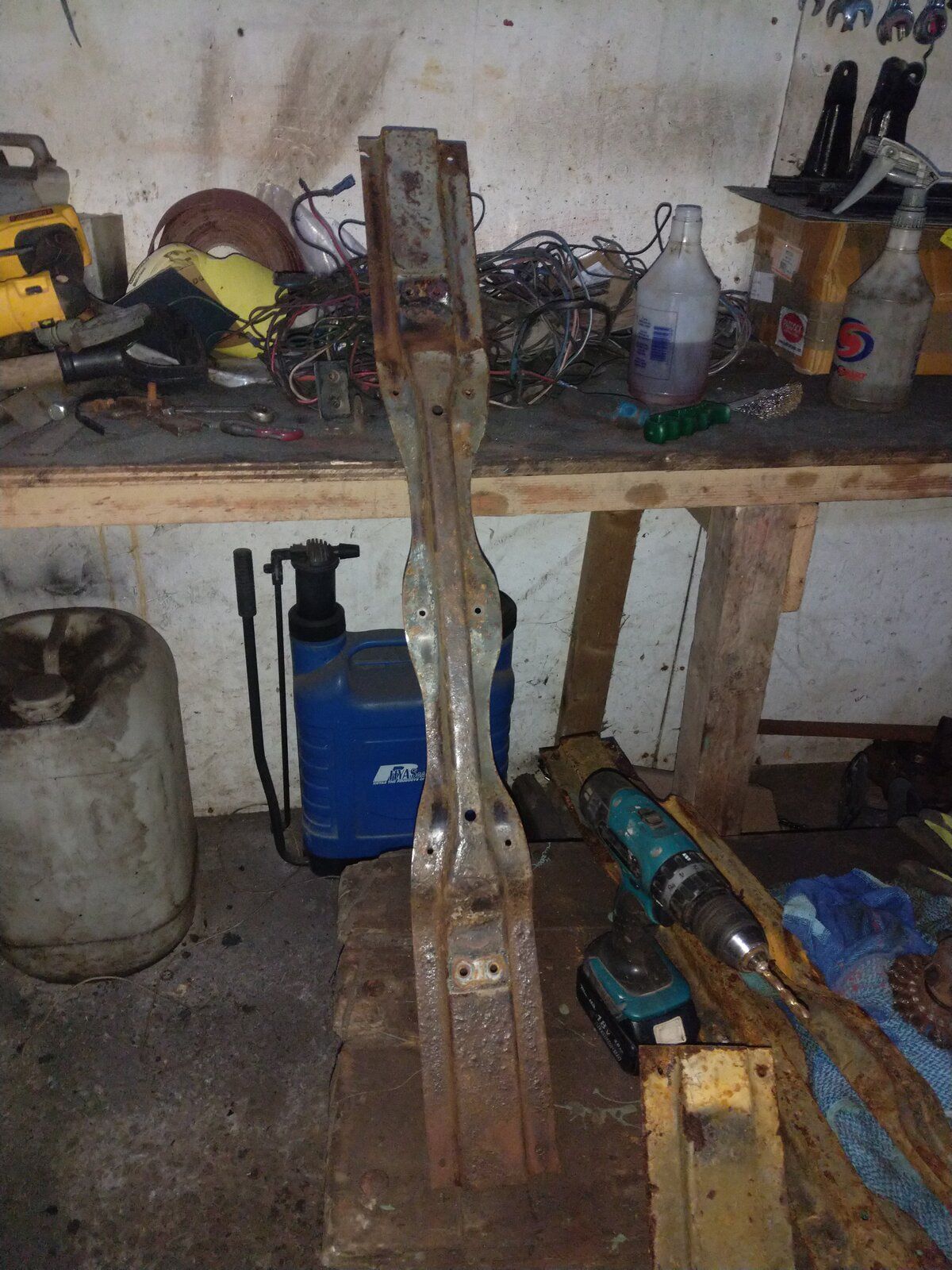

Refurbing some underfloor supports to put back on too.
Chassis rolling now, new brake pipes, bulkhead back all welded up and fits perfect.
Rear tub next I think but it does need a bit of work, on mounting holes front and rear, got one of these for the rear Rear Body Mounting - LR Defender & Series - YRM Metal Solutions (yrmit.co.uk) but not sure what to do for front holes, any Ideas ?
Refurbing some underfloor supports to put back on too.
