feyniriel

Active Member

• Saturday at 12:51

• #1

I was checking out fault codes on my 1999 P38 and in the EDC section it said:

Injector timing value out of expected range
Type: invalid fault, major fault, logged, intermittent
RPM = 77
Inj. Flow = 70
Occurance = 13

That's the only fault code it has, after clearing some old ones a few days ago. I don't have much knowledge about engines, what could this mean?



Mark Piercy

Well fumbled member....

Full Member

• Saturday at 13:34

• #2

Is the car programmed at all and
does it run OK otherwise?



Datatek

Well-Known Member

• Saturday at 16:36

• #3

What does Nanocom show for the needle lift sensor?



feyniriel

Active Member

• Monday at 07:39

• #4

Datatek said:

What does Nanocom show for the needle lift sensor?

Click to expand...

How do I check that?



Datatek

Well-Known Member

• Monday at 08:19

• #5

feyniriel said:

How do I check that?

Click to expand...

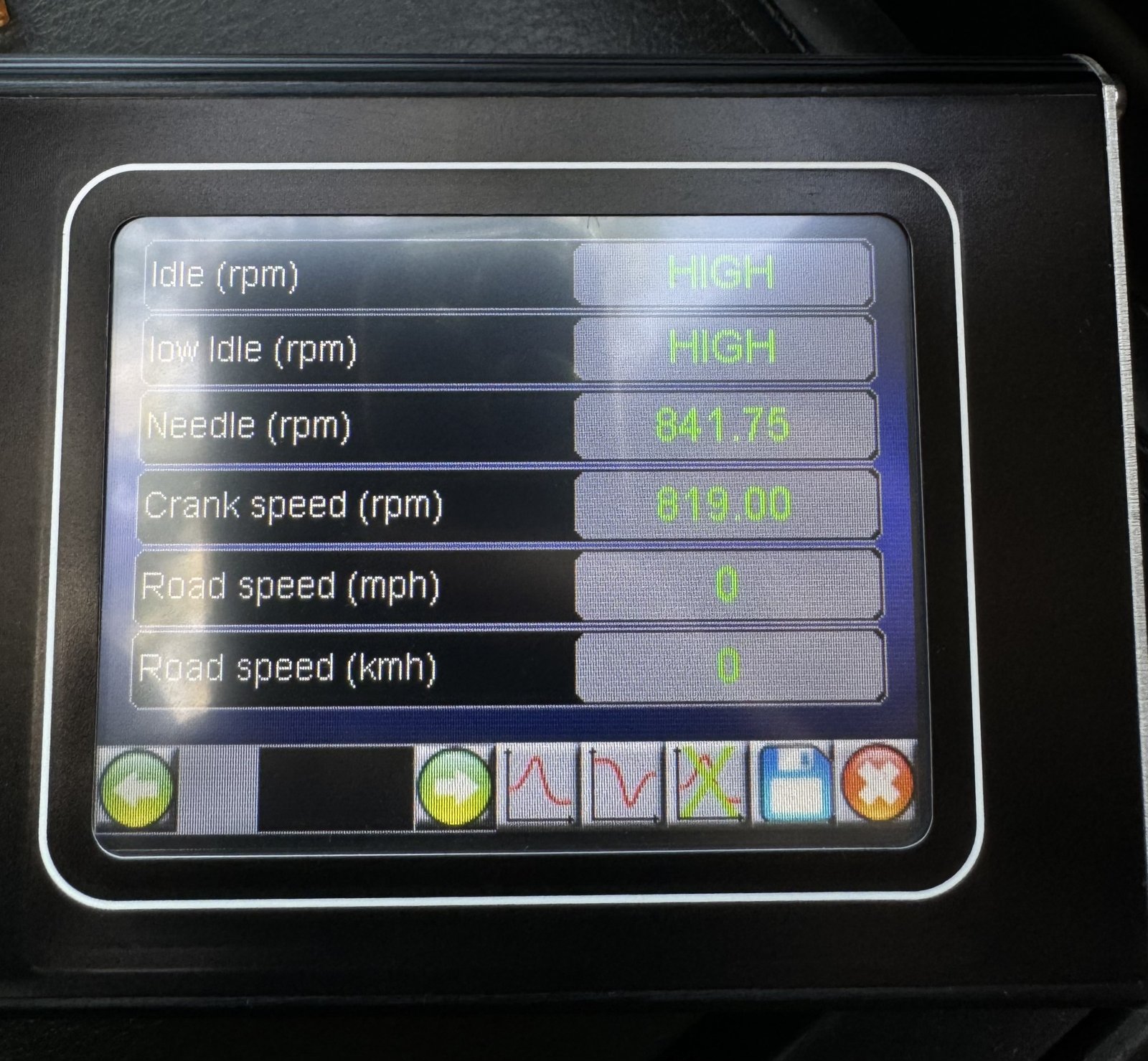

I don't have a Nanocom so I cannot tell you exactly, but with the engine running look at the EDC live data, you should see the needle lift sensor, modulation and a number of other parameters, post a screen shot.



pwood999

Well-Known Member

Full Member

• Monday at 09:21

• #6

It does tell you in the Nanocom EDC guide.

feyniriel said:

How do I check that?

Click to expand...

It does tell you in the Nanocom EDC guide.



Attachments

• Nanocom Bosch EDC Diesel ECU Guide.pdf

  94.7 KB · Views: 12
