Blobthebuilder
Active Member
OK I've noticed bracket has 2 mounting holes whichever hole its in whether clockwise or anti clockwise its either touching crank pulley or AC pulley
RangeRoller dt
Well-Sprung Member
Can’t even fit my phone in there properly to take pic for you
This is lying underneath with your legs hanging out front of vehicle

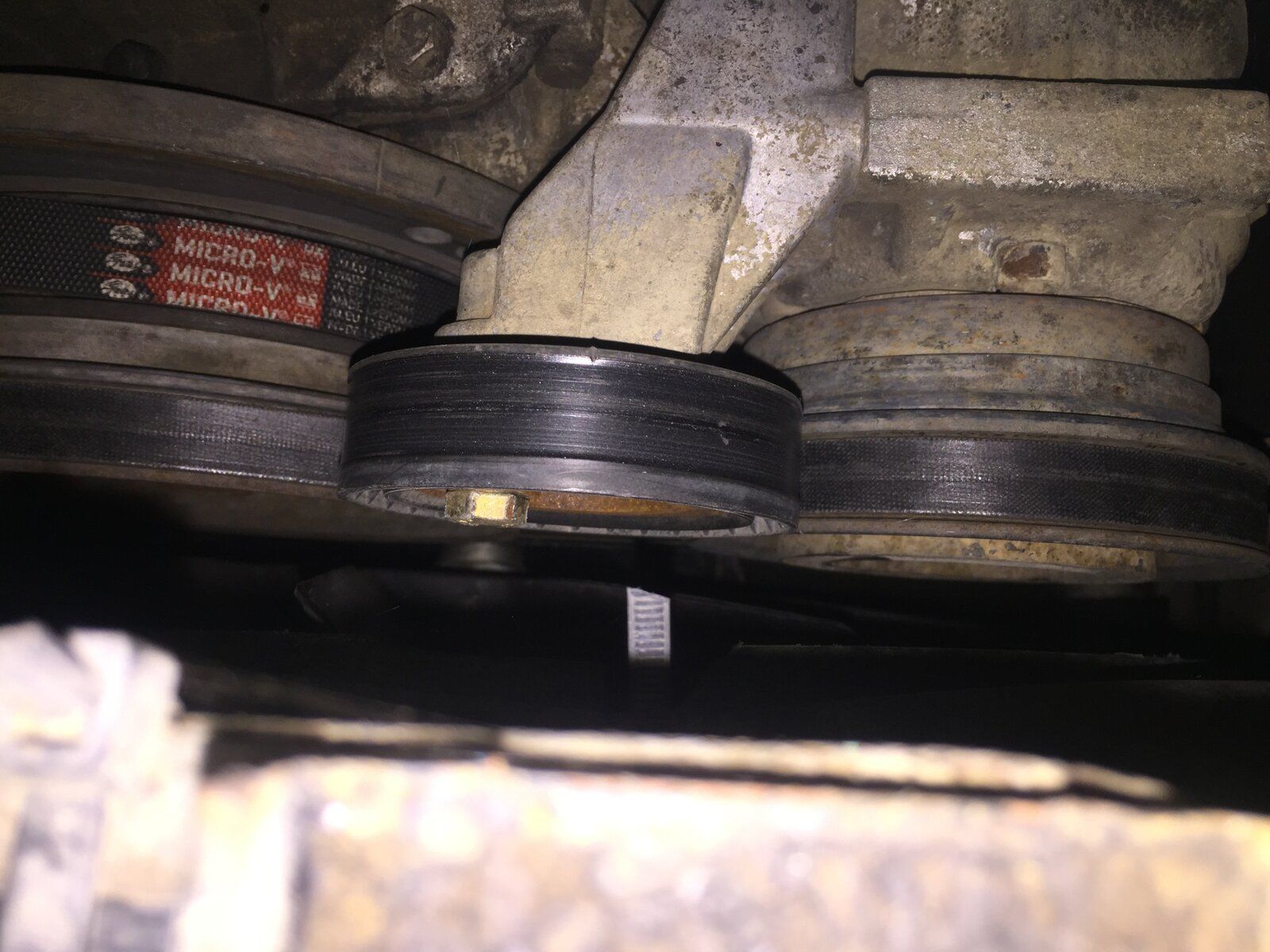

You can see the belt is above the tensioner not around it
This is lying underneath with your legs hanging out front of vehicle
Blobthebuilder
Active Member
That's how I have it but I don't think tensioner is ment to touch pulleys
RangeRoller dt
Well-Sprung Member

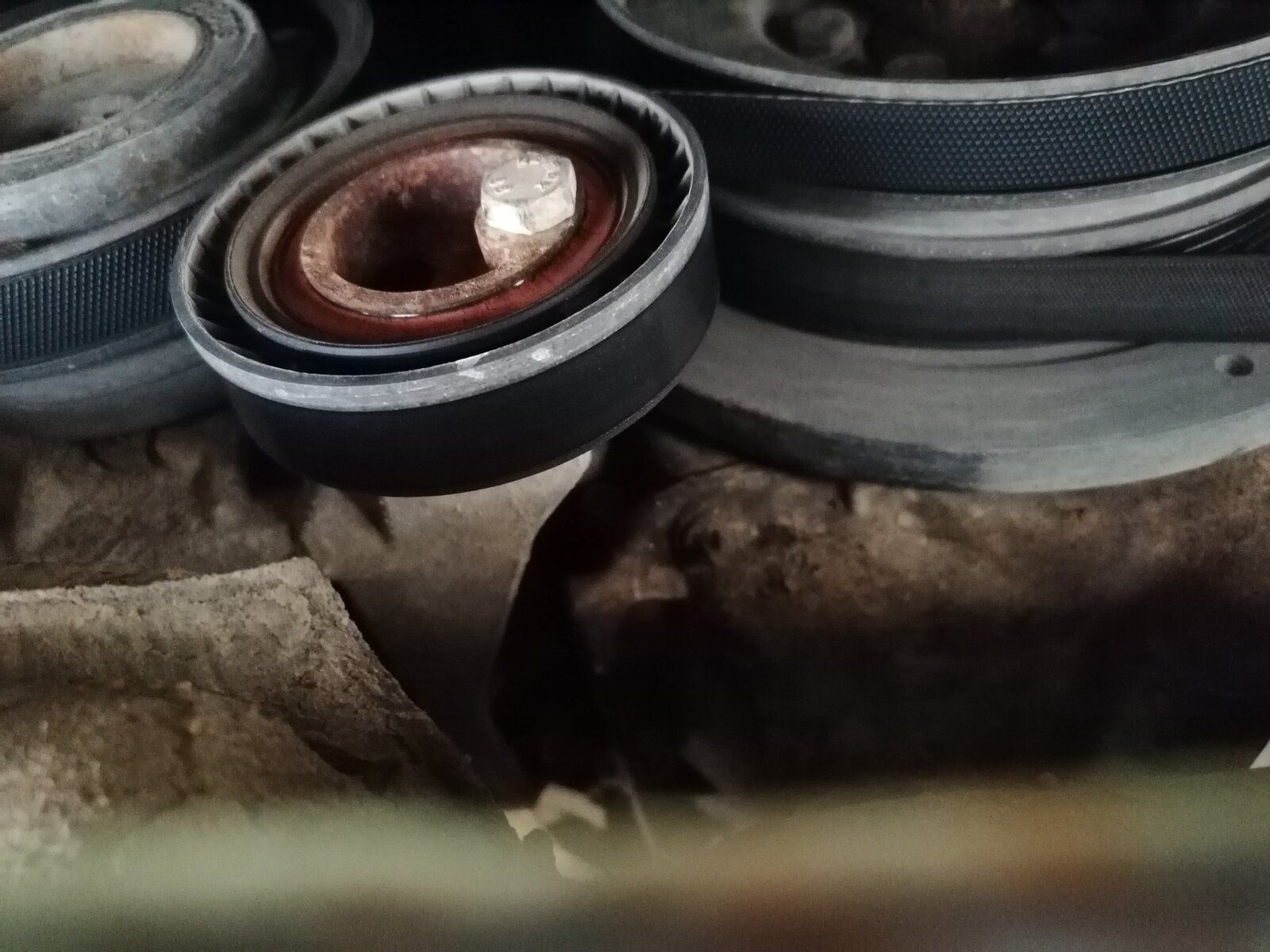

It’s not touching on mine don’t think it will adjust that far but you can see the position of lock nut. I’ve always snugged it up by hand no exact torque
Blobthebuilder
Active Member
I've tried both holes on bracket with tensioner in top hole was very hard to get belt on, in bottom hole it was a doddle but whichever hole when tensioner is turned in either direction it touches 1 or the other there is a bit of play in AC pulley but wouldn't have thought it would make it touch pulleys
Blobthebuilder
Active Member
I marked a start on belt and measured it back to mark and it was 841mm
It can only be too long.. Or the pulley is wrong??
So what has changed and was it fine before the last intervention?
So what has changed and was it fine before the last intervention?
brianp38dse
Well-Known Member
I had trouble with mine if I remember right I put a 4pk830 belt on, I will have a look when I get home packet should still be in the boot.
RangeRoller dt
Well-Sprung Member
Can you show us exactly what belt you had with link/make & part number?
Blobthebuilder
Active Member
Its sorted now thanks peeps, the pictures helped, I had pushed tensioner up by hand and thought it was touching AC pulley but I tried again, refitted pushed it up and put in Allen key and noticed it had a bit of spring so I gave it a little push tightened up bolt and noticed the 2pulkeys were not actually touching but about 1-2mm apart so tried AC and it works fine with not a sound, I cycled it on and off about 12-15 times and it works perfectly with no noise at all
brianp38dse
Well-Known Member
I wont bother looking in the boot then
An easy fix just wish access was better.
An easy fix
just wish access was better.Blobthebuilder
Active Member
Yeah I was lying on back looking up and I thought it was tight to AC pulley then took a closer look and thought maybe the gap wasnt big because pictures posted looked very close aswell
RangeRoller dt
Well-Sprung Member
I remember trying to find what size Allen key fitted was nightmare, not difficult as such just bloody frustrating
Blobthebuilder
Active Member
I'm happy its working, its been a slog lol
Blobthebuilder
Active Member
Next job brake accumulator lol
RangeRoller dt
Well-Sprung Member
See you in the next thread
Blobthebuilder
Active Member
Lol I'm sure its accumulator should be easy fix lol
See you in the next thread
RangeRoller dt
Well-Sprung Member
Hope you like bleeding
Figuratively and on the knuckles
Figuratively and on the knuckles
Blobthebuilder
Active Member
I read it was depressurize remove sphere and fit new 1 job done lol
