5 is definitely a spring



Blackburn

Well-Known Member

• Sep 7, 2016

• #42

No 4 is hard top to tub centre of side bracket , handbrake spring bolts to gear box mounting bracket other loop for spring is on handbrake rod



LordOWar

Well-Known Member

• Sep 7, 2016

• #43

Number 3 looks like one of the brackets that holds the apron panel between the front wings on.
Number 5 looks like a throttle return spring, the spring looks too weedy to be the handbrake.



wattfield

AKA Dirk Diggler

• Sep 7, 2016

• #44

I'm not sure about No. 1, but I've got one in my garage.



Rubins4

Well-Known Member

• Sep 8, 2016

• #45

Thank you for help all, particularly Wattfield and Honolulujoe

1. Is this something to do with mounting the starter solenoid to the battery tray?

2. I'll get some better pictures at the weekend

3. LordOWar - not quite sure I'm following you, could you explain again or take a picture?

4. Blackburn - same as above

5. I'm pretty sure this is the spring that came with the Hand Brake assembly as I kept everything together in bags/boxes, but some what I can see of online pics the return spring looks shorter and stronger than what i have, so maybe you're right LordOWar? This is the best pic I can find for the lower mounting point for future reference.



LordOWar

Well-Known Member

• Sep 8, 2016

• #46

If you have a look at this old listing on ebay you will see the 2 brackets. I'm not 100% sure on how they fit as mine were missing and the panel was just resting between the wings.

http://www.ebay.co.uk/itm/LAND-ROVE...D&orig_cvip=true&rt=nc&_trksid=p2047675.l2557



Rubins4

Well-Known Member

• Sep 9, 2016

• #47

Great, thanks for that. I didn't understand what you meant by apron as mine doesn't have one; there is was a capstan there instead.



Rubins4

Well-Known Member

• Sep 16, 2016

• #48

OK, better picture of the random bracket. Its got a square bit that goes into a threaded bit at one end, and just a hole in the other end.

It was covered in oily crap so suspect it was from engine/gearbox area



Blackburn

Well-Known Member

• Sep 17, 2016

• #49

Wading plug for bottom of bellhousing.



wattfield

AKA Dirk Diggler

• Sep 17, 2016

• #50

It des look like a wading plug, but why is it in a bracket?



Rubins4

Well-Known Member

• Sep 18, 2016

• #51

Dunno, but the bracket is now bolted to the bottom of the flywheel housing for easy access, in case I ever go wading



Blackburn

Well-Known Member

• Sep 19, 2016

• #52

exactly what the bracket is for keeps it next to where it is needed.



Rubins4

Well-Known Member

• Jan 11, 2017

• #53

Rubins4 said:

1.
View attachment 106863

Click to expand...

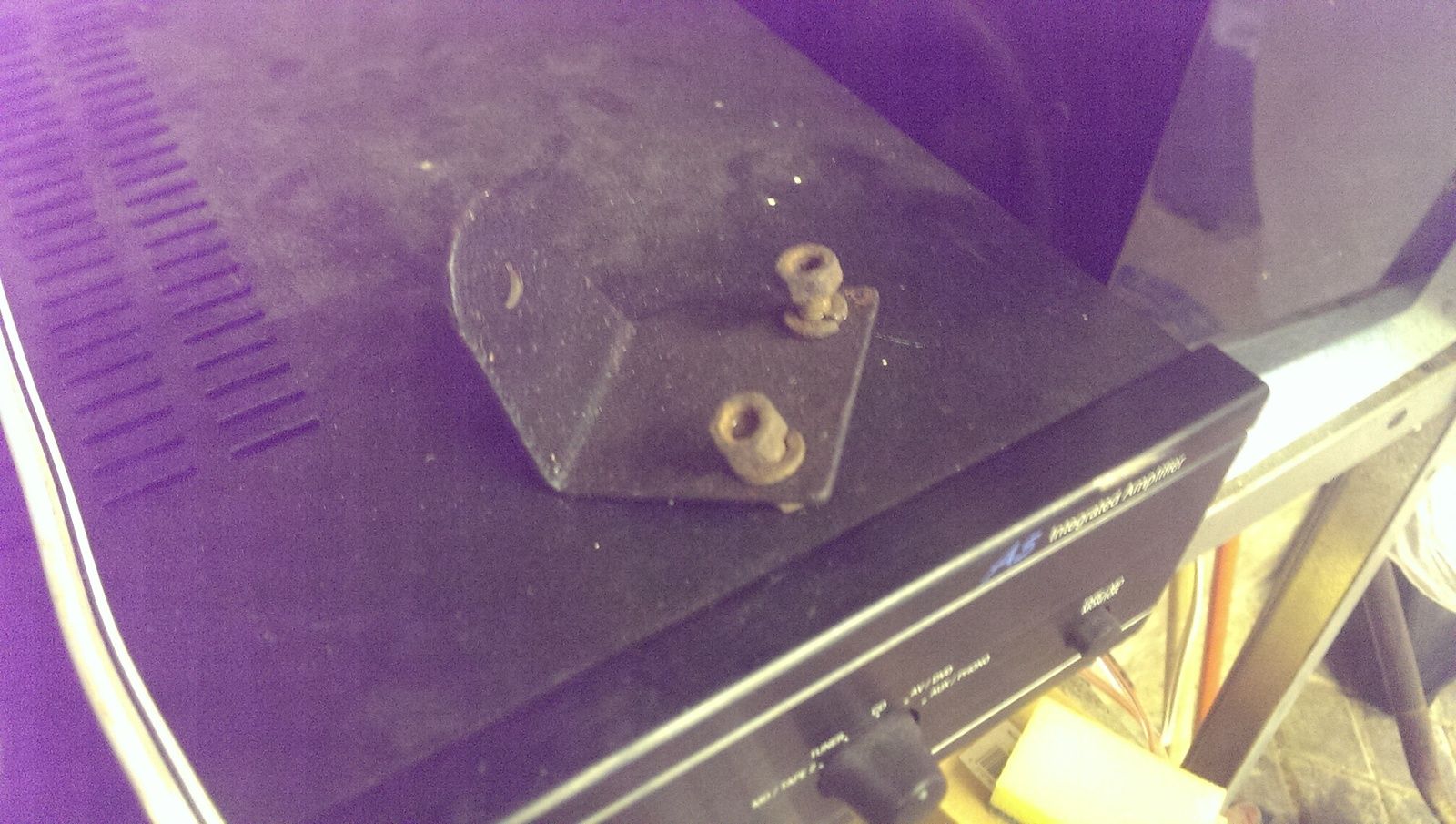

Right, this is for mounting the horn on on the front panel behind the grill, for all those still wondering...



Rubins4

Well-Known Member

• Jul 17, 2017

• #54

More random bits to identify, this time to do with the rear tub....

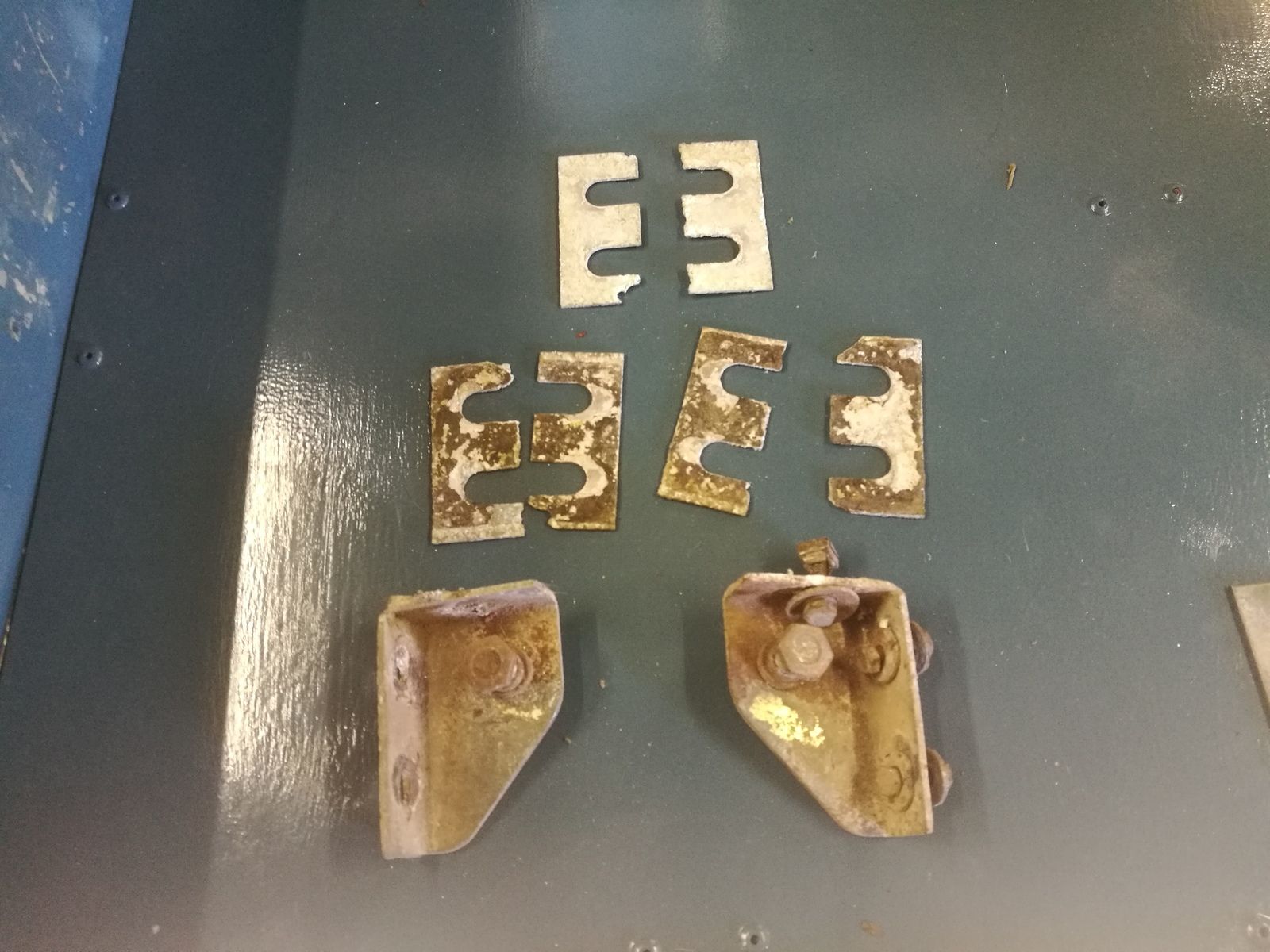

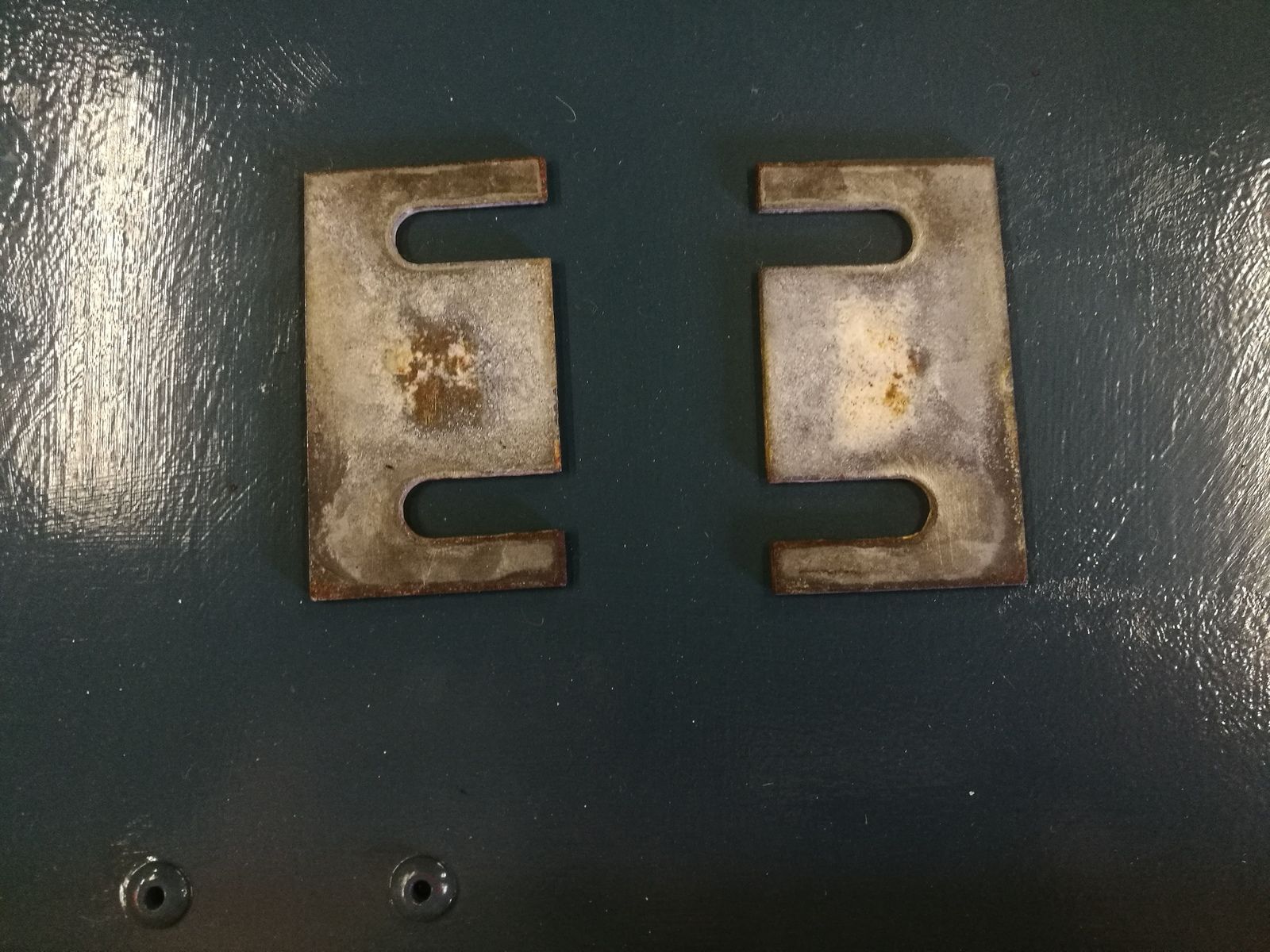

I know the E shaped plates/shims go in between the chassis an dthe tub, but I have alot more places they could go than plates. Is there a particular way to set it up?

The bigger brackets at the bottom I have no idea.

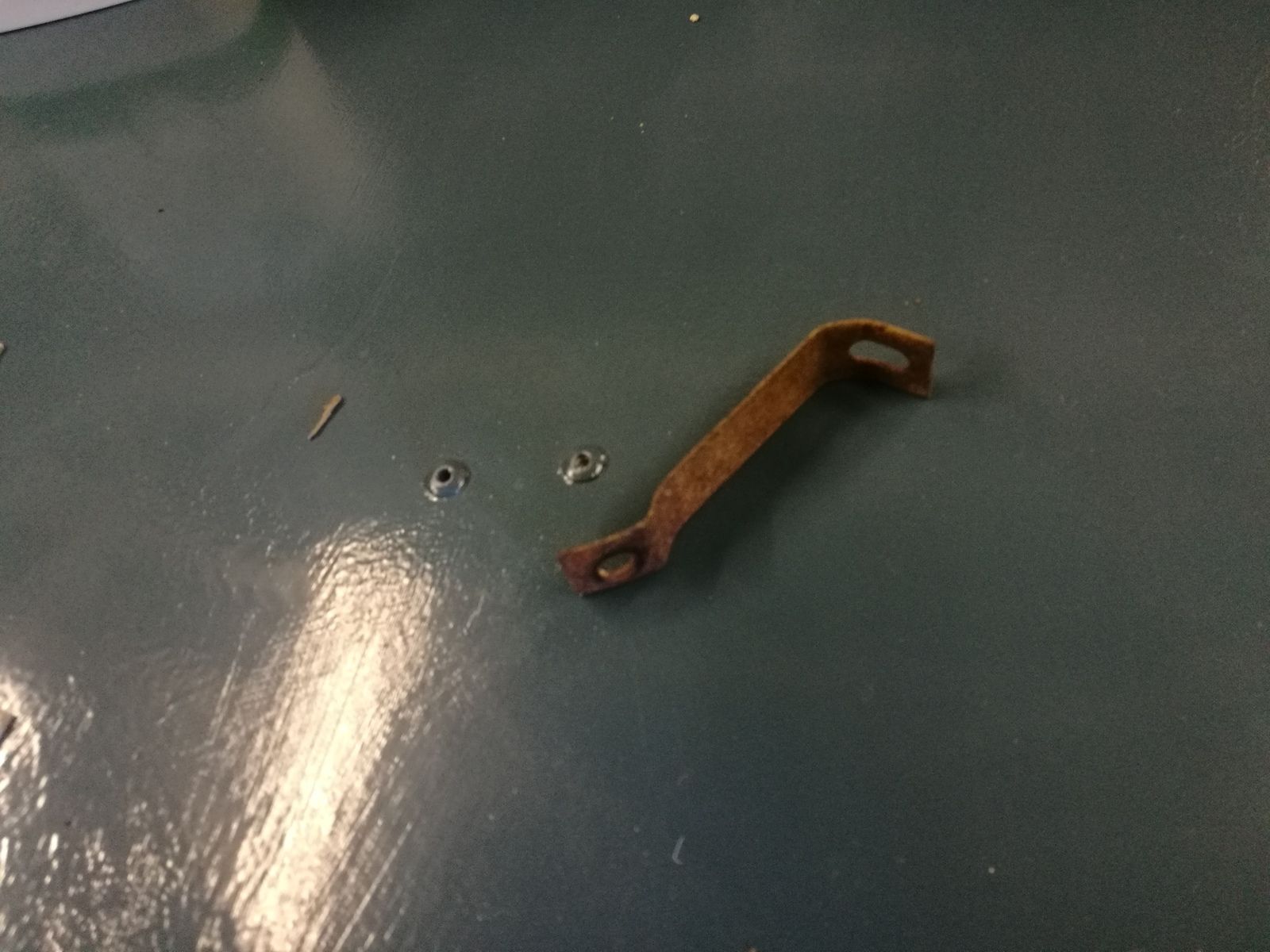

This one haunts me

These I think are shims for the door strikers but not sure

As ever, only internet hero points available for the winners.



jamesmartin

Well-Known Member

• Jul 17, 2017

• #55

triangle shaped brackets are lower seat belt mounts fit rear lower corner of seat box



Rubins4

Well-Known Member

• Jul 17, 2017

• #56

Thank you James
