steve2286w
Well-Known Member
I think as previous owner has head off ,he’s replaced the roller and brass guide
But you mentioned other symptoms
- Engine leaking oil , where from , is it burning oil
- White smoke , when engine cold or hot
- Black smoke accelerating , hot or cold
I would have sump back on and see how it performs for a petrol engine , mpg, 0-60 , check timing, tappet clearances, plug condition, engine compression etc you can put a vid up of engine running and the guys on here with petrol,engines can give 2nd opinion of how it sounds , some say as quiet as a sewing machine mines a noisy diesel. After this then decide if any problem big enough to strip engine . With sump off you can remove a big end or main bearing quickly to see if bearings worn while off

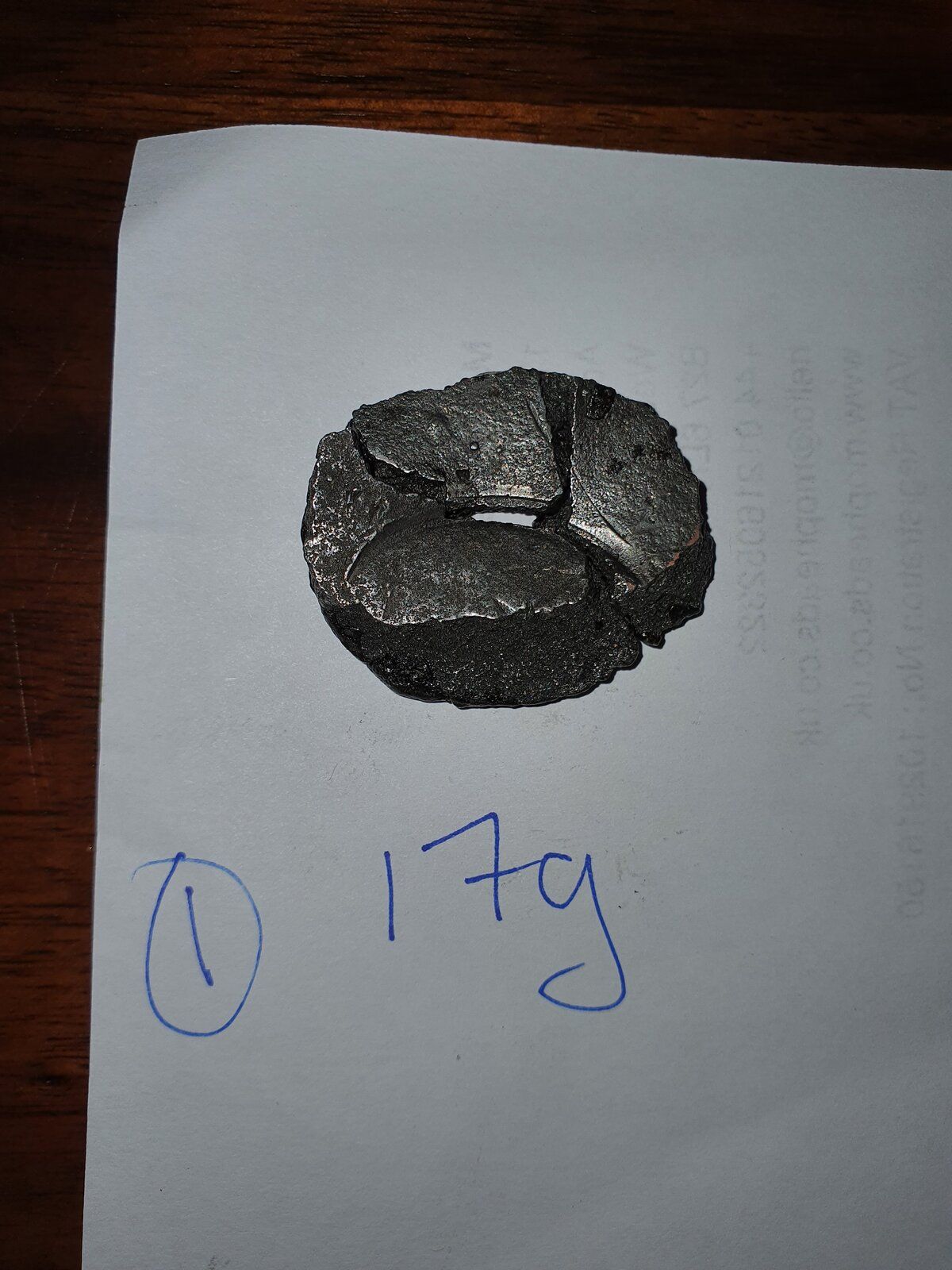

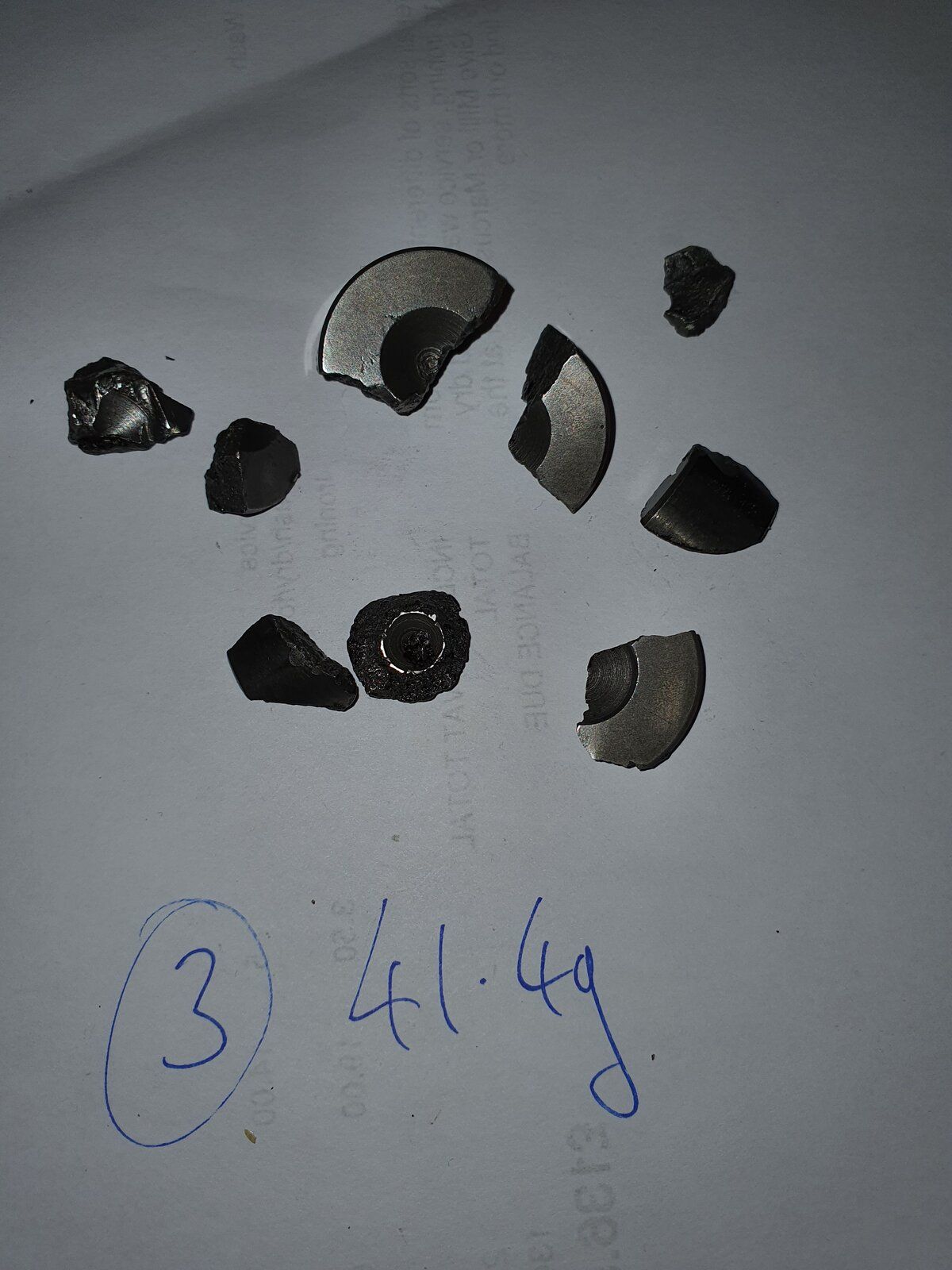

Here's my effort at fitting pic 3 bits together. Only superglued my fingers together twice lol. See photo. Total weight 43g. I can't get the other bits to fit but maybe just too mangled.
There are two dimple profiles. I have tried to illustrate by drawing the profile. One has a shoulder the other does not. I am hoping steve you can confirm this from the one on your bench?
I've ordered the sump gasket. Will do when it arrives and post a video.
Other:
White smoke cold
Black under acceleration hot or cold
There are two dimple profiles. I have tried to illustrate by drawing the profile. One has a shoulder the other does not. I am hoping steve you can confirm this from the one on your bench?
I've ordered the sump gasket. Will do when it arrives and post a video.
Other:
White smoke cold
Black under acceleration hot or cold
Attachments
steve2286w
Well-Known Member
The other bit ? That will be same as Guns post where wrong bolt been inserted through timing case and over tightened forcing off a bit of the casting not the end of the world as just a case of putting a stud in with loctute or similar
do spark plugs look black and sooty which would indicate a rich mixture and black smoke
Last edited:
Wildefalcon
Well-Known Member
I'd have a look at the cam shaft, it can be inspected by taking the side covers off.
Wildefalcon
Well-Known Member

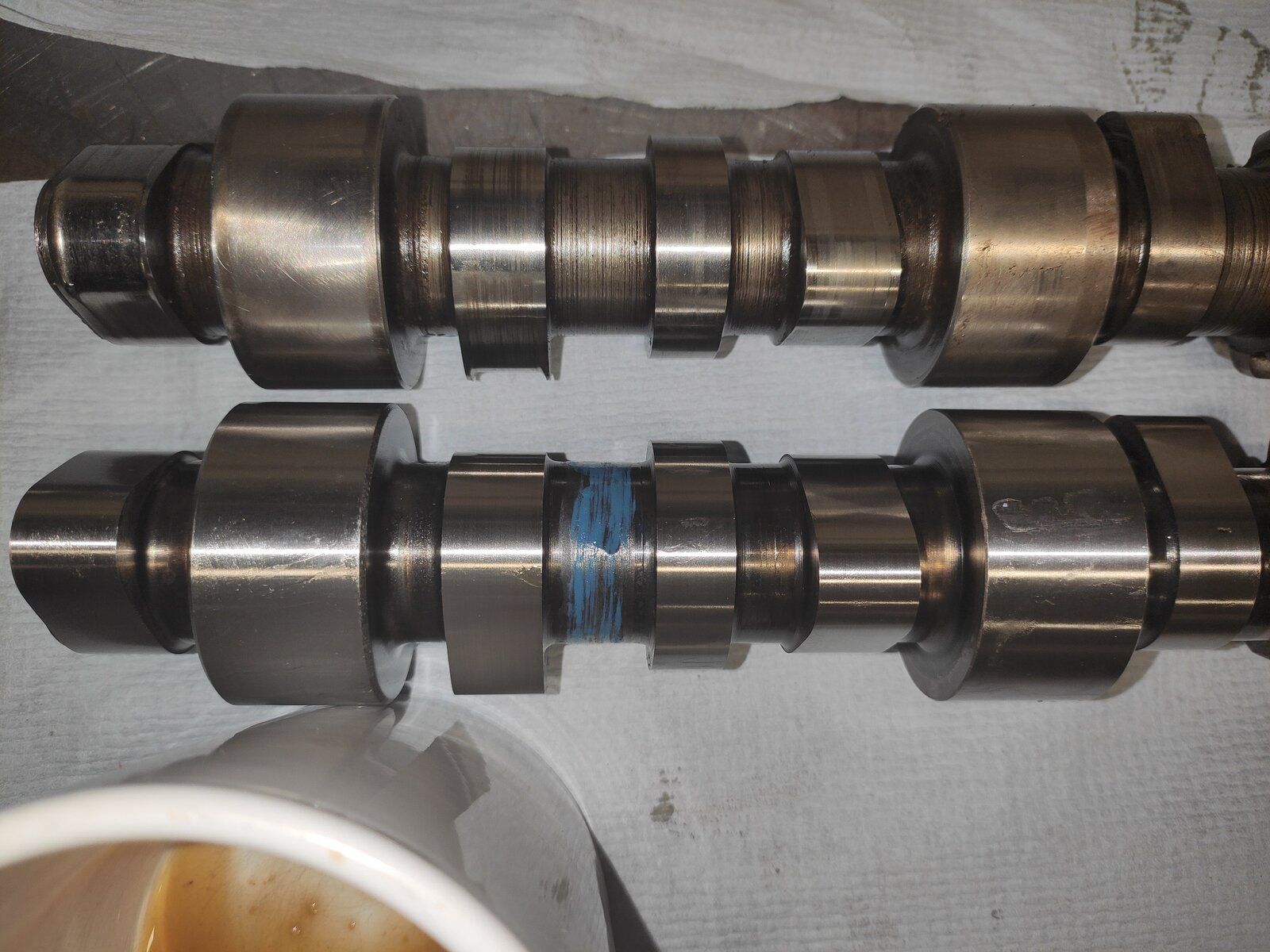

You are looking for damage to the lobes.
Like this.
Top camshaft has a huge worn spot in the middle.
Like this.
Top camshaft has a huge worn spot in the middle.
steve2286w
Well-Known Member
That must have been well noisy
Wildefalcon
Well-Known Member
I didn't run the engine like that. Bought it for £100 with an ACR head, and it's been rebuilt since.
Bobsticle
De Villes Advocaat
Give over. It’s hardly run in that.
Colthebrummie
Well-Known Member
Agreed, it dont look too bad, maybe the pic is deceptive.Give over. It’s hardly run in that.
Col
Colthebrummie
Well-Known Member
Just as a matter of interest, why did you drop the sump?
Col
Col
steve2286w
Well-Known Member
To me the plugs look ok and neither oily or sooted up
Colthebrummie
Well-Known Member
I think they look blacker than they should, it seems to me the engine is running a bit rich. When its all up and running, give the plugs a good clean, take it for a long run and check them again.
Col
Col
Hi, I got it running last night, let it warm up and then took the video with the rocker cover off.
https://kapwi.ng/c/RhgPve3hxz
All looks and sounds ok to me. Any views?
Also checked compression 10bar / 140psi on 2x and 9.5 bar / 135psi on 2x. Ok I think. Valve clearances made small adjustments. Knocking sound when I put the rocker cover back on but I think I've maybe just screwed it down too tight.
https://kapwi.ng/c/RhgPve3hxz
All looks and sounds ok to me. Any views?
Also checked compression 10bar / 140psi on 2x and 9.5 bar / 135psi on 2x. Ok I think. Valve clearances made small adjustments. Knocking sound when I put the rocker cover back on but I think I've maybe just screwed it down too tight.
The only correct way to check the plugs as they are being used is to do a plug chop.
Get car hot, find decent bit of road where you make the old girl work and have somewhere safe to stop, give her some beans in say third (not just a whiff of throttle, but pulling hard for at least a few seconds) then at 3/4 revs switch of ignition and coat to a halt, remove and check the colour of the plugs.
